Clamp Profile and Geometry: Selecting the Right Design to Prevent Hose Distortion

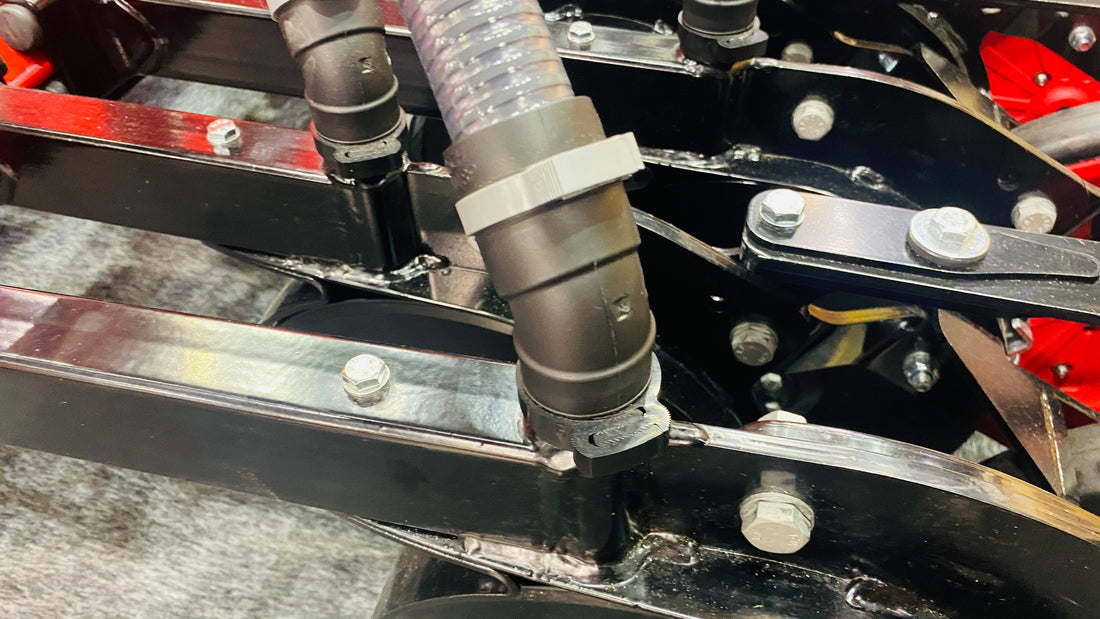

The geometry of a hose clamp — band width, inner band profile, edge treatment, and housing design — determines how clamping force contacts the hose surface and whether that contact preserves the hose's circular cross-section or causes distortion. Four distinct distortion modes occur when clamp geometry is mismatched to the hose type or application; each has a specific geometry solution. Browse standard worm drive clamps and special worm drive clamps for the full profile range.

The Four Hose Distortion Modes and Their Causes

1. Ovalization

The hose cross-section deforms from circular to oval under clamp pressure. Primary causes: clamp installed at the maximum of its diameter range (too little band overlap, insufficient hoop stiffness); hose wall too thin or soft for the clamp's rated clamping force; T-bolt clamp installed at too-small a diameter for the clamp geometry. Ovalization creates a gap between hose and fitting at the major axis of the oval — the primary leak path.

Geometry solution: Select a clamp whose mid-range matches the hose OD. For thin-wall soft hose, specify a wider band (wider band = lower peak contact pressure per unit area = less tendency to oval). See our stress distribution guide for the contact pressure calculation.

2. Extrusion Through Band Perforations

Soft hose material (silicone, EPDM, thin-wall polyurethane) extrudes into the perforation slots of a standard perforated band under clamping pressure. At high clamping force, the hose surface develops a ridged pattern corresponding to the perforation pitch. Consequences: stress concentration at each ridge (hose wall fatigue site under thermal cycling); restricted cleanability in food and pharmaceutical applications; potential hose wall weakening at extrusion points.

Geometry solution — smooth non-perforated band: Mikalor ASFA-S uses a smooth embossed non-perforated 304SS or 316SS band — continuous contact across the full band width with no perforation gaps. The embossed profile provides band stiffness without perforations. Correct for soft silicone charge-air hose, food processing CIP tubing, medical device connections, and offshore topsides where hose integrity must be maintained through repeated thermal cycling.

Geometry solution — lined band: Ideal Tridon Pow'r-Gear PE-lined clamp — a standard perforated worm drive band with a polyethylene inner liner that sits between the band perforations and the hose surface. The liner prevents hose material reaching the perforations and provides vibration damping. The liner itself can degrade in chemical environments; check liner compatibility with the fluid chemistry before specifying. See our lined clamps guide.

3. Band Edge Damage

The transverse edges of a clamp band — running parallel to the hose axis — create line contacts at the band edge that generate peak stress significantly above the nominal contact pressure of the band body. On corrugated silicone hose (turbocharger charge-air, intercooler piping), a standard sheared band edge can cut through the silicone corrugation wall under installation torque and vibration over the service life. The cut propagates through the hose wall and produces a sudden coolant or charged-air loss.

Geometry solution — bevelled band edges: The Mikalor Supra T-bolt band has bevelled (rolled-over) edges — the band edge is formed to a gradual radius rather than a sheared flat edge. Contact stress at the band edge distributes over a width rather than concentrating at a line. For Class 8 diesel charge-air silicone hose where band edge cutting is a known failure mode, bevelled edges are the correct specification.

Geometry solution — wider band: Increasing band width reduces peak contact pressure at the band edge as a fraction of total clamp width. JCS Hi-Torque 16mm wide band provides 33% more band width than the standard 12mm, reducing edge stress proportionally for the same clamping force.

4. Wrinkling and Buckling

Thin-wall or convoluted hose (corrugated flexible exhaust, convoluted tubing in automotive underhood) buckles circumferentially under over-tight clamp pressure, forming wrinkles or folds in the hose wall beneath the band. Wrinkling creates stress concentration sites in the hose wall and disrupts the geometry of the hose-to-fitting seal. Primary cause: over-torquing beyond the hose wall's buckling load; secondary cause: clamp positioned over a corrugation peak rather than a valley on corrugated hose.

Geometry solution: Install to the manufacturer's specified torque — the torque specification is calibrated to seat the hose without inducing buckling. On corrugated hose, position the clamp at the valley of the corrugation (the smallest diameter) rather than the peak. Wider bands reduce the per-unit-area pressure that drives buckling. See our torque specifications guide.

Geometry Feature Selection by Hose Type

Hose Type	Primary Distortion Risk	Correct Clamp Geometry	HCL Product
Standard EPDM rubber (automotive cooling)	Ovalization if under-sized; edge marks at installation torque	Standard 12mm perforated band, correct diameter range	W4 worm drive standard
Soft silicone (charge-air, intercooler)	Extrusion into perforations; band edge cutting on corrugations	Smooth non-perforated band + bevelled edges for corrugated silicone	Mikalor ASFA-S; Mikalor Supra T-bolt for corrugated
Food-grade silicone / pharmaceutical tubing	Extrusion creating surface ridges; cleanability compromise	Smooth non-perforated band; liner as alternative	Mikalor ASFA-S
Thin-wall convoluted or bellows tubing	Wrinkling and buckling under over-torque	Standard band at correct torque; position at corrugation valley	W4 worm drive; constant tension as alternative
Large-bore soft marine hose	Edge damage under high clamping force at large diameter	Wide band (16mm) to reduce peak edge pressure	JCS Hi-Torque W5
Polyurethane / thin-wall PVC tubing	Extrusion into perforations; ovalization	Lined band (PE liner protects thin-wall from perforation contact)	Ideal Tridon Pow'r-Gear lined

Clamp Positioning: Geometry of Placement

The axial position of the clamp on the hose-fitting assembly is a geometry factor that affects sealing regardless of clamp type:

• Position over the fitting bead: The clamp band should sit over the fitting bead or barb — the raised feature on the fitting designed to provide hose retention. Positioning the band behind the bead (between the bead and the hose end) reduces pull-off resistance and misses the designed seal point
• Minimum distance from hose end: SAE J1508 recommends positioning the clamp at least 1/4" (6mm) from the hose end to ensure the band engages the full hose wall thickness rather than the thinner edge section
• On corrugated hose: Position at the valley of the corrugation (the smallest OD point) — clamping at the peak means the band bridges across the corrugation peaks with reduced contact, inadequate sealing, and risk of hose extrusion at the unclamped valleys

Frequently Asked Questions: Clamp Profile and Geometry

My silicone hose shows ridges under the clamp after removal — is this a problem?

Yes — ridges on the hose surface correspond to the perforation pattern of the clamp band; the silicone has extruded into the perforation slots under clamping pressure. Mild surface ridging in soft silicone is common with standard perforated bands and may not immediately compromise the seal if the hose is still seated on the fitting. However, each ridge is a stress concentration in the hose wall — under repeated thermal cycling (each engine heat cycle), these ridges become fatigue crack initiation sites. For silicone connections that must remain leak-free over a long service life or that cycle frequently, specify the Mikalor ASFA-S smooth non-perforated band to prevent extrusion entirely.

Does a wider clamp band always prevent hose distortion?

A wider band reduces peak contact pressure per unit area, which directly reduces extrusion through perforations and edge-line damage. It does not prevent ovalization — that is a function of clamp-to-hose diameter matching and band hoop stiffness. And a wider band at the same clamping force requires more axial space on the fitting; on fittings with short barbs or limited hose insertion depth, a standard 12mm band may be the only option that seats fully over the bead. Specify wider band where axial space permits and the hose type (soft silicone, large-bore marine) warrants the reduced contact pressure.
