Fatigue Strength in Hose Clamps: Failure Mechanisms and Product Selection for Dynamic Systems

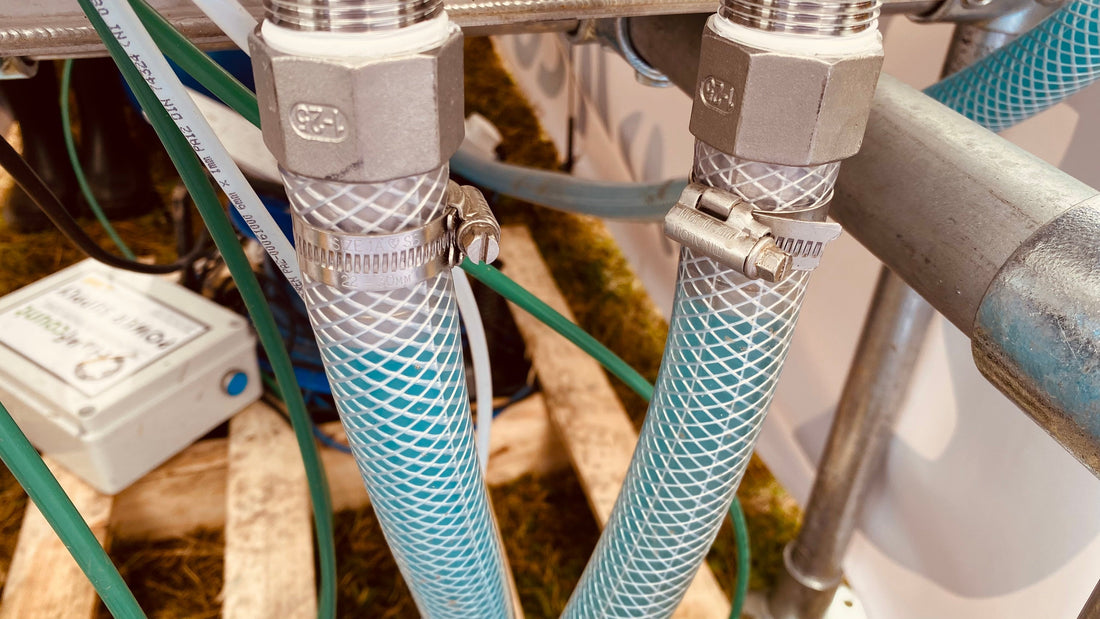

In dynamic US applications — Class 8 diesel engine compartments, Gulf Coast offshore compressors, automotive power trains, industrial pump connections — hose clamps experience not static load but cyclic stress: repeated vibration cycles, pressure pulsations, and thermal expansion and contraction. A clamp's fatigue strength determines whether it maintains structural integrity across thousands of these cycles or initiates a crack that propagates to sudden failure. Understanding the fatigue mechanism helps explain why product design and grade selection matter for vibrating and thermally cycling connections. Browse heavy duty hose clamps for high-vibration US applications.

The Fatigue Failure Mechanism

Fatigue failure is progressive and localized — it does not announce itself with visible deformation or creep before the final fracture. The three-stage process:

1. Crack Initiation

Microscopic cracks begin at stress concentration points — the locations in a clamp's geometry where local stress rises significantly above the nominal stress in the surrounding material. In hose clamps, the primary crack initiation sites are:

• Sharp corners at band perforations — each perforation hole is a stress concentrator; the stress at the edge of a circular hole is approximately three times the nominal band stress (stress concentration factor Kt ≈ 3.0 for a circular hole in a tensile field). This is why smooth non-perforated band designs (Mikalor ASFA-S) have better fatigue performance than standard perforated bands in high-vibration applications
• The band-housing interface — where the band enters the crimped housing, a geometric discontinuity concentrates stress during each vibration cycle
• Surface pitting from corrosion — pitting from chloride attack on 304SS in coastal environments creates sharply-notched surface defects that act as crack initiators; one more reason W5 (316SS) is specified in Gulf Coast environments where pitting corrosion of W4 bands is progressive
• Worm drive screw thread roots — each thread root is a stress concentrator; under sustained vibration, the thread root stress cycles with each engine vibration event

2. Crack Propagation

Once initiated, cracks grow incrementally with each load cycle — one cycle advances the crack by a measurable distance (Paris Law: crack growth rate da/dN = C(ΔK)^m, where ΔK is the stress intensity factor range at the crack tip). The crack tip is a sharp stress concentrator that intensifies the local stress field beyond the bulk material yield strength in a small plastic zone ahead of the tip. Each cycle advances the plastic zone and leaves a visible "beach mark" on the fracture surface — the forensic signature of fatigue failure distinguishable from overload fracture at post-failure inspection.

3. Final Fracture

When the propagating crack reduces the remaining load-bearing cross section below the critical area for the applied stress, the remaining ligament fractures suddenly — often at stress levels well below the material's static ultimate tensile strength. In a hose clamp, this produces sudden band separation or screw fracture without prior visible warning, distinguishing fatigue failure from the gradual deformation of static overload.

Material Properties and Fatigue Limits

Ferrous metals — including the 304SS and 316SS used in W4 and W5 hose clamps — exhibit a genuine fatigue limit (endurance limit): a stress amplitude below which the material can theoretically sustain an infinite number of cycles without fatigue crack initiation. Aluminum alloys and most non-ferrous metals do not have a true endurance limit — their fatigue strength continues to decrease with increasing cycle count even at low stress amplitudes. This distinction is relevant for polymer clamp materials (PA66, POM) — polymer fatigue behaviour is time and temperature dependent, which is why polymer snap-fit clamps are not rated for sustained high-frequency vibration environments.

For 304SS (W4): the endurance limit is approximately 40–50% of the ultimate tensile strength — for the cold-rolled band material used in worm drive clamps, this is typically in the range of 200–280 MPa for fully-reversed bending. For 316SS (W5): similar endurance limit with the addition of improved resistance to corrosion fatigue — the synergistic acceleration of fatigue crack growth by simultaneous corrosive attack — which is the failure mode that most concerns offshore topsides applications where W4 is under-specified.

Design Features That Improve Hose Clamp Fatigue Life

Smooth band and generous radii — Mikalor ASFA-S

The Mikalor ASFA-S smooth non-perforated embossed band eliminates the primary fatigue stress concentrators present in perforated band clamps — the perforation holes. The smooth band also eliminates crevice corrosion at perforation sites, removing the secondary fatigue initiation mechanism (corrosion pitting). The embossed profile provides stiffness without perforations. For high-vibration diesel and offshore applications where band fatigue is the failure concern, the smooth band is the engineering-correct specification over standard perforated band.

Captive barrel-nut — Mikalor Supra T-bolt

The Mikalor Supra captive barrel-nut T-bolt addresses screw thread fatigue back-off — the progressive loosening of a worm drive clamp screw under sustained vibration as the thread root stress cycles with each engine event. The captive barrel-nut cannot disengage from its housing even if thread friction is overcome — the clamp retains structural integrity through the fatigue life of the bolt rather than failing by screw back-off. See our T-bolt clamps guide.

Stepless ear clamp — Oetiker

Oetiker stepless ear clamps eliminate the worm drive screw thread as a fatigue-susceptible component entirely — the crimp provides a permanent, non-adjustable connection with no threaded interface to back off or fatigue under vibration. The calibrated crimp also eliminates the over-torque stress concentration that a poorly-tightened worm drive introduces at the band-housing interface. For OEM automotive fuel and cooling connections where fatigue life over vehicle service life must be guaranteed, the ear clamp's permanent, tool-controlled installation is the engineering preference over field-torqued worm drive. See our ear clamps guide.

US Application Context: Where Fatigue Governs Clamp Selection

US Application	Fatigue Driver	Correct Specification
Class 8 diesel engine — Freightliner, Peterbilt, Kenworth	600–2,200 RPM sustained engine vibration	Mikalor Supra T-bolt W4 — captive barrel-nut
GoM offshore compressors and pumps	Compressor vibration + W4 corrosion fatigue	Mikalor ASFA-S smooth band W5
Automotive OEM fuel and cooling — permanent connection	Vehicle lifetime cyclic loading + regulatory requirement	Oetiker stepless ear clamp W4
Industrial pump — pressure pulsation	Pressure pulse frequency × pump RPM cycles	W4 worm drive re-torqued at service; or Mikalor constant tension
Marine diesel — saltwater + vibration	Corrosion fatigue — W4 pitting accelerates crack initiation	Mikalor ASFA-S smooth band W5; JCS Hi-Torque W5

Correct Installation Torque: Its Role in Fatigue Life

Installation torque directly affects mean stress — the static component on which the cyclic vibration stress is superimposed. Over-torquing pre-stresses the band or screw above the material's fatigue limit, meaning even small vibration amplitudes push the peak cyclic stress above the endurance limit and initiate fatigue cracks early in service. Under-torquing allows micro-movement between the hose and fitting under vibration — fretting wear that creates abrasive debris and surface damage at the contact interface, both of which act as fatigue crack initiation sites. The manufacturer's specified torque establishes the correct mean stress for the designed fatigue life. See our torque specifications guide.

Testing: S-N Curves and Fatigue Life Evaluation

Fatigue strength is quantified through cyclic loading tests — specimens or complete clamp assemblies are loaded at a defined stress amplitude and cycled to failure; the number of cycles to failure (N) is plotted against the stress amplitude (S), producing an S-N (Wöhler) curve. The curve's knee — where it flattens for ferrous metals — defines the endurance limit. Relevant standards include ASTM E606 (strain-controlled fatigue testing of metals) for material characterisation. SAE J1508 governs worm drive hose clamp performance broadly; specific fatigue testing protocols for clamp assemblies under dynamic loading are specified by OEM vehicle manufacturers in their supplier technical specifications rather than in a single publicly-available standard.

See our ASTM testing guide and SAE standards guide.

Frequently Asked Questions: Fatigue Strength in Hose Clamps

How does vibration cause a hose clamp to fail if the vibration stress is below the material's yield strength?

Fatigue failure occurs at stresses well below the static yield strength — this is its defining and counterintuitive characteristic. A 304SS worm drive clamp band has a yield strength of approximately 310 MPa and a fatigue endurance limit of approximately 200–280 MPa. An engine vibration cycle imposes a stress amplitude far below yield, but if that amplitude exceeds the endurance limit at a stress concentration point (a perforation hole, a band-housing junction), a microscopic crack initiates and advances incrementally with each cycle. After enough cycles — potentially millions — the crack reaches critical size and the remaining section fractures suddenly. The failure appears sudden but is the cumulative result of millions of individually sub-yield stress cycles.

Does a heavier-duty clamp always have better fatigue resistance?

Not always — fatigue life depends on design geometry and material grade as much as physical size. A Mikalor Supra T-bolt with a captive barrel-nut outlasts a generic standard-hex T-bolt in sustained vibration not because it is heavier but because the barrel-nut housing prevents nut back-off regardless of thread fatigue. A smooth-band Mikalor ASFA-S outlasts a standard perforated-band clamp of the same grade in high-vibration applications not because of band thickness but because the smooth band eliminates perforation stress concentrators. Matching the design feature to the specific fatigue driver — vibration back-off, band fatigue, corrosion fatigue — is more important than specifying the largest or heaviest available clamp.

Can I extend a hose clamp's fatigue life by re-torquing it periodically?

Re-torquing prevents fatigue failure driven by screw back-off (the progressive loosening of worm drive clamps under vibration that reduces mean clamping stress). It does not arrest band or screw fatigue cracking that has already initiated. In high-vibration applications where re-torquing at 500-hour intervals is the maintenance practice, use a calibrated torque wrench to the manufacturer's specification — under-torque leaves the connection loose and over-torque adds static mean stress that reduces the remaining fatigue life. For connections where periodic access for re-torquing is not practical, a captive barrel-nut T-bolt or constant tension worm drive removes the back-off mechanism entirely. See our constant tension clamps guide.
