Stress Distribution in Hose Clamps: Radial Pressure, Band Width, and Hose Wall Damage

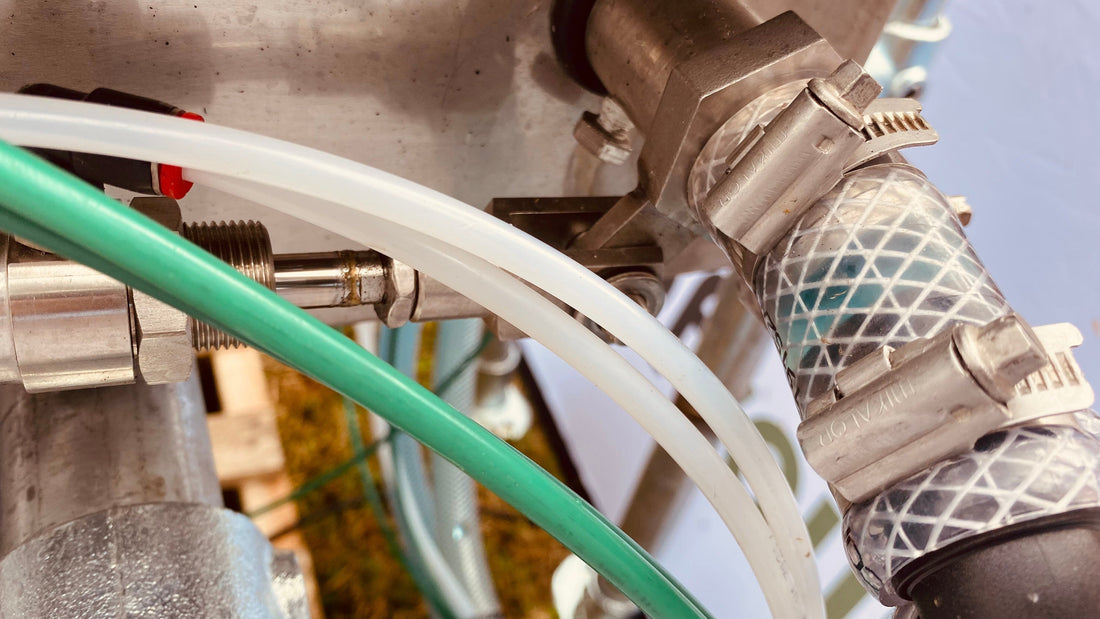

A hose clamp's job is to apply consistent radial pressure to a hose around its full circumference against the fitting bead — sealing the hose to the fitting. How evenly that radial pressure distributes determines whether the connection seals reliably, whether the hose wall is damaged by peak contact stresses, and whether the connection leaks at the low-pressure points in the circumferential pressure distribution. Band width, band profile, screw housing geometry, and installation torque all affect how clamping force distributes spatially around the hose. Browse standard worm drive clamps and special worm drive clamps.

Radial Pressure Distribution: Why It Is Not Uniform

In an ideal hose clamp, the radial contact pressure between the band and the hose outer surface would be constant at every point around the circumference. In practice, worm drive clamps produce non-uniform pressure distribution for two structural reasons:

• Housing stiffness discontinuity: The screw housing is a rigid formed steel component attached to the band. As the band is tensioned, the housing acts as a stiff bridge that transfers load across the housing gap without following the hose curvature. The result: higher contact pressure where the band transitions into the housing, and a zone of lower pressure at the housing gap itself — the point where the band ends and the housing begins. For small-diameter hoses where the housing represents a larger fraction of the total circumference, this pressure drop at the housing gap is proportionally more significant
• Band overlap section: Standard perforated worm drive bands have an overlap section where one end of the band passes behind the other. The inner ply of the overlap contacts the hose but at a different stiffness than the single-ply section — the overlap zone creates a slight step in the contact pressure profile

Band Width and Contact Pressure per Unit Area

The contact pressure (force per unit area) that the clamp applies to the hose surface is a function of the total clamping force and the contact area — band width multiplied by the contact arc length. For the same clamping force:

• Standard 12mm (1/2") band (SAE J1508 minimum for worm drive): provides a baseline contact pressure. On a 25mm OD hose, the contact area is approximately 78mm × 12mm = 940mm². The peak contact pressure under the band edge is concentrated in a narrow line at each band edge
• Wide-band 16mm (5/8") band (JCS Hi-Torque): at the same clamping force on the same hose, the contact area increases to approximately 78mm × 16mm = 1,250mm² — 33% more area. Contact pressure per unit area drops by the same proportion. On soft marine hose where the 12mm band edge would cut into the hose surface at operating torque, the 16mm band stays within the hose wall's elastic limit

This is the practical engineering justification for JCS Hi-Torque's Lloyd's Register Type Approval in marine applications — wider band, lower peak contact pressure per unit area, better preservation of soft hose wall integrity at the clamping forces required to seal large-bore marine connections.

Smooth Inner Band vs Perforated: Hose Wall Contact Stress

Standard worm drive bands are perforated across their width to engage the screw thread. Each perforation creates a line of zero contact area across the band width. The hose surface at each perforation is unsupported — under the clamping pressure of the surrounding band sections, soft hose material (silicone, EPDM) extrudes slightly into the perforation opening. The consequences:

• A ridged surface deformation pattern on the hose outer surface — visible as evenly-spaced transverse ridges corresponding to the perforation pitch
• Each ridge is a stress concentration in the hose wall — under thermal cycling (the hose expanding and contracting with each engine heat cycle), these ridges act as fatigue crack initiation sites in the hose material itself
• In food and pharmaceutical CIP applications, the ridged pattern creates hose surface irregularities that trap product and resist cleaning

Mikalor ASFA-S smooth non-perforated band eliminates all of these effects — continuous contact around the full band width with no unsupported zones. The embossed profile provides band stiffness without perforations. For soft silicone hose at elevated temperatures, food grade CIP connections, and offshore applications where hose integrity is critical, the smooth band is the correct specification.

Bevelled Band Edges: Reducing Edge Stress

The edges of a hose clamp band are high-stress lines — the contact pressure peaks sharply at each band edge and drops to zero beyond it. On a standard sheared band edge, this contact geometry creates a near-line contact at the band edge, producing very high local contact pressure regardless of the nominal clamping force. At high installation torque on stiff hose, sharp band edges cut into the hose surface.

The Mikalor Supra T-bolt addresses this with bevelled band edges — the band edge is rolled to produce a gradual transition from full contact pressure to zero. The contact stress at the band edge is distributed over a width rather than concentrated at a line. On corrugated silicone charge-air hose where sharp band edges are a known cause of hose perforations during thermal cycling, bevelled edges preserve the hose surface integrity over the service life of the clamp.

Bridge Lifting: The Band Stiffness Failure Mode

Bridge lifting is the failure mode where the clamp band raises off the hose surface near the screw housing, creating a gap between band and hose at the bridge. The stress distribution at the housing transition changes from compressive (band pressing hose) to bending (band being pulled away from hose by housing geometry). If the band is insufficiently stiff at the transition radius, or if the hose diameter is small relative to the housing height, the band lifts and the seal fails locally at the bridge gap.

Contributing factors and solutions:

• Small-diameter hoses (below approximately 20mm OD): the housing represents a higher fraction of the circumference and the band-to-hose curvature mismatch is greater — use a clamp whose diameter range is appropriate for the hose, positioning it in the middle of its adjustment range where band stiffness is correctly matched to the geometry
• Over-tightening: increases band tension beyond the band's ability to follow the hose curvature at the housing transition — the band lifts and the housing gap leaks. Correct torque per manufacturer specification prevents this
• T-bolt clamps: the swivelling bridge design of the Mikalor Supra is engineered to reduce bridge lifting by allowing the bridge to rotate and follow the hose contour more closely than a fixed bridge clamp

Stress Types in Hose Clamp Components

Three distinct stress types operate simultaneously in a tensioned worm drive clamp:

• Tensile stress in the band: The primary stress — the band is in hoop tension around the hose. Band tensile stress = clamping force / (band cross-sectional area = band width × band thickness). For W4 304SS band, the band must remain below the 304SS yield strength (approximately 310 MPa for annealed, higher for cold-worked) at maximum installation torque
• Shear stress at the screw-band interface: Where the screw thread engages the band perforations, the applied torque generates shear stress at the contact edges. This is the thread stripping mechanism — see our thread specifications guide
• Bending stress at the housing transition: The band changes direction through a radius at the housing entry; this produces a bending stress that superimposes on the tensile hoop stress. The combined stress at the housing transition is the highest stress point in the clamp — the location most susceptible to fatigue crack initiation under vibration. See our fatigue strength guide

Over-Tightening: What Happens Mechanically

Over-torquing a worm drive clamp on a soft hose produces a specific mechanical sequence:

• Hose wall yields in compression under the band — the EPDM or silicone hose material permanently deforms at the contact zone, reducing the hose OD locally
• As the hose material flows plastically under the band, the clamp diameter reduces — the screw advances further to maintain contact
• After the tool is removed, the hose wall creeps further over time (cold flow), reducing OD further and dropping clamping force below the minimum seal threshold
• At service, the clamp appears tight (screw is fully engaged) but clamping force is below specification — the connection leaks at pressure

The manufacturer's specified torque is calibrated to compress the hose to the correct seating depth on the fitting bead without yielding the hose wall. See our torque specifications guide.

Frequently Asked Questions: Stress Distribution in Hose Clamps

Why does a wider band reduce hose damage at the same clamping force?

Contact pressure equals clamping force divided by contact area. A wider band increases the contact area (band width × contact arc length), so the same clamping force produces a lower pressure per unit area on the hose surface. At lower contact pressure, soft hose materials (silicone, EPDM) remain within their elastic limit — they deform under the clamp and spring back when the clamp is removed — rather than yielding permanently. The JCS Hi-Torque 16mm wide band and the Mikalor ASFA-S smooth band both exploit this principle — wider or smoother contact distributes force and protects hose integrity at the clamping forces required for high-pressure marine and industrial connections.

Does over-tightening a hose clamp give a better seal?

No — it produces the opposite. A correctly torqued clamp seats the hose on the fitting bead and creates a consistent seal. Over-torquing yields the hose wall, which then creeps and cold flows further after installation, reducing the hose OD and dropping clamping force below the minimum required for sealing. The connection will appear tight (screw is engaged, band is firm) but will leak at operating pressure. The correct installation torque is the manufacturer's specified value, not the maximum achievable before slippage — use a calibrated torque wrench, not the maximum you can apply by hand.
