SAE Standards for Hose Clamp Performance: Ensuring Reliability & Safety

In critical applications, particularly within the automotive and industrial sectors, the performance of a hose clamp is not left to chance. The Society of Automotive Engineers (SAE) develops and publishes standards that define the minimum performance requirements, material specifications, and testing methodologies for a vast array of components, including hose clamps. Adherence to these SAE standards is a cornerstone for ensuring the reliability, safety, and consistent performance of hose connections, offering a common language of quality for manufacturers and end-users alike across the USA and globally.

The primary SAE standard governing hose clamp specifications is SAE J1508: Hose Clamp Specifications. This comprehensive standard covers numerous types of clamps most commonly used in OEM (Original Equipment Manufacturer) coolant, fuel, oil, vacuum, and emission systems. By setting clear benchmarks, SAE J1508 plays a pivotal role in preventing failures, ensuring interchangeability, and providing a framework for quality assurance.

Key Performance Aspects Covered by SAE J1508

SAE J1508 outlines detailed requirements for various aspects of hose clamp design and performance:

1. Material Specifications:
• The standard specifies the types of materials suitable for different clamp components (band, housing, screw). This includes various grades of stainless steel (e.g., SAE 201, 301, 304, 400 series) and carbon steel, often with specific plating or coating requirements for enhanced corrosion resistance.
• These material specifications ensure that clamps possess adequate strength, durability, and resistance to environmental degradation (like rust or chemical attack) for their intended applications.
2. Dimensional Requirements:
• SAE J1508 defines critical dimensions for different types of clamps, such as band width, band thickness, and screw head size. These dimensional specifications ensure proper fit with hoses and fittings, facilitating correct installation and consistent clamping force.
3. Torque-Performance Requirements:
• Installation Torque: The standard provides guidelines for the recommended installation torque values. Adhering to these values is crucial for achieving the optimal clamping force without over-stressing the clamp or the hose.
• Destructive Torque (formerly Ultimate Torque): This critical specification defines the minimum torque at which the clamp, or any of its components (like the screw or band), must fail. This provides a safety margin, ensuring the clamp can withstand forces beyond normal operating conditions before catastrophic failure.
• Proof Load Testing: While not explicitly detailed for all types, the standard's robustness implies that clamps must be able to hold a specified load without permanent deformation or significant loss of clamping force.
4. Corrosion Resistance Testing:
• A vital aspect, especially for clamps exposed to harsh environments (e.g., road salt, chemicals). SAE J1508 references or includes requirements for specific corrosion tests, such as the Neutral Salt Spray (NSS) test (often referencing ASTM B117). Clamps are typically required to withstand a minimum number of hours in a salt spray chamber without significant signs of red rust or other corrosion. Different material grades will have different resistance requirements.
5. Performance on Hose:
• The standard often includes tests where clamps are installed on specified hoses and subjected to various conditions, such as internal pressure, temperature cycles, and simulated vibrations, to assess their ability to maintain a seal and withstand operational stresses. This ensures the clamp performs reliably in a real-world assembly.
6. Types of Clamps Covered:

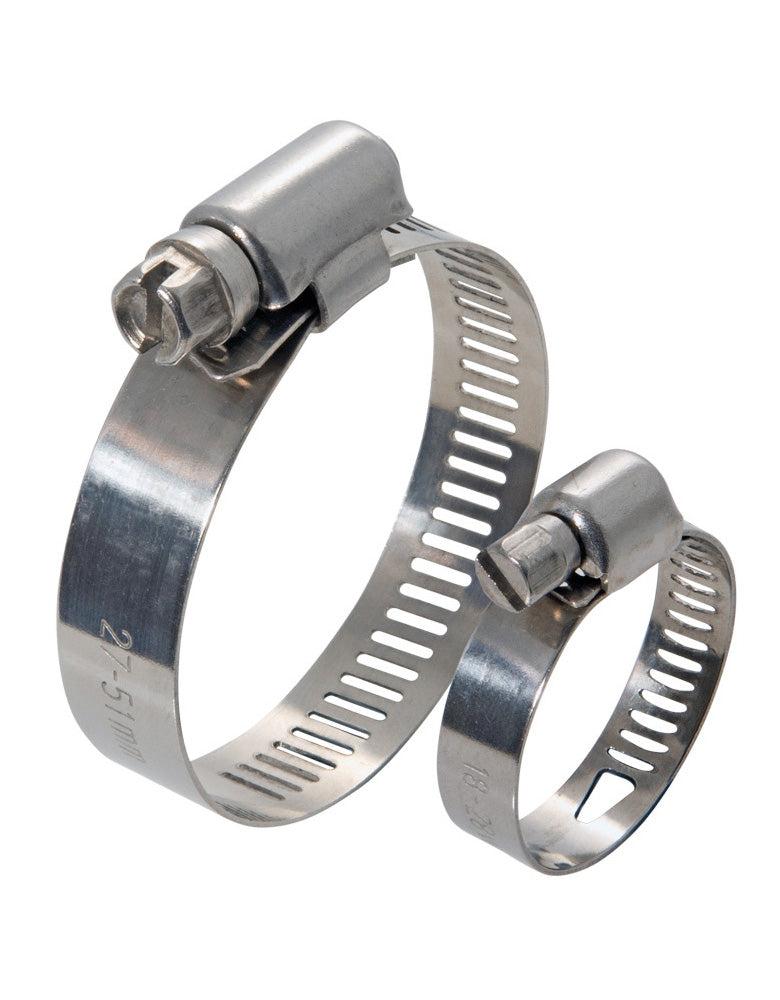

• SAE J1508 covers a wide range of clamp types, including various forms of worm drive clamps, spring clamps, T-bolt clamps, and ear clamps, often categorizing them (e.g., Type F for certain worm gear clamps, Type TB for T-bolt clamps, etc.) to define specific performance expectations for each.

How Adherence to SAE Standards Ensures Reliability & Safety

Adherence to SAE J1508 and other relevant SAE standards offers profound benefits for the entire industry:

• Standardization and Common Language: SAE standards provide a consistent framework and vocabulary for manufacturers, suppliers, and end-users, reducing ambiguity and ensuring that all parties have a clear understanding of product performance expectations.
• Quality Assurance and Benchmarking: By meeting SAE J1508 specifications, manufacturers demonstrate that their clamps meet rigorous minimum performance thresholds, assuring users of a certain level of quality and reliability. This acts as a benchmark for product comparison.
• Enhanced Reliability and Reduced Risk: Clamps designed and tested to SAE standards are inherently more reliable. This reduces the risk of leaks, disconnections, and catastrophic failures that can lead to equipment damage, costly downtime, and safety hazards (e.g., fluid spills or fires).
• Interchangeability: Standardized dimensions and performance criteria facilitate the interchangeability of clamps from different manufacturers, simplifying procurement, replacement, and inventory management.
• Compliance and Trust: In sectors like automotive manufacturing, adherence to SAE standards can be a prerequisite for supplier qualification. For consumers and industrial users, choosing SAE-compliant clamps builds trust in the product's quality and safety.
• Guidance for Design and Testing: For manufacturers, the standards provide a clear roadmap for design parameters, material selection, and the necessary testing protocols to validate product performance.

Conclusion: The Foundation of Dependable Connections

The SAE Standards for Hose Clamp Performance, particularly SAE J1508, serve as a cornerstone for ensuring the reliability and safety of fluid transfer systems in countless applications. By establishing precise specifications for materials, dimensions, torque performance, and corrosion resistance, these standards provide a robust framework that guides manufacturers in producing high-quality, dependable clamps. For engineers and users, choosing clamps that meet or exceed these rigorous SAE benchmarks is a fundamental step in mitigating risks, optimizing system performance, and guaranteeing the long-term integrity and safety of critical hose connections across the USA and globally.
