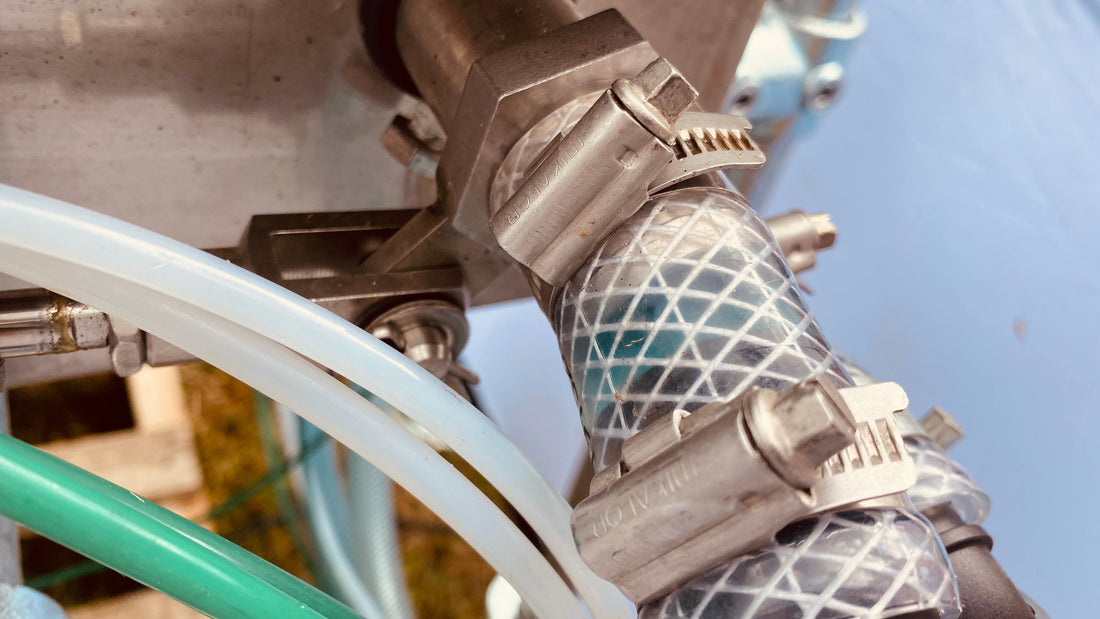

Torque Requirements for Hose Clamps: Preventing Over and Under Tightening for Leak-Free Systems

Ensuring a reliable, leak-free connection in hose systems hinges significantly on applying the correct torque during hose clamp installation. Torque, a rotational force, is the means by which many common hose clamps (particularly worm drive and bolt clamps) are tightened. Applying the right amount of torque is critical; both over-tightening and under-tightening can severely compromise the integrity of the connection, leading to leaks, premature failure, and potentially unsafe conditions. Understanding and adhering to specific torque requirements is a fundamental aspect of proper hose assembly in the USA and worldwide.

The tightening mechanism of a hose clamp converts applied torque into the radial clamping force that compresses the hose onto the fitting. The goal is to generate sufficient clamping force to create a robust seal without damaging the components.

The Critical Balance: Why Torque Control Matters

Controlling the torque during hose clamp installation is essential for achieving the intended clamping force and ensuring the long-term reliability of the hose connection. Incorrect torque application disrupts the delicate balance required for a proper seal:

• Under-Tightening: Applying insufficient torque results in inadequate tension in the clamp band. This leads to:
• Insufficient Clamping Force: The radial pressure exerted on the hose is too low.
• Inadequate Interface Pressure: The hose material is not compressed firmly enough against the fitting surface.
• Failure to Create a Seal: Gaps remain at the hose-to-fitting interface, allowing fluid to escape.
• Leaks: Under system pressure, fluid will find the path of least resistance and leak from the connection.
• Hose Pull-Off: In more severe cases or under higher pressure/vibration, the insufficient grip can allow the hose to detach from the fitting entirely.
• Over-Tightening: Applying excessive torque generates excessive tension in the clamp band. This can cause significant damage:
• Excessive Clamping Force: The radial pressure is too high, exceeding the design limits of the hose or fitting.
• Hose Damage: The hose material can be crushed, cut, or its internal reinforcement layers can be compromised. This weakens the hose wall and the seal.
• Fitting Damage: Barbs on the fitting can be deformed or even cracked, especially on plastic fittings.
• Clamp Damage: The clamp itself can be damaged, such as stripping the threads on the screw, deforming the housing, or breaking the band.
• Accelerated Material Degradation: Excessive, concentrated pressure can accelerate creep and stress relaxation in the hose material, leading to a loss of sealing force over time and potential intermittent leaks.
• Potential for Delayed Failure: While not leaking immediately, an over-tightened connection is fundamentally weakened and more susceptible to failure under pressure cycling, vibration, or temperature changes.

Recommended Torque Values: The Manufacturer's Guidance

To avoid the pitfalls of over- and under-tightening, manufacturers of hose clamps, hoses, and fittings, as well as industry standards organizations, provide recommended or specified torque values for specific clamp types, sizes, and intended applications. These values are determined through testing to identify the torque range that provides optimal sealing pressure without causing damage to the components.

These recommended torque values serve as a critical guideline for installers. They represent the findings of engineering tests aimed at balancing the need for sufficient clamping force to create a robust seal against the limits of the materials involved.

Factors Influencing Torque Requirements

The correct torque requirement for a hose clamp is not a one-size-fits-all value. It depends on several factors inherent to the components and the application:

• Clamp Type, Size, and Material: Different clamp designs (worm drive vs. T-bolt), sizes, and materials (e.g., different grades of stainless steel) have varying efficiencies in converting torque to clamping force and different ultimate strength limits.
• Hose Material, Stiffness, and Wall Thickness: The type of rubber or plastic used, the stiffness of the hose wall, and its thickness influence how much force is needed to compress it and create a seal. Softer, more compliant hoses may require less torque than stiffer ones.
• Fitting Material and Design: The material of the fitting (metal vs. plastic) and the design of the sealing surface (e.g., barb profile) affect the required contact pressure and the resistance to compression.
• Application Pressure and Fluid: Higher system pressures require higher interface pressure, which necessitates a higher clamping force generated by the clamp. The nature of the fluid (e.g., gas vs. liquid) can also play a role.
• Operating Temperature: Temperature affects the properties of the hose material (flexibility, creep). Torque requirements may need to consider the operational temperature range.

Tools for Accurate Torque Application

Relying on feel or estimation ("hand-tight plus a quarter turn") is highly unreliable and a common cause of improper torque application. To ensure that the recommended torque values are met, specific tools are necessary:

• Torque Wrenches: For adjustable clamps with a screw or bolt (like worm drive or T-bolt clamps), a calibrated torque wrench is the standard tool for applying a precise amount of torque. Different types of torque wrenches (e.g., click-type, beam-type) are available depending on the required accuracy and torque range.
• Calibrated Installation Tools: For non-adjustable clamps like crimp or ear clamps, manufacturers provide specific tools that are calibrated to apply the correct crimping force to deform the clamp to the intended diameter, thereby achieving the designed clamping force.

Using the correct tool and following the manufacturer's instructions for torque application is paramount for a reliable installation.

Standards and Best Practices

Industry standards in the USA, such as SAE J1508 ("Hose Clamp Specifications"), often include provisions related to installation torque for various clamp types. These standards may specify recommended installation torque ranges and test methods to verify a clamp's ability to withstand higher "failure" torque without breaking. Adhering to these standards and the torque values specified by the hose, fitting, and clamp manufacturers is considered a best practice for critical applications.

It's important to distinguish between installation torque (the torque applied during assembly for proper sealing) and failure torque (the torque at which the clamp is likely to break or yield). The recommended installation torque is significantly lower than the failure torque to provide a safety margin and prevent damage.

Conclusion: Torque Control as a Pillar of Seal Integrity

For many types of hose clamps, controlling the applied torque during installation is as critical as selecting the correct clamp size. Understanding the specific torque requirements for a given hose assembly and using the appropriate tools to prevent over and under tightening are fundamental steps towards ensuring leak-free systems. By respecting the recommended torque values provided by manufacturers and industry standards, engineers and technicians in the USA and globally can confidently create reliable, durable hose connections that perform as intended, minimizing the risk of leaks and contributing to the safety and efficiency of fluid transfer applications. Proper torque application is a key pillar in the foundation of a secure hose system.
