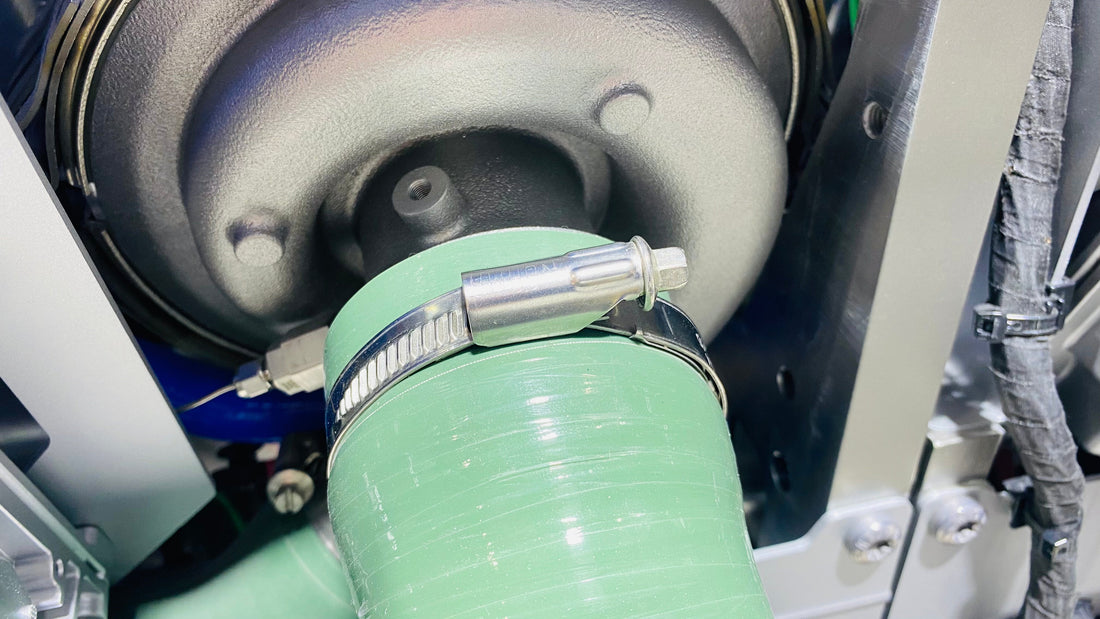

Thread Specifications: Optimizing Hose Clamp Design for Secure and Reliable Tightening

For adjustable hose clamps, particularly the ubiquitous worm gear drive and heavy-duty T-bolt types, the thread specifications of the tightening screw (or bolt) are fundamental to their performance, reliability, and longevity. These specifications define the intricate details of the threads – their form, pitch, engagement, and material properties – which directly impact how securely and reliably the clamp can be tightened, the efficiency with which applied torque translates into clamping force, and its resistance to loosening or failure in service. Optimizing thread design is paramount for creating truly dependable hose connections in diverse applications across the USA and globally.

The screw is the heart of the mechanical tightening mechanism. As it rotates, its threads engage with corresponding features on the clamp band (for worm drive clamps) or a nut (for T-bolt clamps), pulling the band tighter around the hose. The precision and integrity of this threaded connection are critical to achieving and maintaining the necessary radial clamping force without compromising the integrity of the clamp or the hose.

Why Thread Specifications are Critical

The careful design of screw threads is vital for several reasons:

• Efficient Torque Conversion: The primary function of the screw is to convert the rotational force (torque) applied by a tool into linear tension within the clamp band. The thread's geometry, including its lead angle and surface finish, dictates the efficiency of this conversion. Inefficient threads waste energy as friction and require higher applied torque to achieve the desired clamping force.
• Resistance to Stripping: When a clamp is tightened, significant forces are exerted on the threads of both the screw and the engaging part (band or nut). The thread's strength, profile, engagement depth, and the hardness of the materials prevent the threads from deforming or stripping under load, which would render the clamp useless.
• Secure Locking (Resistance to Loosening): Threads are designed to resist self-loosening (or "back-off") under vibration, thermal cycling, or dynamic loads. Features like thread angle and friction within the thread form contribute to this secure locking.
• Smoothness of Operation: Well-designed threads allow for smooth and consistent tightening, providing tactile feedback to the installer and reducing the risk of improper tightening (over or under).

Key Thread Specifications and Their Implications

Several specifications define the characteristics and performance of a hose clamp's screw threads:

1. Thread Form / Profile:
• Shape: This refers to the cross-sectional shape of the thread. Common forms include standard V-threads (like Unified National Coarse/Fine or Metric ISO threads) for T-bolt clamps. Worm drive clamps often utilize specialized, non-standard thread forms on the screw (e.g., modified buttress or Acme-like profiles) to optimize engagement with the band's perforations or slots.
• Impact: The thread form affects the load-bearing capacity, efficiency, and resistance to stripping. Profiles with a larger flank contact area and more favourable pressure angles can sustain higher loads.
2. Thread Pitch:
• Definition: The distance between adjacent threads (or threads per inch for imperial units).
• Impact: Fine threads (smaller pitch) provide a greater mechanical advantage, allowing higher clamping forces to be achieved with less applied torque. However, they are more susceptible to cross-threading or damage from burrs. Coarse threads (larger pitch) engage faster and are more resistant to damage but require higher torque for the same clamping force.
3. Thread Engagement:
• Definition: The amount of contact area between the screw threads and the corresponding threads or perforations on the band/nut.
• Impact: Sufficient thread engagement is crucial for preventing stripping. For worm drive clamps, this depends on the design of the band's perforations and how well they mate with the screw's thread. Deeper or more robust engagement ensures the load is distributed over more threads, increasing strength.
4. Material and Hardness:
• Compatibility: The material of the screw (e.g., carbon steel, stainless steel) and its hardness must be compatible with the engaging component's material (band or nut). If the screw is too soft, its threads will strip. If the engaging part is too soft, its threads/perforations will deform.
• Heat Treatment: Often, carbon steel screws are heat-treated to increase their hardness and yield strength, making the threads more resistant to stripping under high tightening torque.
5. Lead Angle (or Helix Angle):
• Definition: The angle of the thread's spiral relative to the screw's axis.
• Impact: A smaller lead angle (finer pitch) generally provides greater resistance to self-loosening (back-off), as the friction forces are more effective at preventing rotation. However, it also reduces tightening efficiency.

Interaction for Secure and Reliable Tightening

The optimal performance of a clamp's tightening mechanism relies on the synergistic interaction between the screw's thread specifications and the features on the clamp band or nut:

• Worm Drive Clamps: The screw's thread is designed to precisely engage with the perforations or slots in the band. The geometry ensures a secure lock and efficient pulling of the band. High-quality clamps minimize clearance between the screw and housing to prevent misalignment and optimize thread engagement.
• T-Bolt Clamps: The bolt's threads engage with a corresponding nut. The thread form and pitch are typically standard, allowing for robust tightening with high torque values. The strength of the nut and bolt materials is paramount to prevent thread stripping or bolt shearing.

Surface finishes, coatings (e.g., lubrication in specialized screws), or plating's on the threads can also influence the friction coefficient, thereby affecting the relationship between applied torque and actual clamping force.

Relevant Standards and Best Practices

Industry standards, such as SAE J1508 for hose clamps in the USA, often include performance requirements that implicitly demand robust thread specifications. While they may not detail every aspect of thread geometry, they specify minimum torque-to-failure values for the screw or the complete clamp assembly, ensuring the threaded connection can withstand substantial loads without stripping or breaking. Manufacturers of high-quality clamps conduct rigorous testing to validate their thread designs and ensure reliable performance over the clamp's intended lifespan.

Conclusion: The Micro-Engineering of a Macro-Connection

The thread specifications of a hose clamp's screw or bolt are fundamental to its mechanical efficacy, serving as the precise engine that drives the creation of a secure and reliable connection. Beyond merely allowing the clamp to be tightened, the intricate design of the threads – their form, pitch, engagement, and material properties – directly determines the efficiency of torque conversion, the resistance to stripping under load, and the ability to maintain a tight grip against operational stresses like vibration. For optimal hose clamp performance and long-term reliability in diverse applications across the USA and globally, understanding and prioritizing clamps with robust and precisely engineered thread specifications is a critical factor in ensuring truly secure and dependable fluid transfer systems.
