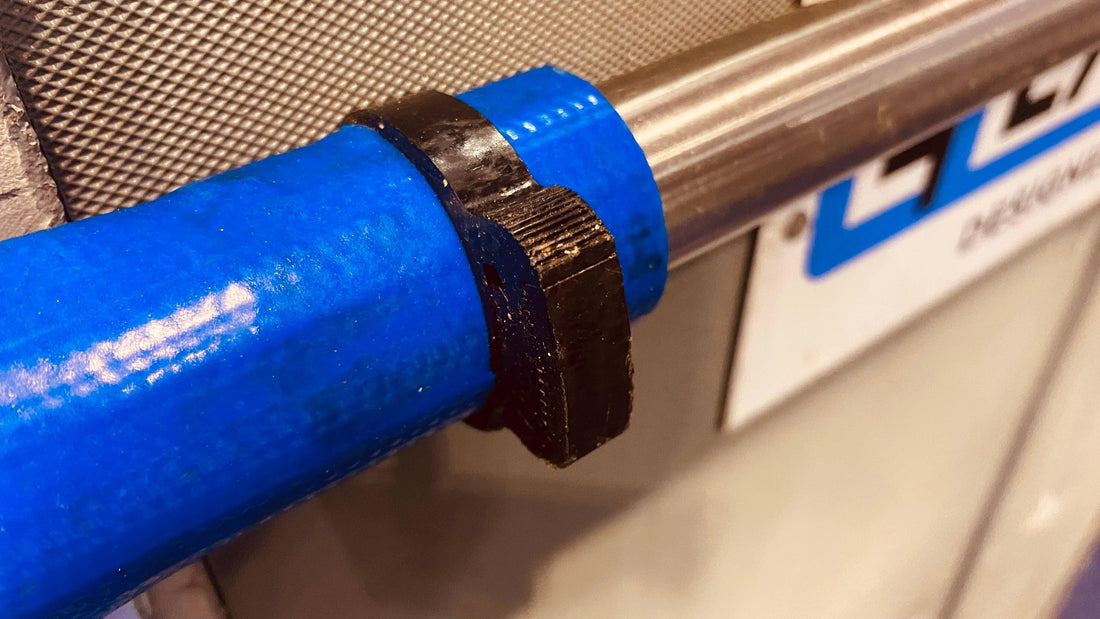

Hose Clamp Pressure Ratings: Assembly Pressure, Clamp Type Selection and US Application Reference

A hose clamp does not carry an independent pressure rating the way a pressure vessel or valve does — its role is to hold the hose on the fitting at system pressure, not to contain the pressure itself. The pressure rating of a clamped hose connection is a property of the complete assembly: hose + fitting + clamp + installation torque together. That said, the clamp is frequently the weakest element in the assembly when incorrectly specified for the pressure — an under-rated or incorrectly installed clamp on an adequately rated hose will fail before the hose does. Browse standard worm drive clamps and heavy duty clamps for high-pressure applications.

Pressure Rating Framework: Working, Proof, and Burst

Three pressure specifications govern any hose connection:

• Working Pressure (Maximum Working Pressure / MWP): The maximum sustained pressure the complete assembly — hose, fitting, and clamp — is designed to operate at continuously under normal temperature and service conditions. This is the specification to match against system operating pressure
• Proof Pressure: A test pressure — typically 1.5 to 2× working pressure — applied during quality testing without causing permanent deformation. A component that passes proof pressure testing confirms it has adequate structural margin above working pressure
• Burst Pressure: The pressure at which the assembly fails structurally in destructive testing. Industry convention for flexible hose assemblies typically uses a 4:1 safety factor: working pressure = burst pressure / 4. A hose rated to 200 PSI working pressure has a designed burst pressure of approximately 800 PSI in standard test conditions

The assembly's effective working pressure is limited by whichever component has the lowest working pressure rating. An inadequate clamp that loosens at operating pressure reduces the effective assembly working pressure below the hose's own rating.

US Application Pressure Reference

US Application	Typical Pressure Range	Pressure Category
Drip irrigation / lawn sprinkler connections	15–60 PSI	Low — polymer snap-fit or standard worm drive adequate
Automotive cooling system (radiator, heater hose)	15–20 PSI (pressurized, thermostat controlled)	Low-medium — standard W4 worm drive correct
Residential plumbing (supply line connections)	40–80 PSI municipal; up to 150 PSI with PRV	Medium — W4 worm drive; ensure hose is rated for water supply pressure
HVAC chilled and hot water connections	30–60 PSI	Low-medium — standard W4 worm drive
Turbocharger charge-air (intercooler pipes)	25–50 PSI boost pressure at elevated temperature	Medium-high — T-bolt correct; worm drive marginal on stiff silicone hose at this pressure
Industrial compressed air utility connections	90–150 PSI typical shop air	High — proper rated hose with swaged or barbed fittings; W4 T-bolt or heavy-duty worm drive; confirm hose-clamp system rating
Marine diesel raw water cooling	10–30 PSI	Low-medium — W5 worm drive or JCS Hi-Torque for marine service; pressure is low but W5 is mandatory for saltwater
Fire suppression / sprinkler hose	100–175 PSI typical; up to 250 PSI in high-rise buildings	High — NFPA-rated assembly required; specialist clamp specification; contact HCL

Clamp Type by Pressure Tier

Low Pressure (Up to approximately 30 PSI): Standard Worm Drive and Polymer

Standard W4 worm drive clamps (Mikalor, ABA, Breeze) at correct installation torque are appropriate for the majority of US low-pressure connections — automotive cooling (15–20 PSI), irrigation (15–60 PSI), HVAC chilled water (30–60 PSI), food processing utility (20–40 PSI). For non-metallic connections within the same pressure range where polymer is required: PA66 polymer snap-fit clamps (Herbie Clip, Ezyclik) are rated for low-to-medium pressure on soft tubing — laboratory, pharmaceutical, drip irrigation, aquarium. Polymer snap-fit clamps are not appropriate for automotive cooling system pressures due to vibration back-off risk, regardless of the nominal pressure being within their range.

Medium Pressure (30–80 PSI): Standard or Heavy-Duty Worm Drive

Standard W4 worm drive at the upper end of its torque specification handles medium pressure connections adequately when the hose itself is rated for the pressure. For connections at 50–80 PSI on larger-diameter hose (above approximately 2" / 50mm), pressure-driven radial force on the band increases with diameter (hoop stress = pressure × radius / thickness) — the larger bore amplifies the pull-off force at a given pressure. JCS Hi-Torque 16mm wide-band distributes the clamping force across more band surface area, reducing peak edge stress on large-bore hose at medium pressure.

High Pressure (Above approximately 80 PSI): T-Bolt and Assembly-Rated Systems

Above approximately 80 PSI on standard flexible hose connections, Mikalor Supra T-bolt clamps are the correct specification — the bolt-and-nut mechanism provides substantially higher radial clamping force than a worm drive screw at the same diameter. The pressure rating of the complete assembly (hose + fitting + T-bolt) is determined by the hose manufacturer's testing with that specific clamp and fitting combination. Two critical points:

• Hose clamp connections on flexible hose are inherently limited by the hose pull-off resistance from the barbed fitting — the hose itself tends to blow off the fitting before the clamp band fails. The T-bolt's higher clamping force increases the friction and mechanical retention that resists blow-off at pressure
• Above approximately 150 PSI on standard flexible elastomeric hose, swaged or crimped fittings (hydraulic hose assembly style) provide better retention than any worm drive or T-bolt on a push-on connection — the clamp-on connection style has pressure limits regardless of clamp type. For confirmed high-pressure service, consult HCL with the specific hose type, fitting, and pressure requirement

How Internal Pressure Creates Pull-Off Force

Understanding why pressure demands stronger clamps at larger diameters helps specify correctly. The axial force trying to push the hose off the fitting is:

F_axial = P × π × (d/2)²

Where P = internal pressure and d = hose inner diameter. At 30 PSI:

• 1" ID hose: F_axial ≈ 24 lbs pull-off force
• 2" ID hose: F_axial ≈ 94 lbs pull-off force
• 4" ID hose: F_axial ≈ 377 lbs pull-off force

The T-bolt's higher clamping force provides substantially more friction force resisting pull-off than a standard worm drive at large diameters — which is why T-bolt is the correct specification for large-bore connections even at moderate pressures.

Standards and Assembly Pressure Rating

The pressure rating of a clamped hose assembly is established by the hose manufacturer's testing of the complete hose-fitting-clamp assembly combination, not by the clamp specification alone. SAE J1508 governs worm drive clamp quality (material, torque, corrosion resistance) but does not publish pressure ratings for specific hose-clamp combinations — these come from the hose manufacturer's assembly test data. For automotive cooling systems: SAE J20 (radiator hose), J30 (fuel hose), and J96 (heater hose) govern the hose standards; the clamp must be sized and installed to the hose manufacturer's recommendation for use with those hoses. For industrial connections: the hose manufacturer's assembly datasheet specifies working pressure for specific fitting and clamp combinations. See our SAE standards guide.

Frequently Asked Questions: Pressure Ratings

What PSI can a standard W4 worm drive hose clamp hold?

This question frames pressure rating incorrectly — the worm drive clamp does not have a standalone PSI rating because the pressure a clamped connection can hold depends on the hose, the fitting barb geometry, the hose wall thickness, and the clamp together. A standard W4 worm drive clamp at correct installation torque (2.0–3.5 Nm per SAE J1508) on an SAE J20 automotive coolant hose with a SAE-standard fitting retains the hose adequately at automotive cooling system pressures (15–20 PSI). The same clamp on a large-bore thin-wall hose at 50 PSI may be inadequate. Always verify against the hose manufacturer's assembly pressure specification for the specific combination.

Can I use a polymer snap-fit clamp on pressurized lines?

PA66 polymer snap-fit clamps (Herbie Clip, Ezyclik) are rated for low-to-medium pressure on soft flexible tubing — laboratory peristaltic pump connections (typically below 20–30 PSI), pharmaceutical fluid transfer at low pressure, drip irrigation. They are not appropriate for automotive cooling system connections (15–20 PSI sustained with vibration), pressurized compressed air connections, or any connection above approximately 30 PSI where the snap-fit ratchet could disengage under pressure-induced hose movement or vibration. For non-metallic pressurized connections above the snap-fit range, PA12 or POM Ezyclamp worm drive polymer clamps provide higher clamping force at the same diameter.

Does pressure rating change with temperature?

Yes — elevated temperature reduces the pressure rating of flexible hose assemblies. Both the hose material (EPDM, silicone, nitrile) and polymer clamp materials (PA66, POM) lose mechanical strength at elevated temperature. The hose manufacturer's assembly pressure specification typically states the maximum working pressure at a reference temperature (often 70°F / 21°C) with a de-rating curve for elevated temperature — automotive coolant hose rated to 20 PSI at ambient may be de-rated to 12–15 PSI at 195°F coolant temperature. The stainless steel clamp is not the limiting factor at automotive operating temperatures — the hose material de-rating drives the assembly pressure limit. Always apply the hose manufacturer's temperature-pressure de-rating for elevated temperature service.
