Spring Hose Clamps: How Constant Tension Works and When to Use Them

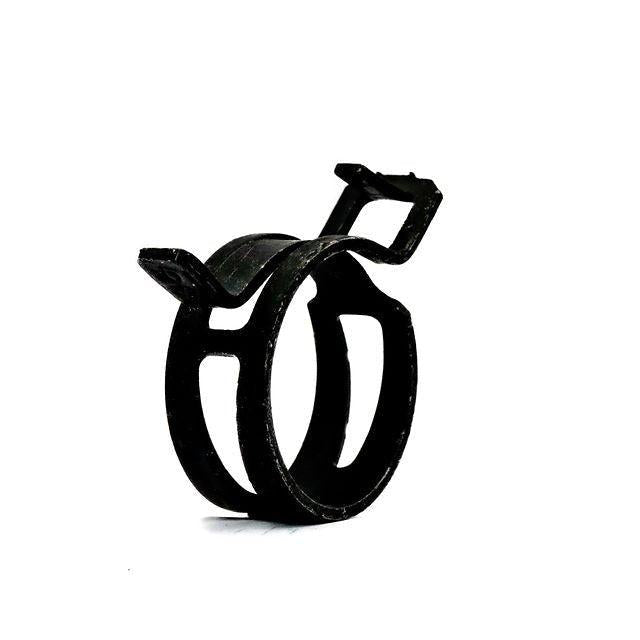

Spring hose clamps are pre-tensioned formed band or wire clamps that apply a constant, self-adjusting clamping force to a hose connection without any screw or tool adjustment at installation. The spring force is built into the clamp at manufacture — opening the clamp with spring clamp pliers stores energy in the spring, which is released as clamping force when the pliers are withdrawn. Browse HCL's spring hose clamps range from Mikalor and Rotor Clip.

How Constant Spring Tension Works

The defining advantage of a spring hose clamp over a worm drive clamp on thermally cycling connections is constant tension. When a rubber cooling hose heats up from cold ambient to engine operating temperature (typically 195–230°F), it expands radially. A worm drive clamp tightened at cold ambient reaches maximum tightening force at installation and holds that fixed diameter — as the hose expands, the clamp force actually drops as the hose tries to push outward against the fixed band. A spring clamp works in the opposite direction: as the hose expands, the spring is compressed further, increasing clamping force. As the hose contracts on cooling, the spring extends, maintaining contact rather than losing it. This self-compensation through thermal cycles is why spring clamps are the standard OEM choice for automotive cooling system connections.

Types of Spring Hose Clamps in HCL's Range

Mikalor Band Spring Clamps — Heavy and Light Duty

Mikalor manufactures both heavy-duty and light-duty spring band clamps — formed stainless steel band clamps, pre-tensioned in a snap-open profile. The heavy-duty Mikalor spring band clamp provides higher spring force for larger-bore and stiffer hose applications; the light-duty version for smaller diameter, softer hose connections. Both are stainless steel — W4 (304SS) standard grade, providing corrosion resistance for underhood and outdoor applications. Installation requires spring clamp pliers to open the band; once released over the hose-fitting join, the spring closes and self-tensions.

Rotor Clip Spring Clamps

Rotor Clip spring clamps are formed wire or band spring designs covering a range of small-to-medium diameter hose connections. Rotor Clip's spring clamps suit light industrial, appliance, and automotive auxiliary connection applications where constant tension is required but the bore is smaller than the Mikalor heavy-duty band range.

Automotive OEM Context: Why Spring Clamps Are the Factory Standard

US automotive OEMs — Ford, GM, Stellantis, Toyota, Honda — use spring clamps on the majority of passenger car cooling system connections at the factory for three production-line and performance reasons:

• No torque tool required: Spring clamps install by opening with pliers and releasing — no torque wrench, no torque specification, no operator variation in final clamping force; every connection on a production line gets the same spring-defined force
• Constant tension through thermal cycling: As described above — the spring compensates for hose expansion and contraction automatically, eliminating the periodic re-torquing that worm drive clamps need on thermally cycling connections
• Vibration resistance: No screw thread to back off under sustained engine vibration — the spring simply maintains contact force

For aftermarket replacement of OEM spring clamps, the correct specification is a stainless steel spring clamp of the same diameter as the OEM clamp. A W4 worm drive clamp is also an acceptable aftermarket replacement on cooling connections — it provides adequate clamping force and is serviceable for the next inspection interval. See our constant tension clamps guide for the full thermal cycling specification context.

Material Grade

Spring clamps must maintain their spring force over the service life — material selection affects both corrosion resistance and spring fatigue life:

• Spring steel (uncoated/phosphated): High carbon steel with good spring properties; cost-effective for dry indoor and appliance applications. Not suitable for outdoor, road-salt, or underhood automotive applications where zinc coating would be needed and the clamp chemistry demands stainless
• 304SS (W4 stainless): The correct grade for all automotive underhood connections, outdoor applications, road-salt-state vehicles, and any chemical or moisture-exposed environment. Mikalor's spring band clamps are 304SS. Stainless spring clamps resist corrosion without compromising spring fatigue life — they remain the OEM and professional aftermarket standard
• 316SS (W5 stainless): For marine saltwater-exposed spring connections — Gulf Coast vessel engine cooling, Atlantic coastal commercial vessels

See our corrosion resistance guide for full US environment mapping.

Applications

Application	Spring Clamp Type	Grade
Automotive OEM cooling system (radiator, heater, bypass hoses)	Mikalor band spring or OEM equivalent	W4 304SS
Automotive aftermarket cooling hose replacement	Mikalor band spring or W4 worm drive	W4 304SS
Appliance internal hose (washing machine, dishwasher)	Spring steel or stainless spring clip	Spring steel (dry indoor) or W4
Small-bore vacuum lines underhood	Light-duty spring clip	W4 304SS for underhood
Marine engine cooling (saltwater vessels)	W5 stainless spring band	W5 316SS

Note on fuel lines: Spring clamps on fuel lines require stainless steel (W4 minimum) — uncoated spring steel is not acceptable for fuel system use due to corrosion from fuel chemistry. For small-bore OEM fuel connections, Oetiker stepless ear clamps are the correct specification. See our fuel injection clamps guide.

Installation and Removal

Spring hose clamps require dedicated spring clamp pliers — the pliers grip the two ears of the spring band and compress them to open the band wide enough to slide over the hose and fitting. Standard pliers can be used in an emergency but risk deforming the spring beyond its elastic range, permanently reducing the clamping force. HCL supplies spring clamp pliers in the hose clamp installation tools collection, including Knipex hose clamp pliers with the correct jaw geometry for spring band clamps.

Re-installation after service: spring clamps can generally be re-used if they have not been over-opened or corroded. Inspect the spring band for permanent set (the band no longer returns to its closed diameter) or surface corrosion before re-fitting. Replace any spring clamp that shows corrosion pitting or has been opened wider than the tool's designed range.

Frequently Asked Questions: Spring Hose Clamps

What is the difference between a spring clamp and a constant tension clamp?

The terms are often used interchangeably for the same product type — both describe clamps that maintain a self-adjusting clamping force through thermal cycling rather than a fixed diameter set at installation. Within HCL's range, "spring clamps" generally refers to the lighter, snap-open band and wire form designs (Mikalor light-duty, Rotor Clip), while "constant tension" refers to the heavier-band worm-drive-based constant tension designs (Mikalor ASFA-S constant tension series). Both compensate for thermal cycling, but the mechanism differs: spring clamps use spring steel elasticity; constant tension worm drive clamps use a slotted band that allows the screw to travel as the hose expands. See our constant tension clamps guide.

Can I replace an OEM spring clamp with a worm drive clamp?

Yes — a W4 (304SS) worm drive clamp of the correct diameter is an acceptable aftermarket replacement for an OEM spring clamp on automotive cooling hose connections. The worm drive does not self-compensate for thermal cycling the way a spring clamp does, but the torque specification on a correctly installed W4 worm drive provides sufficient clamping force to maintain seal integrity on a typical passenger car cooling connection for the standard service interval. If re-torquing is not possible at regular intervals, a replacement spring clamp is the more reliable long-term choice.

Why do spring clamps need special pliers — can I use regular pliers?

Dedicated spring clamp pliers have a jaw geometry that grips the two ears of the spring band at the correct angle and width to open the band evenly without over-stressing the spring. Standard pliers have a narrower jaw that concentrates force unevenly on the ears, risks deforming the spring beyond its elastic range, and makes one-handed placement difficult. For occasional service work, standard pliers will function; for any volume of spring clamp installation or a professional workshop setting, the correct Knipex or equivalent spring clamp pliers from the installation tools collection are the correct tool.
