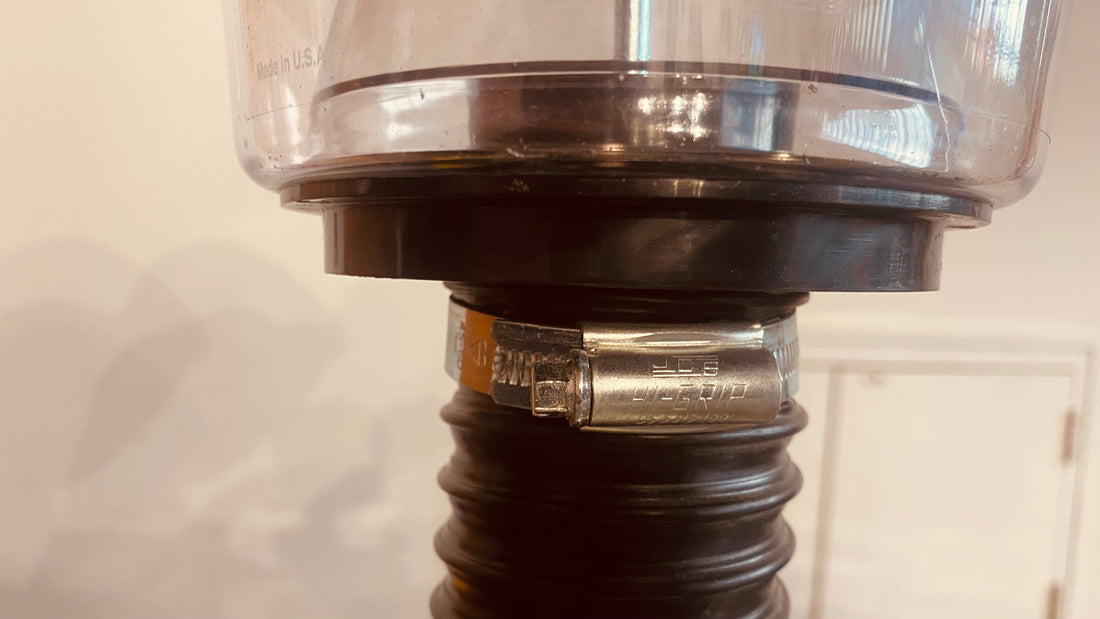

Hose Clamp Diameter Guide: Accurate Measurements for Leak-Free Systems

A fundamental step in ensuring a reliable, leak-free connection in any hose system is selecting the correct size hose clamp. The hose clamp diameter is a critical specification, directly impacting the clamp's ability to apply sufficient and uniform clamping force. An incorrectly sized clamp can lead to inadequate sealing pressure, premature wear on components, and ultimately, leaks. This guide provides essential information on accurately measuring for hose clamps to achieve dependable, leak-free systems in various applications across the United States and beyond.

While the type and material of the hose, fitting, and clamp are important, even the highest quality components will fail to create a proper seal if the clamp's diameter range does not match the assembled hose and fitting. Accurate measurement is not just a best practice; it's a necessity for system integrity.

Why Accurate Measurement is Crucial for Leak-Free Seals

The primary function of a hose clamp is to compress the hose material onto the fitting, creating a tight seal at the interface that can withstand internal fluid pressure. This compression is achieved by reducing the clamp's diameter around the hose-fitting assembly.

Using an incorrectly sized clamp directly compromises this sealing mechanism:

• Clamp is Too Large: If the clamp's minimum diameter is still larger than the outside diameter (O.D.) of the hose over the fitting, the clamp cannot be tightened sufficiently to create adequate contact pressure. This leaves gaps at the interface, providing pathways for fluid to escape, resulting in leaks.
• Clamp is Too Small: Attempting to force a clamp that is too small onto a hose and fitting can lead to several problems:
• Difficulty or inability to install the clamp properly.
• Damage to the clamp itself (e.g., stripping threads on a worm drive clamp, breaking an ear clamp).
• Excessive, uneven pressure on the hose and fitting, potentially crushing the hose reinforcement, deforming the fitting, or even cutting through the hose wall. This weakens the connection and can cause leaks or catastrophic failure.

Proper sizing ensures that the clamp's adjustment range allows it to apply sufficient, uniform radial force around the entire circumference of the hose-fitting interface, creating the necessary sealing pressure without causing damage.

Measuring for the Correct Hose Clamp Diameter

The key to selecting the correct hose clamp size is to accurately measure the outside diameter (O.D.) of the hose after it has been placed onto the fitting. This is because the hose will expand slightly when stretched over the fitting's barb or bead, and it is this expanded diameter that the clamp must accommodate.

Here's how to perform accurate measurements:

1. Assemble the Hose and Fitting: Always place the hose onto the fitting before measuring for the clamp. Ensure the hose is fully seated in its intended position on the fitting, typically up to a barb or stop.
2. Measure the Outside Diameter (O.D.): Measure the O.D. of the hose in the area where the clamp will be positioned. This is the most critical measurement for clamp sizing.
• Using Callipers: Dial or digital callipers are the most accurate tools for measuring the O.D. Place the jaws of the calliper's around the hose-fitting assembly in the clamping area and read the measurement. Take measurements at a couple of different points around the circumference to account for any slight ovality.
• Using a Tape Measure: If callipers are not available, a flexible tape measure (preferably a narrow one) can be used to measure the circumference of the hose over the fitting. Wrap the tape measure snugly around the clamping area. Once you have the circumference (C), calculate the diameter (D) using the formula: D=C/π (where π≈3.1416) While less direct than using callipers, this method can provide a reasonably accurate O.D. measurement.
3. Consider Variations: Note any slight variations in the hose O.D., especially with reinforced or multi-layer hoses. Aim to select a clamp that can accommodate the largest measured O.D. in the clamping zone.

Relating Measured Diameter to Clamp Size

Hose clamps are typically sold with a specified clamping diameter range, indicating the minimum and maximum O.D.s they are designed to effectively clamp.

Once you have accurately measured the O.D. of your hose over the fitting, compare this measurement to the clamp size ranges provided by manufacturers or industry standards (like SAE J1508 in the automotive industry).

• Ideal Fit: The ideal scenario is when your measured O.D. falls near the middle of the clamp's stated clamping range. This allows the clamp to be adequately tightened without being at the extremes of its adjustment capability.
• Within the Range: Ensure your measured O.D. is comfortably within the clamp's minimum and maximum diameter range. Avoid selecting a clamp where your measurement is at or very close to the minimum or maximum limit, as this can hinder proper installation and reduce the clamp's effectiveness.
• Different Clamp Types: Be aware that different clamp types may have different sizing conventions or ranges. Worm drive clamps typically have a wide adjustable range. Crimp or ear clamps are more specific to a certain size range or even a single O.D.

The Link to Leak-Free Systems

Selecting the correct hose clamp size based on accurate measurement is directly linked to achieving and maintaining a leak-free system:

• Proper Clamping Force: The correct size clamp, when properly installed and tightened to the recommended torque (for adjustable types), will apply the intended and necessary radial clamping force to create the seal.
• Even Pressure Distribution: A properly sized clamp is designed to distribute the clamping force evenly around the circumference of the hose, ensuring uniform contact pressure at the sealing interface and preventing localized leak paths.
• Avoiding Damage: Using the correct size prevents over-stressing the hose or fitting during installation and operation, which helps maintain the integrity of the sealing surfaces over time.
• Optimizing Material Behaviour: When the clamp size is correct, the hose material is compressed optimally to conform to the fitting without being excessively deformed, which can help minimize creep and stress relaxation that could lead to leaks over the long term.

Standards and Best Practices in the USA

Various standards organizations, such as the Society of Automotive Engineers (SAE), ASTM International, and ISO (International Organization for Standardization), provide specifications and test methods for hoses, fittings, and clamps. SAE J1508, for example, covers specifications for common hose clamp types used in automotive applications in the USA, including their sizing conventions and performance requirements. Following these standards and manufacturer recommendations for specific hose, fitting, and clamp combinations is crucial for ensuring proper sizing and assembly procedures that lead to reliable, leak-free connections.

Conclusion: Precision in Measurement for Sealing Success

In the world of fluid transfer, the seemingly simple task of selecting a hose clamp holds significant importance for system reliability. Accurately measuring the outside diameter of the hose over the fitting is the foundational step in choosing the correct hose clamp diameter guide that ensures the clamp can apply the appropriate force to create a durable, leak-free seal. By utilizing accurate measurement tools, understanding the concept of the clamp's size range, and recognizing the consequences of incorrect sizing, individuals and industries in the USA and worldwide can significantly improve the integrity and safety of their hose systems, preventing costly leaks and ensuring optimal performance. Precision in measurement at the outset is a key investment in the long-term success of any hose assembly.
