Hose Clamp Band Width and Thickness: Specifications, SAE J1508 Minimums and HCL Product Reference

Band width and thickness are the two physical band dimensions that determine clamping force capability, contact pressure distribution, and structural strength. They appear on product datasheets and are referenced in SAE J1508 — understanding what the numbers mean allows comparison across brands and selection for specific applications. Browse standard worm drive clamps, JCS Hi-Torque wide-band, and heavy duty T-bolt clamps.

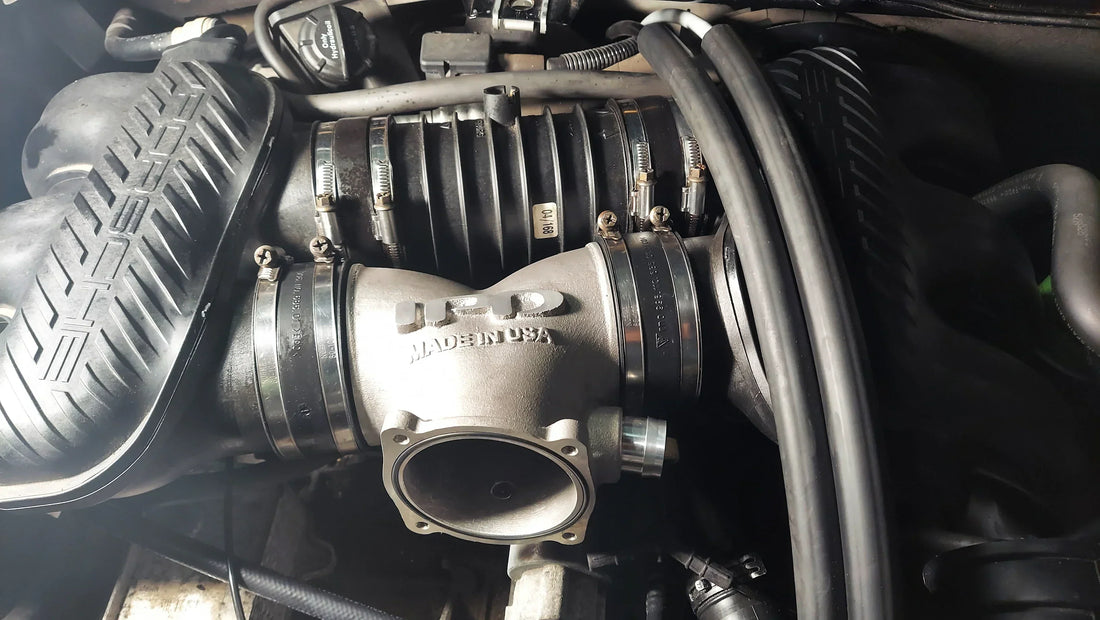

Band Width: Definition and US Measurement Context

Band width is the dimension of the clamp band running parallel to the hose axis — how much of the hose length the band covers. It is measured in mm (European specification) or inches (SAE/US specification). The common standards:

• 1/2" (12.7mm) — SAE J1508 standard minimum for worm drive clamps: This is the baseline width specified by SAE J1508 for US automotive and industrial worm drive hose clamps. Virtually all standard-range worm drive clamps from Mikalor, ABA, Breeze, and Ideal Tridon use a 12mm band (European measurement, nominally equivalent to the 1/2" US standard)
• 9mm (3/8") — narrow band, specialty clamps: Mini worm drive clamps for very small OD hose (below approximately 25mm) use narrower bands — typically 8–9mm. The Oetiker stepless ear clamp series uses 7–9mm band widths depending on the series
• 5/8" (16mm) — wide band, heavy-duty: JCS Hi-Torque uses a 5/8" (16mm) wide band — 33% wider than the SAE standard 12mm. This reduces contact pressure per unit area at the same clamping force, protecting soft marine hose from band-edge damage at high clamping force. JCS's 16mm wide band is a key specification in its Lloyd's Register Type Approval for marine applications

Band width in both inches and mm for the main HCL clamp series:

HCL Product	Band Width (mm)	Band Width (in)	Application
Mikalor ASFA-S, ABA, Breeze W4/W5	12mm	1/2"	SAE J1508 standard — automotive, industrial, agricultural, HVAC
JCS Hi-Torque W4/W5	16mm	5/8"	Wide-band — large-bore marine hose, soft hose at high clamping force, LR Type Approved
ABA Mini, HCL mini worm drive	8–9mm	3/8"	Small-bore below 25mm OD — vacuum lines, appliance, laboratory
Mikalor Supra T-bolt W4/W5	12–25mm (varies by diameter range)	1/2"–1"	Heavy-duty T-bolt — large diameter ranges use wider bands to maintain hoop stiffness
Oetiker ear clamps (standard)	7–9mm depending on series	~5/16"–3/8"	Small-bore permanent connections — fuel, coolant, medical

What Band Width Means for Contact Pressure

Contact pressure (radial force per unit area of hose surface) decreases as band width increases for the same total clamping force. The relationship is:

Contact Pressure (P) = Clamping Force (F) / (Band Width × Contact Arc Length)

For a 50mm OD hose at the same clamping force:

• 12mm band: contact area ≈ 12mm × 157mm = 1,884 mm²
• 16mm band: contact area ≈ 16mm × 157mm = 2,513 mm²
• Contact pressure reduction: 33% lower with 16mm band at the same clamping force

This 33% reduction in contact pressure at the band contact zone is the engineering reason JCS Hi-Torque 16mm band is specified for soft marine hose — at the clamping force required to seal large-bore connections, the standard 12mm band generates edge pressure that damages soft hose wall; the 16mm band stays within the hose's elastic limit. See our stress distribution guide for the full pressure calculation context.

Band Thickness: Definition and Structural Role

Band thickness is the dimension of the band material perpendicular to the hose surface — the gauge of the metal strip that forms the clamp band. Typical values:

Clamp Category	Typical Band Thickness	Structural Implication
Standard worm drive (SAE J1508 minimum)	0.6–0.8mm (0.024–0.031")	Adequate for installation torques up to 3.5 Nm; band tensile strength is not the limiting factor in normal automotive applications — the screw thread strips first
Wide-band worm drive (JCS Hi-Torque)	0.8–1.0mm	Thicker band supports the higher installation torque needed to seal large-bore connections; reduces band yield risk at elevated torque
T-bolt heavy-duty (Mikalor Supra)	1.0–1.5mm depending on diameter	Thicker band required to sustain the high hoop tension generated by 8.8-grade bolt; prevents band yield at M6/M8 T-bolt torque (6–15 Nm) across large circumference
Mini worm drive	0.5–0.6mm	Thinner band on smaller diameter; proportionally adequate for lower clamping forces at small OD

Band Thickness and Hoop Stress

The tensile hoop stress in the clamp band under tension is:

σ = F / (Band Width × Band Thickness)

A thicker band at the same clamping force produces lower hoop stress — proportionally more margin before the band reaches its yield strength. For a standard W4 304SS band: yield strength approximately 310 MPa (annealed); cold-worked strip can be higher. The design margin between operating hoop stress and band yield strength is the band's safety factor. Premium clamps (Mikalor, ABA, JCS) engineer this margin correctly for their specified torque range; commodity clamps with under-gauge band thickness may yield before reaching the specified installation torque, permanently deforming and losing clamping force.

How to Read Band Dimensions from a Datasheet

When comparing clamps from different manufacturers or reviewing product specification sheets:

• Band width is typically expressed as: "Band: 12mm" or "W: 1/2"" or "Band width: 12mm (1/2")"
• Band thickness may appear as: "Thickness: 0.75mm" or "Gauge: 22ga" (US gauge system — 22 gauge steel ≈ 0.76mm). Not all manufacturers publish band thickness; absence usually indicates a commodity-tier product where it is not a differentiating specification
• SAE J1508 compliance: Products stating J1508 compliance meet minimum band width (1/2") and performance requirements; this is the baseline quality indicator for US market worm drive clamps
• Where band thickness matters most: T-bolt clamps and wide-band heavy-duty clamps — always check that the band thickness is stated and appropriate for the bolt diameter and installation torque. A thin band on a large T-bolt creates a mismatched assembly where the bolt can be torqued beyond what the band sustains

Band Width and Fitting Bead Coverage

A practical installation requirement: the clamp band must fully cover the fitting bead (the raised ridge designed for hose retention). Standard 12mm (1/2") band covers a 6–8mm bead with margin on either side — adequate for standard automotive and industrial barbed fittings. On fittings with particularly tall or wide beads (large-bore industrial fittings, sanitary tri-clamp adaptors), a wider band ensures the full bead profile is within the band contact zone. Positioning the clamp band with the bead centred under the band width ensures equal pressure either side of the bead — both sides of the hose wall must be compressed against the fitting for full retention and seal. See our clamp geometry guide for positioning detail.

Frequently Asked Questions: Band Width and Thickness

Does a wider band always give a better seal?

Not necessarily — it gives a different seal. A wider band distributes the same clamping force over more hose area, reducing peak contact pressure per unit area. This protects soft hose from band-edge damage but does not increase the absolute sealing force — that is determined by the clamping force, not the width. For a standard EPDM automotive coolant hose on a standard barbed fitting, a 12mm band at correct torque seals reliably; the 16mm wide band provides no sealing advantage on that connection and requires more axial space on the fitting. The wide band becomes advantageous on soft large-bore marine hose where the standard 12mm band generates damaging contact pressure — the wider band distributes the same force to a safe level without sacrificing sealing effectiveness.

How do I know if a clamp has the correct band thickness for my application?

For standard worm drive on automotive cooling and industrial utility: if the clamp meets SAE J1508, the band thickness is adequate for the specified torque range. For T-bolt clamps: confirm the manufacturer's torque specification for the bolt size and check that the band thickness is stated — Mikalor publishes band thickness and torque specifications together. For comparison purposes: a 12mm-wide T-bolt band at 0.75mm thickness is under-specified for M8 T-bolt torque (12–15 Nm) and likely to yield at the housing junction; a 1.0–1.5mm band is the correct specification for large heavy-duty T-bolt diameters. If the datasheet does not state band thickness on a T-bolt clamp, that omission is itself a quality indicator.

What is the SAE J1508 minimum band width for worm drive clamps?

SAE J1508 specifies a minimum band width of 0.50" (12.7mm) for standard worm drive hose clamps. This is why virtually all quality US-market worm drive clamps — whether European-origin (Mikalor, ABA, NORMA, JCS) or US-manufactured (Breeze, Ideal Tridon) — use a 12mm band. Products advertising widths below 12mm on a standard worm drive, or stating "SAE-style" without confirming J1508 compliance, may not meet the minimum width requirement and should be confirmed before use in automotive or regulated industrial applications.
