Ear Clamps (O-Clips): Oetiker Stepless, Single Ear, and Double Ear Guide

Ear clamps — also called O-clips or pinch clamps — create permanent, calibrated hose connections by crimping one or two pressed ears in the clamp band with a dedicated pincer tool. Unlike worm drive clamps where final clamping force depends on installer torque, ear clamps deliver a consistent, predetermined clamping diameter set by the tool — the same clamping force on every installation regardless of operator. HCL's ear clamp range is led by Oetiker with single-ear, double-ear, and stepless designs, plus HCL own-brand and Tridon options. Browse the full ear hose clamps collection.

How Ear Clamp Crimping Works

An ear clamp is a pre-formed band with one or two raised "ears" — pressed lobes in the band. The clamp is slid over the hose before it is pushed onto the fitting, then positioned over the hose-fitting join. A pincer tool grips the ear and compresses it, plastically deforming the ear and reducing the overall band diameter by a precise, repeatable amount. The result:

• 360° uniform contact around the hose circumference (in stepless designs — see below)
• Consistent clamping force across every installation — no variation from under-torquing or over-torquing
• Permanent, tamper-evident connection — the crimped ear cannot be restored to original shape; installation is visible and irreversible
• No screw to corrode, seize, or back off under vibration

Oetiker Stepless Ear Clamp: The US OEM Standard

Oetiker stepless ear clamps are the standard for US automotive OEM fuel, coolant, and vacuum line connections at Ford, GM, Stellantis, Toyota, and Honda assembly plants. Two defining characteristics separate them from standard ear clamps:

• Stepless band (no overlap joint): Standard ear clamps have a band with a lapped joint — one end of the band overlaps the other, creating a step in the inner surface that can damage soft hose walls and creates a non-uniform clamping profile. Oetiker's stepless design uses a butt-joint band with a bridge piece, providing a smooth, uninterrupted inner surface and genuine 360° uniform contact. This is why stepless is specified for automotive fuel lines (SAE J30), medical tubing, and food-grade connections where hose wall integrity matters
• IATF 16949 quality management: Oetiker ear clamps are manufactured under IATF 16949 (automotive quality management system) — the standard required by all major US OEMs. This is the certification that makes Oetiker the correct aftermarket replacement for OEM ear clamp connections; generic ear clamps without IATF certification are not like-for-like OEM replacements

Single Ear vs Double Ear

Both types install with the same pincer tool but suit different applications:

Single Ear Clamps

Single ear clamps — one crimped ear provides the diameter reduction. Compact profile fits tight engine bays and confined appliance cavities. The standard choice for most automotive small-bore connections — fuel line, vacuum hose, coolant bypass, heater hose connections where a single ear provides sufficient pull-off resistance for the hose diameter and pressure. Covers diameters from approximately 4mm to 50mm (0.16" to 2.0") depending on the series.

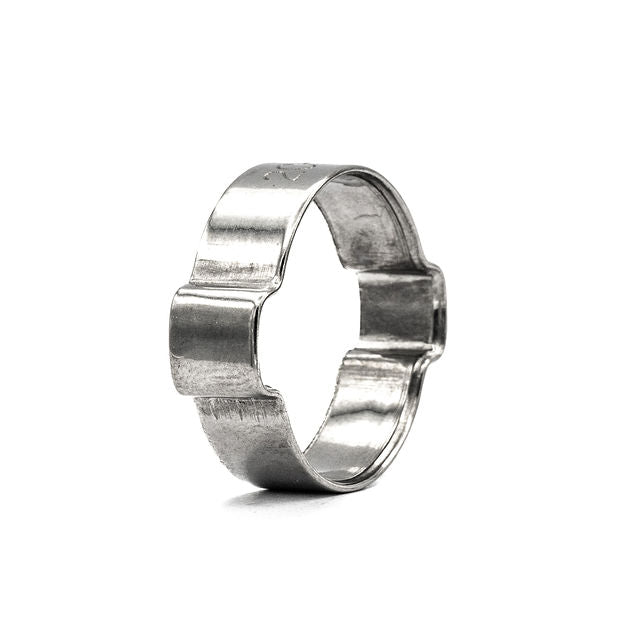

Double Ear Clamps

Double ear clamps — two crimped ears provide greater clamping force and better pull-off resistance on larger-diameter or thicker-wall hose. Correct for larger-bore connections where the single ear's clamping moment is insufficient to resist hose pull-off at operating pressure, and for hose materials with higher durometer that require more force to compress onto the fitting bead. The two ears also distribute compression more evenly on larger diameters.

Material Grade for Ear Clamps

Grade	Material	Correct US Application
W1 (zinc-plated)	Carbon steel, zinc-plated	Dry indoor appliance manufacturing only — washing machine, dishwasher internal connections. Never for automotive fuel or cooling, outdoor exposure, or road-salt-state vehicles
W4 (304SS)	All 304 stainless steel	Automotive fuel lines, cooling system, vacuum lines; outdoor and underhood applications; any connection exposed to road salt or weather. The OEM standard for fuel system ear clamps
W5 (316SS)	All 316 stainless steel	Marine saltwater, Gulf Coast chemical processing, pharmaceutical CIP small-bore utility connections

See our corrosion resistance guide for full environment mapping.

Installation Tooling

Ear clamps require a dedicated pincer tool — standard pliers cannot reliably crimp the ear to the correct final diameter and will damage the ear. HCL supplies pincer tools for both manual and pneumatic/air-tool installation in the hose clamp installation tools collection, including Knipex precision pincers and HCL own-brand tools. Key points:

• Manual pincer tools are correct for bench work and low-volume installation; the HCL air-tool pincer suits production line installation volumes
• Oetiker pincers are calibrated specifically for Oetiker ear dimensions — using a non-matched tool on Oetiker clamps risks under- or over-crimping the ear
• After crimping, inspect the ear visually — the ear should be fully collapsed with no spring-back; any residual gap at the ear indicates under-crimping and the clamp must be cut off and replaced
• Ear clamps are not re-openable — once crimped, the clamp must be cut to remove the hose. Always have the replacement clamp and the correct pincer tool present before cutting an installed ear clamp

Ear Clamps vs Worm Drive: When to Choose Each

Ear clamps are the correct choice over worm drive where:

• Permanent, tamper-evident connection is required — production line, warranty-relevant connections, safety-critical fuel and coolant lines
• Consistent clamping force across multiple operators is required — ear clamp crimp is tool-controlled; worm drive torque varies with operator
• Space envelope is very small — a single-ear profile is lower than a worm drive housing at the same diameter

Worm drive is the correct choice over ear clamps where:

• The connection must be serviceable and re-opened for maintenance — ear clamps must be destroyed to remove
• The exact final hose OD is not known at clamp selection — worm drive covers a diameter range; ear clamps are size-specific to a narrow band
• No pincer tool is available — ear clamps cannot be installed without the correct tool

See our worm drive clamps guide.

Frequently Asked Questions: Ear Clamps

What is the difference between an Oetiker stepless clamp and a standard ear clamp?

A standard ear clamp has a lapped band joint — one end overlaps the other, creating a raised step on the inner surface and a non-uniform clamping profile at the overlap point. Oetiker's stepless design uses a butt-joint band with a bridge piece, giving a smooth inner surface and true 360° uniform contact. For fuel lines, medical tubing, and food-grade connections where hose wall integrity and leak-free uniform contact are critical, stepless is the correct specification. For general-purpose appliance and low-pressure industrial connections where the step is not a concern, standard ear clamps are adequate.

Can I reuse an ear clamp after removing it?

No — ear clamps are single-use. Crimping plastically deforms the ear; the metal cannot be restored to its original shape. Attempting to re-use a crimped ear clamp by re-opening it mechanically will work-harden and crack the ear, producing an unreliable clamp that may fail at pressure. Always use a new clamp when reinstalling a hose. Keep a stock of the correct sizes with your pincer tool for maintenance situations where OEM ear clamps are cut off during service.

Do I need a special tool to install ear clamps?

Yes — a calibrated pincer tool is required. Standard pliers cannot produce a consistent crimp diameter and will either under-crimp (gap remains in the ear — the clamp will fail under pressure) or deform the ear asymmetrically. For Oetiker clamps specifically, Oetiker-matched pincers are available from HCL and produce the precisely calibrated crimp diameter that Oetiker's clamp geometry is designed for. Manual pincers suit low-volume and service work; pneumatic pincer tools suit production line installation. See the installation tools collection.
