High Torque Hose Clamps: JCS Hi-Torque Worm Drive and T-Bolt Heavy Duty

The term "high torque" in hose clamps covers two distinct product categories with different applications. High-torque worm drive clamps — wider band, heavier gauge housing, deeper thread engagement — deliver more clamping force per turn than standard worm drive; JCS Hi-Torque is HCL's primary product here. T-bolt heavy-duty clamps — barrel-nut design, uniform radial clamping force — are the correct choice when worm drive clamping force (even high-torque) is insufficient for the bore diameter and pressure involved; T-bolt heavy-duty clamps are HCL's heavy-duty alternative. Understanding which situation calls for which product is the core of high-torque clamp selection.

JCS Hi-Torque: The High-Torque Worm Drive Standard

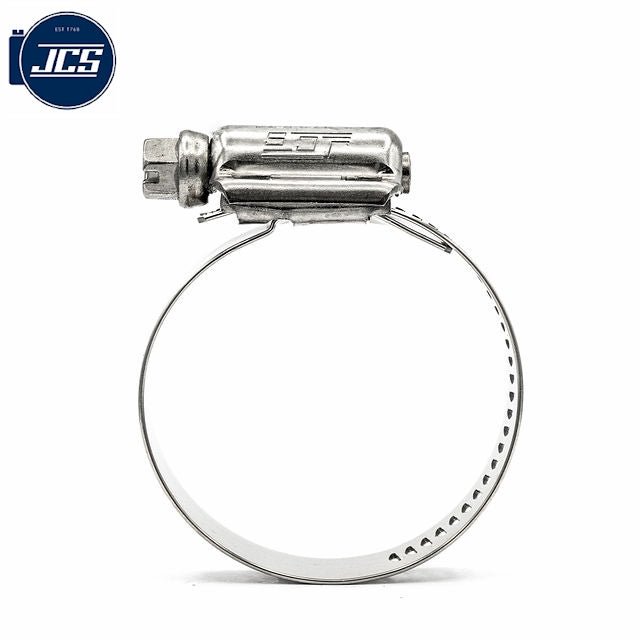

JCS Hi-Torque (UK manufacture) is the reference high-torque worm drive clamp — used throughout marine, offshore, and heavy industrial applications where a standard worm drive lacks sufficient clamping force. The design features that generate higher clamping force than standard worm drive clamps:

• 5/8" (15.9mm) band width vs standard 1/2" (12.7mm) — the wider band distributes clamping force over a larger hose contact area, reducing the unit pressure per mm² at the hose surface and allowing higher total clamping force without hose deformation
• Heavy-gauge 0.030" band material — resists band distortion under high tightening torque; thinner standard bands can kink or deform before reaching maximum clamp engagement
• Deeper thread engagement in the worm housing — more thread engagement means more torque can be applied to the screw before thread stripping; the JCS housing is engineered for the higher tightening torques needed in marine and industrial applications
• Available in W4 (304SS) and W5 (316SS) — all-stainless construction throughout; no galvanised or zinc components that would undermine the high-torque design intent in the environments where it is specified
• Lloyd's Register Type Approval — the only worm drive clamp in HCL's range carrying LR certification, accepted by ABS (American Bureau of Shipping) for US-flagged commercial vessels and ABS-classed offshore structures. See our Lloyd's Register guide.

JCS Hi-Torque Applications

• Commercial marine: Engine cooling, fuel, and bilge connections on commercial fishing vessels, ferries, and tugboats where LR/ABS classification documentation is required. See our marine guide.
• Offshore oil and gas: Topsides utility connections on Gulf of Mexico platforms and FPSOs where the combined vibration, temperature cycling, and saltwater atmosphere demand a clamp that will not back off under service conditions. See our oil and gas guide.
• Heavy diesel engines: Large-bore turbocharger connections on Class 8 trucks (Freightliner Cascadia DD15, Peterbilt 579 X15), marine diesel engines, and industrial generators where the sustained vibration and boost pressure exceed standard worm drive capability
• Industrial high-pressure utility: Process connections in chemical plants and refineries requiring higher clamping force than standard W5 worm drive provides at the bore diameter in use

T-Bolt Heavy Duty: When Worm Drive Clamping Force Is Insufficient

For connections where even JCS Hi-Torque worm drive clamping force is insufficient — large-bore, very high-pressure, or connections requiring uniform circumferential clamping force at large diameters — T-bolt heavy-duty clamps are the correct product:

• How T-bolt differs from worm drive: A worm drive clamp tightens progressively from the screw housing, creating a clamping force gradient around the band — highest at the housing, lower at the opposite side. A T-bolt clamp tightens the band uniformly in tension through a central barrel nut, creating equal clamping force around the full circumference. For large-bore connections (above approximately 3" / 75mm), this uniform tension is critical for leak prevention
• Higher clamping force capacity: The T-bolt's tightening mechanism handles significantly higher torque before hardware failure than any worm drive; the barrel-nut design accepts socket wrench or ratchet tightening at high torque without thread stripping
• Vibration resistance: The barrel-nut design is self-locking under vibration loading — the nut cannot spin back along the T-bolt under vibration; worm drive screws can back off under sustained high-frequency vibration without locking methods

T-Bolt Applications

• Turbocharger charge air cooler (CAC) connections on diesel engines — large bore, sustained boost pressure, constant vibration; Freightliner, Peterbilt, Kenworth, Mack Class 8 trucks; Caterpillar and Komatsu construction equipment
• Fire apparatus pump panel discharge connections — large bore, high pump pressure (150–250 PSI); Pierce, E-ONE, Ferrara fire trucks
• Industrial process pump connections — large-bore flexible expansion joint connections on chemical plant and refinery process pumps
• Wind turbine nacelle hydraulic connections — high-pressure pitch and yaw hydraulic circuits with continuous vibration loading

See our T-bolt clamps guide for the full T-bolt specification framework.

Choosing Between JCS Hi-Torque Worm Drive and T-Bolt

Factor	JCS Hi-Torque Worm Drive	T-Bolt Heavy Duty
Bore diameter	Standard hose sizes to approximately 3" (75mm)	2" (50mm) and above; preferred for >3" (75mm)
Tightening tool	7mm hex screwdriver or nut driver	Socket wrench or ratchet
Clamping force distribution	Progressive from housing	Uniform circumferential
Vibration resistance	High (heavy gauge screw thread)	Very high (self-locking barrel nut)
LR/ABS certification	Yes (JCS Hi-Torque)	No LR cert; ABS accepts T-bolt design
Grade availability	W4 (304SS) and W5 (316SS)	W4 and W5
Reusable	Yes	Yes

Material and Grade Selection

Both JCS Hi-Torque and T-bolt heavy-duty clamps are available in W4 (304SS) and W5 (316SS). The same grade selection framework applies as for all HCL clamps:

• W4 (304SS) for inland industrial and automotive applications without coastal salt atmosphere or chloride-bearing chemical contact
• W5 (316SS) for Gulf Coast and Atlantic coastal marine, offshore topsides, chemical processing, and any application with chloride-bearing fluid or atmosphere contact

See our W4 guide, W5 guide, and corrosion resistance guide.

Installation and Torque

The higher clamping force capability of high-torque clamps requires correct installation torque to realise their full performance — and to avoid over-tightening that deforms the hose or the band:

• JCS Hi-Torque: Use a calibrated torque screwdriver or nut driver; the manufacturer specifies installation torque by clamp size; do not use an impact driver which can over-torque without feedback
• T-bolt: Tighten with a socket wrench to the manufacturer's specified torque; re-torque after initial thermal cycling in high-temperature applications (engine cooling, industrial process) — the first heat cycle seats the hose on the fitting and the clamp typically requires slight re-tightening

See our torque specifications guide and clamping force guide.

Conclusion

High-torque hose clamp selection: JCS Hi-Torque W4/W5 for marine, offshore, and heavy diesel engine applications where LR Type Approval and wide-band worm drive clamping force are the specification drivers; T-bolt heavy-duty W4/W5 for large-bore, very high-pressure, and uniformly loaded connections where worm drive geometry is insufficient. Browse JCS Hi-Torque clamps and T-bolt heavy-duty clamps, or contact our Houston team at (281) 717-1145 for LR certificate packages and application-specific product selection guidance.
