Downhole Clamping: ESP Cable Protectors, Smart Band Polymer Banding, and Wellbore Line Security

Downhole clamping — the attachment of ESP power cables, fiber optic monitoring lines, and chemical injection capillary tubes to the exterior of production tubing — is one of the most demanding fastening applications in any industry. The wellbore environment combines temperatures reaching 200–250°C (392–482°F), hydrostatic pressures exceeding 20,000 PSI, highly corrosive H₂S and CO₂ sour gas, and high-salinity formation brine. HCL's downhole supply focuses on the non-metallic polymer side of this market — Smart Protector PPS cable protectors as saddle/guard bodies for ESP cable and control line management, secured with Smart Band polymer banding and Smart Ties — the millable non-metallic systems that eliminate downhole metallic debris risk and galvanic corrosion at the tubing interface. From HCL's Houston warehouse, both ship same-day to Permian Basin completions supply houses, Eagle Ford operators, and Gulf of Mexico deepwater logistics hubs.

The Downhole Operating Environment

Temperature and Pressure

US wells operate across a wide temperature range by basin:

• Permian Basin (Midland/Delaware Sub-basins, West Texas and New Mexico): The largest US ESP market; typical well depths 7,000–14,000 ft; bottomhole temperatures 120–180°C (248–356°F) — within Smart Protector PPS's 220°C (428°F) continuous service rating for the majority of wells
• Eagle Ford (South Texas, La Salle/McMullen counties — near HCL Houston): Depths to 13,000 ft; temperatures 150–200°C; same-day delivery from HCL Houston to Eagle Ford completions supply
• Gulf of Mexico deepwater (Mississippi Canyon, Green Canyon, Keathley Canyon): Subsea trees and ESP completions at 5,000–10,000 ft water depth plus reservoir depth; bottomhole temperatures can exceed 200°C in some ultra-deep wells
• Bakken (North Dakota): Horizontal wells to 20,000+ ft total measured depth; bottomhole temperatures typically 100–140°C — comfortably within PPS rating

See our PPS guide for the full Smart Protector PPS temperature and chemical resistance specification.

Corrosive Chemistry

The wellbore chemical environment attacks materials through two primary mechanisms:

• H₂S (hydrogen sulfide) sour gas: Present in many Permian, Gulf Coast, and Gulf of Mexico reservoirs; causes Sulfide Stress Corrosion Cracking (SSCC) in high-strength metallic alloys that do not comply with NACE MR0175/ISO 15156. Polymer systems (PPS, Smart Band) are immune to H₂S SSCC — no metallic crystal structure to crack
• High-salinity formation brine: Chloride concentrations far exceeding seawater (50,000–200,000 ppm Cl⁻ in some formations) in combination with CO₂ causes pitting and crevice corrosion in all but the most resistant metallic alloys. PPS is chemically inert to brine at downhole concentrations and temperatures

See our corrosion mechanisms guide for the H₂S SSCC and chloride pitting mechanism explanation.

Smart Protector PPS: Cable and Line Protection Saddles

Smart Protector PPS (Polyphenylene Sulfide) — the highest-temperature grade in HCL's cable protector range — functions as the cable guard saddle body in downhole non-metallic cable protector assemblies:

• Continuous service temperature: 428°F (220°C) — covers the majority of US onshore ESP wells in the Permian Basin, Eagle Ford, Bakken, and Anadarko Basin; for ultra-deep wells exceeding 220°C, consult specialist downhole completion equipment suppliers for PEEK-body protectors
• Chemical inertness: PPS resists H₂S, CO₂, formation brine, crude oil, completion fluids, and most downhole chemical injection products at operating temperatures; see our chemical compatibility guide
• Millable: The most operationally critical property — if a PPS protector body is left in the wellbore or damaged during tubing retrieval, it can be milled through by standard drilling mill tools without risk of permanent metallic obstruction. Metallic protector fragments require expensive fishing operations; PPS debris is circulated out with drilling fluid. This single property drives the adoption of polymer protector systems on high-value wells where fishing risk must be eliminated
• Zero galvanic corrosion: PPS creates an inert interface between the power cable and tubing exterior, eliminating the galvanic couple between dissimilar metals that causes accelerated corrosion at metallic protector-to-tubing contact points

Smart Band Polymer Banding: Securing the Assembly to Tubing

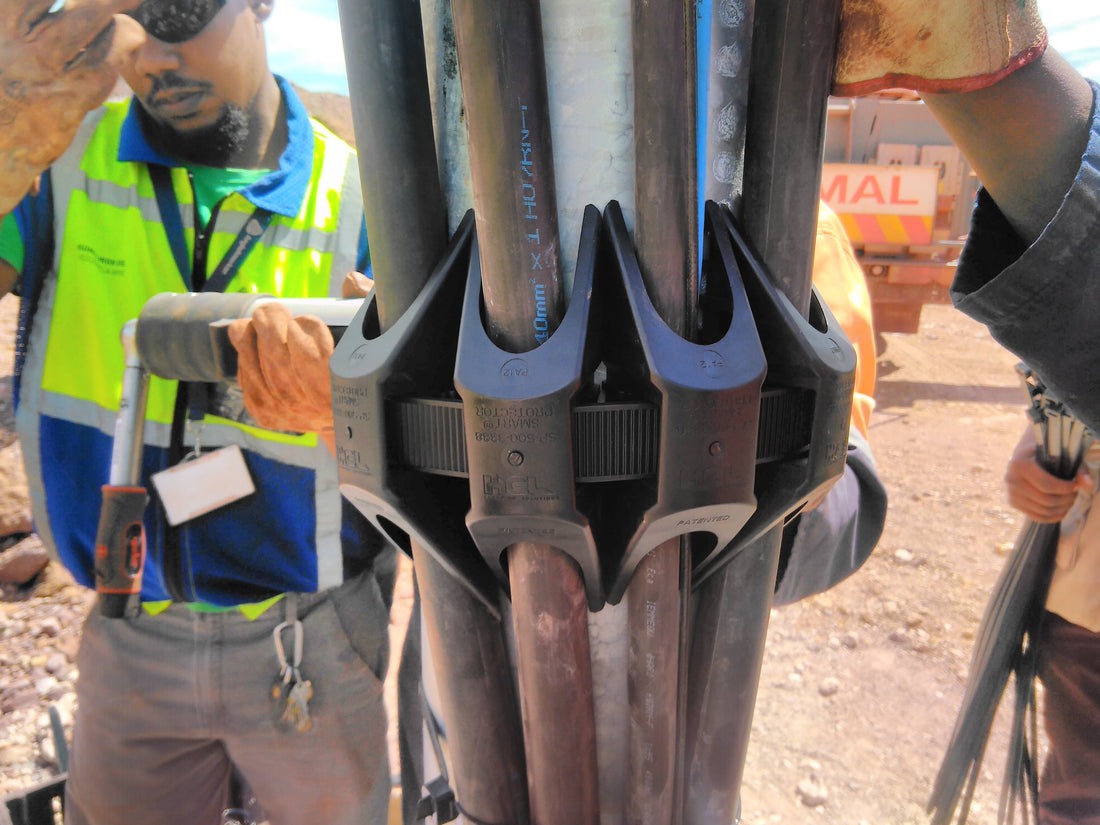

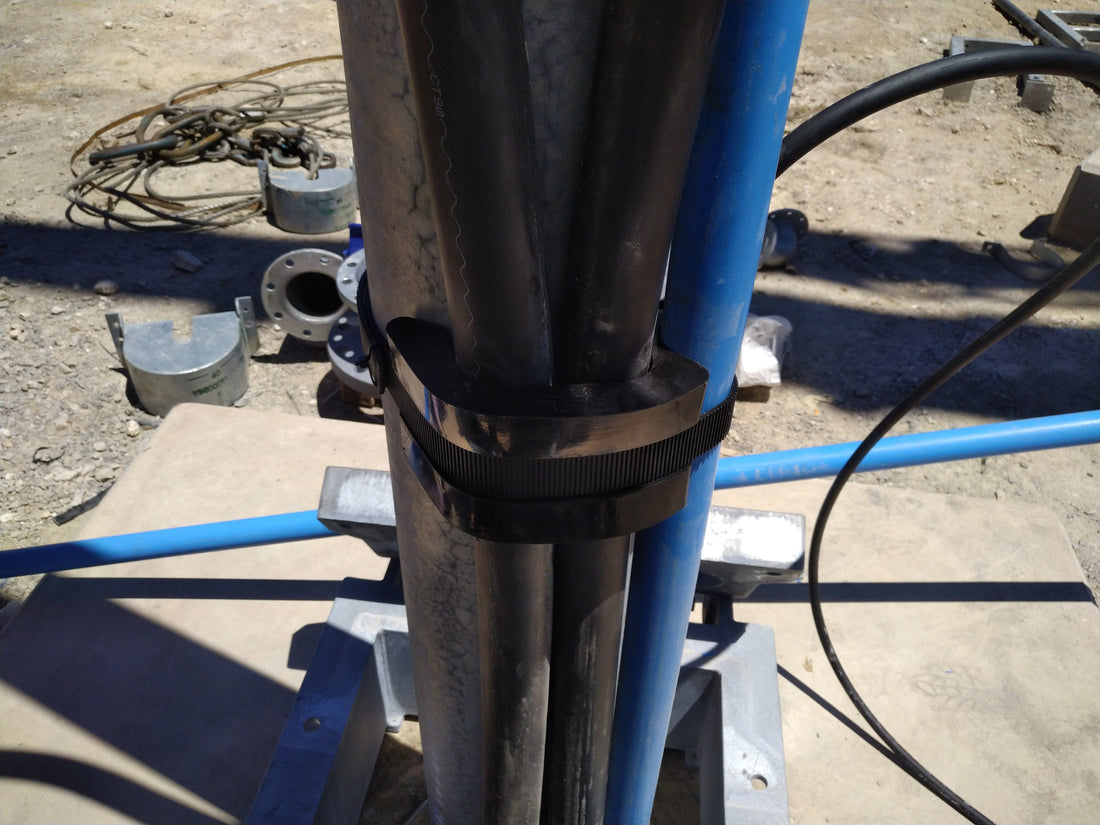

Smart Band polymer banding and Smart Ties secure the protector saddle assembly to the tubing exterior. The non-metallic fastening system maintains the millable characteristic of the complete assembly — a Smart Protector PPS saddle secured with Smart Band polymer straps produces no metallic debris under any failure or milling scenario:

• High-strength retention: Glass fibre-reinforced Smart Band polymer banding rated for the tensile loads from tubing weight and differential pressure acting on the cable assembly during running and retrieval
• Zero galvanic interference: No electrochemical coupling between the fastening system and the tubing steel — critical for tubing with cathodic protection in offshore and wet wellbore environments
• Chemical resistance to wellbore fluids: The polymer strap resists the same formation brine and completion fluid chemistry as the PPS protector body

Metallic Cross-Coupling Protectors: Reference for Procurement Teams

For completions teams specifying metallic cable protector systems — cast split-body cross-coupling protectors in Duplex or Inconel alloy for extreme temperature or high-load applications — specialist downhole completion equipment suppliers (Centek, Frank's International, Innovex, Nine Energy Service) are the correct source; these are outside HCL's standard range. Material context for procurement reference:

• Super Duplex Stainless (F55/Zeron 100, F53/2507): Higher pitting resistance than 316SS (PRE 40+ vs 24 for 316SS); NACE MR0175 compliant for sour H₂S service; for wells where PPS temperature rating is insufficient and a metallic protector is required
• Nickel alloys (Inconel 625, Alloy 825): For the most aggressive sour gas and ultra-high-temperature wells; NACE MR0175 Group 4 compliance; significantly higher cost than Super Duplex

For the majority of US onshore ESP wells (Permian, Eagle Ford, Bakken) where bottomhole temperatures are below 220°C, Smart Protector PPS polymer systems are the technically correct and commercially advantageous specification — millable, corrosion-immune, and delivered from HCL Houston same-day to Midland/Odessa and San Antonio completions supply chains.

US Downhole Application Reference

Application	HCL Product	Key Specification
ESP cable protection saddle (BHT <220°C)	Smart Protector PPS	428°F (220°C); millable; H₂S/brine inert
Tubing attachment — non-metallic strap	Smart Band polymer banding	Millable; zero galvanic; high-tensile retention
Cable bundle management	Smart Ties	High-strength; millable; chemical resistant
ESP cable protection (BHT >220°C)	Specialist PEEK-body supplier	Outside HCL standard range
Metallic cross-coupling protectors	Specialist completion equipment supplier	Duplex/Inconel; outside HCL standard range

Frequently Asked Questions: Downhole Clamping

What makes Smart Protector PPS suitable for downhole ESP cable protection?

Three properties combine to make PPS the correct polymer for most US onshore ESP cable protector applications: continuous service temperature of 428°F (220°C) covering the majority of Permian Basin, Eagle Ford, and Bakken well temperatures; complete chemical inertness to H₂S, CO₂, formation brine, crude oil, and standard completion fluids; and millability — if the protector is left downhole or damaged during tubing retrieval, it can be milled through without creating metallic fishing debris. For wells with bottomhole temperatures above 220°C, PEEK-body protectors from specialist downhole equipment suppliers are required.

What is the millable advantage in practical terms?

If a metallic cable protector is damaged during tubing retrieval and leaves a piece of steel in the wellbore, recovering that piece requires a dedicated fishing run with specialised tools — typically a full rig day or more, at Gulf of Mexico day rates potentially $500,000–$1,000,000+. A polymer (PPS) protector fragment under the same scenario is milled through in minutes using a standard mill bit and circulated out with drilling fluid. This operational risk elimination — not the material cost difference — is the primary commercial driver for polymer protector systems on high-value deepwater and HP/HT wells.

Does Smart Band polymer banding meet NACE MR0175 requirements?

NACE MR0175/ISO 15156 governs metallic materials for H₂S sour service environments — it does not apply to polymer (non-metallic) materials. Smart Band polymer banding is not required to comply with NACE MR0175 because it contains no metallic components that could suffer sulfide stress corrosion cracking. The non-metallic nature of the Smart Band system is itself the H₂S solution — no metallic alloy selection required, no NACE material qualification needed for the fastening system itself.

Can Smart Protector PPS be used in offshore GoM deepwater completions?

Yes for wells where bottomhole temperature is within the 220°C (428°F) PPS rating. Gulf of Mexico shelf wells and many deepwater completions in Miocene reservoirs fall within this range. Ultra-deep HP/HT wells in Paleogene formations (Wilcox trend, Perdido fold belt) can exceed 220°C bottomhole — for those, PEEK protectors from specialist suppliers are required. Contact HCL's Houston team to confirm temperature applicability for specific well data; we supply Gulf of Mexico completions contractors and supply bases from our Houston warehouse.
