Offshore Clamping Solutions for Integrity and Safety 🌊

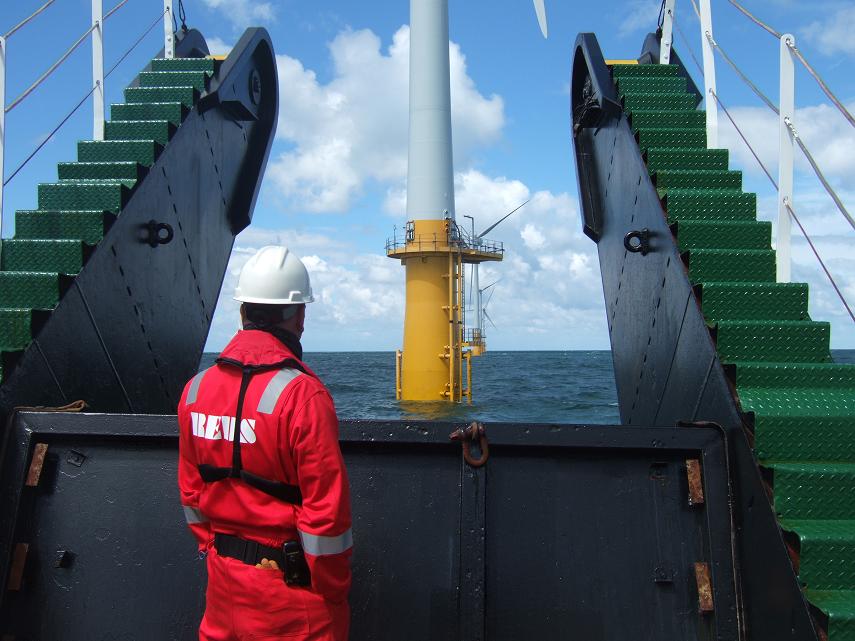

Offshore environments—including oil platforms, FPSOs, wind farms, and subsea infrastructure—present the most challenging conditions for fastening and connection systems due to high salinity, continuous movement, high pressure, and thermal cycling. Offshore clamping solutions are engineered to ensure the long-term integrity of hoses, cables, and pipes in these critical, corrosive settings.

1. Clamping for Corrosive Environments (Material Priority)

In a splash zone or subsea environment, the primary threat to any clamp is chloride-induced corrosion, which can lead to catastrophic failure.

  • W5 (AISI 316 / A4 Marine Grade Stainless Steel): This material is the non-negotiable minimum standard for all metallic clamps used offshore. Its high molybdenum content provides superior resistance to pitting and crevice corrosion compared to standard 304 (W4) stainless steel.

  • Non-Metallic Polymer Clamps & Banding: Specialized polymer or composite clamps are increasingly used to achieve zero-corrosion risk. Products like those from HCL Fasteners (e.g., the Smart Band system) utilize high-strength nylon or polymer composites. These are ideal for securing cables, fiber optics, and control umbilical's subsea, ensuring the clamp doesn't interfere with existing Cathodic Protection (CP) systems or degrade due to seawater exposure.

2. High-Stress and Heavy-Duty Connections

Offshore systems operate under intense vibration and high fluid pressures (e.g., hydraulic lines, drilling mud lines, cooling systems).

  • T-Bolt and Barrel Clamps: These are the gold standard for heavy-duty, high-pressure hose connections, such as those on engine exhaust bellows, large coolant lines, and flexible risers. Their robust design, featuring a solid band and a T-bolt mechanism, provides high clamping force and uniform pressure distribution, effectively preventing blow-offs or leaks under extreme operational stress.

  • Constant Tension (CT) Clamps: Offshore equipment, particularly on FPSOs or platforms, experiences wide temperature swings. CT clamps use a spring mechanism to automatically adjust their diameter as the hose material expands or contracts with temperature changes, maintaining consistent sealing force and eliminating leaks caused by thermal cycling.

3. Subsea and Cable Management

Securing electrical, control, and hydraulic lines on structures, risers, and pipelines subsea requires specialized retention methods.

  • Banding Systems: Flexible steel banding (316 SS) or high-strength polymer strapping is used to bundle and secure arrays of cables or pipes to existing structures. This method is highly adaptable to various diameters and configurations.

  • Cable Saddles and Protectors: Custom-designed clamps or saddles, often made of durable polymer or rubber, are utilized to retain cables without crushing or abrading them. These are frequently employed for securing ICCP (Impressed Current Cathodic Protection) cables and anodes to prevent movement or damage in high-current subsea areas.

  • Vibration Isolation: Clamps used in areas prone to flow-induced vibration (VIV), such as on risers and moorings, often incorporate specialized rubber linings or cushioned inserts (P-clips) to dampen movement and prevent fatigue failure of the secured component.
