Heavy Duty Hose Clamps: T-Bolt and Wide-Band Selection for High-Pressure US Applications

Heavy duty hose clamps address the two failure modes that standard worm drive clamps cannot handle: insufficient clamping force on large-bore or high-pressure connections, and vibration-induced back-off on diesel engines, compressors, and heavy industrial equipment. HCL's heavy duty range centres on two product types — Mikalor Supra T-bolt barrel clamps for the highest-force large-bore applications, and JCS Hi-Torque wide-band worm drive clamps for marine and offshore applications requiring Lloyd's Register Type Approval. Browse the full heavy duty hose clamps collection.

When Standard Worm Drive Is Not Enough

A standard 12mm band worm drive clamp (Mikalor ASFA-S, SAE J1508 worm gear clamp) is the correct specification for the majority of US automotive, agricultural, and light industrial connections. Heavy duty clamps are required when:

• Bore diameter exceeds the worm drive sweet spot: Above approximately 4 inches (100mm), standard worm drive clamps struggle to maintain even pressure distribution around the hose circumference; T-bolt or wide-band designs provide better contact geometry at large diameters
• Operating pressure is high: Turbocharger charge air connections, hydraulic line connections, and high-pressure coolant systems on Class 8 diesel trucks require clamping force beyond what standard worm drive can achieve at specified torque
• Sustained vibration: Diesel engine vibration at 600–2,200 RPM transmits continuously to every clamp on the engine. Standard worm drive screws back off over time; T-bolt barrel-nut designs and wide-band constructions resist this
• Hose material is reinforced or stiff: Corrugated silicone charge air hoses, multi-ply reinforced suction hoses, and heavy-wall rubber transfer hoses require higher radial clamping force to seat properly on the fitting

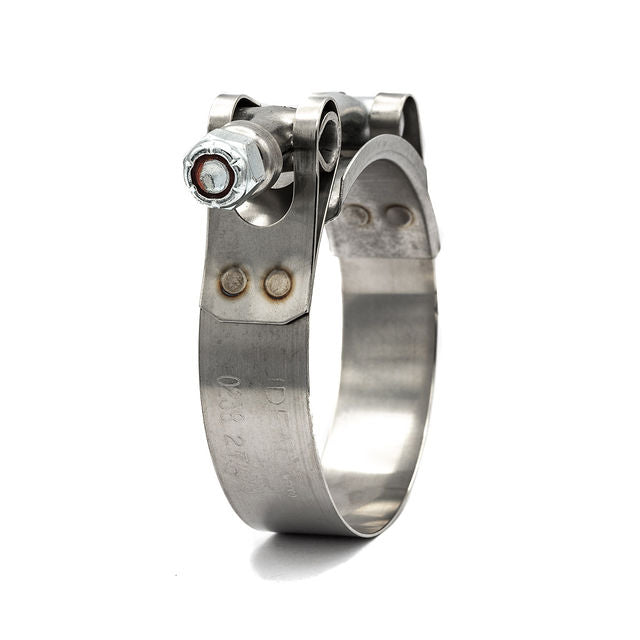

Mikalor Supra: T-Bolt Barrel Clamp

Mikalor Supra is the T-bolt heavy duty clamp in HCL's range — available W4 (all-304SS) and W5 (all-316SS) from 17mm to 408mm (0.67" to 16.06") diameter. The defining design feature is the captive barrel nut: unlike standard T-bolt designs where the nut can back off under vibration, the Supra's barrel nut is retained in a housing that prevents disengagement under sustained diesel engine or compressor vibration. Additional features:

• 8.8 grade steel bolt: Higher tensile strength than standard hardware-grade fasteners — handles the clamping torque required for reinforced and large-bore hoses without bolt failure
• Swivelling bridge: Allows installation without fully removing the hose from the fitting — time saving on Class 8 truck service bays and confined engine compartments
• Bevelled band edges: Protect hose surface during tightening; eliminates band-edge cuts that create hose failure points under sustained vibration
• Smooth inner band: No perforations; eliminates crevice corrosion sites and hose extrusion under high clamping force

See our T-bolt clamps guide for full T-bolt selection context.

JCS Hi-Torque: Wide-Band Worm Drive, LR Type Approved

JCS Hi-Torque W4/W5 — a 5/8" (16mm) wide-band all-stainless worm drive — carries Lloyd's Register Type Approval, the marine classification society certification accepted by the American Bureau of Shipping (ABS) for US-flagged vessels and Gulf of Mexico offshore structures. Key differentiators from standard worm drive:

• 5/8" (16mm) band vs 1/2" (12mm) standard — wider contact area distributes clamping force over more hose surface; reduces peak pressure at band edges on soft marine hose
• All-316SS (W5) for saltwater: band, housing, and screw all 316SS — no galvanic couple, no zinc screw to seize after one Gulf Coast season
• LR/ABS Type Approval certificate available with order — required for commercially classed vessels and ABS-inspected offshore structures

See our Lloyd's Register and ABS guide and marine guide.

Heavy Duty Clamp Selection by Application

Application	US Context	HCL Product	Grade
Class 8 truck turbocharger / charge air	Freightliner, Peterbilt, Kenworth, Volvo trucks	Mikalor Supra T-bolt W4	W4 (304SS)
Large-bore suction and transfer hose	Industrial vacuum, concrete pump, mining slurry	Mikalor Supra T-bolt W4	W4 or W5 by environment
Gulf Coast offshore — high-pressure utility	GoM offshore topsides, separator connections	Mikalor Supra T-bolt W5	W5 (316SS) mandatory
Marine engine exhaust and cooling	Commercial fishing, tugboats, passenger ferries	JCS Hi-Torque W5	W5 — LR/ABS certified
Heavy construction equipment hydraulics	Caterpillar, Komatsu, John Deere excavators	Mikalor Supra T-bolt W4	W4
Agricultural large-bore pump connections	Center-pivot irrigation, grain dryer, combine	Mikalor Supra T-bolt W4	W4

Material Grade for Heavy Duty Applications

The same W-grade framework applies to heavy duty clamps as to standard worm drive — the higher pressure and larger bore don't change the corrosion environment, they change the clamp type:

• W4 (all-304SS): The US professional standard for all heavy duty connections outside the Gulf Coast salt atmosphere and chemical processing zones — Class 8 truck engine compartments, construction equipment, agricultural machinery, industrial manufacturing
• W5 (all-316SS): Required for Gulf Coast offshore and coastal industrial, marine saltwater, food processing CIP, and chemical processing where chloride-bearing environments attack W4 progressively

See our corrosion resistance guide for full W-grade environment mapping.

T-Bolt vs Wide-Band Worm Drive: When to Use Each

Both T-bolt and wide-band worm drive clamps are "heavy duty" — they serve different requirements:

• T-bolt (Mikalor Supra): For the highest clamping force on large-bore connections; for stiff reinforced hose that requires higher radial force to seat; for connections where access allows placing the T-bolt across the hose diameter; not for the tightest space envelopes
• Wide-band worm drive (JCS Hi-Torque): Where T-bolt access geometry is impossible; where LR/ABS Type Approval certification is required for classification society documentation; for large-bore soft marine hose where wide band reduces peak band-edge pressure

Installation: Torque and Vibration Considerations

Heavy duty T-bolt clamps require accurate torque application — under-torque fails to seat the hose on the fitting; over-torque yields the hose wall or damages the fitting bead. Key practices:

• Use a calibrated torque wrench set to the manufacturer's specification — not a ratchet or impact driver which cannot control final torque accurately
• Re-torque after first heat cycle (first engine start to operating temperature and back to cold) — silicone and EPDM hose relax at operating temperature and the clamp force drops 10–15%; re-torquing after the first cycle maintains seal integrity
• For applications on running diesel engines, re-inspect after 500 hours service — even barrel-nut T-bolts can relax on the highest-vibration diesel installations

See our torque specifications guide and installation guide.

Frequently Asked Questions: Heavy Duty Hose Clamps

What makes a hose clamp "heavy duty" — is it just a marketing term?

In practice, "heavy duty" means one of two things: a T-bolt design (where a bolt and nut assembly provides far higher clamping force than a worm drive screw), or a wider band than standard (5/8" or 16mm vs the standard 1/2" or 12mm). Both genuinely provide higher clamping force and better vibration resistance than standard worm drive clamps. When evaluating any heavy duty clamp claim, check the band width and tightening mechanism — a standard-width worm drive labelled "heavy duty" is not an upgrade over a genuine wide-band T-bolt or wide-band worm drive design.

Do I need a heavy duty clamp on a turbocharger silicone hose?

Yes, in most cases. Turbocharged diesel applications — Class 8 trucks, heavy equipment, marine turbo diesels — run charge air pressures of 25–50 PSI at elevated temperatures where silicone hose expands significantly. Standard worm drive clamping force at the specified torque is often insufficient to maintain seal on stiff corrugated silicone charge air hose, particularly through the repeated thermal cycling of start/stop diesel operation. Mikalor Supra T-bolt W4 is the correct specification for charge air connections on Class 8 trucks.

Can I use a heavy duty T-bolt clamp instead of a standard worm drive on a car?

T-bolt clamps can be used on automotive connections but are typically over-specified for standard passenger car cooling hose connections where a W4 worm drive delivers sufficient clamping force. T-bolt clamps are correct for high-performance or modified vehicles with silicone boost pipes, large-bore intercooler connections, or any application where the standard worm drive has failed due to vibration back-off. The Supra's swivelling bridge design makes installation in tight automotive engine bays practical even where standard T-bolt access is difficult.
