Agricultural Hose Clamps: Irrigation Systems, Farm Machinery, and US Regional Selection

US agriculture's hose clamp requirements span from large-scale Corn Belt center-pivot irrigation systems to California Central Valley drip networks, from John Deere and Case IH tractor hydraulic systems across the Great Plains to greenhouse hydroponics in Florida where zero metallic ion contamination of nutrient solution is critical. The selection decision follows the same framework as any industrial application — material grade matched to corrosion environment, clamp type matched to connection permanence and pressure — but with US agricultural-specific variables: fertilizer and pesticide chemical resistance, outdoor UV exposure, and the wide temperature range from Great Plains winters to Texas summer heat. Browse HCL's standard worm gear clamps, polymer hose clamps, and heavy-duty clamps for the agricultural range.

The US Agricultural Operating Environment

US agricultural hose clamps face compound corrosion challenges beyond typical industrial exposure:

• Fertilizer and pesticide chemistry: Ammonium nitrate, urea, glyphosate, atrazine, and anhydrous ammonia contact — W4 (304SS) resists this chemistry; W1 zinc-plated does not. See our chemical compatibility guide.
• Outdoor UV exposure: Full-season outdoor exposure in the Corn Belt and Great Plains; UV-stabilized black PA66 polymer clamps or W4 stainless are the correct materials; natural PA66 and unprotected polymers degrade within one to two growing seasons outdoors.
• Temperature range: Great Plains winters reach -20°F/-29°C; Texas summer heat reaches 110°F/43°C; California Central Valley irrigation water can reach 80°F+. See our temperature range guide.
• Wet/dry cycling: Seasonal irrigation cycling — continuously wet during the growing season, dry in storage — accelerates zinc coating consumption on W1 clamps faster than continuous exposure. A W1 zinc clamp on an Iowa center-pivot system may corrode through in one growing season. See our corrosion resistance guide.
• Physical abuse: Farm equipment hose clamps see impacts from rocks, tools, and equipment contact not present in factory MRO environments.

US Agricultural Regions and Grade Selection

Corn Belt and Great Plains — Irrigation and Equipment

Iowa, Illinois, Indiana, Ohio, Minnesota (Corn Belt) and Kansas, Nebraska, South Dakota, North Dakota (Great Plains) represent the core US grain production belt. Center-pivot and linear-move irrigation systems dominate; John Deere, Case IH, New Holland, and AGCO equipment is the standard tractor fleet:

• Irrigation connections: W4 (304SS) for all above-ground irrigation hose connections exposed to fertilizer solution and outdoor conditions; W1 zinc fails within one growing season from wet/dry cycling and fertilizer contact
• Tractor and harvester hydraulic/cooling systems: W4 minimum for all engine bay and outdoor hose connections on John Deere, Case IH, and New Holland equipment operated in Corn Belt winters; same road-salt-state reasoning as automotive

California Central Valley — Precision Drip and Chemical Resistance

The California Central Valley (Fresno, Tulare, Kings, Kern counties) produces the majority of US tree fruit, nuts, and vegetables under intensive drip irrigation with high fertilizer injection rates. The warm, dry climate reduces outdoor corrosion vs Corn Belt but high-concentration fertilizer solution contact is the primary chemical challenge:

• Drip irrigation manifolds and emitter connections: PA66 polymer clamps (Herbie Clip, Ezyclik) are preferred where metallic ion contamination of fertigation solution could affect sensitive crops (berries, lettuce, micro-greens); W4 for larger-bore distribution lines
• Chemical injection hoses: Verify specific fertilizer and pesticide compatibility before specifying; some concentrated fertilizer blends require W5 (316SS) or specialist polymer grades

Texas and Oklahoma — Near HCL's Houston Distribution

Texas cotton, sorghum, and cattle operations use a combination of dryland farming (no irrigation) and pump-fed irrigation from the Ogallala Aquifer and surface reservoirs. HCL's Houston distribution makes same-week delivery to Texas agricultural distributors and farm co-ops:

• Livestock water systems: W4 for pump and water tank connections; constant exposure to unfiltered well water and tank algae treatment chemistry requires stainless minimum
• Sprayer equipment: W4 for all spray boom and chemical tank connections; Texas herbicide and pesticide chemistry is aggressive to zinc-plated W1

Pacific Northwest — Tree Fruit and Specialty Crops

Washington State apple, cherry, and hop production; Oregon wine grapes and berries. Heavy overhead and drip irrigation; UV exposure significant but temperatures moderate:

• Overhead irrigation risers: W4 for all connections; UV-stabilized black Herbie Clip PA66 for drip tape manifold connections where non-metallic is preferred

Application-by-Application Selection

Center-Pivot and Linear-Move Irrigation

Large-bore mainline connections from pump to distribution pipe and between spans require robust clamps that survive field-season-long continuous water flow plus winter storage:

• W4 worm drive clamps — for all center-pivot and linear-move hose connections; W4 stainless resists the wet/dry cycling and fertilizer chemistry that destroys W1 zinc clamps in one season. See our corrosion mechanisms guide.

Drip Irrigation and Hydroponics — Non-Metallic

Precision drip systems and greenhouse hydroponics where metallic ion contamination of nutrient solution could affect sensitive crop chemistry or certifications (organic, hydroponic, GAP certification):

• Herbie Clip PA66 and Ezyclik PA66 — fully non-metallic; zero metallic contamination risk to nutrient solution; UV-stabilized black grade for outdoor drip installations. See our polymer hose clamps guide.

Farm Machinery — Tractors and Harvesters

John Deere, Case IH, New Holland, AGCO, and Kubota tractor and harvester coolant, hydraulic, and air intake connections require W4 minimum for any outdoor-exposed connection:

• Heavy-duty T-bolt clamps — for large-bore turbocharger and hydraulic connections on modern high-horsepower John Deere 9R and Case IH AFS-series row crop tractors with large-displacement diesel engines and high-capacity hydraulics. See our T-bolt clamps guide.
• W4 worm drive for general engine cooling, hydraulic oil cooler, and air intake connections on standard-horsepower utility tractors

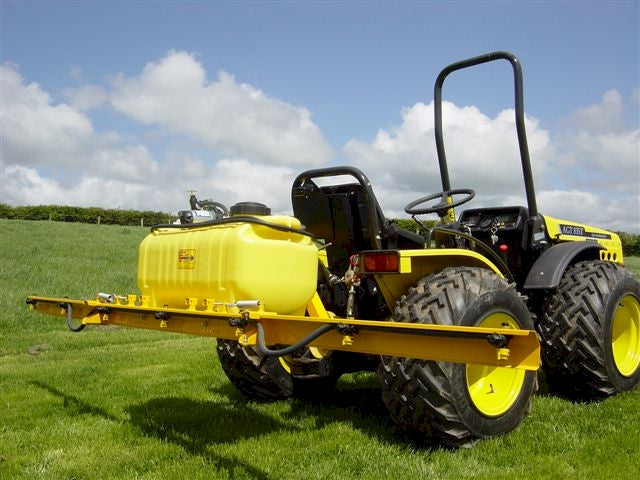

Sprayer Equipment and Chemical Injection

Field sprayers (John Deere ExactApply, Case IH AIM Command) and nurse tank chemical transfer hoses contact concentrated fertilizers, herbicides, and insecticides at agricultural application rates:

• W4 (304SS) minimum for all sprayer boom and chemical transfer connections; verify fluid compatibility for specific chemical formulations against our chemical compatibility guide
• W5 (316SS) where anhydrous ammonia or high-concentration chloride-based fertilizers are used; check with your agronomist on specific product chemistry

Livestock Water Systems

Well pumps, stock tank fill lines, and automatic waterer connections on cattle, swine, and poultry operations — continuous water contact with mineral-rich well water and tank treatment chemicals:

• W4 for all pump and distribution connections; W1 zinc corrodes rapidly in continuous-water contact with untreated well water mineral content; the screw seizes making annual maintenance impossible. See our plumbing and water flow guide.

Agricultural Grade Selection Quick Reference

Application	US Region Example	Grade	Reason
Center-pivot irrigation	Iowa/Nebraska Corn Belt	W4	Wet/dry cycling + fertilizer contact
Drip/hydroponic manifolds	CA Central Valley / FL greenhouses	PA66 polymer	Zero metallic contamination required
Tractor cooling/hydraulics	All US grain and row crop regions	W4	Outdoor exposure + engine bay chemical contact
Sprayer boom connections	All US crop production regions	W4 min / W5 for NH3	Pesticide/fertilizer chemistry resistance
Livestock water systems	Texas / Great Plains ranch country	W4	Continuous water + mineral content

Frequently Asked Questions: Agricultural Hose Clamps

What is the best hose clamp for irrigation systems?

W4 (all-304SS) worm drive for most US irrigation applications — resists the wet/dry cycling, fertilizer contact, and outdoor UV exposure that destroys zinc-plated W1 clamps within one growing season. For precision drip irrigation and hydroponics where metallic ion contamination of nutrient solution is a concern, Herbie Clip PA66 (UV-stabilized black grade) is the non-metallic alternative. The correct choice depends on the specific fluid — confirm fertilizer and pesticide chemical compatibility before final specification.

Why do zinc hose clamps fail on irrigation systems so quickly?

W1 zinc-plated clamps fail rapidly in agricultural use for two reasons: wet/dry cycling (the irrigation season of continuous water contact followed by dry storage accelerates zinc consumption faster than constant immersion); and fertilizer chemistry (ammonium and nitrate compounds in liquid fertilizer attack the zinc coating, exposing the mild steel beneath). A center-pivot system running three irrigations per week through a US growing season can corrode through a W1 clamp screw within four to six months. W4 (304SS) has no zinc layer to consume.

Can I use polymer hose clamps on outdoor irrigation systems?

Yes — with the correct grade. UV-stabilized black PA66 (Herbie Clip black grade) is designed for outdoor UV exposure; unmodified natural PA66 or polypropylene clamps degrade and embrittle under full-season direct sunlight within one to two years. The UV-stabilized black grade maintains mechanical properties through multiple growing seasons of outdoor exposure. Temperature ceiling for PA66 is 338°F (170°C) — well above any agricultural water temperature.

Do I need stainless clamps on my John Deere tractor?

Yes for any tractor operated in the Corn Belt, Great Plains, or northern US states where roads are salt-treated in winter — road salt attacks zinc-plated clamps on tractor hose connections with the same mechanism as automotive applications. For tractors operated exclusively in dry climate states (Texas, Oklahoma, California, Arizona) without significant winter salt exposure, W2 may be adequate for lower-risk non-chemical connections, but W4 is the professional standard and the cost differential is small against the maintenance cost of seized screws at the next service interval.
