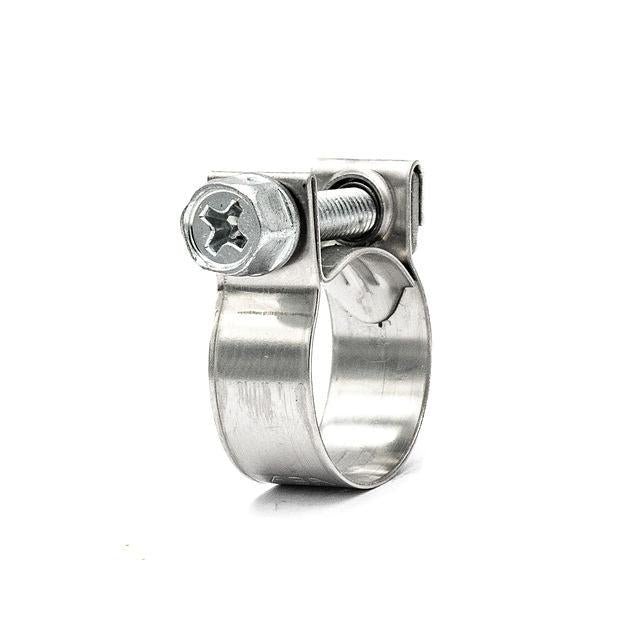

Fuel Injection Clamps: Leak-Proof Connections for Automotive, Small Engine, and Motorcycle Fuel Systems

Fuel injection and fuel delivery system hose clamps secure connections between fuel pump, fuel filter, fuel rail, and injector across pressures of 30–90 PSI in port injection systems and up to 2,900 PSI in GDI (Gasoline Direct Injection) systems — though GDI high-pressure connections use dedicated crimped fittings, not hose clamps. For the flexible hose connection points within fuel delivery systems, Oetiker stepless ear clamps are the OEM standard for permanent automotive fuel line connections; ABA and Jubilee mini worm drive clamps in W4 (304SS) cover aftermarket and small engine fuel system repair. W1 zinc-plated clamps are not appropriate for any fuel system connection — fuel chemistry and under-bonnet heat accelerate zinc coating failure, and a corroded seized screw on a fuel line is a fire risk at the next service.

Oetiker Ear Clamps: OEM Automotive Fuel Line Standard

Oetiker stepless ear clamps are the dominant OEM permanent connection clamp for automotive fuel delivery systems — used by Ford, GM, Stellantis, Toyota, Honda, Subaru, and virtually every other major US automotive OEM for factory fuel line connections:

• Single-ear stepless design: The calibrated pneumatic crimp provides a defined, consistent clamping force on the fuel hose without stressing the hose wall — critical for modern multi-layer fuel hoses (barrier hoses meeting CARB/EPA evaporative emission standards) where over-tightening can crack the inner barrier layer
• Vibration resistance: The crimped ear deforms permanently to lock the hose on the barb; no screw thread to back off under engine vibration over the vehicle's service life
• IATF 16949 documentation: Calibration records and process capability data available for automotive OEM supply chain qualification. See our ear clamps guide.

Oetiker fuel line ear clamps are single-use — once crimped they are not re-openable. For aftermarket service where the clamp must be removed and the hose replaced, cut the existing Oetiker clamp off and replace with a new Oetiker crimp (using an Oetiker pliers tool) or with an equivalent W4 worm drive clamp at the same diameter. See our installation tools.

Worm Drive Clamps W4: Aftermarket Fuel System Service

For aftermarket fuel system service, fuel hose replacement, and fuel line repair on vehicles, generators, and small engines, W4 (all-304SS) worm drive clamps in the appropriate small-bore diameter are the correct specification:

• Special worm gear clamps (mini range) — ABA and Jubilee mini screw clamps in W4 cover the small-diameter fuel hose sizes common in automotive and small engine fuel systems (typically 6–31mm OD); the 304SS all-stainless construction means the screw remains removable at the next service without corrosion seizing
• Standard worm drive W4 for larger-bore fuel system connections — primary fuel supply lines, fuel pump outlet connections, and return line connections on carburetted engines, diesel generators, and marine fuel systems

The most important material note: W1 zinc-plated clamps are not acceptable for any fuel system connection. Fuel chemistry (particularly ethanol-blended fuels E10/E15/E85) is mildly corrosive to zinc coatings; under-bonnet heat accelerates zinc consumption; and a corroded seized screw that cannot be removed for fuel line inspection or replacement creates a maintenance hazard at a fuel system connection. The price difference between W1 and W4 at fuel line clamp diameters is negligible. See our W1 zinc guide and W4 304SS guide.

Spring Hose Clamps: OEM Thermal Cycling Fuel Connections

Spring hose clamps — OEM constant-tension spring clips — are used on some automotive fuel system connections where the connection cycles between cold-start temperature and under-bonnet operating temperature, and the constant-tension spring maintains sealing force without re-tightening. OEM spring clips are typically replaced with equivalent W4 worm drive clamps or new OEM spring clips at service. See our constant tension clamps guide.

Fuel System Applications by Engine Type

Automotive Port Injection (MPI/SFI) Systems

Port injection fuel systems (3.5–7 bar / 51–102 PSI fuel rail pressure) use flexible fuel hose connections at the fuel pump outlet, fuel filter inlet and outlet, and fuel pressure regulator return connections. Standard W4 mini worm drive or Oetiker ear clamps cover all of these connection points at typical automotive fuel hose ODs (6–20mm):

• Oetiker ear clamps for OEM permanent factory connections
• W4 mini worm drive for aftermarket repair and replacement; accessible with a 7mm hex screwdriver in tight underbonnet spaces

Diesel Common Rail Fuel Systems

Diesel common rail systems operate at 1,000–2,500 bar on the high-pressure side — these connections use rigid steel fittings, not flexible hose connections requiring hose clamps. The low-pressure fuel supply side (fuel tank to transfer pump, transfer pump to high-pressure pump inlet) does use flexible hose connections at 1–10 bar requiring W4 small-bore worm drive clamps.

Small Engines: Lawnmowers, Generators, Outboards

Small engine fuel systems (petrol lawnmowers, portable generators, outboard motors) use small-diameter flexible fuel hose at atmospheric to low-pressure connections. ABA and Jubilee mini screw clamps in W4 are the correct specification — small bore, W4 stainless, accessible with a standard flathead screwdriver:

• W4 mini worm drive for lawnmower and small engine fuel line connections; petrol (gasoline) chemistry is mildly aggressive to zinc over the seasonal storage cycle
• W5 (316SS) for marine outboard engine fuel connections where saltwater atmosphere contacts the fuel system; the same W5 marine specification applies to fuel lines as to cooling hose connections on any outboard motor

Motorcycle Fuel Systems

Motorcycle fuel systems — carburetor fuel inlet connections, fuel injection fuel line connections, petcock outlet connections — use small-diameter fuel hose (typically 6–12mm OD). ABA mini screw clamps in W4 are the correct aftermarket replacement specification; OEM is typically Oetiker ear clamp or integrated nipple-clip designs.

US Standards for Fuel System Hose Clamps

• SAE J1508 (Hose Clamps for Automotive Use): The primary US automotive fuel system hose clamp standard; specifies performance requirements including clamping force, salt spray resistance, and installation torque. HCL's W4 worm drive and Oetiker ear clamps meet SAE J1508 requirements. See our SAE standards guide.
• SAE J30 (Fuel and Oil Hose): Covers the fuel hose itself; the clamp must be compatible with the hose OD and construction type specified under SAE J30 for the fuel type
• CARB/EPA Evaporative Emissions: California Air Resources Board and EPA evaporative emission regulations govern fuel hose permeation; barrier fuel hoses meeting these standards require clamps that do not over-stress the barrier layer — smooth inner band or Oetiker ear clamp designs are correct; perforated worm drive bands can crack barrier hose at perforation edges under excessive torque

Installation Best Practices for Fuel System Clamps

• Positioning: Position the clamp 6–12mm (1/4"–1/2") from the hose end, ensuring the full band width sits on the barbed fitting and the hose covers the barb fully; never position the clamp at the very end of the hose beyond the barb
• Torque: Fuel hose connections are lower-pressure than cooling system connections; follow the vehicle manufacturer's torque specification; do not over-tighten on barrier fuel hoses or soft fuel tubing. See our torque specifications guide.
• Inspection after fitting: Run the engine and inspect for fuel leaks at idle and under load before returning the vehicle to service; any fuel leak at a hose clamp connection is a fire risk
• Replacement at hose replacement: Replace the clamp whenever the fuel hose is replaced — the cost of a W4 clamp is negligible versus a new fuel hose; reusing a clamp that has been tightened to the hose's deformation groove risks a leak if the new hose is slightly different in wall thickness

Conclusion

Fuel injection and fuel delivery system clamps: Oetiker ear clamps for OEM permanent automotive production line connections; W4 mini and standard worm drive for aftermarket service, small engine, and diesel fuel system low-pressure supply connections; W5 for marine outboard fuel systems in saltwater atmosphere. W1 zinc-plated is not appropriate for any fuel system connection. Browse Oetiker ear clamps, mini worm drive clamps in W4, and spring hose clamps, or contact our Houston team at (281) 717-1145 for sizing guidance on specific fuel system applications.
