Miniature Hose Clamps: Small-Bore Worm Drive, Ear Clamps, and Material Selection

Miniature hose clamps cover connections below the diameter range where standard 12mm-band worm drive clamps are practical — typically hose ODs from 6mm (0.24") to approximately 25mm (1.0"). HCL's miniature range spans three product types: mini worm drive clamps in 304SS (W4) from ABA and HCL own-brand; Oetiker ear clamps for permanent small-bore fuel, coolant, and medical connections; and PA66 polymer snap-fit clamps (Herbie Clip, Ezyclik) for non-metallic small-bore laboratory and medical connections. Material grade matters as much in miniature as in full-size — a zinc-plated mini clamp on a fuel line is a safety failure regardless of the clamp's size.

Mini Worm Drive Clamps: ABA and HCL Miniature Range

Mini worm drive clamps follow the same band-and-screw construction as standard worm drive but in a narrower band and smaller screw housing for tight-clearance applications:

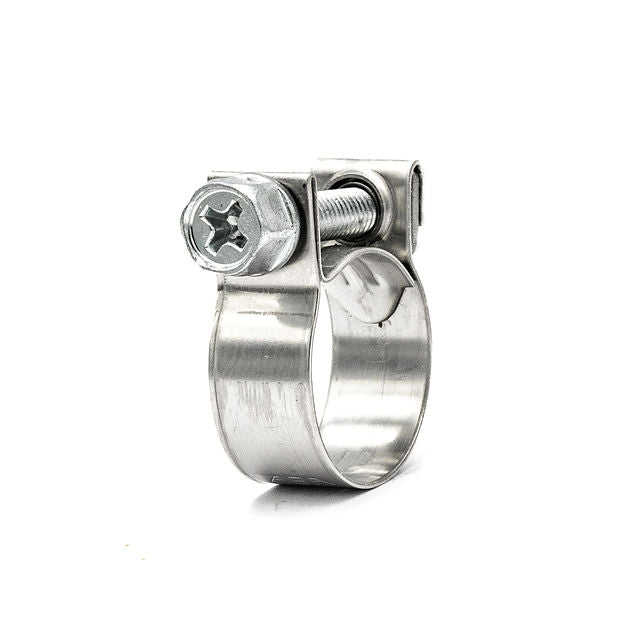

• ABA Mini 304SS (W4): ABA Mini — all-304SS band and screw — covers approximately 8–16mm OD range; the correct stainless specification for small-bore connections in outdoor, chemical, or automotive environments. 304SS (W4) provides genuine corrosion resistance; do not substitute 301SS or 302SS products (lower chromium content, lower corrosion resistance) where 304SS is the stated requirement
• HCL own-brand miniature galvanised: W1 zinc mini worm drive for dry indoor applications only — appliance internal plumbing, HVAC condensate in conditioned spaces, climate-controlled factory assembly. Not for outdoor, automotive fuel system, or any corrosion-exposed application

See the full other screw hose clamps collection.

Oetiker Ear Clamps: The Correct Choice for Permanent Small-Bore Fuel and Medical Connections

For permanent small-bore connections — automotive fuel lines, medical device tubing, laboratory peristaltic pump connections — Oetiker stepless ear clamps are usually the better specification than a mini worm drive. The reasons:

• Stepless (no overlap): Oetiker's single-ear and Clic-R designs create a uniform 360° clamping band with no perforations or band overlap — no stress concentration points on small-diameter tubing where a perforated mini worm band can damage the hose wall under clamping pressure
• Calibrated crimp: The ear is crimped with calibrated tooling to a precise final diameter — consistent clamping force across every installation regardless of installer skill; critical for safety-critical small-bore connections
• IATF 16949 / automotive OEM: Oetiker ear clamps are the standard for US OEM fuel and coolant small-bore connections at Ford, GM, Stellantis, and Toyota; W4 stainless Oetiker clamps are the correct aftermarket replacement
• SAE J30 context: US automotive fuel hose is governed by SAE J30 (Fuel and Oil Hoses standard). Fuel line clamps must maintain seal integrity through fuel pressure, temperature cycling, and fuel chemistry exposure — all-stainless (W4 or W5) is the minimum material; galvanised (W1 zinc) mini clamps are not appropriate

See our fuel injection clamps guide and ear clamps guide for the full fuel and OEM connection specification.

PA66 Polymer: Non-Metallic Miniature Connections

For laboratory, pharmaceutical, reef aquarium, and medical device small-bore connections where zero metallic ion contamination is required, PA66 polymer snap-fit clamps (Herbie Clip, Ezyclik) eliminate all metallic contact with the fluid. FDA 21 CFR 177.1500 compliant; temperature range -40°F to 338°F (-40°C to 170°C). See our polymer hose clamps guide.

Material Grade for Miniature Clamps

The W-grade framework applies identically to miniature clamps — size does not change the corrosion environment:

Grade	Material	Miniature Application
W1 (zinc)	Galvanised mild steel	Dry indoor only — appliance tubing, climate-controlled factory. Never fuel system, outdoor, or road-salt-exposed vehicles
W4 (304SS)	All 304 stainless steel	Automotive vacuum lines, outdoor small-bore, agricultural, food processing utility. The minimum for any fuel-adjacent or weather-exposed connection
W5 (316SS)	All 316 stainless steel	Marine small-bore (saltwater), pharmaceutical CIP small-bore utility, Gulf Coast chemical connections
PA66 polymer	Nylon 6.6	Laboratory, medical device, UPW, reef aquarium — where zero metallic contamination required

Note on 301SS/302SS: Some miniature worm drive clamps are manufactured with 301SS band and 302SS screw. These are lower-alloy stainless grades with reduced chromium content compared to 304SS — they provide basic stainless appearance but lower corrosion resistance than genuine W4 (all-304SS). For any US application where corrosion resistance matters, confirm the specification is all-304SS rather than a 301/302SS mixed grade. See our corrosion resistance guide.

Miniature Clamp Selection by Application

Application	Correct Product	Grade
Automotive fuel lines (OEM and aftermarket)	Oetiker stepless ear clamp	W4 304SS minimum — no zinc
Automotive vacuum lines	ABA Mini W4 or Oetiker ear	W4 — outdoor/underhood exposure
Medical device tubing	Oetiker ear (permanent) or Herbie Clip PA66 (reusable)	W4 stainless or PA66 polymer
Laboratory small-bore	Herbie Clip / Ezyclik PA66	PA66 — zero metallic ions
Appliance internal (dry indoor)	HCL mini galvanised or ABA Mini W4	W1 (dry indoor only) or W4
Marine small-bore saltwater	Mini worm drive or Oetiker	W5 (316SS) mandatory
Robotics / automation small-bore	ABA Mini W4 or Herbie Clip PA66	W4 or PA66 by contamination requirement

Frequently Asked Questions: Miniature Hose Clamps

What size is considered "miniature" for a hose clamp?

There is no formally standardised "miniature" size definition in SAE J1508 (the primary US worm drive hose clamp standard), but in practice miniature clamps cover hose ODs below approximately 25mm (1 inch). Below this diameter, standard 12mm-band worm drive clamps become disproportionately large relative to the hose and fitting, and mini clamps with narrower bands and smaller housings provide better fitment. Oetiker ear clamps cover the smallest diameters from approximately 4mm OD upward.

Can I use a miniature worm drive clamp on a fuel line?

For US automotive fuel systems: Oetiker stepless ear clamps (W4 304SS) are the correct specification for small-bore fuel line connections — this is the OEM standard across Ford, GM, Stellantis, and Toyota assembly. Mini worm drive clamps in W4 304SS are technically viable for aftermarket fuel line repair but the stepless ear clamp provides more consistent clamping force and better pull-off resistance on barbed fittings at small diameters. Galvanised (W1 zinc) mini clamps are not acceptable for any fuel system connection — zinc corrodes from fuel chemistry and fails as a corrosion protection coating.

What is the difference between 301SS and 304SS in a miniature clamp?

304SS (W4) contains 18% chromium and 8% nickel; 301SS contains approximately 16-18% chromium and 6-8% nickel with tighter tolerances that allow different cold-working characteristics. In corrosion resistance terms, 301SS is generally considered slightly inferior to 304SS in chloride-bearing environments — it is a cost-reduction substitute in miniature clamp manufacturing. If corrosion resistance is the concern (outdoor, coastal, chemical exposure), specify all-304SS (W4) explicitly rather than accepting "stainless" without the grade confirmation.
