Robotics Hose Clamps: Precision Connections for Automated Systems

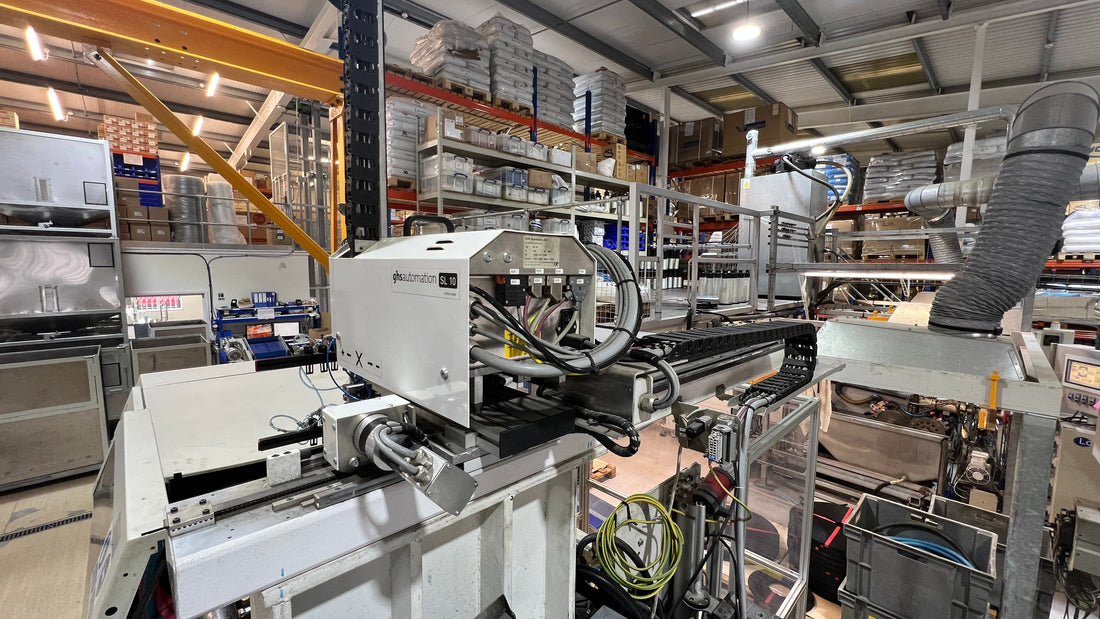

In the intricate world of robotics and automation, every component contributes to the system's precision, reliability, and longevity. Hose clamps, often unseen, play a critical role in securing the vital lifelines of robots—their pneumatic, hydraulic, cooling, and power supply lines. Unlike clamps in static industrial settings, those used in robotics must endure constant, complex motion, high-frequency vibration, and often operate within confined spaces, demanding a unique blend of durability, flexibility, and precision.

Distinct Demands of Robotics Applications

Hose clamps in robotic systems face a demanding set of challenges:

• Constant Motion and Flexing: Robotic arms and end-effectors move rapidly and repeatedly, subjecting hoses and their clamps to continuous bending, twisting, and dynamic stress. Clamps must prevent abrasion and maintain integrity under such conditions.
• Vibration Resistance: Motors, gears, and rapid movements generate significant vibration, which can cause clamps to loosen over time, leading to leaks or disconnections.
• Compact Size and Lightweight Design: Space within robotic arms and confined automation cells is often at a premium. Clamps must be small, low-profile, and as lightweight as possible to minimize added mass, which impacts inertia and energy consumption.
• Smooth Profile and Anti-Snagging: To prevent snagging on other components, cables, or the surrounding environment during movement, clamps need smooth, low-profile designs without sharp edges.
• High Reliability & Longevity: Downtime in automated production lines is extremely costly. Clamps must perform reliably over millions of cycles without failure.
• Fluid Compatibility: Depending on the robot's function, clamps may be exposed to hydraulic oils, pneumatic air, coolants, or even process-specific fluids.
• Extreme Temperature and Environment: Some robotic applications involve cleanroom environments, high heat (e.g., welding robots), or cold conditions, requiring materials that maintain properties across a wide temperature range.
• Aesthetics and Cable Management: In some advanced or collaborative robots, the appearance and neat routing of hoses and cables are also considerations.

Common Types of Robotics Hose Clamps

The specific clamp chosen depends on the hose size, pressure, motion profile, and available space:

1. All-Stainless Steel Worm Gear Clamps (Miniature & Low Profile):
• Description: These are scaled-down versions of the traditional worm gear clamp, specifically designed for smaller diameter hoses and tighter spaces. Critical for robotics is the all-stainless steel construction (typically 304 or 316) to prevent corrosion and ensure durability.
• Applications: Pneumatic lines, small hydraulic lines, cooling lines for end-effectors, and general bundling of cables and hoses within robotic arms or control cabinets.
• Features: Good sealing force for their size, readily available, and relatively easy to install. Rolled edges are essential to prevent hose damage during repeated flexing.
2. Spring Clamps (Self-Compensating):
• Description: Made from spring steel, these clamps exert a constant radial force on the hose. Their self-compensating nature allows them to adapt to changes in hose diameter due to temperature fluctuations or aging of the hose material.
• Applications: Cooling lines, low-pressure pneumatic lines, or any system where thermal cycling is common within the robot's operational envelope.
• Materials: High-grade spring steel, often with corrosion-resistant coatings (e.g., zinc plating, mechanical galvanized, or specialized polymer coatings) to ensure longevity. Stainless steel spring clamps are also used.
• Features: Constant tension, quick installation (often with pliers), and excellent resistance to vibration-induced loosening.
3. Cushioned Clamps (P-Clamps / Adel® Clamps):
• Description: Consist of a metal band lined with an elastomeric cushion. This cushion protects the hose or cable from abrasion and chafing against robot components or other lines, while also dampening vibration.
• Applications: Securing hydraulic or pneumatic lines along robotic arms, mounting cable bundles to robot frames, or isolating lines from vibration sources.
• Materials:
• Metal Band: Lightweight aluminum alloys or stainless steel (304/316) for strength and corrosion resistance.
• Cushion: Neoprene, EPDM, Silicone, or Fluorosilicone, chosen for temperature range, fluid compatibility, and flexibility.
• Features: Excellent vibration dampening, prevents chafing, provides neat and secure routing, crucial for preventing damage to dynamic lines.
4. Cable Ties (Heavy-Duty & Releasable):
• Description: While not traditional hose clamps, specialized heavy-duty and releasable cable ties made from durable plastics (e.g., nylon 6/6, weather-resistant nylon) or even stainless steel can be used for bundling and securing flexible hoses, particularly in less critical or lower-pressure applications where hose movement is a primary concern.
• Applications: Managing hose and cable bundles along robotic arms, routing flexible conduits, or temporary securing during prototyping.
• Materials: High-strength nylon (often with UV or heat stabilizers), or stainless steel for extreme durability.
• Features: Very lightweight, cost-effective, and easy to install. Releasable versions allow for easy modifications during design or maintenance.

Design and Material Considerations for Robotics

• Fatigue Resistance: Materials must withstand millions of flex cycles without cracking or losing clamping force.
• Corrosion Protection: Often, robots operate in environments with coolants, cutting fluids, or other chemicals, necessitating corrosion-resistant materials.
• Smooth Profiles: Clamps should have rounded edges and low-profile designs to minimize the risk of snagging or damaging other components during rapid movements.
• Integrated Solutions: Some robotic systems use custom-molded plastic or metal clamp components that are integrated directly into the robot's structure or cable management system for optimal fit and aesthetics.
• Vibration-Proof Locking Mechanisms: For critical connections, T-bolt clamps with self-locking nuts or specialized designs that resist loosening under vibration are preferred.
• Material Purity (for Cleanroom Robotics): In cleanroom environments (e.g., semiconductor manufacturing, pharmaceutical automation), clamp materials must be non-shedding and compatible with cleanroom standards.

By carefully selecting the right type and material, and ensuring precise installation, hose clamps in robotics are silent workhorses, contributing directly to the agility, reliability, and operational excellence of automated systems across industries. They ensure that the lifelines of a robot—its hydraulic power, pneumatic control, or cooling fluid—remain precisely where they should be, even as the robot executes its most dynamic and complex tasks.
