<div class="card Description">

<h2>Description</h2>

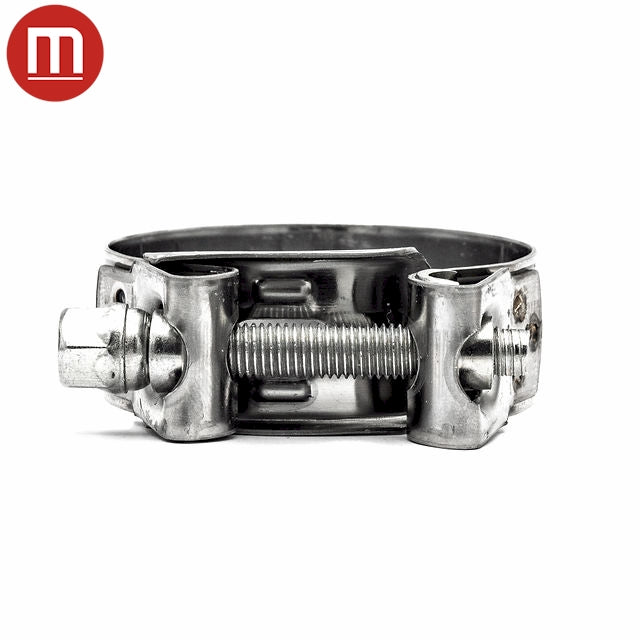

<p>The Supra range is the natural evolution of the Super W1 Clamp. Due to its revolutionary swiveling bridge, Supra can be mounted in the most awkward applications without having to remove the hose. It can be opened and fastened again when in place without dislodging any other parts of the clamp, making assembly much easier. Thanks to the beveled edges, the hose is protected from damage.</p>

</div>

<div class="card Downloads">

<h2>Downloads</h2>

<ul>

<li><a href=https://www.hclfasteners.com/data_sheets/BBC-Supra%20.pdf?dl=0

target="_blank">Mikalor Bolt and Barrel Supra clamp – data sheet<img src="https://cdn.shopify.com/s/files/1/0269/1311/2141/files/Untitled-4.png?v=1580549110" class="fr-fic fr-dii"></a></li>

</ul>

</div>

<div class="card Specifications">

<h2>Product Specifications</h2>

<ul>

<li>Diameter Range (A) mm<b>31.0 - 34.0</b></li>

<li>Diameter Range (A) inch<b>1.22 - 1.34</b></li>

<li>Band Width (B) mm - inch<b>20.0 - 0.79<b></li>

<li>Band Thickness (C) mm - inch<b>0.8 - 0.031</b></li>

<li>Maximum Torque Setting Nm<b>13.0</b></li>

<li>Maximum Pressure bars<b>40.0</b></li>

<li>Screw mm A/F<b>11.0</b></li>

<li>Band/Housing Material <b>W2 430SS</b></li>

<li>Screw Material <b>W1 Mild Zinc Plated Steel</b></li>

<li>Brand <b>Supra</b></li>

<li>Manufactured By <b>Mikalor</b></li>

<li>Country of Manufacture<b>Spain</b></li>

<li>Hazardous Goods <b>No</b></li>

<li>RoHS Compliant <b>Yes</b></li>

</ul>

</div>

<div class="card Features">

<h2>Features</h2>

<ul>

<li>Swivel Bridge enables mounting without having to remove Hose</li>

<li>Beveled edges protect the hose from damage</li>

<li>High Strength Bolt & nut/spacer system</li>

<li>Proven brand recognised worldwide</li>

</ul>
