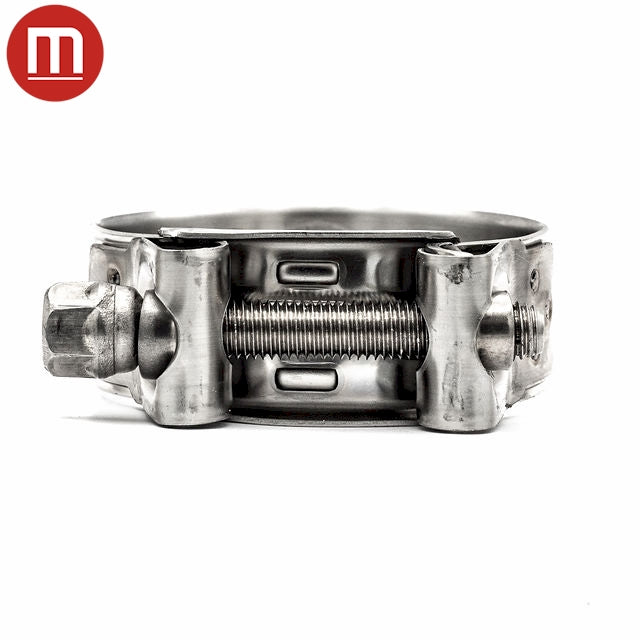

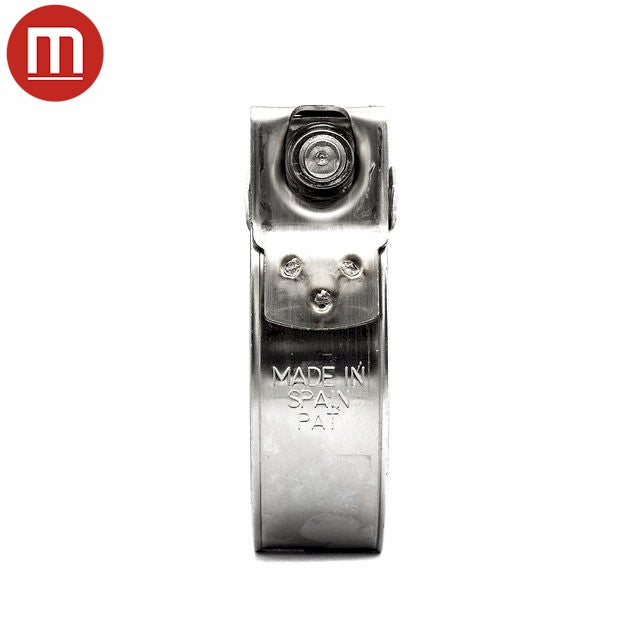

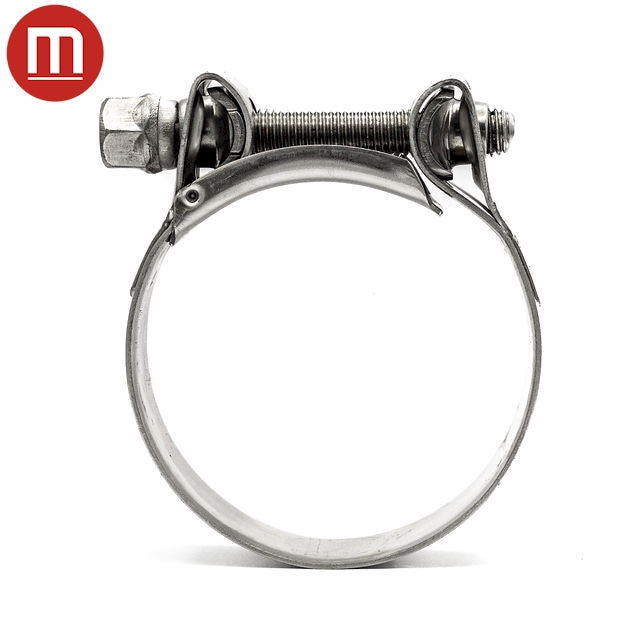

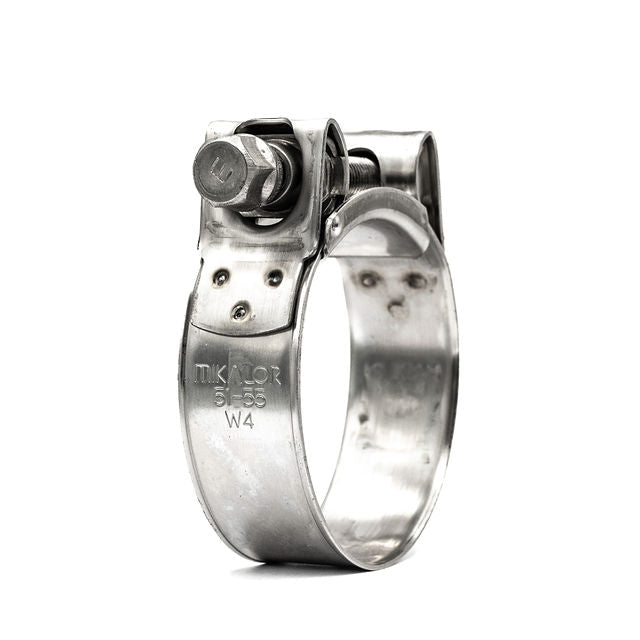

Heavy Duty Hose Clamp SUPRA 304 Stainless Steel Bolt & Barrel Clamp

Heavy Duty Hose Clamp SUPRA 304 Stainless Steel Bolt & Barrel Clamp

BBC-17-SUPRA-W4

$6.52
$6.52
Sale Sold out
Shipping calculated at checkout.

Low stock: 9 left
  • Free standard shipping. Next day delivery available. Find out more
View full details

Need advice? Talk to our expert customer support team

Call

281 7171145
Monday-Friday 8am to 4pm

Email

sales@hcl-clamping.com
Scroll
Clamp Dia In (fr) ?

Clamp Dia In (fr): The clamp's internal diameter listed as a fractional measurement in inches (e.g., 1, 1/2 in.).
Clamp Dia mm ?

Clamp Dia mm: The required metric size for a secure fit, indicating the outer diameter (in mm) of the component the clamp is meant to hold.
Band Width ?

Band Width: The measurement of the clamp's band or strap, indicating its width (often in mm or inches) and how much surface area it covers.
HCL P/N ?

HCL/ PN: The unique identifying number assigned to a part by HCL
MFG P/N ?

MFG P/N: The unique identifying number assigned to a part by its manufacturer.
Max Torq ?

Max Torque (Nm): The maximum rotational or twisting force, measured in Newton-metres
Bolt Size
2D PDF ?

2D PDF: A standard document format containing two-dimensional drawings.
2D DXF ?

2D DXF: A standard file format for exchanging two-dimensional Computer-Aided Design (CAD) drawings between different software programs.
3D STP ?

3D STEP: A standard file format used to exchange three-dimensional product model data between different CAD software programs.
Price ?

Price: The cost per unit

Stock ?

Stock: available products that can be purchased

Order Qty ?

Order Quantity: The total amount of units you wish to order

11/16 in - 3/4 in - 17.0mm - 19.0mm - 11/16 in (18.0mm) - BBC-17-SUPRA-W4 - 03013016 - 89 lbf-in (10 Nm) - M6 - 2D PDF - 2D DXF - 3D STP - $6.52 9
3/4 in - 13/16 in - 19.0mm - 21.0mm - 11/16 in (18.0mm) - BBC-19-SUPRA-W4 - 03013024 - 89 lbf-in (10 Nm) - M6 - 2D PDF - 2D DXF - 3D STP - $6.60 36
13/16 in - 7/8 in - 21.0mm - 23.0mm - 11/16 in (18.0mm) - BBC-21-SUPRA-W4 - 03013032 - 89 lbf-in (10 Nm) - M6 - 2D PDF - 2D DXF - 3D STP - $6.69 30
7/8 in - 1 in - 23.0mm - 25.0mm - 11/16 in (18.0mm) - BBC-23-SUPRA-W4 - 03013040 - 89 lbf-in (10 Nm) - M6 - 2D PDF - 2D DXF - 3D STP - $6.79 86
1 in - 1,1/16 in - 25.0mm - 27.0mm - 11/16 in (18.0mm) - BBC-25-SUPRA-W4 - 03013059 - 89 lbf-in (10 Nm) - M6 - 2D PDF - 2D DXF - 3D STP - $6.88 0
1,1/16 in - 1,1/8 in - 27.0mm - 29.0mm - 11/16 in (18.0mm) - BBC-27-SUPRA-W4 - 03013067 - 89 lbf-in (10 Nm) - M6 - 2D PDF - 2D DXF - 3D STP - $7.02 50
1,1/8 in - 1,1/4 in - 29.0mm - 31.0mm - 13/16in (20.0mm) - BBC-29-SUPRA-W4 - 03013075 - 115 lbf-in (13 Nm) - M7 - 2D PDF - 2D DXF - 3D STP - $8.15 209
1,1/4 in - 1,5/16 in - 31.0mm - 34.0mm - 13/16in (20.0mm) - BBC-31-SUPRA-W4 - 03013083 - 115 lbf-in (13 Nm) - M7 - 2D PDF - 2D DXF - 3D STP - $8.25 23
1,5/16 in - 1,7/16 in - 34.0mm - 37.0mm - 13/16in (20.0mm) - BBC-34-SUPRA-W4 - 03013091 - 115 lbf-in (13 Nm) - M7 - 2D PDF - 2D DXF - 3D STP - $8.46 58
1,7/16 in - 1,9/16 in - 37.0mm - 40.0mm - 13/16in (20.0mm) - BBC-37-SUPRA-W4 - 03013104 - 115 lbf-in (13 Nm) - M7 - 2D PDF - 2D DXF - 3D STP - $8.57 115
1,9/16 in - 1,11/16 in - 40.0mm - 43.0mm - 13/16in (20.0mm) - BBC-40-SUPRA-W4 - 03013112 - 115 lbf-in (13 Nm) - M7 - 2D PDF - 2D DXF - 3D STP - $8.69 25
1,11/16 in - 1,7/8 in - 43.0mm - 47.0mm - 13/16in (20.0mm) - BBC-43-SUPRA-W4 - 03013120 - 141 lbf-in (16 Nm) - M7 - 2D PDF - 2D DXF - 3D STP - $10.97 36
1,7/8 in - 2 in - 47.0mm - 51.0mm - 13/16in (20.0mm) - BBC-47-SUPRA-W4 - 03013139 - 141 lbf-in (16 Nm) - M7 - 2D PDF - 2D DXF - 3D STP - $11.05 29
2 in - 2,3/16 in - 51.0mm - 55.0mm - 13/16in (20.0mm) - BBC-51-SUPRA-W4 - 03013147 - 141 lbf-in (16 Nm) - M7 - 2D PDF - 2D DXF - 3D STP - $11.30 42
2,3/16 in - 2,5/16 in - 55.0mm - 59.0mm - 13/16in (20.0mm) - BBC-55-SUPRA-W4 - 03013155 - 141 lbf-in (16 Nm) - M7 - 2D PDF - 2D DXF - 3D STP - $11.50 0
2,15/16 in - 2,1/2 in - 59.0mm - 63.0mm - 13/16in (20.0mm) - BBC-59-SUPRA-W4 - 03013163 - 141 lbf-in (16 Nm) - M7 - 2D PDF - 2D DXF - 3D STP - $11.60 18
2,1/2 in - 2,11/16 in - 63.0mm - 68.0mm - 13/16in (20.0mm) - BBC-63-SUPRA-W4 - 03013171 - 141 lbf-in (16 Nm) - M7 - 2D PDF - 2D DXF - 3D STP - $11.73 23
2,11/16 in - 2,7/8 in - 68.0mm - 73.0mm - 1in (25.0mm) - BBC-68-SUPRA-W4 - 03013180 - 265 lbf-in (30 Nm) - M8 - 2D PDF - 2D DXF - 3D STP - $16.52 77
2,7/8 in - 3,1/8 in - 73.0mm - 79.0mm - 1in (25.0mm) - BBC-73-SUPRA-W4 - 03013198 - 265 lbf-in (30 Nm) - M8 - 2D PDF - 2D DXF - 3D STP - $17.07 25
3,1/8 in - 3,3/8 in - 79.0mm - 85.0mm - 1in (25.0mm) - BBC-79-SUPRA-W4 - 03013200 - 265 lbf-in (30 Nm) - M8 - 2D PDF - 2D DXF - 3D STP - $17.40 49
3,3/8 in - 3,9/16 in - 85.0mm - 91.0mm - 1in (25.0mm) - BBC-85-SUPRA-W4 - 03013219 - 265 lbf-in (30 Nm) - M8 - 2D PDF - 2D DXF - 3D STP - $17.81 0
3,9/16 in - 3,13/16 in - 91.0mm - 97.0mm - 1in (25.0mm) - BBC-91-SUPRA-W4 - 03013227 - 265 lbf-in (30 Nm) - M8 - 2D PDF - 2D DXF - 3D STP - $18.17 25
3,13/16 in - 4,1/8 in - 97.0mm - 104.0mm - 1in (25.0mm) - BBC-97-SUPRA-W4 - 03013235 - 265 lbf-in (30 Nm) - M8 - 2D PDF - 2D DXF - 3D STP - $18.58 19
4,1/8 in - 4,7/16 in - 104.0mm - 112.0mm - 1in (25.0mm) - BBC-104-SUPRA-W4 - 03013243 - 265 lbf-in (30 Nm) - M8 - 2D PDF - 2D DXF - 3D STP - $19.01 29
4,7/16 in - 4,3/4 in - 112.0mm - 121.0mm - 1in (25.0mm) - BBC-112-SUPRA-W4 - 03013251 - 265 lbf-in (30 Nm) - M8 - 2D PDF - 2D DXF - 3D STP - $19.36 34
4,3/4 in - 5,1/8 in - 121.0mm - 130.0mm - 1in (25.0mm) - BBC-121-SUPRA-W4 - 03013260 - 265 lbf-in (30 Nm) - M8 - 2D PDF - 2D DXF - 3D STP - $19.71 0
5,1/8 in - 5,1/2 in - 130.0mm - 140.0mm - 1,1/8in (28.0mm) - BBC-130-SUPRA-W4 - 03013278 - 398 lbf-in (45 Nm) - M10 - 2D PDF - 2D DXF - 3D STP - $27.62 20
5,1/2 in - 5,7/8 in - 140.0mm - 150.0mm - 1,1/8in (28.0mm) - BBC-140-SUPRA-W4 - 03013286 - 398 lbf-in (45 Nm) - M10 - 2D PDF - 2D DXF - 3D STP - $28.19 21
5,7/8 in - 6,3/8 in - 150.0mm - 162.0mm - 1,1/8in (28.0mm) - BBC-150-SUPRA-W4 - 03013294 - 398 lbf-in (45 Nm) - M10 - 2D PDF - 2D DXF - 3D STP - $28.86 32
6,3/8 in - 6,7/8 in - 162.0mm - 174.0mm - 1,1/8in (28.0mm) - BBC-162-SUPRA-W4 - 03013307 - 398 lbf-in (45 Nm) - M10 - 2D PDF - 2D DXF - 3D STP - $29.20 23
6,7/8 in - 7,3/8 in - 174.0mm - 187.0mm - 1,1/8in (28.0mm) - BBC-174-SUPRA-W4 - 03013315 - 398 lbf-in (45 Nm) - M10 - 2D PDF - 2D DXF - 3D STP - $29.66 18
7,3/8 in - 7,7/8 in - 187.0mm - 200.0mm - 1,1/8in (28.0mm) - BBC-187-SUPRA-W4 - 03013323 - 398 lbf-in (45 Nm) - M10 - 2D PDF - 2D DXF - 3D STP - $30.21 8
7,7/8 in - 8,3/8 in - 200.0mm - 213.0mm - 1,1/8in (28.0mm) - BBC-200-SUPRA-W4 - 03013331 - 398 lbf-in (45 Nm) - M10 - 2D PDF - 2D DXF - 3D STP - $30.66 14
8,3/8 in - 8,7/8 in - 213.0mm - 226.0mm - 1,1/8in (28.0mm) - BBC-213-SUPRA-W4 - 03013340 - 398 lbf-in (45 Nm) - M10 - 2D PDF - 2D DXF - 3D STP - $31.01 26
8,7/8 in - 9,7/16 in - 226.0mm - 239.0mm - 1,1/8in (28.0mm) - BBC-226-SUPRA-W4 - 03013358 - 398 lbf-in (45 Nm) - M10 - 2D PDF - 2D DXF - 3D STP - $31.57 4
9,7/16 in - 10 in - 239.0mm - 252.0mm - 1,1/8in (28.0mm) - BBC-239-SUPRA-W4 - 03013366 - 398 lbf-in (45 Nm) - M10 - 2D PDF - 2D DXF - 3D STP - $32.02 8
10 in - 10,7/16 in - 252.0mm - 265.0mm - 1,1/8in (28.0mm) - BBC-252-SUPRA-W4 - 03013374 - 398 lbf-in (45 Nm) - M10 - 2D PDF - 2D DXF - 3D STP - $40.27 4
10,7/16 in - 11 in - 265.0mm - 278.0mm - 1,1/8in (28.0mm) - BBC-265-SUPRA-W4 - 03013390 - 398 lbf-in (45 Nm) - M10 - 2D PDF - 2D DXF - 3D STP - $43.09 8
11 in - 11,7/16 in - 278.0mm - 291.0mm - 1,1/8in (28.0mm) - BBC-278-SUPRA-W4 - 03013422 - 398 lbf-in (45 Nm) - M10 - 2D PDF - 2D DXF - 3D STP - $46.11 14
11,7/16 in - 12 in - 291.0mm - 304.0mm - 1,1/8in (28.0mm) - BBC-291-SUPRA-W4 - 03013433 - 398 lbf-in (45 Nm) - M10 - 2D PDF - 2D DXF - 3D STP - $49.33 4
12 in - 12,1/2 in - 304.0mm - 317.0mm - 1,1/8in (28.0mm) - BBC-304-SUPRA-W4 - 03013444 - 398 lbf-in (45 Nm) - M10 - 2D PDF - 2D DXF - 3D STP - $52.79 10
12,1/2 in - 13 in - 317.0mm - 330.0mm - 1,1/8in (28.0mm) - BBC-317-SUPRA-W4 - 03013403 - 398 lbf-in (45 Nm) - M10 - 2D PDF - 2D DXF - 3D STP - $57.54 3
13 in - 13,1/2 in - 330.0mm - 343.0mm - 1,1/8in (28.0mm) - BBC-330-SUPRA-W4 - 03013455 - 398 lbf-in (45 Nm) - M10 - 2D PDF - 2D DXF - 3D STP - $62.71 10
13,1/2 in - 14 in - 343.0mm - 356.0mm - 1,1/8in (28.0mm) - BBC-343-SUPRA-W4 - 03013466 - 398 lbf-in (45 Nm) - M10 - - - - $68.36 5
14 in - 14,1/2 in - 356.0mm - 369.0mm - 1,1/8in (28.0mm) - BBC-356-SUPRA-W4 - 03013477 - 398 lbf-in (45 Nm) - M10 - 2D PDF - 2D DXF - 3D STP - $74.51 5
14,1/2 in - 15 in - 369.0mm - 382.0mm - 1,1/8in (28.0mm) - BBC-369-SUPRA-W4 - 03013488 - 398 lbf-in (45 Nm) - M10 - 2D PDF - 2D DXF - 3D STP - $81.22 0
15 in - 15,9/16 in - 382.0mm - 395.0mm - 1,1/8in (28.0mm) - BBC-382-SUPRA-W4 - 03013499 - 398 lbf-in (45 Nm) - M10 - 2D PDF - 2D DXF - 3D STP - $88.53 5
15,9/16 in - 16 in - 395.0mm - 408.0mm - 1,1/8in (28.0mm) - BBC-395-SUPRA-W4 - 03013500 - 398 lbf-in (45 Nm) - M10 - 2D PDF - 2D DXF - 3D STP - $33.91 5

Description

The Supra W4 clamp complies fully with the RoHs directive EU 20032/95/EC. The Stainless Steel bolt together with the captive nut and spacer system allow for clamping the most demanding of hose assemblies. Supra W4 is a full stainless steel clamp, designed for demanding applications where high corrosion resistance is vital.

Due to its revolutionary swiveling bridge, Supra W4 can be mounted in the most awkward applications without having to remove the hose. It can be opened and fastened again when in place without dislodging any other parts of the clamp, making assembly much easier

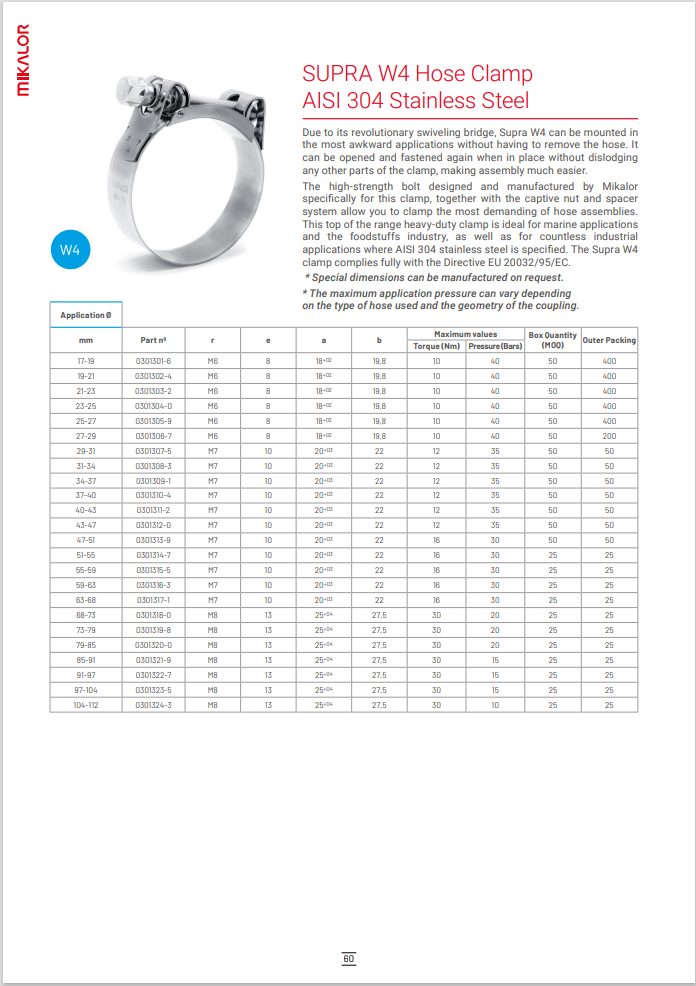

Product Specification Sheet

Download

Specification

Manufactured By Mikalor
HCL P/N BBC-X-SUPRA-W4
Series Mikalor SUPRA
Corrosion Resistance Very Good
Corrosion Specification 400 Hours Salt Spray (ASTM B-117)
Hose Clamp Width in/mm 11/16 in (18.0mm)13/16 in (20.0mm)1 in (25.0mm)1,1/8 in (28.0mm)
Band Style Lined Band
Band Material 304 Stainless Steel
Bolt/Screw Type Hex Nut
Bolt/Screw Material 304 Stainless Steel
Finish Stainless Steel
Colour Silver
Max Tightening Speed RPM 540 +/-5
Specification 1 EU Directive 2002/95/EC
Country of Manufacture Spain
Tariff Code 7326 90 92
Hazardous Goods No
RoHS Compliant Yes

Unyielding Strength & Ultimate Corrosion Resistance: Mikalor SUPRA Heavy-Duty Hose Clamp - Full 304 Stainless Steel (19.0-408.0mm)

Engineered for the most demanding applications requiring exceptional strength and maximum corrosion resistance, the Mikalor SUPRA Heavy-Duty Hose Clamp delivers unparalleled performance. Constructed entirely from premium 304 stainless steel, including the band and bolt, this clamp is built to withstand extreme conditions and provide a secure, leak-free seal across a wide size range of 19.0mm to 408.0mm (0.74-16.06in). Ideal for heavy machinery, marine environments, chemical processing, and large diameter hoses, the SUPRA clamp offers unwavering reliability where it matters most.

Why Choose the Mikalor SUPRA Heavy-Duty Hose Clamp - Full 304 Stainless Steel?

  • Extreme Clamping Force: The robust bolt and trunnion system, combined with the strong band, delivers significantly higher clamping force than standard hose clamps.
  • Heavy-Duty Construction: Built to withstand high pressures, vibrations, and demanding operating environments.
  • Full 304 Stainless Steel: Offers the ultimate in corrosion resistance, ideal for marine, chemical, food processing (consider specific food grade for direct contact), and other harsh environments.
  • Wide Size Range for Large Diameters: Covers an extensive range from 19.0mm to 408.0mm (0.74-16.06in), ideal for large hoses, ducts, and pipes.
  • Robust Bolt and Trunnion System: Facilitates high torque application and even pressure distribution for a superior seal.
  • Bevelled Band Edges: Prevent damage to the hose, ensuring a secure and durable hold without cutting or chafing.
  • Trusted Mikalor Quality: A globally recognized leader in high-performance clamping and fastening solutions.

Perfect For:

  • Marine Exhaust and Intake Systems
  • Chemical Processing Plants
  • Food and Beverage Industry (consider specific food grades for direct contact)
  • Heavy Machinery and Construction Equipment in Corrosive Environments
  • Large Diameter Industrial Hoses and Ducting
  • Any application requiring extreme clamping force and maximum corrosion resistance

Experience Unmatched Holding Power and Ultimate Corrosion Protection:

The Mikalor SUPRA Heavy-Duty Hose Clamp in full 304 stainless steel is the definitive solution for securing large diameter and high-pressure connections in the most challenging environments. Its robust design and powerful clamping mechanism ensure a leak-free seal even under extreme operating conditions. The complete 304 stainless steel construction provides unparalleled resistance to rust, pitting, and chemical degradation. Trust the Mikalor SUPRA clamp to deliver unyielding holding power and long-lasting performance in your most critical and corrosive systems.

Key Features:

  • Material: Full 304 Stainless Steel (Band, Bolt, and Trunnions)
  • Type: Heavy-Duty Hose Clamp
  • Bandwidth: Heavy Duty (Specific width may vary slightly by size range)
  • Size Range: 19.0mm-408.0mm (0.74-16.06in)
  • Extreme Clamping Force for Demanding Applications
  • Robust and Durable Construction
  • Ultimate Corrosion Resistance (Full 304 Stainless Steel)
  • Bevelled Band Edges to Protect Hoses

For the absolute best in heavy-duty clamping power and ultimate corrosion resistance on large diameter connections, choose the Mikalor SUPRA Heavy-Duty Hose Clamp in full 304 Stainless Steel. Ensure the integrity and longevity of your most critical and corrosive-prone systems – order yours
