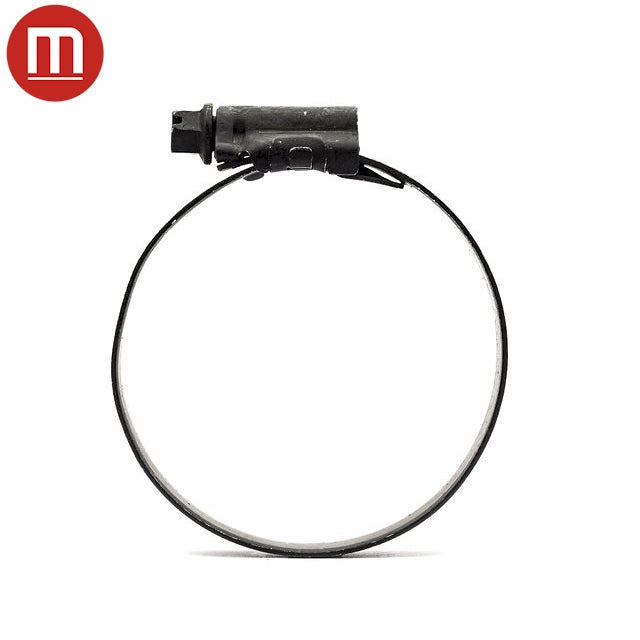

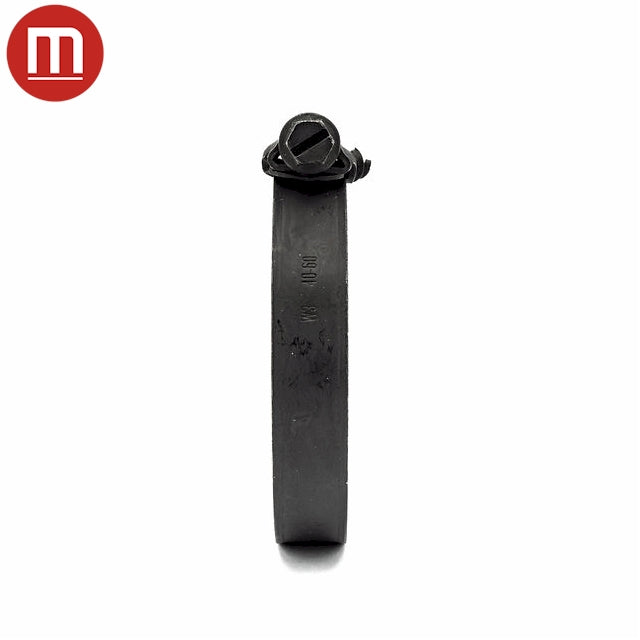

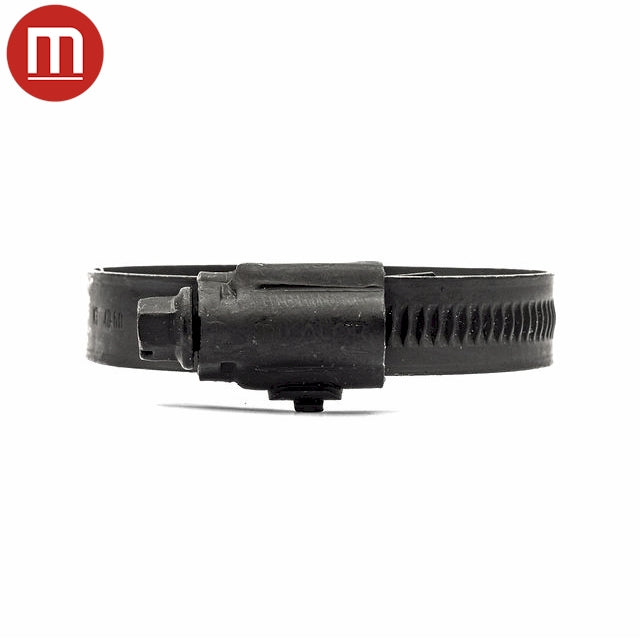

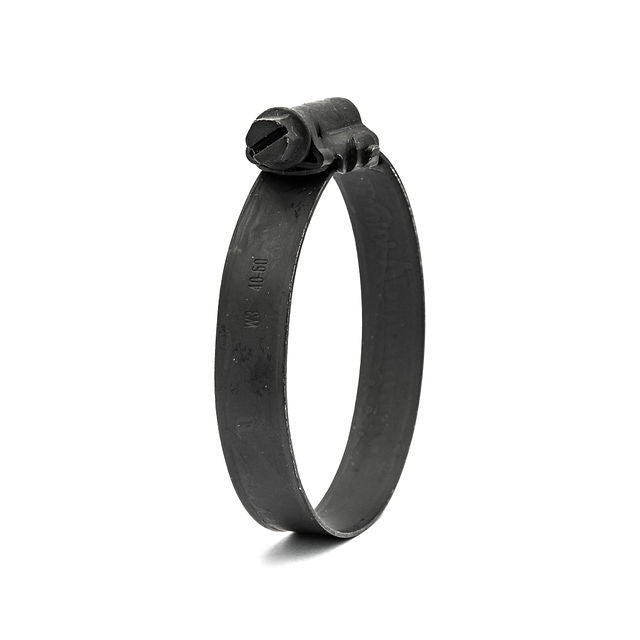

3/8" Mikalor ASFA L Black Worm Drive Hose Clamp: Full 430SS Band & Screw

3/8" Mikalor ASFA L Black Worm Drive Hose Clamp: Full 430SS Band & Screw

ASFA-L-8-W3-BK

$2.05
$2.05
Sale Sold out
Shipping calculated at checkout.

50 in stock
  • Free standard shipping. Next day delivery available. Find out more
View full details

Need advice? Talk to our expert customer support team

Call

281 7171145
Monday-Friday 8am to 4pm

Email

sales@hcl-clamping.com
Scroll
Clamp Dia In (fr) ?

Clamp Dia In (fr): The clamp's internal diameter listed as a fractional measurement in inches (e.g., 1, 1/2 in.).
Clamp Dia In ?

Clamp Dia In: The minimum to maximum inner diameter (in.) the clamp can securely cover, defining its usable size range.
Clamp Dia mm ?

Clamp Dia mm: The required metric size for a secure fit, indicating the outer diameter (in mm) of the component the clamp is meant to hold.
Band Width ?

Band Width: The measurement of the clamp's band or strap, indicating its width (often in mm or inches) and how much surface area it covers.
HCL P/N ?

HCL/ PN: The unique identifying number assigned to a part by HCL
MFG P/N ?

MFG P/N: The unique identifying number assigned to a part by its manufacturer.
Max Torq ?

Max Torque (Nm): The maximum rotational or twisting force, measured in Newton-metres
Max Pressure ?

Max Pressure (Bars): The maximum pressure a system or component is designed to withstand.
2D PDF ?

2D PDF: A standard document format containing two-dimensional drawings.
2D DXF ?

2D DXF: A standard file format for exchanging two-dimensional Computer-Aided Design (CAD) drawings between different software programs.
3D STP ?

3D STEP: A standard file format used to exchange three-dimensional product model data between different CAD software programs.
Price ?

Price: The cost per unit

Stock ?

Stock: available products that can be purchased

Order Qty ?

Order Quantity: The total amount of units you wish to order

5/16 in - 5/8 in - 0.31in - 0.63in - 8.0mm - 16.0mm - 3/8 in (9.0mm) - ASFA-L-8-W3-BK - 73016011 - 3.0 Nm - 40 Bars - 2D PDF - 2D DXF - 3D STP - $2.05 50
1/2 in - 7/8 in - 0.47in - 0.87in - 12.0mm - 22.0mm - 3/8 in (9.0mm) - ASFA-L-12-W3-BK - 73016020 - 3.0 Nm - 40 Bars - 2D PDF - 2D DXF - 3D STP - $2.18 50
5/8 in - 1 in - 0.63in - 1.06in - 16.0mm - 27.0mm - 3/8 in (9.0mm) - ASFA-L-16-W3-BK - 73016038 - 3.5 Nm - 38 Bars - 2D PDF - 2D DXF - 3D STP - $2.21 32
3/4 in - 1,1/4 in - 0.79in - 1.26in - 20.0mm - 32.0mm - 3/8 in (9.0mm) - ASFA-L-20-W3-BK - 73016054 - 3.5 Nm - 36 Bars - 2D PDF - 2D DXF - 3D STP - $2.39 35
63/64-1 37/64in - 0.98in - 1.57in - 25.0mm - 40mm - 3/8 in (9.0mm) - ASFA-L-25-W3-BK - 73016062 - 3.5 Nm - 36 Bars - 2D PDF - 2D DXF - 3D STP - $2.90 50
1,1/4 in - 1,3/4 in - 1.18in - 1.77in - 30.0mm - 45.0mm - 3/8 in (9.0mm) - ASFA-L-30-W3-BK - 73016070 - 4.0 Nm - 28 Bars - 2D PDF - 2D DXF - 3D STP - $2.94 40
1,1/4 in - 2 in - 1.26in - 1.97in - 32.0mm - 50.0mm - 3/8 in (9.0mm) - ASFA-L-32-W3-BK - 73016089 - 4.0 Nm - 24 Bars - 2D PDF - 2D DXF - 3D STP - $3.01 50
1,1/2 in - 2,3/8 in - 1.57in - 2.36in - 40.0mm - 60.0mm - 3/8 in (9.0mm) - ASFA-L-40-W3-BK - 73016095 - 4.0 Nm - 19 Bars - 2D PDF - 2D DXF - 3D STP - $3.24 50
2 in - 2,3/4 in - 1.97in - 2.76in - 50.0mm - 70.0mm - 3/8 in (9.0mm) - ASFA-L-50-W3-BK - 73016100 - 4.0 Nm - 17 Bars - 2D PDF - 2D DXF - 3D STP - $3.70 44
2,3/8 in - 3,1/8 in - 2.36in - 3.15in - 60.0mm - 80.0mm - 3/8 in (9.0mm) - ASFA-L-60-W3-BK - 73016118 - 4.0 Nm - 15 Bars - 2D PDF - 2D DXF - 3D STP - $3.90 45
2,3/4 in - 3,1/2 in - 2.76in - 3.54in - 70.0mm - 90.0mm - 3/8 in (9.0mm) - ASFA-L-70-W3-BK - 73016126 - 4.0 Nm - 13 Bars - 2D PDF - 2D DXF - 3D STP - $4.15 48
3,1/8 in - 4 in - 3.15in - 3.94in - 80.0mm - 100.0mm - 3/8 in (9.0mm) - ASFA-L-80-W3-BK - 73016134 - 4.0 Nm - 11 Bars - 2D PDF - 2D DXF - 3D STP - $4.51 47
3,35/64-4,21/64in - 3.54in - 0.39in - 90.0mm -1 10.0mm - 3/8 in (9.0mm) - ASFA-L-90-W3-BK - 73016142 - 4.0 Nm - 11 Bars - 2D PDF - 2D DXF - 3D STP - $4.83 0

Description

This 3/8 inch (9.0mm) wide clamp is manufactured by Mikalor in AISI 430 with an additional matt-black surface treatment which increases its corrosion resistance. Thanks to the surface treatment this clamp can be mounted discreetly in any application, making it a favourite in automotive or motorcycle applications. The geometry, band, stamping, housing and screw are identical to other ASFA clamps, meaning that the performance is not altered in any way. DIN 3017. The Black ASFA LW3 hose clip complies fully with the DIN 3017 norm and also with the directive EU 2002/95/EC.

* The maximum application pressure can vary depending on the type of hose used and the geometry of the coupling.

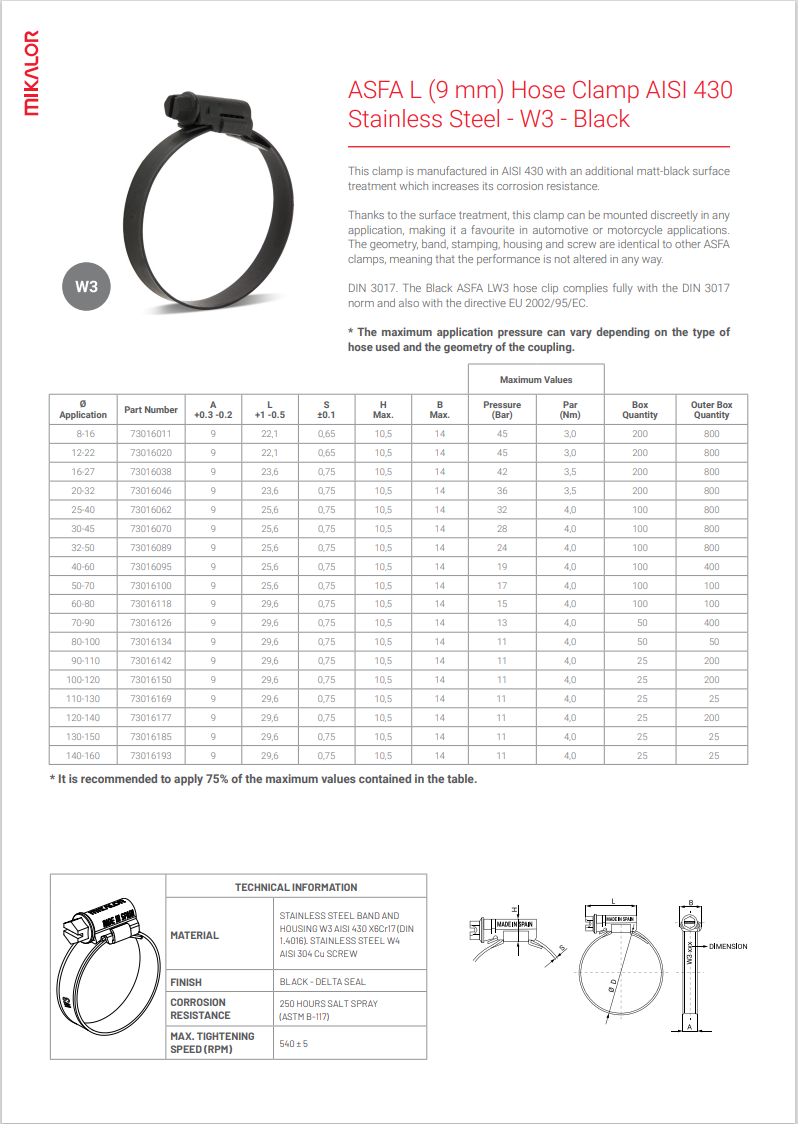

Product Specification Sheet

Download

Specification

Manufactured By Mikalor
HCL P/N ASFA-L-X-W3-BK
Series Mikalor ASFA
Corrosion Resistance Good
Corrosion Specification 250 Hours Salt Spray (ASTM B-117)
Hose Clamp Width in/mm 3/8 in (9.0mm)
Band Style Embossed Band
Band Material 430 Stainless Steel
Bolt/Screw Type Slotted Hex
Bolt/Screw Material 430 Stainless Steel
Bolt/Screw Size 1/4" (7mm) A/F
Finish Black - Delta Seal
Colour Black
Max Tightening Speed RPM 540 +/-5
Specification 1 DIN 3017
Specification 2 EU Directive 2002/95/EC
Country of Manufacture Spain
Tariff Code 7326 90 92
Hazardous Goods No
RoHS Compliant Yes

Ensure lasting, corrosion-resistant hose connections with Mikalor ASFA 3/8" 430SS All-Stainless Steel Hose Clamps. Engineered for demanding applications, these clamps, featuring both a 430 stainless steel band and screw, deliver exceptional durability and resistance to corrosion across a broad range of operating environments. With a versatile size range spanning 8.0mm-160.0mm (0.31-6.29in), these clamps provide a solution for numerous connection needs.

Why Choose Mikalor ASFA 430SS All-Stainless Steel Hose
Clamps?

  • Full 430 Stainless Steel Construction: Band and screw crafted from 430 stainless steel, maximizing corrosion resistance and strength.
  • Superior Corrosion Protection: Designed for environments where rust and corrosion are a concern, ensuring long-term reliability.
  • 3/8" Bandwidth Versatility: Offers a robust clamping force suitable for diverse hose applications.
  • Extensive Size Range: Covers 8.0mm-160.0mm (0.31-6.29in), catering to varied hose diameters.
  • Dependable Worm Gear Mechanism: Enables precise adjustments and secures a consistent, tight seal.
  • Wide Application Compatibility: Ideal for automotive, marine, industrial, and general-purpose use.

Applications Perfect For:

  • Marine Environments
  • Automotive Applications
  • Industrial Fluid and Air Handling
  • Outdoor Equipment
  • Any application requiring high corrosion resistance.

Experience the Strength of All-Stainless Steel:

Mikalor ASFA 3/8" 430SS All-Stainless Steel Hose Clamps are designed to withstand challenging conditions. The all-stainless steel design significantly increases the lifespan of the clamp, especially in corrosive environments.

The reliably working worm gear allows a controlled, and powerful clamping action. The breadth of the size range allows for use on many varying hose types.
