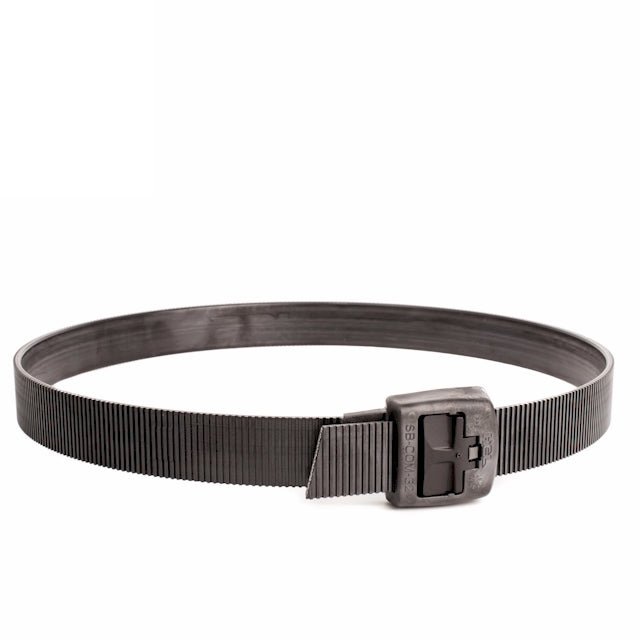

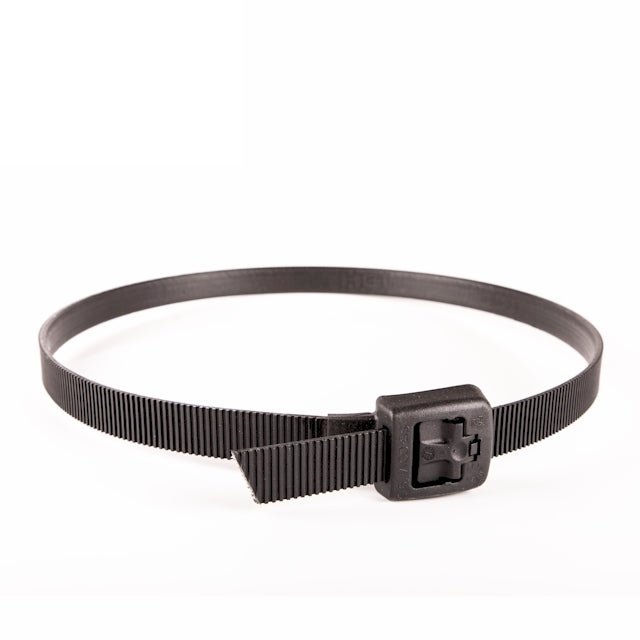

Smart Band PPS Compact Straps - Reinforced polymer High Temperature cable ties

SKU:SB-COM-19-PPS-1000MM

$26.81

Sale Sold out

Shipping calculated at checkout.

Low stock: 1 left

Quantity

Free standard shipping. Next day delivery available. Find out more

View full details

Need advice? Talk to our expert customer support team

Call

281 7171145
Monday-Friday 8am to 4pm

Email

sales@hcl-clamping.com

Scroll

Image	Clamp Dia In (fr) ? Clamp Dia In (fr): The clamp's internal diameter listed as a fractional measurement in inches (e.g., 1, 1/2 in.).	Clamp Dia mm ? Clamp Dia mm: The required metric size for a secure fit, indicating the outer diameter (in mm) of the component the clamp is meant to hold.	Band Width ? Band Width: The measurement of the clamp's band or strap, indicating its width (often in mm or inches) and how much surface area it covers.	Band Thk ? Band Thickness (in/mm): Indicates the physical thickness (height or depth) of the band, measured in inches or Millimetres.	Max System Str ? Max System Str: The overall maximum strength or working pressure limit of the assembled system.	HCL P/N ? HCL/ PN: The unique identifying number assigned to a part by HCL	2D PDF ? 2D PDF: A standard document format containing two-dimensional drawings.	2D DXF ? 2D DXF: A standard file format for exchanging two-dimensional Computer-Aided Design (CAD) drawings between different software programs.	3D STP ? 3D STEP: A standard file format used to exchange three-dimensional product model data between different CAD software programs.	Price ? Price: The cost per unit	Stock ? Stock: available products that can be purchased
-	Min 4 in -	MIn 100.0mm -	3/4 in (19mm) -	1/8 in (3.6mm) -	1070 kgf (2360lbf) -	SB-COM-19-PPS-1000MM -	-	-	-	$26.81	1
-	Min 4 in -	MIn 100.0mm -	3/4 in (19mm) -	1/8 in (3.6mm) -	1070 kgf (2360 lbf) -	SB-COM-19-PPS-2000MM -	-	-	-	$39.24	1
-	Min 8 in -	MIn 200.0mm -	1,1/4 in (32mm) -	3/16 in (4.7mm) -	2153 kgf (4747 lbf) -	SB-COM-32-PPS-1000MM -	-	-	-	$48.94	1
-	Min 8 in -	MIn 200.0mm -	1,1/4 in (32mm) -	3/16 in (4.7mm) -	2153 kgf (4747 lbf) -	SB-COM-32-PPS-2000MM -	-	-	-	$72.05	1
-	Min 8 in -	MIn 200.0mm -	1,1/4 in (32mm) -	3/16 in (4.7mm) -	2153 kgf (4747 lbf) -	SB-COM-32-PPS-4000MM -	-	-	-	$118.26	0

Description

The new Smart® Band Compact Banding System is an exciting step forward in the evolution of the Smart® Band range. It combines the best features of both the Smart® Tie and the Smart® Band Hybrid systems to create a superior product.

The Smart® Band Compact reduces the size of the Hybrid buckle by over 60% allowing it to be installed on applications as low as 100mm in diameter. Yet unlike the Smart® Tie it contains glass fibre reinforced yarn allowing it to maintain the superior strength, retention and relaxation features of the Hybrid system.

The PPS material offers high temperature resistance and exceptional chemical resistance making it ideal for aggressive downhole applications and application to high temp risers and umbilical's.

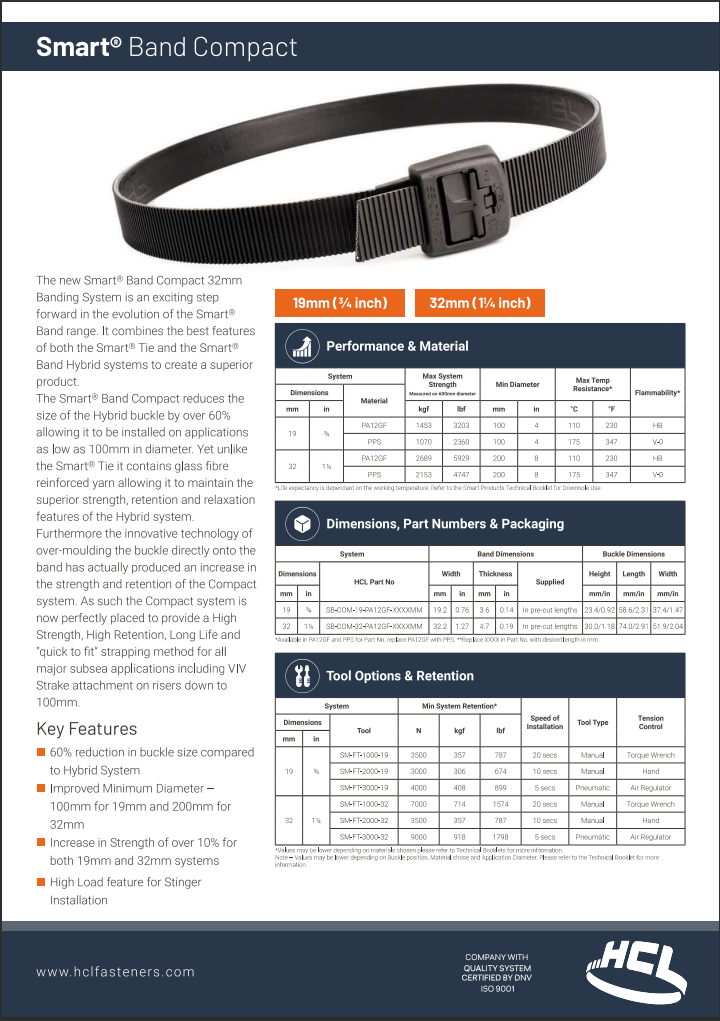

Product Specification Sheet

Download

Specification

Manufactured By	HCL Clamping USA
HCL P/N	SB-COM-X-PPS
Series	HCL Smart Band Compact
Corrosion Resistance	Excellent
Band Material	PPS
Max Strength	4747 lbf
Max long Term Operating Temp	347°F (175°C)
Flammability	HB V-0 Self Extinguishing
Design Life (Outdoor use)	25+ years
Weathering & UV	Very Good
Chemical Resistance	Excellent
Colour	Black
Tool Compatibility	SM-FT-2000-19 & 32 - SM-FT-1001-19 & 32
Country of Manufacture	United Kingdom
Tariff Code	3917 40 00 99
RoHS Compliant	Yes

Smart Band PPS Compact Straps | Reinforced High-Temperature Polymer Ties for Tight Spaces

Secure critical cables and hoses in the most restrictive and demanding high-heat areas with the Smart Band PPS Compact Straps. Made from a Reinforced Polyphenylene Sulfide (PPS) polymer, these ties combine superior thermal and chemical resistance with a space-saving design, offering robust, non-corrosive fastening where others fail.

Why Choose These PPS Compact Straps?

Extreme Thermal Resistance (PPS Polymer): Utilizing Polyphenylene Sulfide (PPS), this strap offers exceptional thermal stability and a high continuous operating temperature, making it the ideal choice for demanding areas like engine compartments and hot processing lines.

Reinforced for High Strength: The Reinforced polymer construction significantly increases the strap's mechanical strength and rigidity, providing a secure, vibration-resistant hold that surpasses the tensile performance of standard, non-reinforced polymer ties.

Compact, Space-Saving Design: The "Compact" profile is engineered for minimal footprint, allowing for precise and secure bundling and routing of cables in severely restricted or tight access areas where traditional strapping or larger clamps cannot be utilized.

Superior Chemical and Solvent Resistance: PPS is inherently inert and offers outstanding resistance to a wide range of harsh chemicals, fuels, and solvents, ensuring the strap maintains its integrity in chemically aggressive zones.

Lightweight & Non-Conductive: Provides the strength and heat resistance of a high-performance fastener without the weight or electrical conductivity of metal solutions.

Perfect For:

Automotive engine bays with tight clearance near exhaust or turbochargers.
Industrial machinery with limited access and high operating temperatures.
Aerospace and defence systems requiring low-profile, flame-resistant ties.
Chemical processing and manufacturing lines where both heat and chemical exposure are present.

Get maximum performance in minimal space. Order the Smart Band PPS Compact Straps today and achieve a secure, high-heat installation!
