Sale

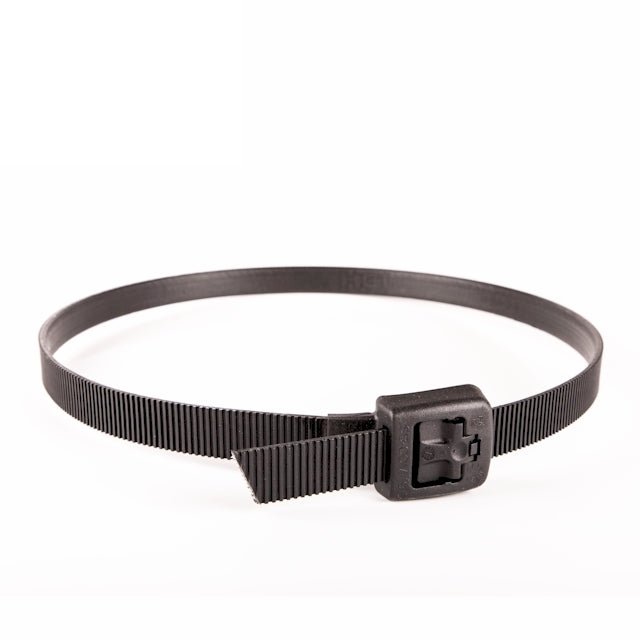

  • Smart Band Compact PPS 19mm wide 2000mm (79inch) Length - HCL Clamping USA- SB-COM-19-PPS-2000MM
1 1

Smart Band PA12GF Compact Straps - Reinforced polymer High strength cable ties

Smart Band PA12GF Compact Straps - Reinforced polymer High strength cable ties

SB-COM-19-PA12GF-1000MM

$17.87
$17.87
Sale Sold out
Shipping calculated at checkout.

237 in stock
  • Free standard shipping. Next day delivery available. Find out more
View full details

Need advice? Talk to our expert customer support team

Call

281 7171145
Monday-Friday 8am to 4pm

Email

sales@hcl-clamping.com
Scroll
Clamp Dia In (fr) ?

Clamp Dia In (fr): The clamp's internal diameter listed as a fractional measurement in inches (e.g., 1, 1/2 in.).
Clamp Dia mm ?

Clamp Dia mm: The required metric size for a secure fit, indicating the outer diameter (in mm) of the component the clamp is meant to hold.
Band Width ?

Band Width: The measurement of the clamp's band or strap, indicating its width (often in mm or inches) and how much surface area it covers.
Band Thk ?

Band Thickness (in/mm): Indicates the physical thickness (height or depth) of the band, measured in inches or Millimetres.

Max System Str ?

Max System Str: The overall maximum strength or working pressure limit of the assembled system.

HCL P/N ?

HCL/ PN: The unique identifying number assigned to a part by HCL
2D PDF ?

2D PDF: A standard document format containing two-dimensional drawings.
2D DXF ?

2D DXF: A standard file format for exchanging two-dimensional Computer-Aided Design (CAD) drawings between different software programs.
3D STP ?

3D STEP: A standard file format used to exchange three-dimensional product model data between different CAD software programs.
Price ?

Price: The cost per unit

Stock ?

Stock: available products that can be purchased

Order Qty ?

Order Quantity: The total amount of units you wish to order

Smart Band PA12GF Compact Straps - Reinforced polymer High strength cable ties
Smart Band PA12GF Compact Straps - Reinforced polymer High strength cable ties
- 		Min 4 in - MIn 100.0mm - 3/4 in (19mm) - 1/8 in (3.6mm) - 1453 kgf (3203 lbf) - SB-COM-19-PA12GF-1000MM - - - - $17.87 237
Smart Band PA12GF Compact Straps - Reinforced polymer High strength cable ties
Smart Band PA12GF Compact Straps - Reinforced polymer High strength cable ties
- 		Min 4 in - MIn 100.0mm - 3/4 in (19mm) - 1/8 in (3.6mm) - 1453 kgf (3203 lbf) - SB-COM-19-PA12GF-1500MM - - - - $22.01 1
Smart Band PA12GF Compact Straps - Reinforced polymer High strength cable ties
Smart Band PA12GF Compact Straps - Reinforced polymer High strength cable ties
- 		Min 4 in - MIn 100.0mm - 3/4 in (19mm) - 1/8 in (3.6mm) - 1453 kgf (3203 lbf) - SB-COM-19-PA12GF-2000MM - - - - $26.16 102
Smart Band PA12GF Compact Straps - Reinforced polymer High strength cable ties
Smart Band PA12GF Compact Straps - Reinforced polymer High strength cable ties
- 		Min 8 in - MIn 200.0mm - 1,1/4 in (32mm) - 3/16 in (4.7mm) - 2689 kgf (5929 lbf) - SB-COM-32-PA12GF-1000MM - - - - $32.63 81
Smart Band PA12GF Compact Straps - Reinforced polymer High strength cable ties
Smart Band PA12GF Compact Straps - Reinforced polymer High strength cable ties
- 		Min 8 in - MIn 200.0mm - 1,1/4 in (32mm) - 3/16 in (4.7mm) - 2689 kgf (5929 lbf) - SB-COM-32-PA12GF-1500MM - - - - $40.33 104
Smart Band PA12GF Compact Straps - Reinforced polymer High strength cable ties
Smart Band PA12GF Compact Straps - Reinforced polymer High strength cable ties
- 		Min 8 in - MIn 200.0mm - 1,1/4 in (32mm) - 3/16 in (4.7mm) - 2689 kgf (5929 lbf) - SB-COM-32-PA12GF-2000MM - - - - $48.03 92
Smart Band PA12GF Compact Straps - Reinforced polymer High strength cable ties
Smart Band PA12GF Compact Straps - Reinforced polymer High strength cable ties
- 		Min 8 in - MIn 200.0mm - 1,1/4 in (32mm) - 3/16 in (4.7mm) - 2689 kgf (5929 lbf) - SB-COM-32-PA12GF-3000MM - - - - $63.44 92
Smart Band PA12GF Compact Straps - Reinforced polymer High strength cable ties
Smart Band PA12GF Compact Straps - Reinforced polymer High strength cable ties
- 		Min 8 in - MIn 200.0mm - 1,1/4 in (32mm) - 3/16 in (4.7mm) - 2689 kgf (5929 lbf) - SB-COM-32-PA12GF-4000MM - - - - $78.44 95

Description

The new Smart® Band Compact Banding System is an exciting step forward in the evolution of the Smart® Band range. It combines the best features of both the Smart® Tie and the Smart® Band Hybrid systems to create a superior product.

The Smart® Band Compact reduces the size of the Hybrid buckle by over 60% allowing it to be installed on applications as low as 100mm in diameter. Yet unlike the Smart® Tie it contains glass fibre reinforced yarn allowing it to maintain the superior strength, retention and relaxation features of the Hybrid system.

The PA12 material offers high UV resistance and exceptional long life track record in the subsea and offshore environment, making it ideal for a variety of offshore and subsea applications including cable management, VIV strake, sensors & piggyback clamp attachment.

Product Specification Sheet

Download

Specification

Manufactured By HCL Clamping USA
HCL P/N SB-COM-X-PA12GF
Series HCL Smart Band Compact
Corrosion Resistance Excellent
Band Material Nylon 12 (PA12)
Max Strength 5929 lbf
Max long Term Operating Temp 230°F (110°C)
Flammability HB UL94 Self Extinguishing
Design Life (Outdoor use) 25+ years
Weathering & UV Very Good
Chemical Resistance Good
Colour Black
Tool Compatibility SM-FT-2000-19 & 32 - SM-FT-1001-19 & 32
Country of Manufacture United Kingdom
Tariff Code 3917 40 00 99
RoHS Compliant Yes

Smart Band PA12GF Compact Straps | Glass-Fiber Reinforced, Chemical Resistant Nylon 12 Ties

For applications demanding maximum tensile strength in wet, chemical, or cold environments, choose the Smart Band PA12GF Compact Straps. Engineered with Glass Fiber Reinforced Nylon 12 Polymer, these ties deliver exceptional rigidity and low moisture absorption in a space-saving, high-performance package.

Why Choose These PA12GF Compact Straps?

Glass-Fiber Reinforced High Strength (GF): The Glass Fiber (GF) reinforcement provides a dramatic increase in tensile strength, stiffness, and rigidity over standard nylon ties. This makes the strap capable of securing significantly heavier or more dynamic loads.

Low Moisture Absorption (PA12): Inheriting the core benefit of Nylon 12, the material exhibits minimal moisture absorption. This ensures the strap’s superior strength and dimensional stability are maintained in wet, humid, or high-moisture outdoor applications.

Superior Chemical Resistance: I will stress the excellent resistance to salts, chlorides, and common industrial fluids, minimizing the risk of environmental stress cracking that can compromise other polymer ties.

Compact, Space-Saving Design: The "Compact" profile allows for secure, low-profile bundling and routing of cables in severely tight or restricted areas where robust strength is needed but space is limited.

Reliable Cold Weather Performance: PA12 maintains excellent flexibility and impact resistance at low temperatures, making this strap a reliable choice for installation and use in cold climates.

Perfect For:

  • Heavy-duty bundling in outdoor environments with moisture or salt spray exposure.
  • Securing critical components in confined engine or equipment compartments.
  • Industrial applications requiring high load bearing combined with chemical resistance.
  • Cold weather installation and environments where material brittleness is a concern.

Get uncompromising strength and stability in any environment. Order the Smart Band PA12GF Compact Straps today and secure your highest-stakes bundles!
