Smart Band Flex Polymer Band (PIM Strap) - 1/2 inch wide Acetal POM

Smart Band Flex Polymer Band (PIM Strap) - 1/2 inch wide Acetal POM

SB-BA-FX-1/2-15M-POM

$29.90
$29.90
Sale Sold out
Shipping calculated at checkout.

840 in stock
  • Free standard shipping. Next day delivery available. Find out more
View full details

Need advice? Talk to our expert customer support team

Call

281 7171145
Monday-Friday 8am to 4pm

Email

sales@hcl-clamping.com
Scroll
Band Width ?

Band Width: The measurement of the clamp's band or strap, indicating its width (often in mm or inches) and how much surface area it covers.
Reel Length ?

Reel Length ft/m: Indicates the total length of the material wound on the reel, measured in both meters and feet.
Min Retention ?

Min Retention: The minimum force or pressure the clamp or component is guaranteed to hold or maintain under specified conditions.
Max System Str ?

Max System Str: The overall maximum strength or working pressure limit of the assembled system.

Band Thk ?

Band Thickness (in/mm): Indicates the physical thickness (height or depth) of the band, measured in inches or Millimetres.

HCL P/N ?

HCL/ PN: The unique identifying number assigned to a part by HCL
2D PDF ?

2D PDF: A standard document format containing two-dimensional drawings.
2D DXF ?

2D DXF: A standard file format for exchanging two-dimensional Computer-Aided Design (CAD) drawings between different software programs.
3D STP ?

3D STEP: A standard file format used to exchange three-dimensional product model data between different CAD software programs.
Price ?

Price: The cost per unit

Stock ?

Stock: available products that can be purchased

Order Qty ?

Order Quantity: The total amount of units you wish to order

Smart Band Flex Polymer Band (PIM Strap) - 1/2 inch wide Acetal POM
Smart Band Flex Polymer Band (PIM Strap) - 1/2 inch wide Acetal POM
- 		1/2 In (12.7mm) - 50ft (15.25m) - 400N - 40kgf - 90lbf - 2100N - 210kgf - 472lbf - 0.07 in (1.8mm) - SB-BA-FX-1/2-15M-POM - - - - $29.90 840
Smart Band Flex Polymer Band (PIM Strap) - 1/2 inch wide Acetal POM
Smart Band Flex Polymer Band (PIM Strap) - 1/2 inch wide Acetal POM
- 		1/2 in (12.7mm) - 100ft (30.5m) - 400N - 40kgf - 90lbf - 2100N - 210kgf - 472lbf - 0.07 in (1.8mm) - SB-BA-FX-1/2-30M-POM - - - - $47.90 610

Description

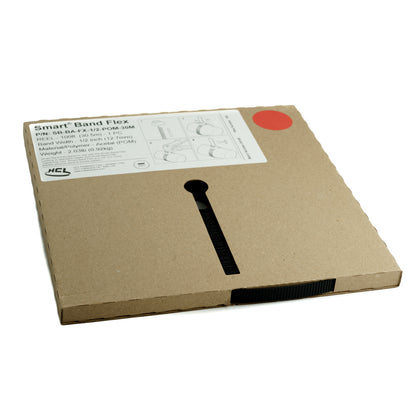

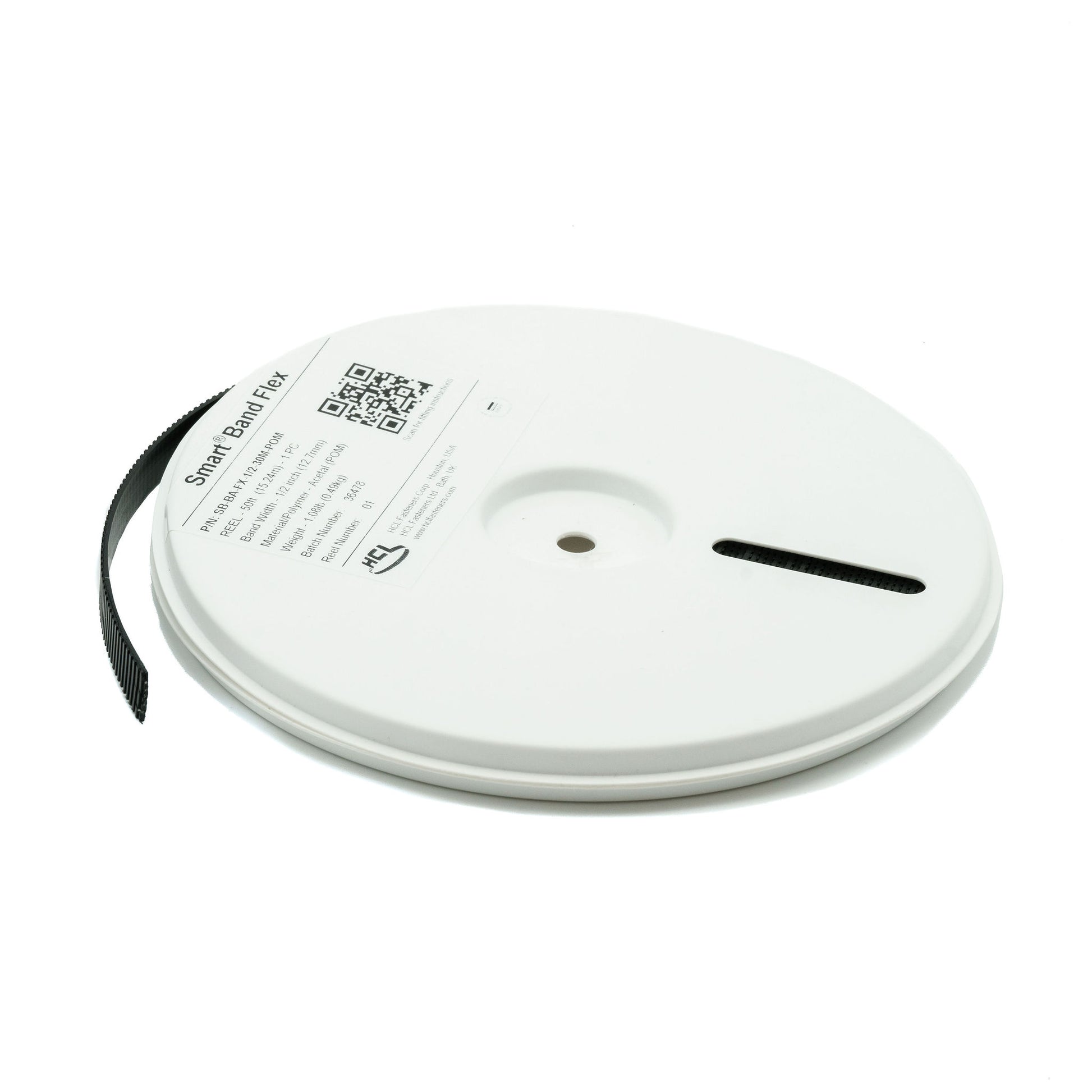

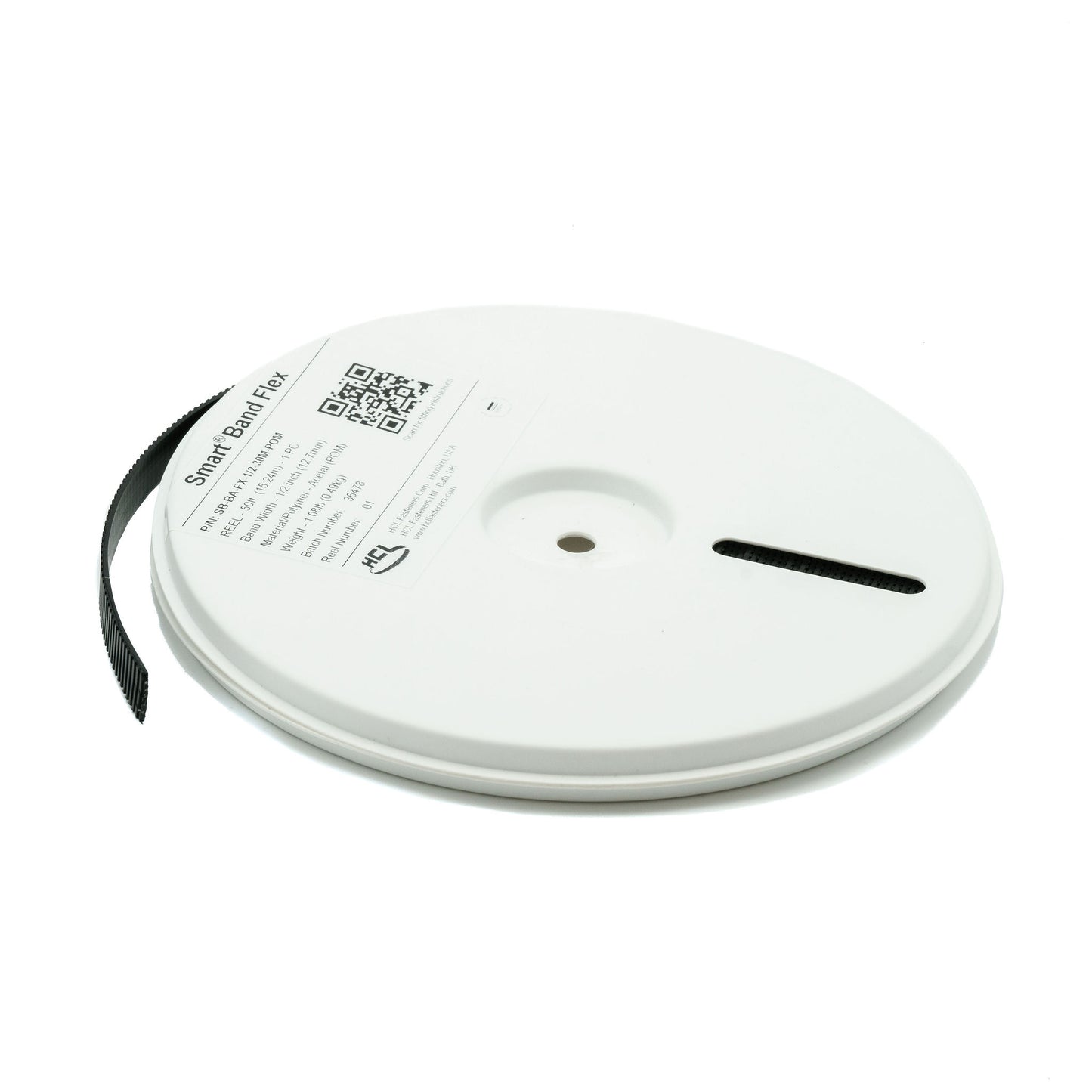

The SmartĀ® Band Flex 30.5m (100ft) Reel is a high-quality product that meets or exceeds the Telcordia TR-TSY-00789 standard, ensuring top-notch performance and reliability. Made from durable Acetal Material in black colour, this smart band offers superior resistance to sunlight (UV), moisture, and marine environments, making it ideal for outdoor use. With an impressive outdoor life expectancy of over 20 years, this product is designed to last.

Product Specification Sheet

Download

Specification

Manufactured By HCL Clamping USA
HCL P/N SB-BA-FX-1/2-XM-POM
Series HCL Smart Band Flex
Corrosion Resistance Excellent
Band Material Acetal POM
Band Thickness 0.07 in (1.8mm)
Max Strength 472 lbf
Max long Term Operating Temp 203Ā°F (95Ā°C)
Flammability HB UL94 Self Extinguishing
Colour Black

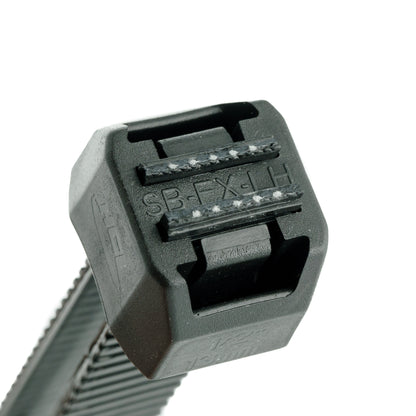

For use with Smart Band Flex Locking Heads
Country of Manufacture United Kingdom
Tariff Code 3917 40 00 99
RoHS Compliant Yes

Smart Band Flex Polymer Band (1/2 in.) | Acetal POM PIM Strap for Flexible & Stable Clamping

The Smart Band Flex Polymer Band (PIM Strap) offers a lightweight, flexible, and high-performance alternative to light-gauge metal banding. Made from Acetal (POM) polymer, this 1/2-inch strapping ensures exceptional dimensional stability and superior resistance to creep, providing long-lasting, non-corrosive tension.

Why Choose This POM Flex Band (PIM Strap)?

Flexible & Easy Handling (Flex/PIM): The "Flex" design emphasizes the band's flexibility and ease of handling, making it simple to route around irregular shapes and in confined spaces. Its lightweight nature simplifies installation compared to metal strapping.

Superior Creep and Fatigue Resistance (POM): Utilizing Acetal (POM), this polymer is engineered for excellent resistance to creep (material deformation under sustained load) and fatigue, ensuring that the high tension applied remains consistent throughout the service life of the connection.

1/2 Inch Versatile Width: The 1/2 inch width is ideally suited for securing small-diameter bundles, cables, and lightweight fixtures, offering high strength in a minimal-footprint package. Imperial: - 1/2 in.

Non-Corrosive & Non-Conductive: The polymer construction is entirely immune to rust, general corrosion, and is inherently non-conductive, making it a safe and ideal choice for electrical, chemical, and coastal environments.

Dimensional Stability: The material's low moisture absorption guarantees the band maintains its structural integrity and dimensions when exposed to varying humidity and temperatures.

Perfect For:

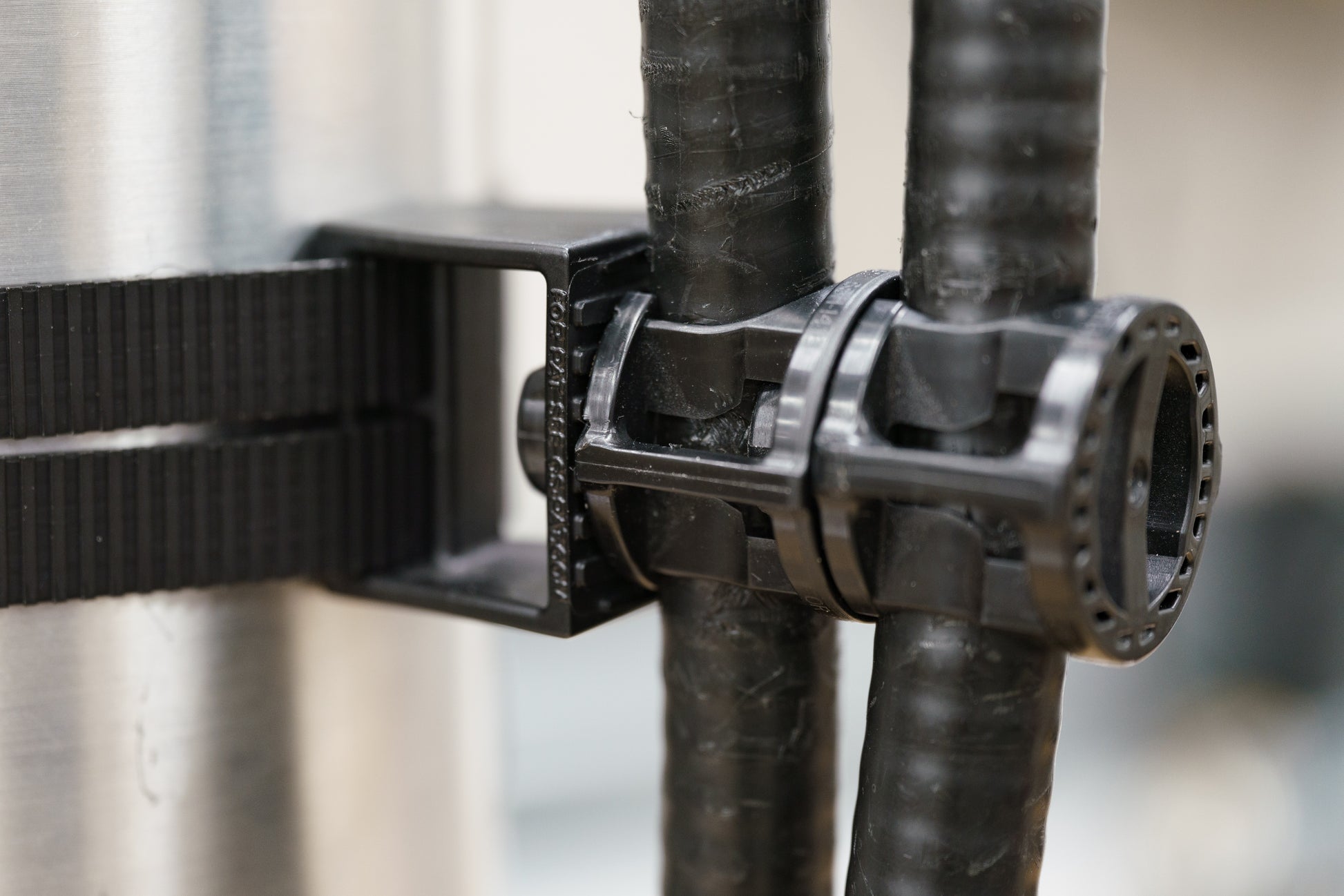

  • Bundling small-diameter cables and hoses where flexibility is required.

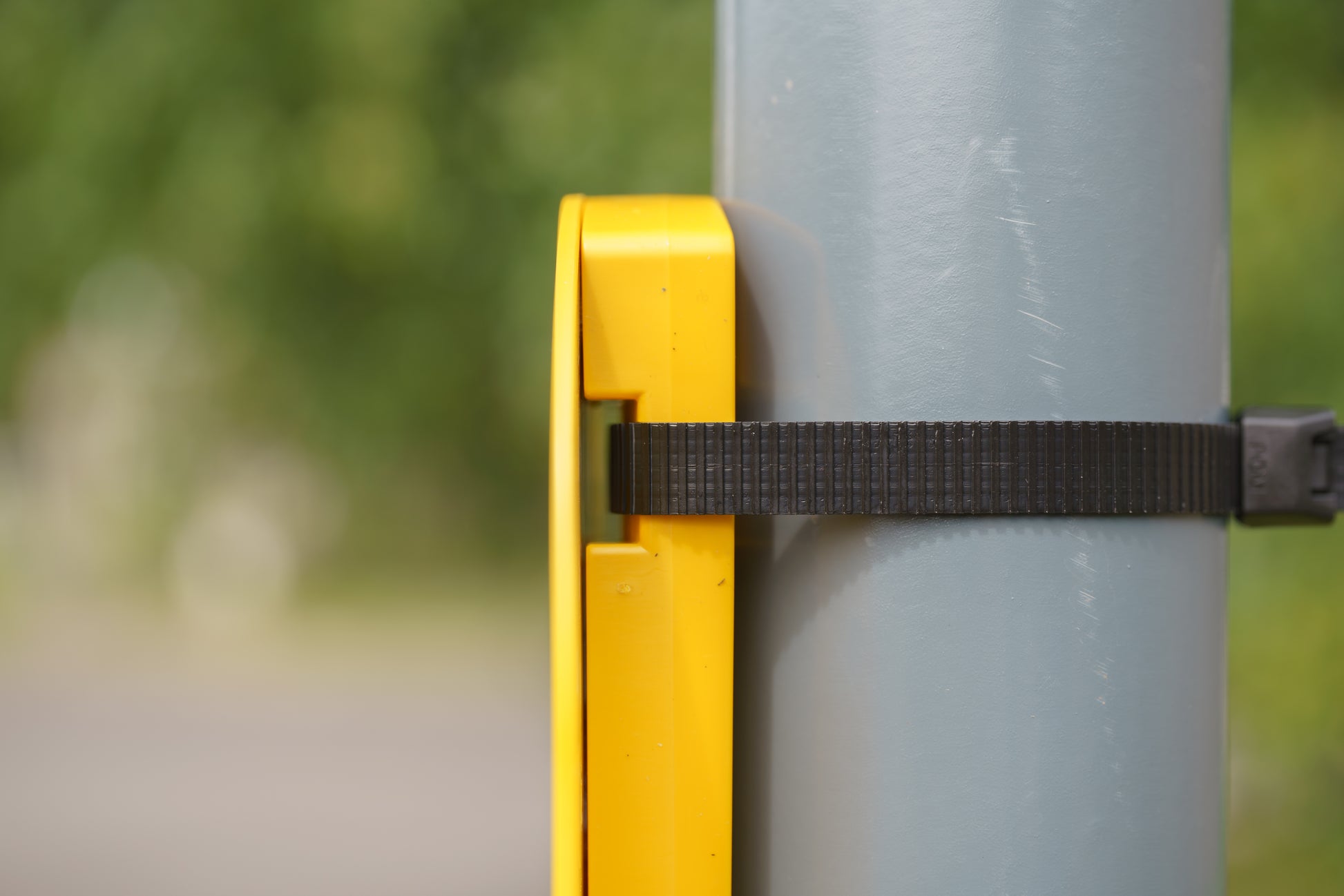

  • Lightweight signage and fixture mounting requiring a minimal, corrosion-resistant footprint.
  • Telecommunications and electrical applications (non-conductive benefit).
  • Industrial applications where long-term, stable tension on a small scale is critical.

Get high-performance clamping with non-metallic safety and stability. Order the Smart Band Flex Polymer Band today!
