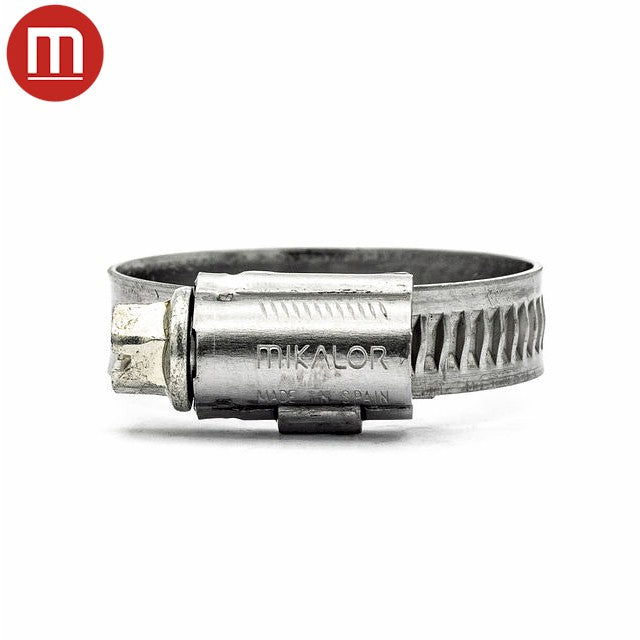

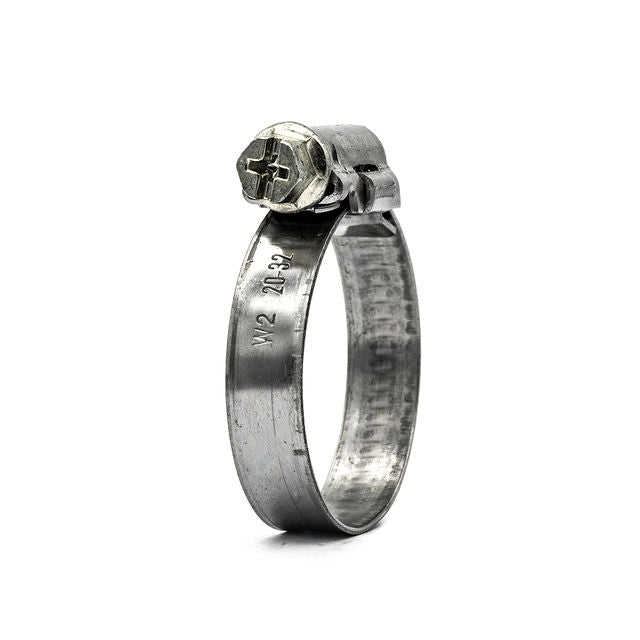

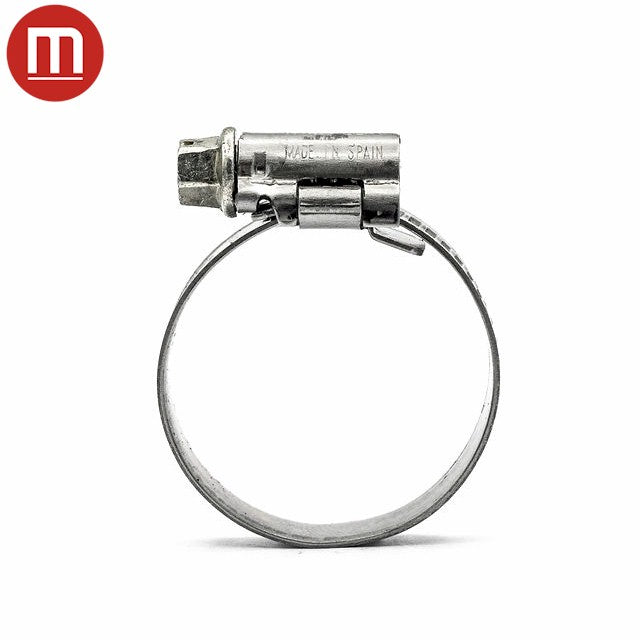

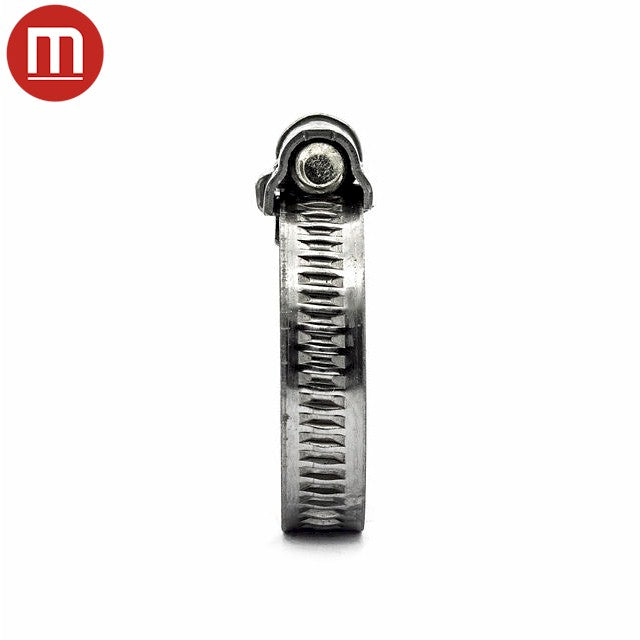

3/8" Embossed Mikalor ASFA-L Worm Gear Hose Clamp: 430SS Band & Galvanized Screw

3/8" Embossed Mikalor ASFA-L Worm Gear Hose Clamp: 430SS Band & Galvanized Screw

WD-9-DIN-8-W2

$0.76
$0.76
Sale Sold out
Shipping calculated at checkout.

195 in stock
  • Free standard shipping. Next day delivery available. Find out more
View full details

Need advice? Talk to our expert customer support team

Call

281 7171145
Monday-Friday 8am to 4pm

Email

sales@hcl-clamping.com
Scroll
Clamp Dia In (fr) ?

Clamp Dia In (fr): The clamp's internal diameter listed as a fractional measurement in inches (e.g., 1, 1/2 in.).
Clamp Dia mm ?

Clamp Dia mm: The required metric size for a secure fit, indicating the outer diameter (in mm) of the component the clamp is meant to hold.
Band Width ?

Band Width: The measurement of the clamp's band or strap, indicating its width (often in mm or inches) and how much surface area it covers.
HCL P/N ?

HCL/ PN: The unique identifying number assigned to a part by HCL
MFG P/N ?

MFG P/N: The unique identifying number assigned to a part by its manufacturer.
Max Torq ?

Max Torque (Nm): The maximum rotational or twisting force, measured in Newton-metres
Max Pressure ?

Max Pressure (Bars): The maximum pressure a system or component is designed to withstand.
2D PDF ?

2D PDF: A standard document format containing two-dimensional drawings.
2D DXF ?

2D DXF: A standard file format for exchanging two-dimensional Computer-Aided Design (CAD) drawings between different software programs.
3D STP ?

3D STEP: A standard file format used to exchange three-dimensional product model data between different CAD software programs.
Price ?

Price: The cost per unit

Stock ?

Stock: available products that can be purchased

Order Qty ?

Order Quantity: The total amount of units you wish to order

5/16 in - 5/8 in - 8.0 - 16.0mm - 3/8 in (9.0mm) - WD-9-DIN-8-W2 - 03016516 - 3.0 Nm - 40 Bars - 2D PDF - 2D DXF - 3D STP - $0.76 195
1/2 in - 7/8 in - 12.0mm - 22.0mm - 3/8 in (9.0mm) - WD-9-DIN-12-W2 - 03016524 - 3.0 Nm - 40 Bars - 2D PDF - 2D DXF - 3D STP - $0.81 33
5/8 in - 1 in - 16.0mm - 27.0mm - 3/8 in (9.0mm) - WD-9-DIN-16-W2 - 03016532 - 3.5 Nm - 38 Bars - 2D PDF - 2D DXF - 3D STP - $0.85 200
3/4 in - 1,1/4 in - 20.0mm - 32.0mm - 3/8 in (9.0mm) - WD-9-DIN-20-W2 - 03016540 - 3.5 Nm - 36 Bars - 2D PDF - 2D DXF - 3D STP - $0.88 200
1-1 in - 1/2 in - 25.0mm - 40.0mm - 3/8 in (9.0mm) - WD-9-DIN-25-W2 - 03016596 - 4.0 Nm - 32 Bars - 2D PDF - 2D DXF - 3D STP - $1.03 10
1,1/4 in - 1,3/4 in - 30.0mm - 45.0mm - 3/8 in (9.0mm) - WD-9-DIN-30-W2 - 03016567 - 4.0 Nm - 28 Bars - 2D PDF - 2D DXF - 3D STP - $1.09 90
1,1/4 in - 2 in - 32.0mm - 50.0mm - 3/8 in (9.0mm) - WD-9-DIN-32-W2 - 03016575 - 4.0 Nm - 24 Bars - 2D PDF - 2D DXF - 3D STP - $1.13 0
1,1/2 in - 2,3/8 in - 40.0mm - 60.0mm - 3/8 in (9.0mm) - WD-9-DIN-40-W2 - 03016583 - 4.0 Nm - 19 Bars - 2D PDF - 2D DXF - 3D STP - $1.26 90
2 in - 2,3/4 in - 50.0mm - 70.0mm - 3/8 in (9.0mm) - WD-9-DIN-50-W2 - 03016591 - 4.0 Nm - 17 Bars - 2D PDF - 2D DXF - 3D STP - $1.58 90
2,3/8 in - 3,1/8 in - 60.0mm - 80.0mm - 3/8 in (9.0mm) - WD-9-DIN-60-W2 - 03016604 - 4.0 Nm - 15 Bars - 2D PDF - 2D DXF - 3D STP - $1.67 100
2,3/4 in - 3,1/2 in - 70.0mm - 90.0mm - 3/8 in (9.0mm) - WD-9-DIN-70-W2 - 03016612 - 4.0 Nm - 13 Bars - 2D PDF - 2D DXF - 3D STP - $1.85 40
3,1/8 in - 4 in - 80.0mm - 100.0mm - 3/8 in (9.0mm) - WD-9-DIN-80-W2 - 03016620 - 4.0 Nm - 11 Bars - 2D PDF - 2D DXF - 3D STP - $1.91 50
3,1/2 in - 4,1/4 in - 90.0mm - 110.0mm - 3/8 in (9.0mm) - WD-9-DIN-90-W2 - 03016639 - 4.0 Nm - 10 Bars - 2D PDF - 2D DXF - 3D STP - $2.14 25
4 in - 4,3/4 in - 100.0mm - 120.0mm - 3/8 in (9.0mm) - WD-9-DIN-100-W2 - 03016647 - 4.0 Nm - 9 Bars - 2D PDF - 2D DXF - 3D STP - $2.34 22
4,1/4 in - 5,1/8 in - 110.0mm - 130.0mm - 3/8 in (9.0mm) - WD-9-DIN-110-W2 - 03016655 - 4.0 Nm - 8 Bars - 2D PDF - 2D DXF - 3D STP - $2.45 25
4,3/4 in - 5,1/2 in - 120.0mm - 140.0mm - 3/8 in (9.0mm) - WD-9-DIN-120-W2 - 03016663 - 4.0 Nm - 7 Bars - 2D PDF - 2D DXF - 3D STP - $2.53 25
5,1/8 in - 6 in - 130.0mm - 150.0mm - 3/8 in (9.0mm) - WD-9-DIN-130-W2 - 03016671 - 4.0 Nm - 6 Bars - 2D PDF - 2D DXF - 3D STP - $2.63 25
5,1/2 in - 6,1/4 in - 140.0mm - 160.0mm - 3/8 in (9.0mm) - WD-9-DIN-140-W2 - 03016680 - 4.0 Nm - 5 Bars - 2D PDF - 2D DXF - 3D STP - $2.71 25

Description

Mikalor's patented ASFA-L premium Worm Drive hose clamps are manufactured in Spain in accordance with DIN3017. Their innovative housing is designed for high strength whilst remaining compact. The cold-formed stamped band is smooth on the underside and bevelled at the edges, protecting the hose from damage. The ASFA "L" hose clip complies fully with the DIN 3017 norm and also with the RoHs directive EU 2002/95/EC dated 1st July 2006. This clip is ideal for general industrial applications. * The maximum application pressure can vary depending on the type of hose used and the geometry of the coupling. Patented Worldwide.

Product Specification Sheet

Download

Specification

Manufactured By Mikalor
HCL P/N WD-9-DIN-X-W2
Series Mikalor ASFA
Corrosion Resistance Fair
Corrosion Specification 72 Hours Salt Spray (ASTM B-117)
Hose Clamp Width in/mm 3/8 in (9.0mm)
Band Style Embossed Band
Band Material 430 Stainless Steel
Bolt/Screw Type Phillips Hex
Bolt/Screw Material Zinc Plated Steel
Bolt/Screw Size 1/4" (7mm) A/F
Colour Silver
Max Tightening Speed RPM 540 +/-5
Specification 1 DIN 3017
Specification 2 EU Directive 2002/95/EC
Country of Manufacture Spain
Tariff Code 7326 90 92
Hazardous Goods No
RoHS Compliant Yes

Secure & Reliable: Mikalor ASFA 3/8" Stainless Steel Worm Gear Hose Clamps (8.0mm-160.0mm)

Achieve dependable hose connections with Mikalor ASFA 3/8" Stainless Steel Worm Gear Hose Clamps. Designed for versatility and durability, these clamps feature a 430 stainless steel band and a galvanized
screw, providing a robust and corrosion-resistant solution for a wide range of applications. With an expansive size range (8.0mm-160.0mm | 0.31-6.29in),
you'll find the perfect fit for your needs.

Why Choose Mikalor ASFA Worm Gear Hose Clamps?

  • Durable 430 Stainless Steel Band: Offers excellent corrosion resistance and strength for long-lasting performance.
  • Galvanized Screw: Provides added protection against rust and corrosion, ensuring reliable clamping force.
  • 3/8" Bandwidth: Offers a balance of flexibility and clamping power for various hose types.
  • Wide Size Range: Covers 8.0mm-160.0mm (0.31-6.29in), accommodating diverse hose diameters.
  • Reliable Worm Gear Mechanism: Enables easy adjustment and secure tightening for a dependable seal.
  • Versatile Applications: Suitable for automotive, industrial, plumbing, and DIY projects.

Perfect For:

  • Automotive Hose Connections
  • Plumbing and Irrigation Systems
  • Industrial Machinery
  • General Purpose Clamping
  • DIY Home Improvement

Experience Dependable Clamping Power:

Mikalor ASFA 3/8" Stainless Steel Worm Gear Hose Clamps are engineered to deliver consistent and reliable performance. The 430 stainless steel band provides a strong and corrosion-resistant foundation,
while the galvanized screw ensures smooth adjustment and secure tightening. The wide size range allows for use in a variety of applications, making these clamps a versatile addition to any toolbox.

The worm gear mechanism allows for easy adjustments, ensuring a tight and secure seal every time. Whether you're working on automotive repairs, plumbing installations, or general maintenance, Mikalor ASFA worm gear clamps provide the dependability you need.

Key Features:

  • Band Material: 430 Stainless Steel
  • Screw Material: Galvanized Steel
  • Bandwidth: 3/8"
  • Size Range: 8.0mm-160.0mm (0.31-6.29in)
  • Type: Worm Gear Hose Clamp
  • Corrosion Resistant

For reliable and secure hose connections, choose Mikalor ASFA 3/8" Stainless Steel Worm Gear Hose Clamps. Browse our selection and order yours today!
