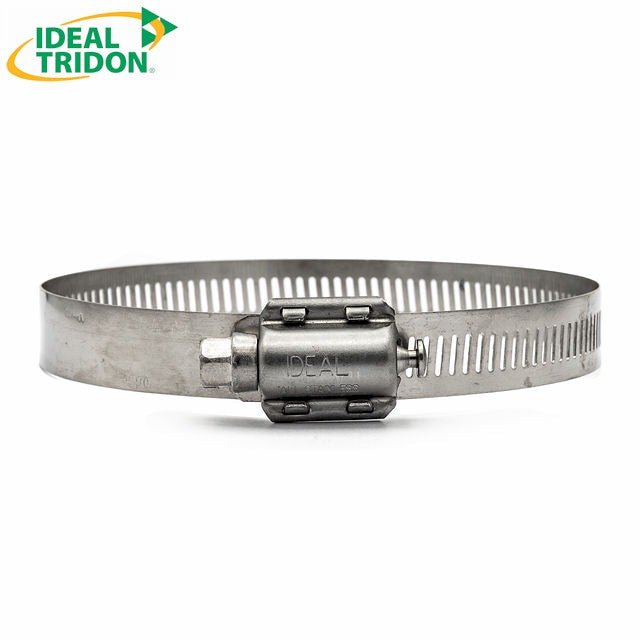

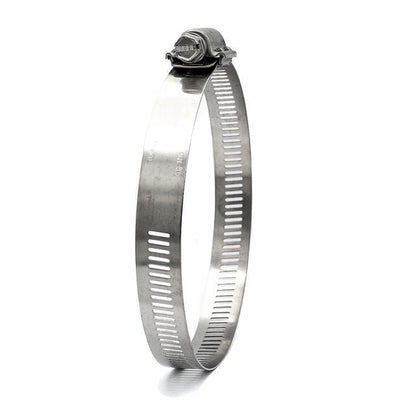

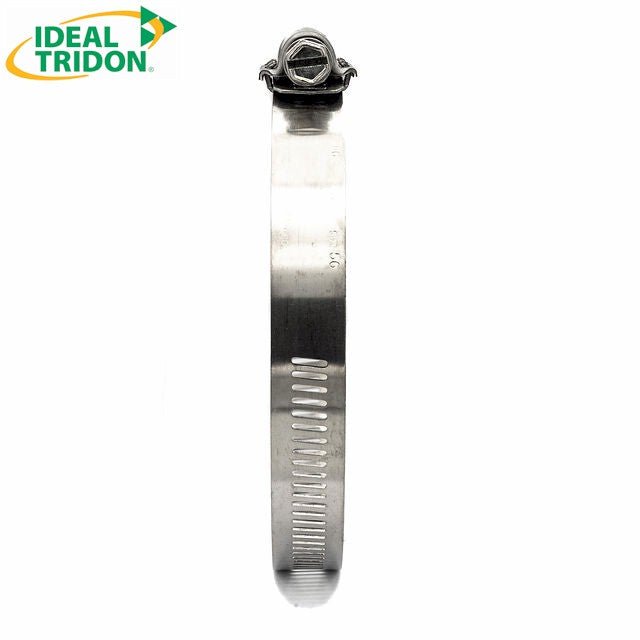

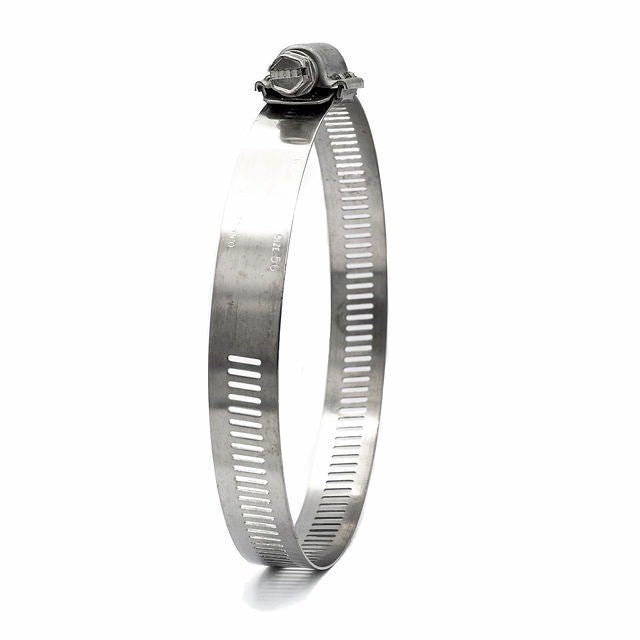

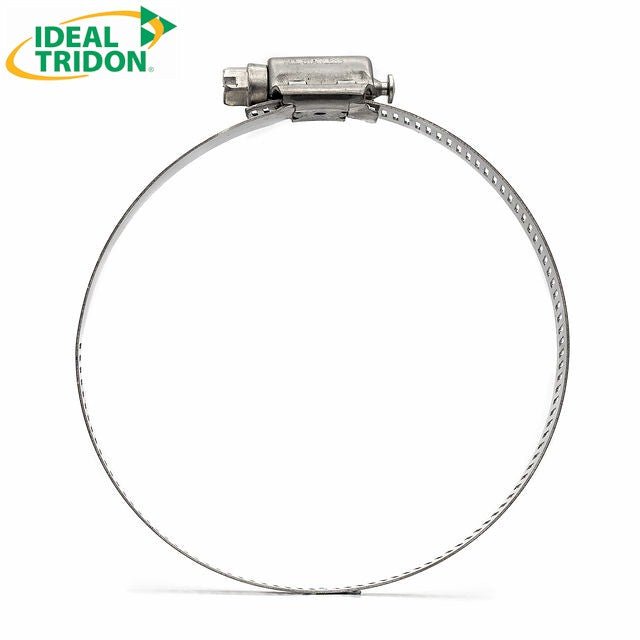

9/16" Ideal Tridon Surelock Quick Fit (Engage) Worm Gear Hose Clamp - 304 Stainless Steel

9/16" Ideal Tridon Surelock Quick Fit (Engage) Worm Gear Hose Clamp - 304 Stainless Steel

TRI-48-SLQE-12

$2.80
$2.80
Sale Sold out
Shipping calculated at checkout.

480 in stock
  • Free standard shipping. Next day delivery available. Find out more
View full details

Need advice? Talk to our expert customer support team

Call

281 7171145
Monday-Friday 8am to 4pm

Email

sales@hcl-clamping.com
Scroll
Clamp Dia In (fr) ?

Clamp Dia In (fr): The clamp's internal diameter listed as a fractional measurement in inches (e.g., 1, 1/2 in.).
Clamp Dia mm ?

Clamp Dia mm: The required metric size for a secure fit, indicating the outer diameter (in mm) of the component the clamp is meant to hold.
Band Width ?

Band Width: The measurement of the clamp's band or strap, indicating its width (often in mm or inches) and how much surface area it covers.
SAE No. ?

SAE No.: A number within a classification system established by SAE International
HCL P/N ?

HCL/ PN: The unique identifying number assigned to a part by HCL
MFG P/N ?

MFG P/N: The unique identifying number assigned to a part by its manufacturer.
Material ?

Material: The core substance used to manufacture the product (e.g., steel, plastic, rubber). Affects durability and performance.
Corrosion Res ?

Corrosion Resistance: Refers to a material's ability to resist deterioration or damage caused by chemical reactions with its environment, such as rusting.
Price ?

Price: The cost per unit

Stock ?

Stock: available products that can be purchased

Order Qty ?

Order Quantity: The total amount of units you wish to order

- 1/2 in − 1-1/4 in - 13.0mm - 32.0mm - 9/16 inch (14.0mm) - 12 - TRI-48-SLQE-12 - 48012 - 300SS - Very Good - $2.80 480
- 3/4 in - 1-3/4 in - 19.0mm − 44.0mm - 9/16 inch (14.0mm) - 20 - TRI-48-SLQE-20 - 48020 - 300SS - Very Good - $3.10 250
- 1 in - 2,1/4 in - 25.0mm - 57.0mm - 9/16 inch (14.0mm) - 28 - TRI-48-SLQE-28 - 48028 - 300SS - Very Good - $3.16 250
- 7/8 in - 2,3/4 in - 22.0mm - 70.0mm - 9/16 inch (14.0mm) - 36 - TRI-48-SLQE-36 - 48036 - 300SS - Very Good - $3.27 250
- 1 in - 4 in - 25.0mm - 102.0mm - 9/16 inch (14.0mm) - 56 - TRI-48-SLQE-56 - 48056 - 300SS - Very Good - $3.61 250
- 2 in - 5 in - 51.0mm - 127.0mm - 9/16 inch (14.0mm) - 72 - TRI-48-SLQE-72 - 48072 - 300SS - Very Good - $3.88 199
- 2 in - 6 in - 51.0mm - 152.0mm - 9/16 inch (14.0mm) - 88 - TRI-48-SLQE-88 - 48088 - 300SS - Very Good - $4.74 100
- 2 in - 7 in - 51.0mm - 178.0mm - 9/16 inch (14.0mm) - 104 - TRI-48-SLQE-104 - 48104 - 300SS - Very Good - $4.98 11
- 4,1/4 in - 8,1/2 in - 108.0mm - 216.0mm - 9/16 inch (14.0mm) - 158 - TRI-48-SLQE-128 - 48128 - 300SS - Very Good - $5.43 98
- 4 in - 10 in - 102.0mm - 254.0mm - 9/16 inch (14.0mm) - 152 - TRI-48-SLQE-152 - 48152 - 300SS - Very Good - $5.98 33
- 6,3/8 in - 12,3/8 in - 162.0mm - 314.0mm - 9/16 inch (14.0mm) - 190 - TRI-48-SLQE-190 - 48190 - 300SS - Very Good - $6.61 14
- 11,3/16 in - 14,5/16 in - 284.0mm - 359.0mm - 9/16 inch (14.0mm) - 218 - TRI-48-SLQE-218 - 48218 - 300SS - Very Good - $6.72 87
- 9 in - 15 in - 229.0mm - 381.0mm - 9/16 inch (14.0mm) - 232 - TRI-48-SLQE-232 - 48232 - 300SS - Very Good - $7.71 3
- 11,1/2 in - 17,1/2 in - 292.0mm - 445.0mm - 9/16 inch (14.0mm) - 272 - TRI-48-SLQE-272 - 48272 - 300SS - Very Good - $8.68 100
- 14,1/16 in - 19,5/8 in - 357.0mm - 498.0mm - 9/16 inch (14.0mm) - 306 - TRI-48-SLQE-306 - 48306 - 300SS - Very Good - $8.12 100

Description

9/16 inch wide Surelock Quick Engage (Fit) worm drive clamps have a bind-free, pull-through design for fast installation. Captured screw design for quick fastening and trouble-free tensioning. Extended housing engages 25% more screw threads than competitive designs.

Product Specification Sheet

Download

Specification

Manufactured By Ideal Tridon
HCL P/N TRI-48-SLQE-X
Series Ideal Tridon Surelock
Corrosion Resistance Very Good
Hose Clamp Width in/mm 9/16 in (14.0mm)
Band Style Perforated Band
Band Material 304 Stainless Steel
Bolt/Screw Type Collared Hex
Bolt/Screw Material 305 Stainless Steel
Bolt/Screw Size 5/16 in Hex Head
Tightening Torque 40 lbf-in (4.5 Nm) for most applications
Specification 1 SAE J1508
Country of Manufacture USA
Tariff Code 7326 90 92
Hazardous Goods No
RoHS Compliant Yes

Effortless & Secure: Ideal Tridon Surelock Quick Fit
Worm Gear Hose Clamp - 304 Stainless Steel, 9/16 Inch Wide (13.0-381mm)

Experience the ultimate in fast and secure hose connections with the Ideal Tridon Surelock Quick Fit Worm Gear Hose Clamp. Engineered for rapid engagement, this clamp features a unique design that allows for quick, one-handed installation. Constructed from high-quality 304 stainless steel, it
offers exceptional corrosion resistance and durability. The 9/16 Inch wide band provides a strong and reliable grip across a versatile size range of 13.0mm to 381mm (0.51-15.0in).

Why Choose the Ideal Tridon Surelock Quick Fit Worm Gear Hose Clamp?

  • Revolutionary Quick Fit (Engage) Design: Allows for incredibly fast, one-handed installation. Simply wrap and engage – no need to fully unscrew to start.

  • Premium 304 Stainless Steel: Offers superior corrosion resistance, ideal for marine, automotive, and industrial applications.
  • Wide 9/16 Inch Band: Provides increased clamping force and a larger contact area for a secure and reliable seal.
  • Versatile Size Range: Covers diameters from 13.0mm to 381mm (0.51-15.0in), suitable for a broad range of hose and ducting applications.
  • Reliable Worm Gear Mechanism: Ensures precise adjustment and a consistently tight seal once engaged.
  • Trusted Ideal Tridon Quality: A leading manufacturer renowned for high-performance clamping solutions.

Perfect For:

  • Automotive Assembly Lines
  • Marine Applications
  • Industrial Fluid Transfer Systems
  • HVAC Installations
  • Any application requiring fast and secure hose connections

Revolutionize Your Installation Speed:

The Ideal Tridon Surelock Quick Fit Worm Gear Hose Clamp is designed to dramatically reduce installation time. Its innovative "engage" feature allows you to quickly wrap the clamp around the hose and engage the locking mechanism with just one hand. This eliminates the cumbersome process of threading the band through the housing, making it ideal for high-production environments or situations where speed is critical. The robust 304 stainless steel construction ensures excellent corrosion resistance and long-lasting performance, while the wider band provides a secure and reliable seal.

Key Features:

  • Material: 304 Stainless Steel (Band, Housing & Screw)
  • Type: Quick Fit (Engage) Worm Gear Hose Clamp
  • Bandwidth: 9/16 Inch
  • Size Range: 13.0mm-381mm (0.51-15.0in)
  • Superior Corrosion Resistance (304 Stainless Steel)
  • Ultra-Fast, One-Handed Installation

For unparalleled speed and secure hose connections, choose the Ideal Tridon Surelock Quick Fit Worm Gear Hose Clamp. Explore our selection and experience the efficiency of rapid engagement today!
