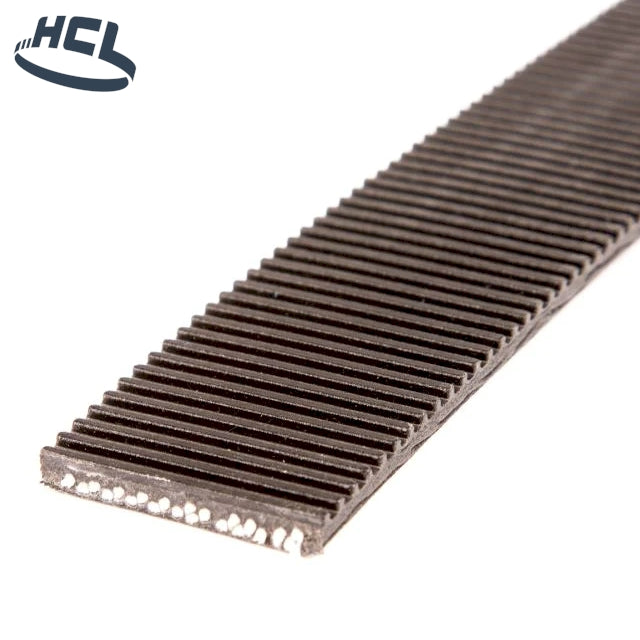

Smart Band PA12 Polymer Band - Nylon 12 reinforced banding/strapping Reels

Smart Band PA12 Polymer Band - Nylon 12 reinforced banding/strapping Reels

SB-BA-3/8-30M-PA12

$126.62
$126.62
Sale Sold out
Shipping calculated at checkout.

Backorder
  • Free standard shipping. Next day delivery available. Find out more
View full details

Need advice? Talk to our expert customer support team

Call

281 7171145
Monday-Friday 8am to 4pm

Email

sales@hcl-clamping.com
Scroll
Band Width ?

Band Width: The measurement of the clamp's band or strap, indicating its width (often in mm or inches) and how much surface area it covers.
Reel Length ?

Reel Length ft/m: Indicates the total length of the material wound on the reel, measured in both meters and feet.
Max System Str ?

Max System Str: The overall maximum strength or working pressure limit of the assembled system.

Band Thk ?

Band Thickness (in/mm): Indicates the physical thickness (height or depth) of the band, measured in inches or Millimetres.

HCL P/N ?

HCL/ PN: The unique identifying number assigned to a part by HCL
2D PDF ?

2D PDF: A standard document format containing two-dimensional drawings.
2D DXF ?

2D DXF: A standard file format for exchanging two-dimensional Computer-Aided Design (CAD) drawings between different software programs.
3D STP ?

3D STEP: A standard file format used to exchange three-dimensional product model data between different CAD software programs.
Price ?

Price: The cost per unit

Stock ?

Stock: available products that can be purchased

Order Qty ?

Order Quantity: The total amount of units you wish to order

Smart Band PA12 Polymer Band - Nylon 12 reinforced banding/strapping Reels
Smart Band PA12 Polymer Band - Nylon 12 reinforced banding/strapping Reels
- 		3/8 In (9.0mm) - 100ft (30.0m) - 264kgf - 581lbf - 0.14 in (3.6mm) - SB-BA-3/8-30M-PA12 - - - - $126.62 0
Smart Band PA12 Polymer Band - Nylon 12 reinforced banding/strapping Reels
Smart Band PA12 Polymer Band - Nylon 12 reinforced banding/strapping Reels
- 		3/4 in (19.0mm) - 100ft (60.0m) - 1321kgf - 2911lbf (with Hybrid Buckle) - 0.14 in (3.6mm) - SB-BA-3/4-30M-PA12GF - - - - $197.34 23
Smart Band PA12 Polymer Band - Nylon 12 reinforced banding/strapping Reels
Smart Band PA12 Polymer Band - Nylon 12 reinforced banding/strapping Reels
- 		3/4 in (19.0mm) - 200ft (60.0m) - 1321kgf - 2911lbf (With Hybrid Buckle) - 0.14 in (3.6mm) - SB-BA-3/4-60M-PA12GF - - - - $394.68 21
Smart Band PA12 Polymer Band - Nylon 12 reinforced banding/strapping Reels
Smart Band PA12 Polymer Band - Nylon 12 reinforced banding/strapping Reels
- 		1,1/4 in (32.0mm) - 100ft (30.0m) - 2344kgf - 5166lbf - 0.19 in (4.7mm) - SB-BA-1-1/4-30M-PA12GF - - - - $416.36 8

Description

SmartĀ® Band is a non-metallic band and buckle system. Highly suited to a variety of Banding applications, Non-Corrosive, Non-Conductive & Non-Magnetic. The Smart Band is available in 4 widths and several reel lengths and is capable of withstanding extreme loads making it the strongest non-metallic clamping system in the world. Strength figures are dependent on Buckle Choice (see brochure for more information) HCL also offers a number of installation tools to provide safe & simple installation.

The PA12 banding is designed to work with the PA12 Standard & Hybrid buckles of compatible size - and due to the long life data on the PA12 material is highly suited to Subsea installation and additionally because of its enhanced UV weathering resistance it is the best polymer for long life outdoor use.

Product Specification Sheet

Download

Specification

Manufactured By HCL Clamping USA
HCL P/N SB-BA-X-XM-PA12
Series HCL Smart Band
Corrosion Resistance Excellent
Band Material Nylon 12 (PA12)
Max Strength 5166 lbf
Max long Term Operating Temp 257Ā°F (125Ā°C)
Flammability HB UL94 Self Extinguishing
Weathering & UV Good
Chemical Resistance Good
Colour Black
Tool Compatibility SM-FT-2000-S
For use with Smart Band 3/8" & 3/4" Standard Heads
Country of Manufacture United Kingdom
Tariff Code 3917 40 00 99
RoHS Compliant Yes

Smart Band PA12 Polymer Band (Reels) | Reinforced Nylon 12 Strapping for Chemical & Wet Environments

Secure your applications against moisture, cold, and corrosive elements with the Smart Band PA12 Polymer Band. Made from Reinforced Nylon 12, this strapping offers exceptional strength, minimal moisture absorption, and superior chemical resistance, delivered on convenient reels for high-volume, professional use.

Why Choose This Reinforced PA12 Band?

Reinforced Nylon 12 High Strength: The Reinforced PA12 material provides high tensile strength, rigidity, and resistance to abrasion, making it suitable for securing heavier or more critical loads while maintaining the advantages of a lightweight, non-metallic solution.

Low Moisture Absorption & Stability: This is the key benefit. PA12 absorbs significantly less moisture than standard nylon, ensuring the band's tensile strength and dimensional stability remain high and consistent in wet, high-humidity, or submerged applications.

Superior Chemical and Salt Resistance: I will stress the excellent resistance to chlorides, road salts, solvents, and fuels, providing long-term security in harsh outdoor and industrial environments where metal or other polymers might fail.

Cold Weather Reliability: PA12 maintains superior flexibility and impact resistance at lower temperatures, drastically reducing the risk of brittleness or cracking during cold-weather installations.

Bulk Reels for High-Volume Use: Supplied on convenient reels, this strapping is ideal for high-volume, continuous projects, ensuring a steady, waste-reducing supply on large-scale job sites.

Perfect For:

  • High-volume securing in outdoor environments with moisture or salt exposure.
  • Industrial applications dealing with corrosive brines, solvents, or frequent washdowns.
  • Telecommunications and electrical utilities requiring non-conductive, stable strapping.
  • Construction and infrastructure in cold climates where material integrity is paramount.

Fortify your connections with strength and superior environmental resistance. Order the Smart Band PA12 Polymer Band in bulk reels today!
