Snap-Fit Hose Clamps: Polymer Quick-Release and Metal Spring Constant Tension

HCL's snap-fit hose clamp range contains two distinct product types that share a snap-fit installation mechanism but serve very different applications. Polymer snap-fit clamps (Herbie Clip PA66, Ezyclik PA66) — tool-free non-metallic clamps for laboratory, pharmaceutical, irrigation, and food processing applications where quick-release re-openability and corrosion immunity are the priorities. Metal spring snap-fit clamps (Mikalor, NORMA) — all-metal constant-tension spring band clamps in a snap-fit profile, used in automotive OEM cooling system production lines where the snap installation provides production line speed and the spring maintains consistent clamping force through thermal cycling. The correct product depends entirely on the application: browse the full snap-fit range for both types.

Type 1: Polymer Snap-Fit — Herbie Clip and Ezyclik

Polymer snap-fit clamps install by pressing the two halves together by hand — the ratchet or snap latch engages automatically; removal requires a flat-blade screwdriver lever at the release point. Entirely non-metallic, reusable, quick-release:

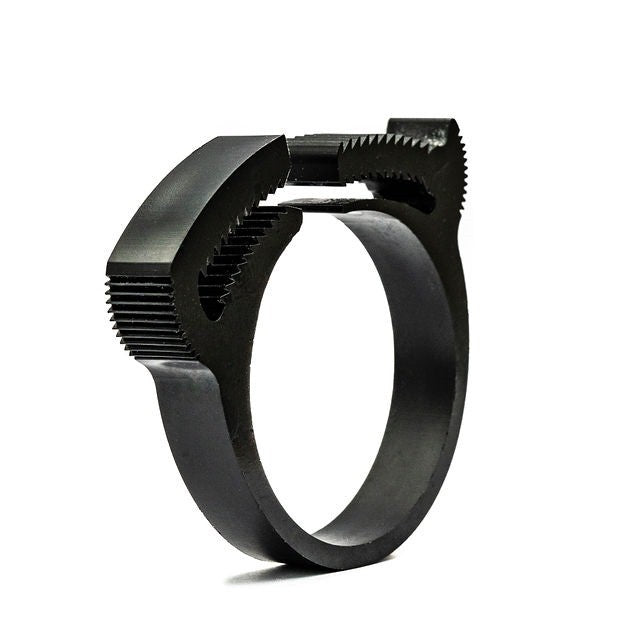

Herbie Clip PA66 — Ratchet Snap-Fit

Herbie Clip PA66 — the most widely used polymer snap-fit in HCL's range. Multi-tooth ratchet engagement provides high retention force on soft or stiffer tubing; audible click confirms correct installation. Available in natural PA66 (laboratory and pharmaceutical) and black UV-stabilized PA66 (outdoor grow rooms, irrigation, aquarium). FDA 21 CFR 177.1500 compliant; temperature range -40°F to 338°F (-40°C to 170°C).

• Best for: Pharmaceutical pilot plant batch changeover, laboratory tubing, reef aquarium, indoor horticulture fertigation, EV battery thermal management coolant connections, semiconductor fab non-metallic requirements
• Release: Flat-blade screwdriver into release slot; 5–10 seconds per clamp

Ezyclik PA66 — Low-Profile Snap-Fit

Ezyclik PA66 — lower band height than Herbie Clip for tight-clearance installations where the taller Herbie Clip would foul adjacent components. Same PA66 specification and FDA compliance; lower retention force than Herbie Clip.

• Best for: Instrument panel connections, under-bench laboratory plumbing, HVAC condensate in tight ceiling plenum spaces, food processing cabinet plumbing

See our polymer hose clamps guide for full PA66 specification and application detail.

Type 2: Metal Spring Snap-Fit — Constant Tension Automotive OEM

Metal spring snap-fit clamps are all-stainless spring band clamps formed into a snap-open profile — the band is pre-tensioned during manufacture so that snapping it closed over the hose applies the designed spring-generated clamping force without any screw tightening. They are not re-openable by hand in service — a snap-fit installation tool is required to open them for removal:

Mikalor Metal Snap-Fit

Mikalor metal spring snap-fit — all-304SS constant-tension spring band in a snap-open profile. The spring action maintains consistent radial clamping force through the thermal cycling of an automotive cooling system from cold ambient to operating temperature — the primary benefit over a fixed worm drive clamp on thermally cycling connections. Used on automotive OEM production lines where the snap installation (no torque wrench required) provides assembly line speed alongside constant tension performance.

• Best for: Automotive OEM cooling system connections on production lines; HVAC flexible duct connections cycling with system start/stop; any thermally cycling connection where constant tension is required and production line installation speed is a priority
• Material: All-304SS (W4) — same corrosion resistance as standard W4 worm drive constant tension clamps
• Removal: Requires snap-fit pliers tool to open the spring band; not field-removable by hand

See our constant tension clamps guide for the full thermal cycling framework.

Polymer vs Metal Spring Snap-Fit: Which to Choose

Factor	Polymer Snap-Fit (PA66)	Metal Spring Snap-Fit (304SS)
Material	PA66 polymer — fully non-metallic	304SS all-stainless — metallic
Installation	Hand pressure — truly tool-free	Snap closed — no torque tool needed
Removal	Screwdriver lever — quick release	Snap-fit pliers required
Reusable	Yes — many cycles	Limited — spring may fatigue
Clamping mechanism	Ratchet or snap latch	Constant spring tension
Thermal cycling	Not rated for automotive cooling	Designed for this — OEM standard
Non-metallic required	Yes — correct choice	No — fully metallic
FDA / food contact	FDA 21 CFR 177.1500 (PA66)	304SS (W4) — food grade stainless
Primary application	Lab, pharma, irrigation, aquarium	Automotive OEM cooling production

Installation Tools

Polymer snap-fit clamps (Herbie Clip, Ezyclik) require no installation tools — hand pressure only for installation; flat-blade screwdriver for removal. Metal spring snap-fit clamps require a dedicated snap-fit pliers tool for both installation (to open the spring band wide enough to fit over the hose) and removal. HCL supplies snap-fit installation tools from the hose clamp installation tools range.

Frequently Asked Questions: Snap-Fit Hose Clamps

Are all snap-fit hose clamps non-metallic?

No — HCL's snap-fit range contains both polymer and metal clamps. Herbie Clip and Ezyclik are polymer (PA66 — fully non-metallic). Mikalor and NORMA metal snap-fit clamps are all-stainless spring band clamps — the same 304SS material as worm drive W4 clamps, just in a different form factor. The snap-fit mechanism describes how the clamp installs, not what it is made of. Always check material specifications when non-metallic is a requirement.

Can I use a polymer snap-fit clamp on a car cooling hose?

No — PA66 polymer snap-fit clamps (Herbie Clip, Ezyclik) are not rated for automotive engine cooling system applications. Automotive cooling systems cycle between cold ambient and 180–220°F operating temperature under significant engine vibration and coolant pressure. The correct snap-fit product for automotive cooling is the metal spring snap-fit (Mikalor or NORMA 304SS constant tension snap-fit) or a standard constant tension worm drive W4 clamp. PA66 polymer snap-fit is rated to 338°F temperature but is not designed for the sustained vibration and pressure of engine cooling systems.

How do I remove a metal spring snap-fit clamp?

Metal spring snap-fit clamps require a dedicated snap-fit pliers tool — the pliers grip the two ears of the spring band and compress them to open the band wide enough to slide off the fitting. Standard pliers can be used in an emergency but risk damaging the spring band beyond reuse. HCL supplies Knipex and other snap-fit pliers tools in the hose clamp installation tools range. For automotive service where metal snap-fit OEM clamps are cut off, replace with a W4 worm drive or constant tension clamp of the equivalent diameter — a new metal snap-fit requires the installation tool which may not be available in a workshop setting.
