Smart Protector 500 Series - Cable Holders & Protectors (PPS, PK, PA66, PA12 Polymer Options)

Smart Protector 500 Series - Cable Holders & Protectors (PPS, PK, PA66, PA12 Polymer Options)

SP-500-1721-PPS

$10.95
$10.95
Sale Sold out
Shipping calculated at checkout.

Backorder
  • Free standard shipping. Next day delivery available. Find out more
View full details

Need advice? Talk to our expert customer support team

Call

281 7171145
Monday-Friday 8am to 4pm

Email

sales@hcl-clamping.com
Scroll
Name
Width mm/in
Band Compatibility ?

Band Compatibility: Indicates whether a band or strap can be attached to a specific product, determined primarily by matching the band's width and the product's attachment mechanism.
Reusable ?

Reusable: Yes / No response If product can or cant be reused.

HCL P/N ?

HCL/ PN: The unique identifying number assigned to a part by HCL
2D PDF ?

2D PDF: A standard document format containing two-dimensional drawings.
2D DXF ?

2D DXF: A standard file format for exchanging two-dimensional Computer-Aided Design (CAD) drawings between different software programs.
3D STP ?

3D STEP: A standard file format used to exchange three-dimensional product model data between different CAD software programs.
Price ?

Price: The cost per unit

Stock ?

Stock: available products that can be purchased

Order Qty ?

Order Quantity: The total amount of units you wish to order

Smart Protector 500 Series - Cable Holders & Protectors (PPS, PK, PA66, PA12 Polymer Options)
Smart Protector 500 Series - Cable Holders & Protectors (PPS, PK, PA66, PA12 Polymer Options)
- 		Smart Protector 500-1721 - PPS - 46.2 / 1.82 - 3/4 inch - 1 1/4 inch - Yes - SP-500-1721-PPS - - - - $10.95 0
Smart Protector 500 Series - Cable Holders & Protectors (PPS, PK, PA66, PA12 Polymer Options)
Smart Protector 500 Series - Cable Holders & Protectors (PPS, PK, PA66, PA12 Polymer Options)
- 		Smart Protector 500-1721 - PK - 46.2 / 1.82 - 3/4 inch - 1 1/4 inch - Yes - SP-500-1721-PK - - - - $5.29 0
Smart Protector 500 Series - Cable Holders & Protectors (PPS, PK, PA66, PA12 Polymer Options)
Smart Protector 500 Series - Cable Holders & Protectors (PPS, PK, PA66, PA12 Polymer Options)
- 		Smart Protector 500-1721 - PA12 - 46.2 / 1.82 - 3/4 inch - 1 1/4 inch - Yes - SP-500-1721-PA12 - - - - $7.19 158
Smart Protector 500 Series - Cable Holders & Protectors (PPS, PK, PA66, PA12 Polymer Options)
Smart Protector 500 Series - Cable Holders & Protectors (PPS, PK, PA66, PA12 Polymer Options)
- 		Smart Protector 500-1721 - PA66 - 46.2 / 1.82 - 3/4 inch - 1 1/4 inch - Yes - SP-500-1721-PA66 - - - - $3.61 0
Smart Protector 500 Series - Cable Holders & Protectors (PPS, PK, PA66, PA12 Polymer Options)
Smart Protector 500 Series - Cable Holders & Protectors (PPS, PK, PA66, PA12 Polymer Options)
- 		Smart Protector 500-3338 - PPS - 52.6 / 2.46 - 3/4 inch - 1 1/4 inch - Yes - SP-500-3338-PPS - - - - $28.48 0
Smart Protector 500 Series - Cable Holders & Protectors (PPS, PK, PA66, PA12 Polymer Options)
Smart Protector 500 Series - Cable Holders & Protectors (PPS, PK, PA66, PA12 Polymer Options)
- 		Smart Protector 500-3338 - PK - 52.6 / 2.46 - 3/4 inch - 1 1/4 inch - Yes - SP-500-3338-PK - - - - $12.05 0
Smart Protector 500 Series - Cable Holders & Protectors (PPS, PK, PA66, PA12 Polymer Options)
Smart Protector 500 Series - Cable Holders & Protectors (PPS, PK, PA66, PA12 Polymer Options)
- 		Smart Protector 500-3338 - PA12 - 52.6 / 2.46 - 3/4 inch - 1 1/4 inch - Yes - SP-500-3338-PA12 - - - - $15.06 113
Smart Protector 500 Series - Cable Holders & Protectors (PPS, PK, PA66, PA12 Polymer Options)
Smart Protector 500 Series - Cable Holders & Protectors (PPS, PK, PA66, PA12 Polymer Options)
- 		Smart Protector 500-3338 - PA66 - 52.6 / 2.46 - 3/4 inch - 1 1/4 inch - Yes - SP-500-3338-PA66 - - - - $7.87 0

Description

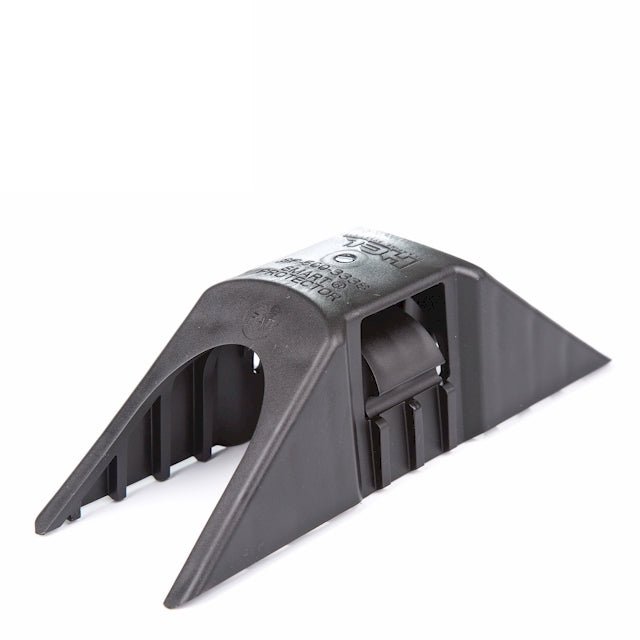

A range of polymer cable protectors for use in Downhole, subsea and flow line applications The Smart® Protector is a patented product developed in co-operation with Shell. It is designed to operate within restricted annular clearances, to accommodate various tubing diameters, all coupling types and most cable combinations.

The Smart® Protector is not only used as a cable protector downhole it can be used to protect & attach cables in many other situations in conjunction with either the Smart® Band or Smart® Tie. One of the most successful applications is the attachment of Cathodic protection cables to Marine structures.

Product Specification Sheet

Download

Specification

Manufactured By HCL
HCL P/N SP-500-X-X
Series Smart 500
Corrosion Resistance Excellent
Housing Material PPS, PK, PA12, PA66
Recommended Installation Temp Normal
Flammability V-0, V2, HB
Chemical Resistance High
Colour Black
For use with Cable Management
Country of Manufacture United Kingdom
Tariff Code 3917.4
Hazardous Goods No
RoHS Compliant Yes

Ensure the longevity and neat organization of your cables, wires, and conduits with the Smart Protector 500 Series of Cable Holders & Protectors, proudly brought to you by HCL Fasteners.

Engineered for superior performance in diverse environments, these innovative solutions are available in a range of advanced polymer options including PPS,
PK, PA66, and PA12, allowing you to choose the perfect material for your specific application requirements across the United Kingdom.

Why Choose the Smart Protector 500 Series Cable Holders & Protectors by HCL Fasteners?

  • Robust Cable Protection: Designed to safeguard cables, wires, and conduits from abrasion, crushing, kinking, and environmental damage, extending their lifespan and preventing costly failures.
  • Versatile Polymer Options:
  • PPS (Polyphenylene Sulphide): Offers excellent high-temperature resistance, chemical inertness, and dimensional stability, ideal for harsh industrial environments.
  • PK (Polyketone): Provides superior impact strength, abrasion resistance, and chemical resistance, suitable for dynamic and challenging applications.
  • PA66 (Nylon 66): A general-purpose, high-strength polyamide offering good mechanical properties, wear resistance, and heat deflection for a wide range of uses.
  • PA12 (Nylon 12): Known for its flexibility, chemical resistance, and low moisture absorption, making it suitable for applications requiring greater ductility.
  • Secure Cable Retention: Features various internal geometries and clip designs to securely hold cables in place, preventing slippage and disorganization.
  • Easy Installation: Designed for quick and straightforward installation, often utilizing snap-fit or screw-in mounting options, saving time and effort during assembly.
  • Neat Cable Organization: Promotes a tidy and professional appearance by effectively routing and bundling cables, reducing clutter and improving safety.
  • Non-Corrosive: All polymer options offer inherent resistance to rust and many corrosive substances, unlike traditional metal alternatives.
  • Trusted HCL Fasteners Quality: As a reputable manufacturer, HCL Fasteners is known for innovative and reliable cable management solutions, ensuring a product you can trust.

Available Options (Please specify when ordering, selection varies by product type within the 500 Series):

  • Material: PPS, PK, PA66, PA12 Polymer
  • Design: Include a variety of cable holder protectors optimized for different cable diameters and mounting requirements.
  • Sizes: Available to accommodate a range of cable and conduit diameters.
  • Mounting Options: Snap-in, screw-down, adhesive, or through-hole designs.

Perfect For:

  • Automotive Industry: Securing wiring harnesses, fluid lines, and sensor cables in engine bays and chassis.
  • Industrial Machinery: Protecting power cables, control wires, and pneumatic lines in automation and robotics.
  • Renewable Energy: Managing cables in solar panel installations and wind turbines.
  • Construction & Infrastructure: Organizing and protecting cables in buildings, bridges, and tunnels.
  • Electronic & Appliance Manufacturing: Routing internal wiring and external connections.
  • Marine & Offshore: Protecting cables in corrosive and demanding maritime environments (select appropriate polymer).
  • Data Centres: Neat cable routing and protection for network and power infrastructure.

Experience Smarter, More Durable Cable Management from HCL Fasteners:

The Smart Protector 500 Series, by HCL Fasteners, offers a comprehensive and highly adaptable range of cable holders and protectors, allowing you to select the ideal polymer for your specific performance demands. From high-temperature environments to applications requiring extreme impact resistance or flexibility, these solutions ensure your cables are organized, protected, and perform reliably for longer across the United States.

Key Features:

  • Robust Cable Protection & Organization
  • Available in PPS, PK, PA66, PA12 Polymer Options
  • Excellent Temperature, Chemical, & Impact Resistance (Material Dependent)
  • Secure Cable Retention Mechanisms
  • Easy & Fast Installation
  • Non-Corrosive & Lightweight
  • Versatile Design for Various Cable Diameters
  • Trusted HCL Fasteners Brand Quality

(Note: Specific polymer availability and design
variations depend on the individual product within the Smart Protector 500 Series. Please consult individual product specifications or contact HCL Fasteners for precise details.)
