Ideal TridonIdeal Tridon
Ideal TridonSKU: TRI-30030-TBSL-275

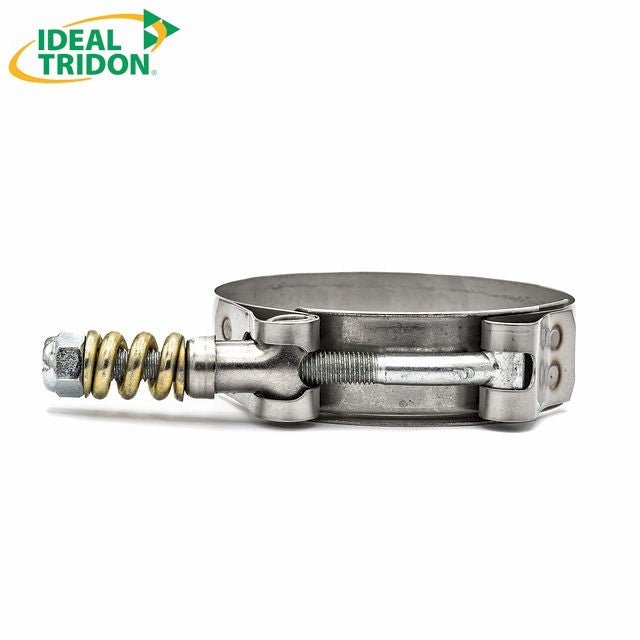

70-78mm - 2.75-3.06in - 3/4" Ideal Tridon T-Bolt Clamp with Spring 3/4" 300SS


Price:
$5
Stock:
50 items in stock

Description

Spring Loaded T-Bolt clamps provide uniform sealing pressure for a positive, reliable seal where there is a need for constant tension performance. Designed for use in high vibration and large diameter applications common in heavy trucks, industrial machinery, off-road equipment, agricultural irrigation and machinery. Features a spring-loaded t-bolt assembly, a 3/4" wide stainless steel band and welded construction for reliability. Custom OEM designs can be developed for volume applications. Available in standard spring and heavy-duty.

Product Specifications

  • SAE Size 275
  • Width Inch Fraction 3/4"
  • Width inch 0.75
  • Width mm 19.0
  • Min Diameter In/Fr 2-3/4"
  • Min Diameter inch 2.75
  • Min Diameter mm 70.0
  • Max Diameter In/Fr 3-1/16"
  • Max Diameter In 3.06
  • Max Diameter mm 78.0
  • Band Material 301 Stainless Steel
  • Screw/Bolt/Nut Material Zinc Plated Steel (W1)
  • Bridge Material 301 Stainless Steel
  • Spring Material Steel
  • Trunion Material 301 Stainless Steel
  • Manufactured By Ideal Tridon
Ideal Tridon 300300275052
SKU: TRI-30030-TBSL-275

70-78mm - 2.75-3.06in - 3/4" Ideal Tridon T-Bolt Clamp with Spring 3/4" 300SS
