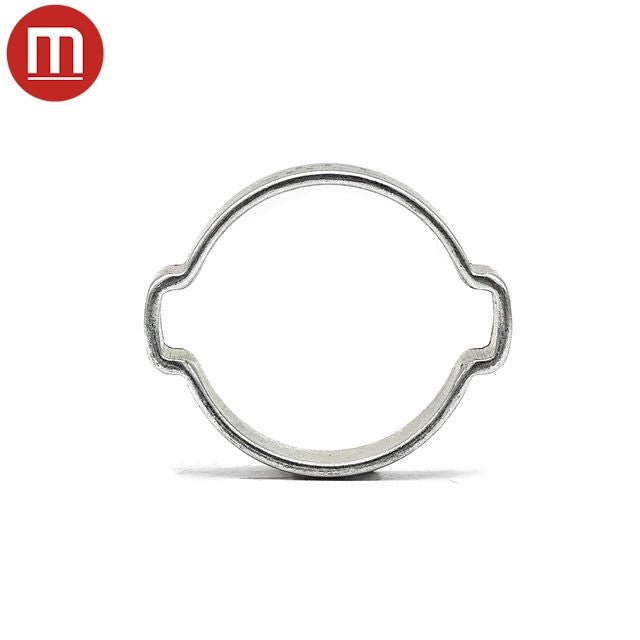

Double Pinch (Ear) Hose Clamps DEC-W1 - Zinc Plated steel

Double Pinch (Ear) Hose Clamps DEC-W1 - Zinc Plated steel

DEC-5-W1

$0.47
$0.47
Sale Sold out
Shipping calculated at checkout.

110 in stock
  • Free standard shipping. Next day delivery available. Find out more
View full details

Need advice? Talk to our expert customer support team

Call

281 7171145
Monday-Friday 8am to 4pm

Email

sales@hcl-clamping.com
Scroll
Clamp Dia In (fr) ?

Clamp Dia In (fr): The clamp's internal diameter listed as a fractional measurement in inches (e.g., 1, 1/2 in.).
Clamp Dia In ?

Clamp Dia In: The minimum to maximum inner diameter (in.) the clamp can securely cover, defining its usable size range.
Clamp Dia mm ?

Clamp Dia mm: The required metric size for a secure fit, indicating the outer diameter (in mm) of the component the clamp is meant to hold.
MFG P/N ?

MFG P/N: The unique identifying number assigned to a part by its manufacturer.
HCL P/N ?

HCL/ PN: The unique identifying number assigned to a part by HCL
Band Width ?

Band Width: The measurement of the clamp's band or strap, indicating its width (often in mm or inches) and how much surface area it covers.
2D PDF ?

2D PDF: A standard document format containing two-dimensional drawings.
2D DXF ?

2D DXF: A standard file format for exchanging two-dimensional Computer-Aided Design (CAD) drawings between different software programs.
3D STP ?

3D STEP: A standard file format used to exchange three-dimensional product model data between different CAD software programs.
Price ?

Price: The cost per unit

Stock ?

Stock: available products that can be purchased

Order Qty ?

Order Quantity: The total amount of units you wish to order

13/64 in - 9/32 in - 0.20in - 0.28in - 5.0mm - 7.0mm - 03012101 - DEC-5-W1 - 15/64 in (6.0mm) - 2D PDF - 2D DXF - 3D STP - $0.47 110
9/32 in - 23/64 in - 0.28in - 0.35in - 7.0mm - 9.0mm - 03012110 - DEC-7-W1 - 15/64 in (6.0mm) - 2D PDF - 2D DXF - 3D STP - $0.49 103
23/64 in - 7/16 in - 0.35in - 0.43in - 9.0mm - 11.0mm - 03012128 - DEC-9-W1 - 1/4 in (6.5mm) - 2D PDF - 2D DXF - 3D STP - $0.52 842
25/64 in - 15/32 in - 0.39in - 0.47in - 10.0mm - 12.0mm - 03012099 - DEC-10-W1 - 1/4 in (6.5mm) - 2D PDF - 2D DXF - 3D STP - $0.54 134
7/16 in - 33/64 in - 0.43in - 0.51in - 11.0mm - 13.0mm - 03012136 - DEC-11-W1 - 1/4 in (6.5mm) - 2D PDF - 2D DXF - 3D STP - $0.55 1941
33/64 in - 19/32 in - 0.51in - 0.59in - 13.0mm - 15.0mm - 03012144 - DEC-13-W1 - 9/32 in (7.0mm) - 2D PDF - 2D DXF - 3D STP - $0.62 1064
35/64 in - 11/16 in - 0.55in - 0.67in - 14.0mm - 17.0mm - 03012152 - DEC-14-W1 - 9/32 in (7.0mm) - 2D PDF - 2D DXF - 3D STP - $0.78 2515
19/32 in - 45/64 in - 0.59in - 0.71in - 15.0mm - 18.0mm - 03012160 - DEC-15-W1 - 19/64 in (7.5mm) - 2D PDF - 2D DXF - 3D STP - $0.82 539
11/16 in - 13/16 in - 0.67in - 0.79in - 17.0mm - 20.0mm - 03012179 - DEC-17-W1 - 19/64 in (7.5mm) - 2D PDF - 2D DXF - 3D STP - $0.85 1378
45/64 in - 53/64 in - 0.71in - 0.83in - 18.0mm - 21.0mm - 03012187 - DEC-18-W1 - 5/16 in (8.0mm) - 2D PDF - 2D DXF - 3D STP - $0.90 256
13/16 in - 7/8 in - 0.79in - 0.91in - 20.0mm - 23.0mm - 03012195 - DEC-20-W1 - 5/16 in (8.0mm) - 2D PDF - 2D DXF - 3D STP - $1.00 150
55/64 in - 63/64 in - 0.87in - 0.98in - 22.0mm - 25.0mm - 03012208 - DEC-22-W1 - 21/64 in (8.5mm) - 2D PDF - 2D DXF - 3D STP - $1.23 434
7/8 in - 1,1/16 in - 0.91in - 1.06in - 23.0mm - 27.0mm - 03012216 - DEC-23-W1 - 21/64 in (8.5mm) - 2D PDF - 2D DXF - 3D STP - $1.31 151
63/64 in - 1.1/8 in - 0.98in - 1.10in - 25.0mm - 28.0mm - 03012224 - DEC-25-W1 - 23/64 in (9.0mm) - 2D PDF - 2D DXF - 3D STP - $1.43 274
1,1/8 in - 1,7/32 in - 1.10in - 1.22in - 28.0mm - 31.0mm - 03012232 - DEC-28-W1 - 23/64 in (9.0mm) - 2D PDF - 2D DXF - 3D STP - $1.55 271
1,7/32 in - 1,5/16 in - 1.22in - 1.34in - 31.0mm - 34.0mm - 03012240 - DEC-31-W1 - 3/8 in (9.5mm) - 2D PDF - 2D DXF - 3D STP - $1.74 137
1,5/16 in - 1,7/16 in - 1.34in - 1.46in - 34.0mm - 37.0mm - 03012259 - DEC-34-W1 - 3/8 in (9.5mm) - 2D PDF - 2D DXF - 3D STP - $2.10 144
1,7/16 in - 1,9/16 in - 1.46in - 1.57in - 37.0mm - 40.0mm - 03012267 - DEC-37-W1 - 25/64 in (10.0mm) - 2D PDF - 2D DXF - 3D STP - $2.36 105
1,9/16 in - 1,11/16 in - 1.57in - 1.69in - 40.0mm - 43.0mm - 03012275 - DEC-40-W1 - 25/64 in (10.0mm) - 2D PDF - 2D DXF - 3D STP - $2.61 133
1,11/16 in - 1,7/8 in - 1.69in - 1.85in - 43.0mm - 47.0mm - 03012283 - DEC-43-W1 - 13/32 in (10.5mm) - 2D PDF - 2D DXF - 3D STP - $3.04 0

Description

The use of two ear clips is an economical solution for many simple hose assemblies, used with air or other fluids. The two ears give the clip extra grip and help to maintain constant pressure around the hose. Fitting is more flexible and exact. The practical design of two ear clips means that they clamp firmly on to the assembly and cannot be removed once mounted. The edges are rounded to avoid damage to the hose. The clips are often found used in the welding industry

Product Specification Sheet

Download

Specification

Manufactured By Mikalor
HCL P/N DEC-X-W1
Series Double Ear
Corrosion Resistance Fair
Corrosion Specification 72 hours Salt Spray (ASTM B-117)
Hose Clamp Width in/mm 15/64 in (6.0mm)1/4 in (7.0mm)5/16 in (8.0mm)3/8 in (9.0mm)
Band Material Zinc Plated Steel
Finish Zinc Plated Steel
Colour Silver
Country of Manufacture Spain
Tariff Code 7326 90 92
Hazardous Goods No
RoHS Compliant Yes

Ensure leak-proof and robust hose connections with genuine Mikalor Galvanized Double Ear "O" Pinch Hose Clips. Engineered for superior clamping force and long-lasting durability, these high-quality hose
clips are ideal for a wide range of applications across automotive, plumbing, industrial, and DIY projects throughout the USA.

Why Choose Mikalor?

Mikalor Double Ear "O" Pinch Hose Clips offer
unparalleled reliability and peace of mind. Their galvanized steel construction withstands the test of time, while the double ear design provides a superior
clamping force compared to single ear clips. Whether you're a professional mechanic, plumber, or DIY enthusiast, these clips are the perfect solution for
creating secure and leak-free hose connections.

Upgrade your hose connections today! Order your Mikalor Galvanized Double Ear "O" Pinch Hose Clips now and experience the difference in quality and performance.

Premium Galvanized Steel: Provides exceptional corrosion resistance, extending the lifespan of your hose connections, even in harsh environments.

Double Ear "O" Design: Delivers a secure, 360-degree seal, preventing leaks and ensuring reliable performance.

Mikalor Quality: Trust in the renowned Mikalor brand, a leader in hose clamping solutions known for precision engineering and consistent quality.

Pinch-to-Secure Installation: Simple and efficient installation with standard pinch pliers, creating a permanent and tamper-proof connection.

Versatile Applications: Perfect for securing fuel lines, air hoses, water pipes, and more, in automotive, marine, agricultural, and general-purpose use.

Made for USA conditions: Galvanized coating is perfect for the varied weather conditions found throughout the United States.
