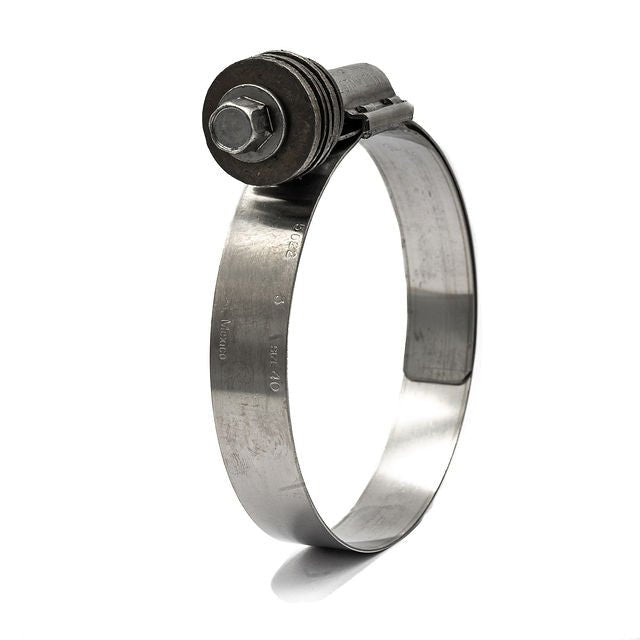

  • Constant Tension Worm Gear Clamp Flex-Gear 300SS 5/8"-1,1/4" - HCL Clamping USA- TRI-47-FLXG-12

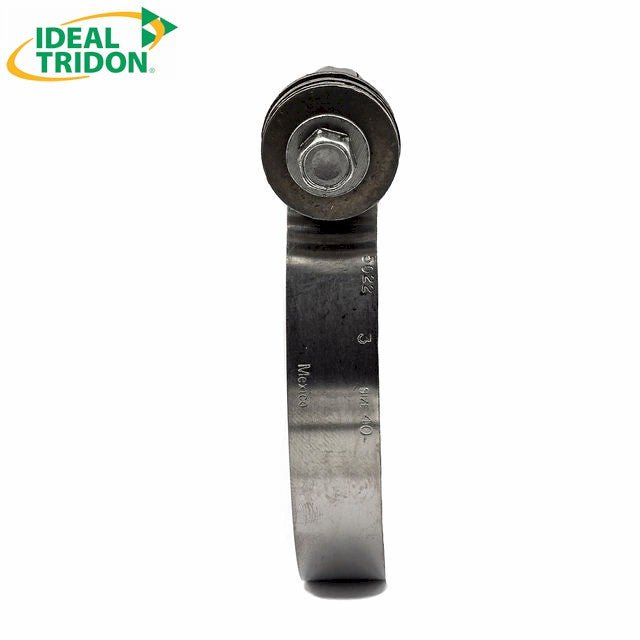

  • Constant Tension Worm Gear Clamp Flex-Gear 300SS 5/8"-1,1/4" - HCL Clamping USA- TRI-47-FLXG-12

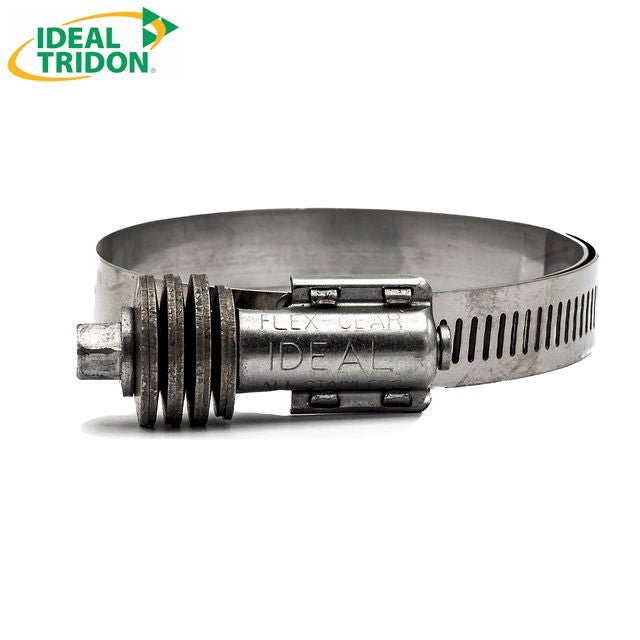

  • Constant Tension Worm Gear Clamp Flex-Gear 300SS 9/16"-1,1/16" - HCL Clamping USA- TRI-47-FLXG-10

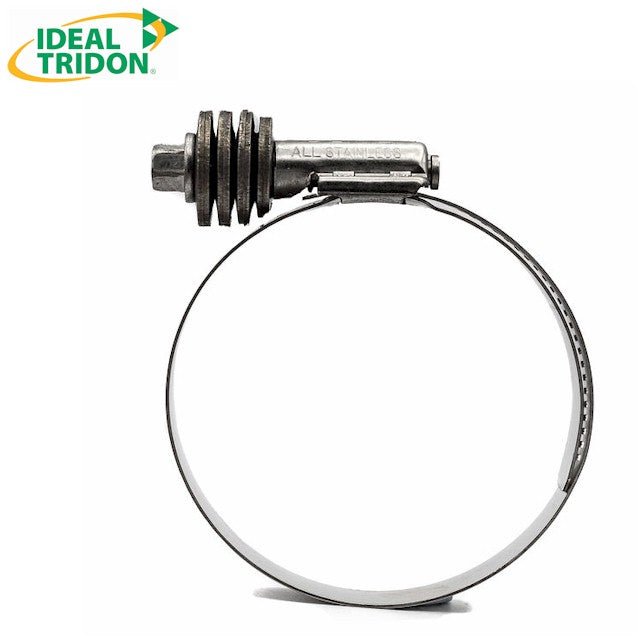

  • Constant Tension Worm Gear Clamp Flex-Gear 300SS 5/8"-1,1/4" - HCL Clamping USA- TRI-47-FLXG-12
1 4

9/16” Ideal Tridon Flex Gear 47 Constant Tension Worm Gear Hose Clamp with Liner - 301 Stainless Steel Band, 410 Stainless Steel Screw

9/16” Ideal Tridon Flex Gear 47 Constant Tension Worm Gear Hose Clamp with Liner - 301 Stainless Steel Band, 410 Stainless Steel Screw

TRI-47-FLXG-16

$5.52
$5.52
Sale Sold out
Shipping calculated at checkout.

298 in stock
  • Free standard shipping. Next day delivery available. Find out more
View full details

Need advice? Talk to our expert customer support team

Call

281 7171145
Monday-Friday 8am to 4pm

Email

sales@hcl-clamping.com
Scroll
Clamp Dia In (fr) ?

Clamp Dia In (fr): The clamp's internal diameter listed as a fractional measurement in inches (e.g., 1, 1/2 in.).
Clamp Dia In ?

Clamp Dia In: The minimum to maximum inner diameter (in.) the clamp can securely cover, defining its usable size range.
Clamp Dia mm ?

Clamp Dia mm: The required metric size for a secure fit, indicating the outer diameter (in mm) of the component the clamp is meant to hold.
Band Width ?

Band Width: The measurement of the clamp's band or strap, indicating its width (often in mm or inches) and how much surface area it covers.
SAE No. ?

SAE No.: A number within a classification system established by SAE International
HCL P/N ?

HCL/ PN: The unique identifying number assigned to a part by HCL
MFG P/N ?

MFG P/N: The unique identifying number assigned to a part by its manufacturer.
Corrosion Res ?

Corrosion Resistance: Refers to a material's ability to resist deterioration or damage caused by chemical reactions with its environment, such as rusting.
2D PDF ?

2D PDF: A standard document format containing two-dimensional drawings.
2D DXF ?

2D DXF: A standard file format for exchanging two-dimensional Computer-Aided Design (CAD) drawings between different software programs.
3D STP ?

3D STEP: A standard file format used to exchange three-dimensional product model data between different CAD software programs.
Price ?

Price: The cost per unit

Stock ?

Stock: available products that can be purchased

Order Qty ?

Order Quantity: The total amount of units you wish to order

9/16 in - 1,1/16 in - 0.55in - 1.06in - 14.0mm - 27.0mm - 9/16 in (14.0mm) - 10 - TRI-47-FLXG-10 - 47010 - Good - 2D PDF - 2D DXF - 3D STP - $5.63 0
5/8 in - 1,1/4 in - 0.63in - 1.26in - 16.0mm - 32.0mm - 9/16 in (14.0mm) - 12 - TRI-47-FLXG-12 - 47012 - Good - 2D PDF - 2D DXF - 3D STP - $5.71 255
13/16 in - 1,1/2 in - 0.83in - 1.50in - 21.0mm - 38.0mm - 9/16 in (14.0mm) - 16 - TRI-47-FLXG-16 - 47016 - Good - 2D PDF - 2D DXF - 3D STP - $5.52 298
13/16 in - 1,3/4 in - 0.79in - 1.73in - 20.0mm - 44.0mm - 9/16 in (14.0mm) - 20 - TRI-47-FLXG-20 - 47020 - Good - 2D PDF - 2D DXF - 3D STP - $5.64 450
1,1/16 in - 2 in - 1.06in - 2.01in - 27.0mm - 51.0mm - 9/16 in (14.0mm) - 24 - TRI-47-FLXG-24 - 47024 - Good - 2D PDF - 2D DXF - 3D STP - $5.71 214
1,5/16 in - 2,1/4 in - 1.30in - 2.24in - 33.0mm - 57.0mm - 9/16 in (14.0mm) - 28 - TRI-47-FLXG-28 - 47028 - Good - 2D PDF - 2D DXF - 3D STP - $5.76 212
1,9/16 in - 2,1/2 in - 1.57in - 2.48in - 40.0mm - 63.0mm - 9/16 in (14.0mm) - 32 - TRI-47-FLXG-32 - 47032 - Good - 2D PDF - 2D DXF - 3D STP - $5.82 143
1,13/16 in - 2,3/4 in - 1.81in - 2.76in - 46.0mm - 70.0mm - 9/16 in (14.0mm) - 36 - TRI-47-FLXG-36 - 47036 - Good - 2D PDF - 2D DXF - 3D STP - $5.90 139
2,1/16 in - 3 in - 2.05in - 2.99in - 52.0mm - 76.0mm - 9/16 in (14.0mm) - 40 - TRI-47-FLXG-40 - 47040 - Good - 2D PDF - 2D DXF - 3D STP - $5.95 173
2,5/16 in - 3,1/4 in - 2.32in - 3.23in - 59.0mm - 82.0mm - 9/16 in (14.0mm) - 44 - TRI-47-FLXG-44 - 47044 - Good - 2D PDF - 2D DXF - 3D STP - $6.02 194
2,9/16 in - 3,1/2 in - 2.56in - 3.50in - 65.0mm - 89.0mm - 9/16 in (14.0mm) - 48 - TRI-47-FLXG-48 - 47048 - Good - 2D PDF - 2D DXF - 3D STP - $6.08 164

Description

9/16 inch (14mm) wide Flex-Gear 47 Series clamps use a Belleville spring design to eliminate “cold flow” leakage that adjusts with the hose and fitting to maintain constant tension on the connection, eliminating leak paths. Flex-Gear clamps are an excellent choice for fluctuating temperature applications and thermal compensation. Features and Benefits: Belleville spring and clamp construction is built to respond to constant temperature fluctuations. The larger, heavier-gauge, precision-formed springs provide higher rates of band tension and adjustment for a more dependable seal. Inner liner protects against shearing of the hose surfaces.

Product Specification Sheet

Download

Specification

Manufactured By Ideal Tridon
HCL P/N TRI-47-FLXG-X
Series Idea Tridon Flex-Gear
Corrosion Resistance Good
Hose Clamp Width in/mm 9/16 in (14.0mm)
Band Style Lined Band
Band Material 301 Stainless Steel
Housing Material 301 Stainless Steel
Bolt/Screw Type Hex Nut
Bolt/Screw Material 410 Stainless Steel
Bolt/Screw Size 5/16" Hex Head
Spring Material 301 Stainless Steel
Colour Silver
Tightening Torque 50 lbf-in (5.6 Nm) for most applications
Specification 1 SAE J1508
Country of Manufacture USA
Tariff Code 7326 90 92
RoHS Compliant Yes

Consistent Sealing Power: Ideal Tridon Constant Tension Worm Gear Hose Clamp with Liner - 301 Stainless Steel, 9/16 Inch Wide (14.0-89.0mm)

Ensure a consistently tight and leak-free seal that adapts to temperature fluctuations with the Ideal Tridon Constant Tension Worm Gear Hose Clamp featuring an Inner Liner. Constructed from durable 301
stainless steel, this clamp offers good corrosion resistance and incorporates a spring mechanism to automatically adjust clamping force. The inner liner
protects the hose surface, while the 9/16-Inch-wide band provides a secure grip across a size range of 14.0mm to 89.0mm (0.55-3.50in).

Why Choose the Ideal Tridon Constant Tension Worm Gear Hose Clamp with Liner?

  • Automatic Constant Tension: The integrated spring mechanism compensates for hose expansion and contraction due to temperature changes, maintaining optimal clamping force.
  • Protective Inner Liner: Prevents hose extrusion and damage at the band slots, ensuring a longer hose life and a better seal.
  • Durable 301 Stainless Steel: Offers good corrosion resistance for a variety of automotive, industrial, and marine applications.
  • Wide 9/16 Inch Band: Provides increased clamping force and a larger contact area for a secure and reliable seal.
  • Versatile Size Range: Covers diameters from 14.0mm to 89.0mm (0.55-3.50in), suitable for various hose applications.
  • Reliable Worm Gear Mechanism: Allows for initial precise adjustment and secure tightening.
  • Ideal for Fluctuating Temperatures: The constant tension design is particularly effective in systems with significant temperature variations.

  • Trusted Ideal Tridon Quality: A reputable manufacturer known for producing high-performance clamping solutions.

Perfect For:

  • Automotive Cooling Systems (Radiator and Heater Hoses)
  • Marine Engine Cooling Systems
  • Industrial Fluid and Air Transfer Systems with Temperature Swings
  • Applications where maintaining a consistent seal is critical

Experience Reliable Sealing that Adapts:

The Ideal Tridon Constant Tension Worm Gear Hose Clamp with Liner is engineered to provide a superior and long-lasting seal. The constant tension spring automatically adjusts to changes in hose diameter caused by temperature variations, preventing leaks that can occur with standard clamps. The added inner liner protects the hose from damage, ensuring a secure and reliable connection. The 301 stainless steel construction offers good corrosion resistance for a wide range of applications.

Key Features:

  • Material: 301 Stainless Steel Band with Stainless Steel Spring and Carbon Steel Screw
  • Liner: Included to Protect Hose Surface
  • Bandwidth: 9/16 Inch
  • Size Range: 14.0mm-89.0mm (0.55-3.50in)
  • Type: Worm Gear Hose Clamp with Constant Tension Spring and Liner
  • Automatic Adjustment for Consistent Sealing
  • Protects Hose from Damage

For a consistently tight, leak-free seal that adapts to
temperature changes and protects your hoses, choose the Ideal Tridon Constant Tension Worm Gear Hose Clamp with Liner. Invest in reliability and order yours
today!
