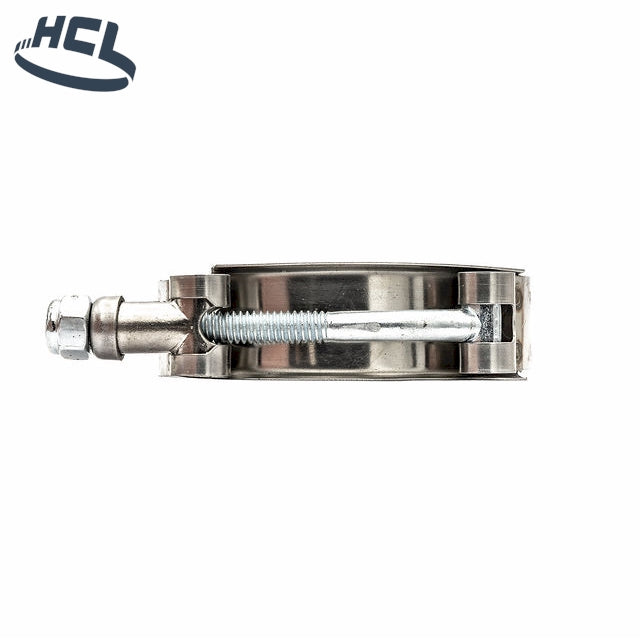

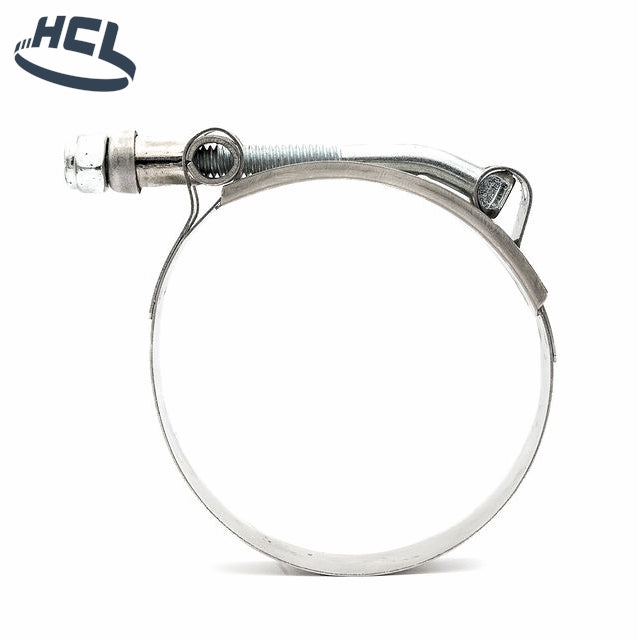

3/4” Vibration Resistant Channel Bridge T-Bolt Hose Clamp - 301 Stainless Steel Band, Galvanised Screw CLEARANCE

3/4” Vibration Resistant Channel Bridge T-Bolt Hose Clamp - 301 Stainless Steel Band, Galvanised Screw CLEARANCE

TB-89-W2

$0.80
$1.75 $0.80
Sale Sold out
Shipping calculated at checkout.

148 in stock
  • Free standard shipping. Next day delivery available. Find out more
View full details

Need advice? Talk to our expert customer support team

Call

281 7171145
Monday-Friday 8am to 4pm

Email

sales@hcl-clamping.com
Scroll
Clamp Dia In (fr) ?

Clamp Dia In (fr): The clamp's internal diameter listed as a fractional measurement in inches (e.g., 1, 1/2 in.).
Clamp Dia In ?

Clamp Dia In: The minimum to maximum inner diameter (in.) the clamp can securely cover, defining its usable size range.
Clamp Dia mm ?

Clamp Dia mm: The required metric size for a secure fit, indicating the outer diameter (in mm) of the component the clamp is meant to hold.
Band Width ?

Band Width: The measurement of the clamp's band or strap, indicating its width (often in mm or inches) and how much surface area it covers.
HCL P/N ?

HCL/ PN: The unique identifying number assigned to a part by HCL
Corrosion Res ?

Corrosion Resistance: Refers to a material's ability to resist deterioration or damage caused by chemical reactions with its environment, such as rusting.
Price ?

Price: The cost per unit

Stock ?

Stock: available products that can be purchased

Order Qty ?

Order Quantity: The total amount of units you wish to order

3,1/2 in - 3,13/16 in - 3.50in - 3.82in - 89.0mm - 97.0mm - 3/4 in (19.0mm) - TB-89-W2 - Fair - $0.80 148
3,3/4 in - 4,1/16 in - 3.74in - 4.06in - 95.0mm - 103.0mm - 3/4 in (19.0mm) - TB-95-W2 - Fair - $0.81 82
4,1/2 in - 4,13/16 in - 4.49in - 4.80in - 114.0mm - 122.0mm - 3/4 in (19.0mm) - TB-114-W2 - Fair - $0.94 53
5 in - 5,5/16 in - 5.00in - 5.31in - 127.0mm - 135.0mm - 3/4 in (19.0mm) - TB-127-W2 - Fair - $0.95 99
5,1/4 in - 5,9/16 in - 5.24in - 5.55in - 133.0mm - 141.0mm - 3/4 in (19.0mm) - TB-133-W2 - Fair - $0.97 90
5,1/2 in - 5,13/16 in - 5.51in - 5.83in - 140.0mm - 148.0mm - 3/4 in (19.0mm) - TB-140-W2 - Fair - $0.98 94
6 in - 6,5/16 in - 5.98in - 6.30in - 152.0mm - 160.0mm - 3/4 in (19.0mm) - TB-152-W2 - Fair - $1.01 16
6,1/4 in - 6,9/16 in - 6.26in - 6.57in - 159.0mm - 167.0mm - 3/4 in (19.0mm) - TB-159-W2 - Fair - $1.02 55
6,1/2 in - 6,13/16 in - 6.50in - 6.81in - 165.0mm - 173.0mm - 3/4 in (19.0mm) - TB-165-W2 - Fair - $1.03 157
6,3/4 in - 7,1/16 in - 6.73in - 7.05in - 171.0mm - 179.0mm - 3/4 in (19.0mm) - TB-171-W2 - Fair - $1.04 100
7,1/4 in - 7,9/16 in - 7.24in - 7.56in - 184.0mm - 192.0mm - 3/4 in (19.0mm) - TB-184-W2 - Fair - $1.08 164
7,1/2 in - 7,13/16 in - 7.52in - 7.83in - 191.0mm - 199.0mm - 3/4 in (19.0mm) - TB-191-W2 - Fair - $1.09 183
7,3/4 in - 8,1/16 in - 7.76in - 8.07in - 197.0mm - 205.0mm - 3/4 in (19.0mm) - TB-197-W2 - Fair - $1.10 159
8 in - 8,5/16 in - 7.99in - 8.31in - 203.0mm - 211.0mm - 3/4 in (19.0mm) - TB-203-W2 - Fair - $1.11 61

Description

HCL’s T-Bolt clamps provide a leak proof, high strength, durable and corrosion resistant clamping solution. Commonly found in the US market, they are regarded as the ideal choice for medium and heavy duty applications.

Specification

Manufactured By Ideal Tridon
HCL P/N TB-X-W2
Series CLEARANCE
Corrosion Resistance Fair
Hose Clamp Width in/mm 3/4 in (19.0mm)
Band Style Lined Band
Band Material 301 Stainless Steel
Bolt/Screw Material Zinc Plated Steel
Band/Bridge/Turnion Material 301 Stainless Steel
Chemical Resistance Fair
Colour Silver
Country of Manufacture China
Tariff Code 7326 90 92
RoHS Compliant Yes
