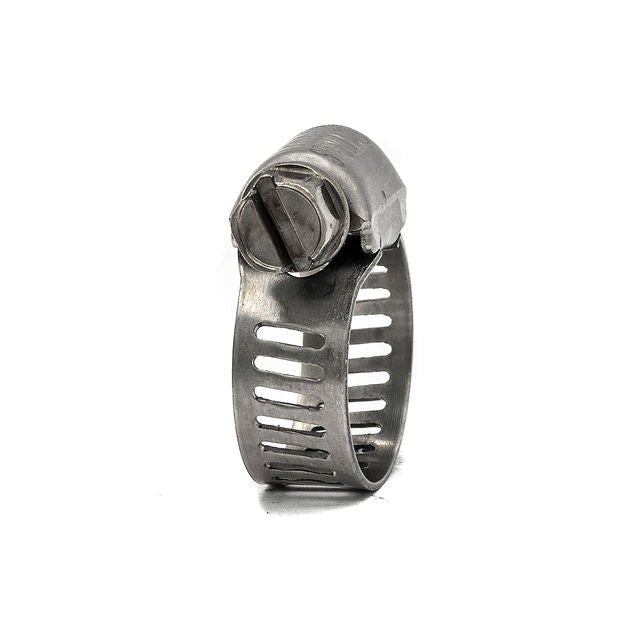

  • Micro-Gear 5/16" Worm Gear Hose Clip 300SS 9/16"-1,1/4" - HCL Clamping USA- TRI-62M-MG-12

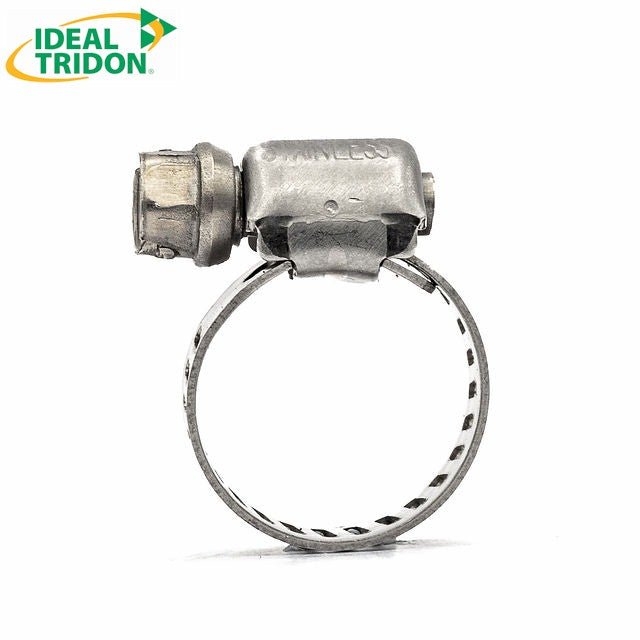

  • Micro-Gear 5/16" Worm Gear Hose Clip 300SS 2,1/4"-3,1/4" - HCL Clamping USA- TRI-62M-MG-44

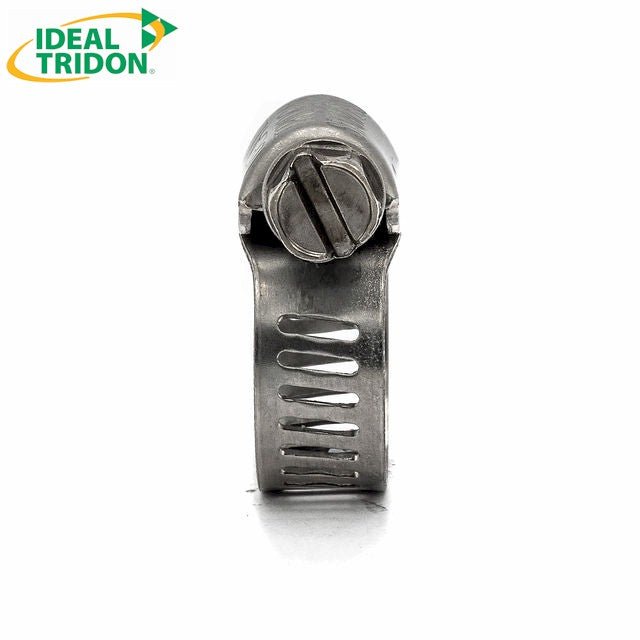

  • Micro-Gear 5/16" Worm Gear Hose Clip 300SS 5/16"-7/8" - HCL Clamping USA- TRI-62M-MG-6

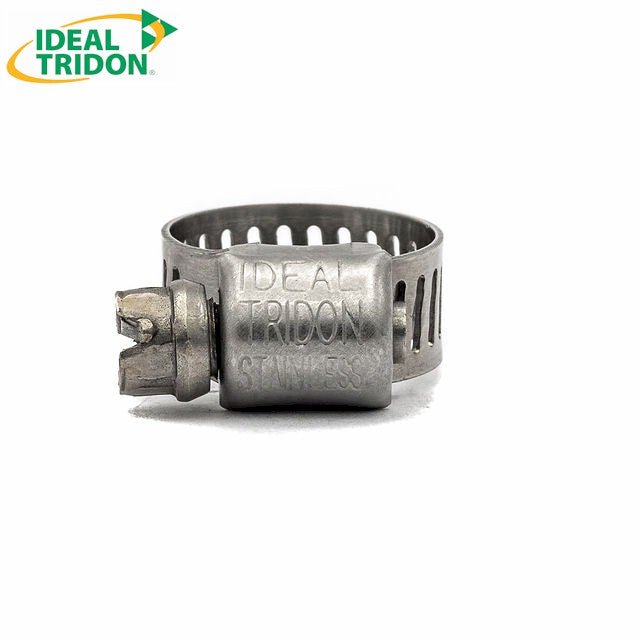

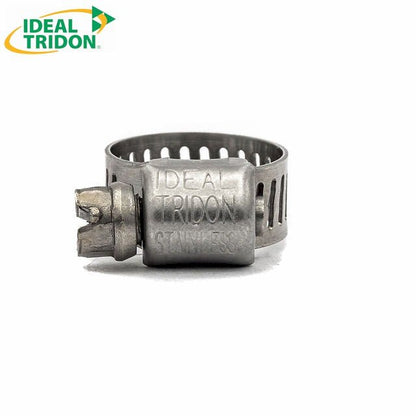

  • Micro-Gear 5/16" Worm Gear Hose Clip 300SS 5/16"-7/8" - HCL Clamping USA- TRI-62M-MG-6
1 4

5/16" Micro Gear Worm Gear Hose Clamp from Ideal Tridon - 301SS Band, 302SS Screw

5/16" Micro Gear Worm Gear Hose Clamp from Ideal Tridon - 301SS Band, 302SS Screw

TRI-62M-MG-4

$0.72
$0.72
Sale Sold out
Shipping calculated at checkout.

1255 in stock
  • Free standard shipping. Next day delivery available. Find out more
View full details

Need advice? Talk to our expert customer support team

Call

281 7171145
Monday-Friday 8am to 4pm

Email

sales@hcl-clamping.com
Scroll
Clamp Dia In (fr) ?

Clamp Dia In (fr): The clamp's internal diameter listed as a fractional measurement in inches (e.g., 1, 1/2 in.).
Clamp Dia In ?

Clamp Dia In: The minimum to maximum inner diameter (in.) the clamp can securely cover, defining its usable size range.
Clamp Dia mm ?

Clamp Dia mm: The required metric size for a secure fit, indicating the outer diameter (in mm) of the component the clamp is meant to hold.
Band Width ?

Band Width: The measurement of the clamp's band or strap, indicating its width (often in mm or inches) and how much surface area it covers.
Corrosion Res ?

Corrosion Resistance: Refers to a material's ability to resist deterioration or damage caused by chemical reactions with its environment, such as rusting.
SAE No. ?

SAE No.: A number within a classification system established by SAE International
HCL P/N ?

HCL/ PN: The unique identifying number assigned to a part by HCL
MFG P/N ?

MFG P/N: The unique identifying number assigned to a part by its manufacturer.
2D PDF ?

2D PDF: A standard document format containing two-dimensional drawings.
2D DXF ?

2D DXF: A standard file format for exchanging two-dimensional Computer-Aided Design (CAD) drawings between different software programs.
3D STP ?

3D STEP: A standard file format used to exchange three-dimensional product model data between different CAD software programs.
Price ?

Price: The cost per unit

Stock ?

Stock: available products that can be purchased

Order Qty ?

Order Quantity: The total amount of units you wish to order

5/16 in − 5/8 in - 0.31in - 0.63in - 8.0mm - 16.0mm - 5/16 in (8.0mm) - Very Good - 4 - TRI-62M-MG-4 - 62604 - 2D PDF - 2D DXF - 3D STP - $0.72 1255
5/16 in − 3/4 in - 0.31in - 0.75in - 8.0mm- 19.0mm - 5/16 in (8.0mm) - Very Good - 5 - TRI-62M-MG-5 - 62M05 - 2D PDF - 2D DXF - 3D STP - $0.75 2869
5/16 in − 7/8 in - 0.31in - 0.87in - 8.0mm - 22.0mm - 5/16 in (8.0mm) - Very Good - 6 - TRI-62M-MG-6 - 62606 - 2D PDF - 2D DXF - 3D STP - $0.75 22384
7/16 in − 1 in - 0.43in - 0.98in - 11.0mm - 25.0mm - 5/16 in (8.0mm) - Very Good - 8 - TRI-62M-MG-8 - 62M08 - 2D PDF - 2D DXF - 3D STP - $0.77 503
1/2 in − 1,1/16 in - 0.51in - 1.06in - 13.0mm - 27.0mm - 5/16 in (8.0mm) - Very Good - 10 - TRI-62M-MG-10 - 62M10 - 2D PDF - 2D DXF - 3D STP - $0.96 855
9/16 in − 1,1/4 in - 0.51in - 1.06in - 14.0mm - 32.0mm - 5/16 in (8.0mm) - Very Good - 12 - TRI-62M-MG-12 - 62M12 - 2D PDF - 2D DXF - 3D STP - $1.03 446
11/16 in − 1,1/ 2in - 0.71in - 1.50in - 18.0mm - 38.0mm - 5/16 in (8.0mm) - Very Good - 16 - TRI-62M-MG-16 - 62M16 - 2D PDF - 2D DXF - 3D STP - $1.05 472
3/4 in − 1,3/4 in - 0.75in - 1.73in - 19.0mm - 44.0mm - 5/16 in (8.0mm) - Very Good - 20 - TRI-62M-MG-20 - 62M20 - 2D PDF - 2D DXF - 3D STP - $1.03 277
1 in − 2 in - 1.02in - 2.01in - 26.0mm - 51.0mm - 5/16 in (8.0mm) - Very Good - 24 - TRI-62M-MG-24 - 62M24 - 2D PDF - 2D DXF - 3D STP - $1.08 507
1,1/4 in − 2,1/ 4in - 1.26in - 2.24in - 32.0mm - 57.0mm - 5/16 in (8.0mm) - Very Good - 28 - TRI-62M-MG-28 - 62M28 - 2D PDF - 2D DXF - 3D STP - $1.13 765
1,3/8 in − 2,3/ 8in - 1.38in - 2.36in - 35.0mm - 60.0mm - 5/16 in (8.0mm) - Very Good - 30 - TRI-62M-MG-30 - 62M30 - 2D PDF - 2D DXF - 3D STP - $1.18 835
1,1/2 in − 2,1/2 in - 1.50in - 2.48in - 38.0mm - 63.0mm - 5/16 in (8.0mm) - Very Good - 32 - TRI-62M-MG-32 - 62M32 - 2D PDF - 2D DXF - 3D STP - $1.20 623
1,3/4 in − 2,3/ 4in - 1.77in - 2.76in - 45.0mm - 70.0mm - 5/16 in (8.0mm) - Very Good - 36 - TRI-62M-MG-36 - 62M36 - 2D PDF - 2D DXF - 3D STP - $1.23 693
2,1/4 in − 3,1/4 in - 2.24in - 3.23in - 57.0mm - 82.0mm - 5/16 in (8.0mm) - Very Good - 44 - TRI-62M-MG-44 - 62M44 - 2D PDF - 2D DXF - 3D STP - $1.31 413
2,1/2 in − 3,1/2 in - 2.52in - 3.50in - 64.0mm - 89.0mm - 5/16 in (8.0mm) - Very Good - 48 - TRI-62M-MG-48 - 62M48 - 2D PDF - 2D DXF - 3D STP - $1.52 798

Description

Micro-Gear worm gear hose clamps are tiny, tough and precision-engineered to use in small hose applications including emission control, fuel lines and vacuum hoses. Slim, perforated 5/16" (8.0mm) wide bands and low-profile housings allow installation in confined areas. Unmatched Durability and Precision: 5/16" Worm Gear Hose Clamp - 301SS Band, 302SS Screw. For superior clamping performance and long-lasting reliability, choose our 5/16" Worm Gear Hose Clamp. Engineered with a robust 301 stainless steel band and a high-grade 302 stainless steel screw, this clamp delivers exceptional corrosion resistance and a secure, leak-proof seal across a broad range of applications.

Product Specification Sheet

Download

Specification

Manufactured By Ideal Tridon
HCL P/N TRI-62M-MG-X
MFG Part Number 62M4452
Series Ideal Tridon Micro-Gear
Corrosion Resistance Very Good
Hose Clamp Width in/mm 5/16 in (8.0mm)
Band Style Perforated Band
Band Material 301 Stainless Steel
Housing Material 301 Stainless Steel
Bolt/Screw Type Slotted Hex
Bolt/Screw Material 302 Stainless Steel
Bolt/Screw Size 1/4" Hex Head
Colour Silver
Tightening Torque 10 to 15 lbf-in (1.1 to 1.7 Nm) for most applications
Specification 1 SAE J1508
Country of Manufacture USA
Tariff Code 7326 90 92
RoHS Compliant Yes

Why Choose Our 5/16" Worm Gear Hose Clamps?

  • Premium 301 Stainless Steel Band: Provides superior strength and resistance to rust and corrosion, ensuring long-term durability in demanding environments.
  • High-Grade 302 Stainless Steel Screw: Offers enhanced corrosion resistance and a precise, reliable tightening mechanism.
  • Wide Size Versatility: Accommodates a vast range of hose diameters, from 8mm to 89mm (0.31 to 3.50 inches), making it ideal for diverse projects.
  • 5/16" Worm Gear Design: Delivers a powerful clamping force, ensuring a tight and secure connection.
  • Exceptional Corrosion Resistance: Both the band and screw are designed to withstand harsh environments, extending the clamp's lifespan.
  • Versatile Applications: Perfect for automotive, marine, industrial, plumbing, and DIY projects.

Perfect For:

  • Automotive hose repairs and maintenance
  • Marine and boating applications
  • Industrial fluid and air systems
  • Plumbing and irrigation systems
  • General household and DIY projects

Key Features:

  • Size: 5/16" Worm Gear Hose Clamp
  • Band Material: 301 Stainless Steel
  • Screw Material: 302 Stainless Steel
  • Size Range: 8mm - 89mm (0.31in - 3.50in)
  • High Clamping Force
  • Superior Corrosion Resistance
  • Durable and Reliable

Experience the difference of a premium-grade hose clamp. Order your 5/16" Worm Gear Hose Clamp with 301SS band and 302SS screw today and enjoy a secure, long-lasting connection!
