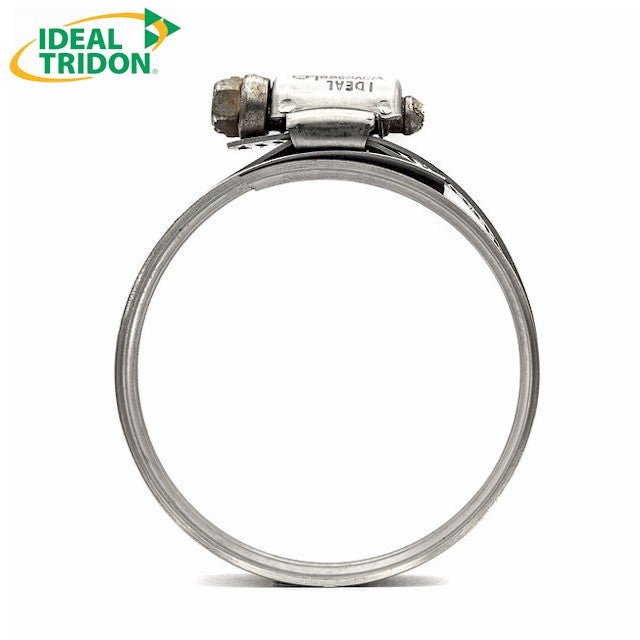

9/16" Ideal Tridon WaveSeal Bead Lined 360° Constant Tension Worm Gear Hose Clamp – 300SS Parts

9/16" Ideal Tridon WaveSeal Bead Lined 360° Constant Tension Worm Gear Hose Clamp – 300SS Parts

TRI-36003-WV-16

$1.91
$1.91
Sale Sold out
Shipping calculated at checkout.

196 in stock
  • Free standard shipping. Next day delivery available. Find out more
View full details

Need advice? Talk to our expert customer support team

Call

281 7171145
Monday-Friday 8am to 4pm

Email

sales@hcl-clamping.com
Scroll
Clamp Dia In (fr) ?

Clamp Dia In (fr): The clamp's internal diameter listed as a fractional measurement in inches (e.g., 1, 1/2 in.).
Clamp Dia In ?

Clamp Dia In: The minimum to maximum inner diameter (in.) the clamp can securely cover, defining its usable size range.
Clamp Dia mm ?

Clamp Dia mm: The required metric size for a secure fit, indicating the outer diameter (in mm) of the component the clamp is meant to hold.
Band Width ?

Band Width: The measurement of the clamp's band or strap, indicating its width (often in mm or inches) and how much surface area it covers.
SAE No. ?

SAE No.: A number within a classification system established by SAE International
HCL P/N ?

HCL/ PN: The unique identifying number assigned to a part by HCL
MFG P/N ?

MFG P/N: The unique identifying number assigned to a part by its manufacturer.
Corrosion Res ?

Corrosion Resistance: Refers to a material's ability to resist deterioration or damage caused by chemical reactions with its environment, such as rusting.
2D PDF ?

2D PDF: A standard document format containing two-dimensional drawings.
2D DXF ?

2D DXF: A standard file format for exchanging two-dimensional Computer-Aided Design (CAD) drawings between different software programs.
3D STP ?

3D STEP: A standard file format used to exchange three-dimensional product model data between different CAD software programs.
Price ?

Price: The cost per unit

Stock ?

Stock: available products that can be purchased

Order Qty ?

Order Quantity: The total amount of units you wish to order

1,3/32 in − 1,9/32 in - 1.10in - 1.30in - 28.0mm - 33.0mm - 9/16 inch (14.0mm) - 16 - TRI-36003-WV-16 - 36003-0016 - Good - 2D PDF - 2D DXF - 3D STP - $1.91 196
1,1/8 in - 1,9/16 in - 1.14in - 1.57in - 29.0mm - 40.0mm - 9/16 inch (14.0mm) - 20 - TRI-36003-WV-20 - 36003-0020 - Good - 2D PDF - 2D DXF - 3D STP - $2.00 178
1,7/16 in - 1,11/16 in - 1.42in - 1.69in - 36.0mm - 43.0mm - 9/16 inch (14.0mm) - 22 - TRI-36003-WV-22 - 36003-0022 - Good - 2D PDF - 2D DXF - 3D STP - $2.07 275
1,1/2 in - 1,13/16 in - 1.50in - 1.81in - 38.0mm - 46.0mm - 9/16 inch (14.0mm) - 24 - TRI-36003-WV-24 - 36003-0024 - Good - 2D PDF - 2D DXF - 3D STP - $2.10 249
1,3/4 in - 2,1/16 in - 1.69in - 2.05in - 43.0mm - 52.0mm - 9/16 inch (14.0mm) - 28 - TRI-36003-WV-28 - 36003-0028 - Good - 2D PDF - 2D DXF - 3D STP - $2.21 93
1,15/16 in - 2,15/16 in - 1.89in - 2.32in - 48.0mm - 59.0mm - 9/16 inch (14.0mm) - 32 - TRI-36003-WV-32 - 36003-0032 - Good - 2D PDF - 2D DXF - 3D STP - $2.31 106
2 in - 2,7/16 in - 1.97in - 2.44in - 50.0mm - 62.0mm - 9/16 inch (14.0mm) - 34 - TRI-36003-WV-34 - 36003-0034 - Good - 2D PDF - 2D DXF - 3D STP - $2.34 205
2,1/8 in - 2,9/16 in - 2.09in - 2.56in - 53.0mm - 65.0mm - 9/16 inch (14.0mm) - 36 - TRI-36003-WV-36 - 36003-0036 - Good - 2D PDF - 2D DXF - 3D STP - $2.45 183
2,5/16 in - 2,13/16 in - 2.28in - 2.80in - 58.0mm - 71.0mm - 9/16 inch (14.0mm) - 40 - TRI-36003-WV-40 - 36003-0040 - Good - 2D PDF - 2D DXF - 3D STP - $2.66 190
2,1/2 in - 3,1/16 in - 2.48in - 3.07in - 63.0mm - 78.0mm - 9/16 inch (14.0mm) - 44 - TRI-36003-WV-44 - 36003-0044 - Good - 2D PDF - 2D DXF - 3D STP - $2.95 184
2,11/16 in - 3,5/16 in - 2.64in - 3.31in - 67.0mm - 84.0mm - 9/16 inch (14.0mm) - 48 - TRI-36003-WV-48 - 36003-0048 - Good - 2D PDF - 2D DXF - 3D STP - $3.04 172
2,7/8 in - 3,9/16 in - 2.87in - 3.58in - 73.0mm - 91.0mm - 9/16 inch (14.0mm) - 52 - TRI-36003-WV-52 - 36003-0052 - Good - 2D PDF - 2D DXF - 3D STP - $3.13 135
3,1/16 in - 3,13/16 in - 3.03in - 3.82in - 77.0mm - 97.0mm - 9/16 inch (14.0mm) - 56 - TRI-36003-WV-56 - 36003-0056 - Good - 2D PDF - 2D DXF - 3D STP - $3.23 175
3,1/4 in - 4,1/16 in - 3.23in - 4.06in - 82.0mm - 103.0mm - 9/16 inch (14.0mm) - 60 - TRI-36003-WV-60 - 36003-0060 - Good - 2D PDF - 2D DXF - 3D STP - $3.32 150
3,7/16 in - 4,5/16 in - 3.43in - 4.33in - 87.0mm - 110.0mm - 9/16 inch (14.0mm) - 64 - TRI-36003-WV-64 - 36003-0064 - Good - 2D PDF - 2D DXF - 3D STP - $3.47 150
3,3/4 in - 4,13/16 in - 3.78in - 4.80in - 96.0mm - 122.0mm - 9/16 inch (14.0mm) - 72 - TRI-36003-WV-72 - 36003-0072 - Good - 2D PDF - 2D DXF - 3D STP - $3.66 125
4,3/16 in - 5,5/16 in - 4.13in - 5.31in - 105.0mm - 135.0mm - 9/16 inch (14.0mm) - 80 - TRI-36003-WV-80 - 36003-0080 - Good - 2D PDF - 2D DXF - 3D STP - $3.96 95
4,1/2 in - 5,13/16 in - 4.53in - 5.83in - 115.0mm - 148.0mm - 9/16 inch (14.0mm) - 88 - TRI-36003-WV-88 - 36003-0088 - Good - 2D PDF - 2D DXF - 3D STP - $4.06 100

Description

9/16 inch wide WaveSeal 360 hybrid smart clamps secure hose connections and prevent unwanted flow of fluid and air. Through patented hybrid technology, these next generation clamps seal in a steady 360 degree pattern in response to pressure and temperature changes. With their compact design and lower profile, you get an optimal heavy-duty constant tension clamp without all the bulk.

Product Specification Sheet

Download

Specification

Manufactured By Ideal Tridon
HCL P/N TRI-36003-WV-X
Series Ideal Tridon WaveSeal 360°
Corrosion Resistance Good
Hose Clamp Width in/mm 9/16 in (14.0mm)
Band Style Bead Lined Band
Band Material 300 Stainless Steel
Bolt/Screw Type Slotted Hex
Bolt/Screw Material 410 Stainless Steel
Spring Material 300 Stainless Steel
Finish Stainless Steel
Colour Silver
Tightening Torque Up to 70 lbf-in (7.9 Nm) for most applications
Specification 1 SAE J1508
Country of Manufacture USA
Tariff Code 7326 90 92
Hazardous Goods No
RoHS Compliant Yes

Gentle Yet Secure: Ideal Tridon 9/16 Inch Bead Lined Worm Gear Hose Clamp – 300SS Stainless Steel (28.0-65.0mm)

Ensure a secure and gentle grip on your hoses with the Ideal Tridon 9/16 Inch Bead Lined Worm Gear Hose Clamp. Constructed from durable 300 series stainless steel for good corrosion resistance, this clamp features a unique beaded liner on the inside of the wider 9/16-inch band. This innovative design provides enhanced sealing capabilities and helps protect
softer hose materials from damage, all while offering a reliable clamping force across a size range of 28.0mm to 65.0mm (1.09-2.55in).

Why Choose the Ideal Tridon 9/16 Inch Bead Lined Worm Gear Hose Clamp?

  • Enhanced Sealing with Bead Liner: The internal beaded liner creates an improved seal and helps prevent hose extrusion and damage, particularly on softer or more pliable hose materials.
  • Durable 300 Series Stainless Steel: Offers good corrosion resistance for a variety of general-purpose applications.
  • Wider 9/16 Inch Bandwidth: Provides increased clamping force and a larger contact area for a more secure and reliable seal compared to narrower bands.
  • Versatile Size Range: Covers diameters from 28.0mm to 65.0mm (1.09-2.55in), suitable for a wide range of hose applications.
  • Reliable Worm Gear Mechanism: Ensures easy adjustment and secure tightening for a dependable seal.
  • Ideal for Protecting Softer Hoses: The bead liner is particularly beneficial for preventing damage to silicone, rubber, and other delicate hose materials.
  • Trusted Ideal Tridon Quality: A reputable manufacturer known for producing dependable clamping solutions.

Perfect For:

  • Silicone Hoses
  • Rubber Hoses
  • Automotive Coolant and Vacuum Lines
  • Marine Wet Exhaust Systems
  • Applications where a wider band and hose protection are a priority

Experience Superior Sealing and Gentle Hose Care:

The Ideal Tridon 9/16 Inch Bead Lined Worm Gear Hose Clamp is specifically designed to provide a more robust and gentle seal compared to standard clamps. The wider band offers increased clamping power, while the unique beaded liner enhances the sealing capability and protects the hose surface from damage. This combination makes it an excellent choice for
applications involving softer or more critical hose materials where a reliable, leak-free connection is essential without compromising hose integrity. The 300 series stainless steel provides dependable corrosion resistance for various operating environments.

Key Features:

  • Material: 300 Series Stainless Steel (Band & Screw)
  • Liner: Internal Beaded Liner for Enhanced Sealing and Hose Protection
  • Bandwidth: 9/16 Inch
  • Size Range: 28.0mm-65.0mm (1.09-2.55in)
  • Type: Worm Gear Hose Clamp
  • Enhanced Sealing Performance with Bead Liner
  • Wider Band for Increased Clamping Force
  • Gentle on Soft Hose Materials

For a secure, leak-free seal with enhanced clamping power and superior protection for your delicate hoses, choose the Ideal Tridon 9/16 Inch Bead Lined Worm Gear Hose Clamp. Browse our selection and ensure the longevity and reliability of your hose connections today!
