Sale

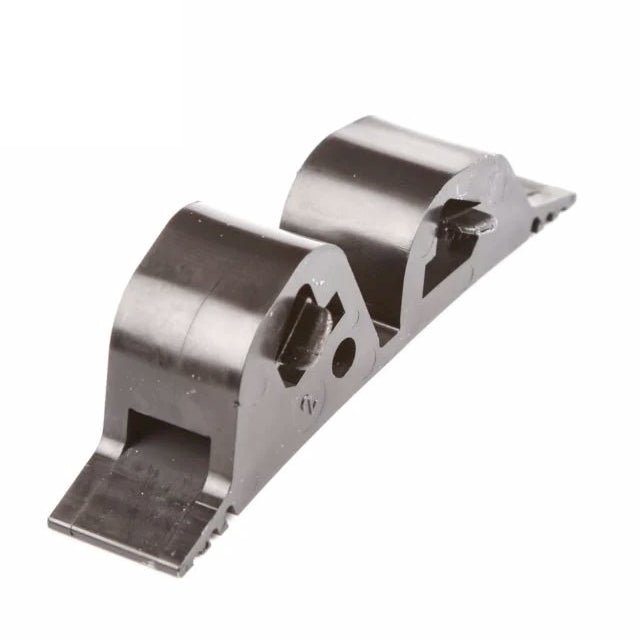

  • Plastic Banding - Smart Band 10mm (3/8inch) Standard Buckle - PA12 - HCL Clamping USA- SB-BU-3/8-ST-PA12
1 1

Smart Band PA66 Standard Buckle - 3/8" & 3/4" Nylon 6.6 Head

Smart Band PA66 Standard Buckle - 3/8" & 3/4" Nylon 6.6 Head

SB-BU-3/8-ST-PA66

$0.72
$0.72
Sale Sold out
Shipping calculated at checkout.

1840 in stock
  • Free standard shipping. Next day delivery available. Find out more
View full details

Need advice? Talk to our expert customer support team

Call

281 7171145
Monday-Friday 8am to 4pm

Email

sales@hcl-clamping.com
Scroll
For Band Width ?

Band Width in/mm: Specifies the measurement across the width of the band, provided in both inches & Millimetres.

Clamp Dia In (fr) ?

Clamp Dia In (fr): The clamp's internal diameter listed as a fractional measurement in inches (e.g., 1, 1/2 in.).
Clamp Dia mm ?

Clamp Dia mm: The required metric size for a secure fit, indicating the outer diameter (in mm) of the component the clamp is meant to hold.
Max System Str ?

Max System Str: The overall maximum strength or working pressure limit of the assembled system.

HCL P/N ?

HCL/ PN: The unique identifying number assigned to a part by HCL
2D PDF ?

2D PDF: A standard document format containing two-dimensional drawings.
2D DXF ?

2D DXF: A standard file format for exchanging two-dimensional Computer-Aided Design (CAD) drawings between different software programs.
3D STP ?

3D STEP: A standard file format used to exchange three-dimensional product model data between different CAD software programs.
Price ?

Price: The cost per unit

Stock ?

Stock: available products that can be purchased

Order Qty ?

Order Quantity: The total amount of units you wish to order

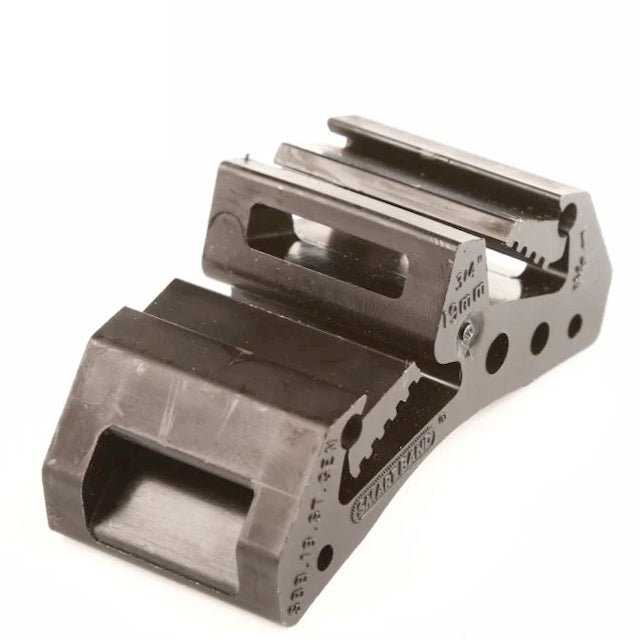

Smart Band PA66 Standard Buckle - 3/8" & 3/4" Nylon 6.6 Head
Smart Band PA66 Standard Buckle - 3/8" & 3/4" Nylon 6.6 Head
- 		3/8 in (9.0mm) - 3 in - 24 in - 76.0mm - 600.0mm - 264kgf - 581lbf - SB-BA-3/8-ST-PA66 - - - - $0.72 1840
Smart Band PA66 Standard Buckle - 3/8" & 3/4" Nylon 6.6 Head
Smart Band PA66 Standard Buckle - 3/8" & 3/4" Nylon 6.6 Head
- 		3/4 in (19.0mm) - 3 in - 24 in - 76.0mm - 600.0mm - 440kgf - 969lbf - SB-BU-ST-3/4-PA66 - - - - $2.59 2856

Description

Smart® Band is a non-metallic band and buckle system. Highly suited to a variety of Banding applications, Non-Corrosive, Non-Conductive & Non-Magnetic. The Smart Band is available in 4 widths and several reel lengths and is capable of withstanding extreme loads making it the strongest non-metallic clamping system in the world. Strength figures are dependent on Buckle Choice (see brochure for more information) HCL also offers a number of installation tools to provide safe & simple installation.

The Standard buckles are designed to be used with the compatible sized band of the same PA66 material- and is useful for general applications offering enhanced corrosion resistance, good weathering and toughness properties and flexibility

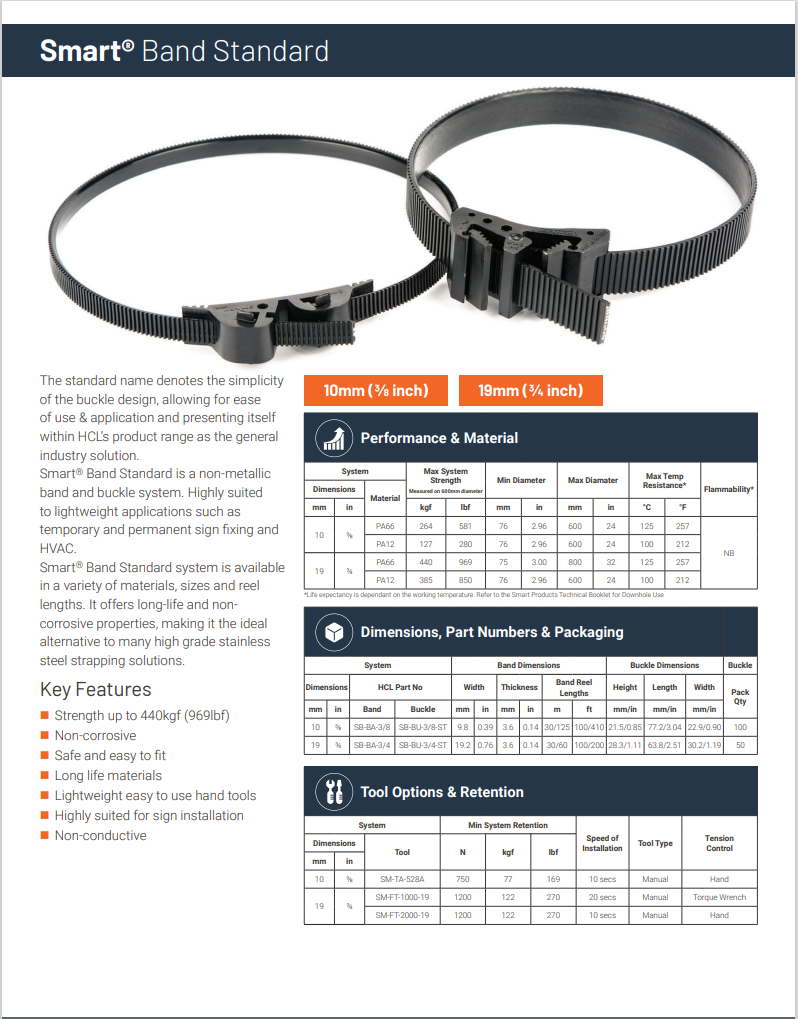

Product Specification Sheet

Download

Specification

Manufactured By HCL
HCL P/N SB-BU-X-ST-PA66
Series HCL Smart Band Standard
Corrosion Resistance Excellent
Band Material Nylon 6.6 (PA66)
Max Strength 969 lbf
Max long Term Operating Temp 257°F (125°C)
Flammability HB UL94 Self Extinguishing
Weathering & UV Good
Chemical Resistance Good
Colour Black
Tool Compatibility SM-FT-2000-19
For use with 3/8" & 3/4" PA66 Reels
Country of Manufacture United Kingdom
Tariff Code 3917 40 00 99
RoHS Compliant Yes

Smart Band PA66 Standard Buckle | Nylon 6.6 Head for 3/8" & 3/4" Banding

The Smart Band PA66 Standard Buckle is a highly durable, dual-width fastening solution for small to medium bundles. Featuring a high-strength Nylon 6.6 Polymer head, this buckle provides superior rigidity and mechanical strength, accommodating both 3/8" and 3/4" bands for maximum inventory efficiency.

Why Choose This PA66 Dual-Width Buckle?

Dual-Width Versatility for Standard Sizes: The key feature is its ability to accept two of the most commonly used band widths: 3/8" and 3/4". This versatility simplifies stocking and provides field technicians with a single, robust solution for various job requirements.Imperial: - 3/8 - 3/4 in.

High Strength and Rigidity (PA66): Utilizing premium Nylon 6.6 Polymer (PA66), this buckle offers superior mechanical strength and rigidity. It is designed for applications where a strong, vibration-resistant, and heavy-duty polymer clamp head is required.

Excellent Industrial Durability: PA66 is highly resistant to common industrial fluids, oils, and greases, ensuring the tie remains reliable and provides a long service life in demanding manufacturing and maintenance settings.

Non-Corrosive & Non-Conductive: The Nylon 6.6 head is completely immune to rust and general corrosion and is non-conductive, making it a safe and ideal choice for securing electrical systems and assets in industrial environments.

Hybrid System Focus: Designed as the high-strength head piece for a hybrid system, it combines the benefits of polymer resistance and non-conductivity with the tensile strength of a compatible metal or composite band.

Perfect For:

  • Bundling small-to-medium cables, hoses, and conduits in general industrial and maintenance settings.
  • Electrical and wiring harness management where non-conductivity and strength are vital.
  • Applications requiring a durable, robust clamp head for common band sizes (3/8" and 3/4").
  • Automotive and manufacturing environments.

Upgrade your standard fastening with high-strength polymer performance. Order the Smart Band PA66 Standard Buckle today!
