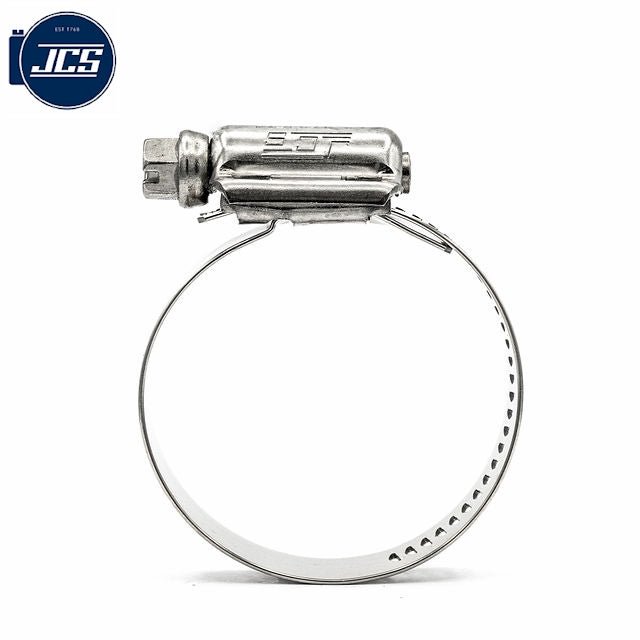

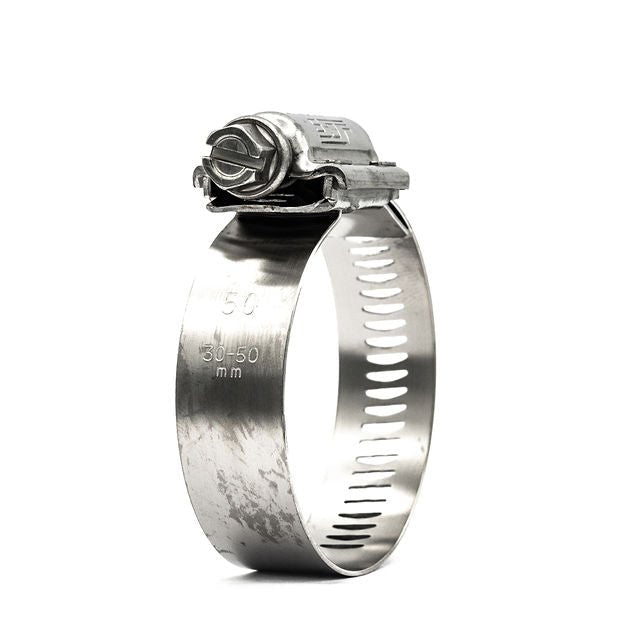

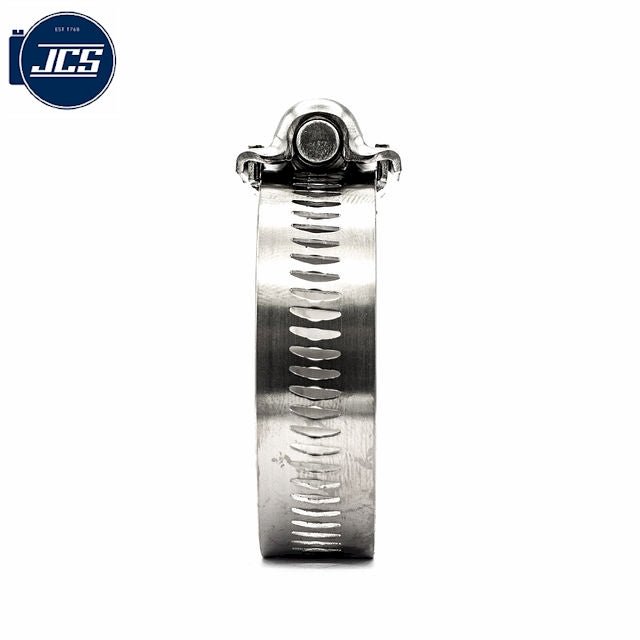

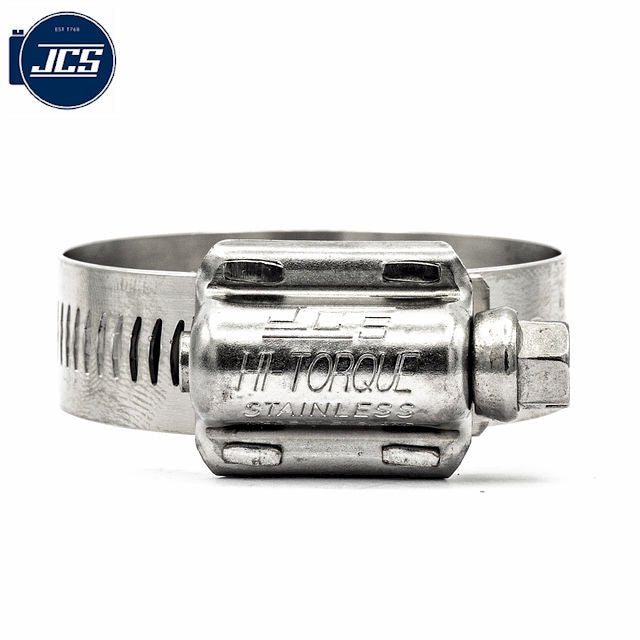

5/8" Perforated JCS Hi-Torque 304 Stainless Steel Worm Gear Hose Clamps

5/8" Perforated JCS Hi-Torque 304 Stainless Steel Worm Gear Hose Clamps

WD-HT-JCS-027-304SS

$5.51
$5.51
Sale Sold out
Shipping calculated at checkout.

Backorder
  • Free standard shipping. Next day delivery available. Find out more
View full details

Need advice? Talk to our expert customer support team

Call

281 7171145
Monday-Friday 8am to 4pm

Email

sales@hcl-clamping.com
Scroll
Clamp Dia In (fr) ?

Clamp Dia In (fr): The clamp's internal diameter listed as a fractional measurement in inches (e.g., 1, 1/2 in.).
Clamp Dia In ?

Clamp Dia In: The minimum to maximum inner diameter (in.) the clamp can securely cover, defining its usable size range.
Clamp Dia mm ?

Clamp Dia mm: The required metric size for a secure fit, indicating the outer diameter (in mm) of the component the clamp is meant to hold.
Band Width ?

Band Width: The measurement of the clamp's band or strap, indicating its width (often in mm or inches) and how much surface area it covers.
Band Thk ?

Band Thickness (in/mm): Indicates the physical thickness (height or depth) of the band, measured in inches or Millimetres.

HCL P/N ?

HCL/ PN: The unique identifying number assigned to a part by HCL
MFG P/N ?

MFG P/N: The unique identifying number assigned to a part by its manufacturer.
2D PDF ?

2D PDF: A standard document format containing two-dimensional drawings.
2D DXF ?

2D DXF: A standard file format for exchanging two-dimensional Computer-Aided Design (CAD) drawings between different software programs.
3D STP ?

3D STEP: A standard file format used to exchange three-dimensional product model data between different CAD software programs.
Price ?

Price: The cost per unit

Stock ?

Stock: available products that can be purchased

Order Qty ?

Order Quantity: The total amount of units you wish to order

13/16 in - 1,1/16 in - 0.79in - 1.06in - 20.0mm - 27.0mm - 5/8 in (16.0mm) - 1/32 in (0.8mm) - WD-HT-JCS-027-304SS - HTM27P - - - - $5.51 0
13/16 in - 1,3/16 in - 0.79in - 1.18in - 20.0mm - 30.0mm - 5/8 in (16.0mm) - 1/32 in (0.8mm) - WD-HT-JCS-030-304SS - HTM30P - - - - $5.53 50
13/16 in - 1,3/8 in - 0.79in - 1.38in - 20.0mm - 35.0mm - 5/8 in (16.0mm) - 1/32 in (0.8mm) - WD-HT-JCS-035-304SS - HTM35P - - - - $5.56 34
1 in - 1,9/16 in - 0.98in - 1.57in - 25.0mm - 40.0mm - 5/8 in (16.0mm) - 1/32 in (0.8mm) - WD-HT-JCS-040-304SS - HTM40P - - - - $5.64 0
1 in - 1,3/4 in - 0.98in - 1.77in - 25.0mm - 45.0mm - 5/8 in (16.0mm) - 1/32 in (0.8mm) - WD-HT-JCS-045-304SS - HTM45P - - - - $5.57 38
1,3/16 in - 1,15/16 in - 1.18in - 1.97in - 30.0mm - 50.0mm - 5/8 in (16.0mm) - 1/32 in (0.8mm) - WD-HT-JCS-050-304SS - HTM50P - - - - $5.72 185
1,9/16 in - 2,3/8 in - 1.57in - 2.36in - 40.0mm - 60.0mm - 5/8 in (16.0mm) - 1/32 in (0.8mm) - WD-HT-JCS-060-304SS - HTM60P - - - - $5.89 73
1,3/4 in - 2,9/16 in - 1.77in - 2.56in - 45.0mm - 65.0mm - 5/8 in (16.0mm) - 1/32 in (0.8mm) - WD-HT-JCS-065-304SS - HTM65P - - - - $5.98 99
1,15/16 in - 2,3/4 in - 1.97in - 2.76in - 50.0mm - 70.0mm - 5/8 in (16.0mm) - 1/32 in (0.8mm) - WD-HT-JCS-070-304SS - HTM70P - - - - $6.06 295
2,3/8 in - 3,1/8 in - 2.36in - 3.15in - 60.0mm - 80.0mm - 5/8 in (16.0mm) - 1/32 in (0.8mm) - WD-HT-JCS-080-304SS - HTM80P - - - - $6.23 194
2,3/4 in - 3,9/16 in - 2.76in - 3.54in - 70.0mm - 90.0mm - 5/8 in (16.0mm) - 1/32 in (0.8mm) - WD-HT-JCS-090-304SS - HTM90P - - - - $6.40 50
2,15/16 in - 3,3/4 in - 2.95in - 3.74in - 75.0mm - 95.0mm - 5/8 in (16.0mm) - 1/32 in (0.8mm) - WD-HT-JCS-095-304SS - HTM95P - - - - $6.48 0
3,1/8 in - 3,15/16 in - 3.15in - 3.94in - 80.0mm - 100.0mm - 5/8 in (16.0mm) - 1/32 in (0.8mm) - WD-HT-JCS-100-304SS - HTM100P - - - - $6.56 34
3,3/8 in - 4,1/2 in - 3.35in - 4.53in - 85.0mm - 115.0mm - 5/8 in (16.0mm) - 1/32 in (0.8mm) - WD-HT-JCS-115-304SS - HTM115P - - - - $6.81 0
3,9/16 in - 4,3/4 in - 3.54in - 4.72in - 90.0mm - 120.0mm - 5/8 in (16.0mm) - 1/32 in (0.8mm) - WD-HT-JCS-120-304SS - HTM120P - - - - $6.90 84
4,5/16 in - 5,1/2 in - 4.33in - 5.51in - 110.0mm - 140.0mm - 5/8 in (16.0mm) - 1/32 in (0.8mm) - WD-HT-JCS-140-304SS - HTM140P - - - - $7.24 40
5,1/8 in - 6,5/16 in - 5.12in - 6.30in - 130.0mm - 160.0mm - 5/8 in (16.0mm) - 1/32 in (0.8mm) - WD-HT-JCS-160-304SS - HTM160P - - - - $7.57 14
5,7/8 in - 7,1/16 in - 5.91in - 7.09in - 150.0mm - 180.0mm - 5/8 in (16.0mm) - 1/32 in (0.8mm) - WD-HT-JCS-180-304SS - HTM180P - - - - $7.90 89
6,11/16 in - 7,7/8 in - 6.69in - 7.87in - 170.0mm - 200.0mm - 5/8 in (16.0mm) - 1/32 in (0.8mm) - WD-HT-JCS-200-304SS - HTM200P - - - - $8.24 4
7,1/2 in - 8,11/16 in - 7.48in - 8.66in - 190.0mm - 220.0mm - 5/8 in (16.0mm) - 1/32 in (0.8mm) - WD-HT-JCS-220-304SS - HTM220P - - - - $8.58 24
8,1/4 in - 9,7/16 in - 8.27in - 9.45in - 210.0mm - 240.0mm - 5/8 in (16.0mm) - 1/32 in (0.8mm) - WD-HT-JCS-240-304SS - HTM240P - - - - $8.91 43
9,1/16 in - 10,1/4 in - 9.06in - 10.24in - 230.0mm - 260.0mm - 5/8 in (16.0mm) - 1/32 in (0.8mm) - WD-HT-JCS-260-304SS - HTM260P - - - - $9.25 43
9,13/16 in - 11,1/32 in - 9.84in - 11.02in - 250.0mm - 280.0mm - 5/8 in (16.0mm) - 1/32 in (0.8mm) - WD-HT-JCS-280-304SS - HTM280P - - - - $9.59 25
10,5/8 in - 11,13/16 in - 10.63in - 11.81in - 270.0mm - 300.0mm - 5/8 in (16.0mm) - 1/32 in (0.8mm) - WD-HT-JCS-300-304SS - HTM300P - - - - $9.92 25
11,7/16 in - 12,5/8 in - 11.42in - 12.60in - 290.0mm - 320.0mm - 5/8 in (16.0mm) - 1/32 in (0.8mm) - WD-HT-JCS-320-304SS - HTM320P - - - - $10.26 48
12,3/16 in - 13,3/8 in - 12.20in - 13.39in - 310.0mm - 340.0mm - 5/8 in (16.0mm) - 1/32 in (0.8mm) - WD-HT-JCS-340-304SS - HTM340P - - - - $10.59 44
13 in - 14,3/16 in - 12.99in - 14.17in - 330.0mm - 360.0mm - 5/8 in (16.0mm) - 1/32 in (0.8mm) - WD-HT-JCS-360-304SS - HTM360P - - - - $10.93 41
13,3/4 in - 14,15/16 in - 13.78in - 14.96in - 350.0mm - 380.0mm - 5/8 in (16.0mm) - 1/32 in (0.8mm) - WD-HT-JCS-380-304SS - HTM380P - - - - $11.26 50
14,9/16 in - 15,3/4 in - 14.57in - 15.75in - 370.0mm - 400.0mm - 5/8 in (16.0mm) - 1/32 in (0.8mm) - WD-HT-JCS-400-304SS - HTM400P - - - - $11.60 41
15,3/8 in - 16,9/16 in - 15.35in - 16.54in - 390.0mm - 420.0mm - 5/8 in (16.0mm) - 1/32 in (0.8mm) - WD-HT-JCS-420-304SS - HTM420P - - - - $11.94 22
16,1/8 in - 17,5/16 in - 16.14in - 17.32in - 410.0mm - 440.0mm - 5/8 in (16.0mm) - 1/32 in (0.8mm) - WD-HT-JCS-440-304SS - HTM440P - - - - $12.27 50
16,15/16 in - 18,1/8 in - 16.93in - 18.11in - 430.0mm - 460.0mm - 5/8 in (16.0mm) - 1/32 in (0.8mm) - WD-HT-JCS-460-304SS - HTM460P - - - - $12.61 44
17,11/16 in - 18,7/8 in - 17.72in - 18.90in - 450.0mm - 480.0mm - 5/8 in (16.0mm) - 1/32 in (0.8mm) - WD-HT-JCS-480-304SS - HTM480P - - - - $12.94 4
18,1/2 in - 19,11/16 in - 18.50in - 19.69in - 470.0mm - 500.0mm - 5/8 in (16.0mm) - 1/32 in (0.8mm) - WD-HT-JCS-500-304SS - HTM500P - - - - $13.27 100

Description

Available in 304 stainless steel, JCS Hi-Torque hose clamps are specifically designed for use with tough wire reinforced hoses that require higher sealing pressures, and for when an extra margin for safety and reliability is required. Hi-Torque clamps hold Lloyd’s Register Type approval for applications in the marine, offshore and industrial markets and are specifically approved by Lloyd’s Register for the critical application of sealing wet diesel exhaust hoses.

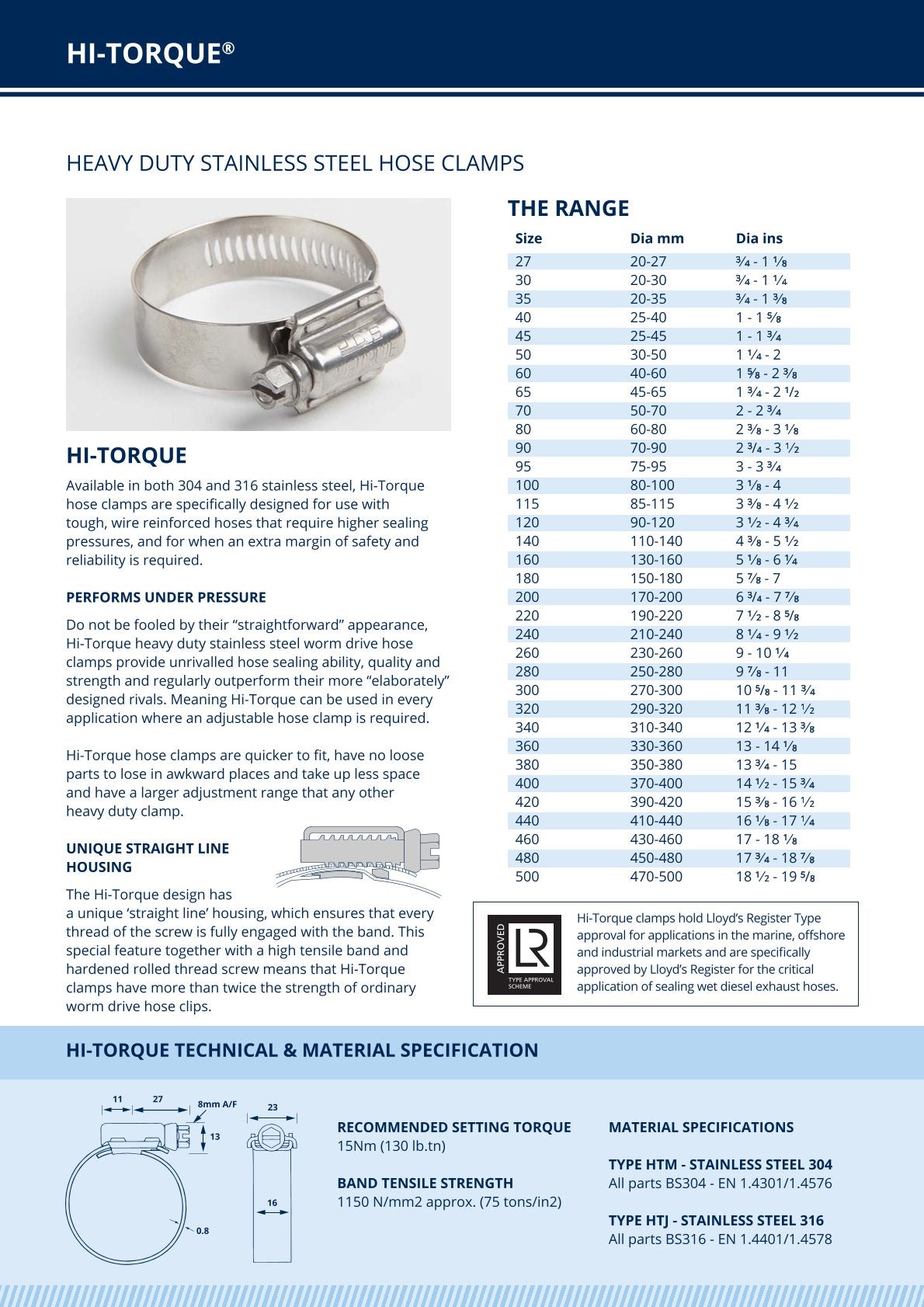

Product Specification Sheet

Download

Specification

Manufactured By JCS
HCL P/N WD-HT-JCS-X-304SS
Series JCS Hi-Torque
Corrosion Resistance Very Good
Hose Clamp Width in/mm 5/8 in (16.0mm)
Band Style Perforated Band
Band Material 304 Stainless Steel
Bolt/Screw Type Slotted Hex
Bolt/Screw Material 304 Stainless Steel
Bolt/Screw Size 8mm A/F
Colour Silver
Recommended Torque Nm 15Nm (130 lb.in)
Specification 1 Lloyds Register Approval (Wet Diesel Exhaust Hoses)
Country of Manufacture United Kingdom
Tariff Code 7326 90 92
Hazardous Goods No
RoHS Compliant Yes

Tired of leaks and failing clamps?

Experience the ultimate in secure fastening with the JCS Hi-Torque 5/8" 304SS Worm Gear Hose Clamp. Engineered for demanding applications, this clamp delivers superior clamping force and exceptional durability, making it the go-to choice for professionals and DIY enthusiasts across the USA.

Why choose JCS Hi-Torque for your critical connections?

  • Unmatched Holding Power: The innovative Hi-Torque design provides significantly higher clamping force compared to traditional worm gear clamps. This means a tighter, more reliable seal, virtually eliminating leaks and ensuring peak performance in high-pressure or vibratory environments.
  • Premium 304 Stainless Steel Construction: Crafted from 100% marine-grade 304 stainless steel, this clamp offers outstanding corrosion resistance against water, chemicals, and harsh outdoor elements. Perfect for automotive, marine, industrial, plumbing, and agricultural applications where longevity is paramount.
  • Precision Engineered Worm Gear: The robust worm gear mechanism allows for smooth, precise tightening with minimal effort. Achieve the perfect torque every time, ensuring optimal compression without over-tightening or damaging your hoses.
  • Versatile 5/8" Size: This common 5/8" size (often interchangeable with 16mm) provides a perfect fit for a wide range of hoses and tubing, making it an incredibly versatile addition to your toolkit or inventory.
  • Built to Last, Made for Performance: JCS Hi-Torque clamps are renowned for their rugged construction and extended service life, minimizing downtime and replacement costs. Invest in quality that performs, project after project.

Ideal for a wide array of applications including:

  • Automotive cooling systems and fuel lines
  • Marine exhaust and plumbing
  • Industrial fluid transfer and pneumatic systems
  • Agricultural irrigation and spraying equipment
  • Home plumbing and DIY projects requiring secure hose connections

Don't compromise on connection integrity. Upgrade to the JCS Hi-Torque 5/8" 304SS Worm Gear Hose Clamp today and secure your peace of mind!
