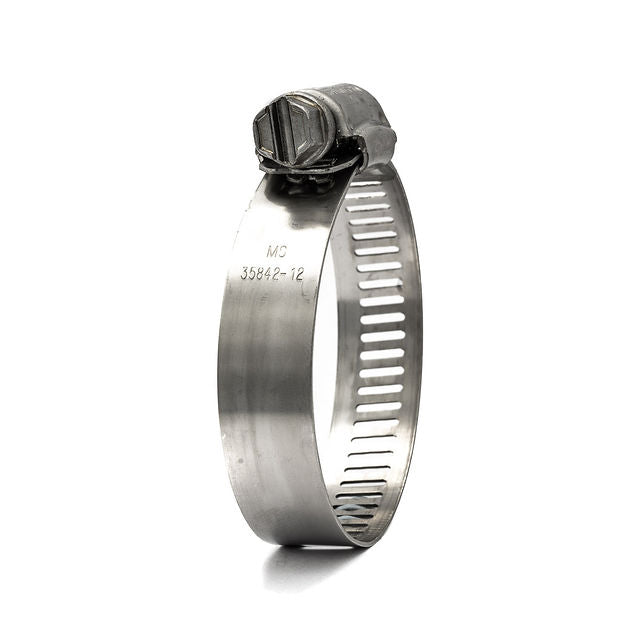

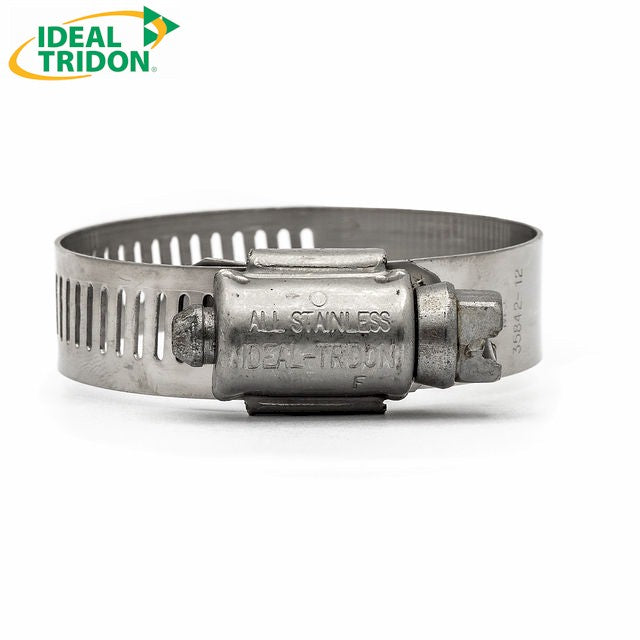

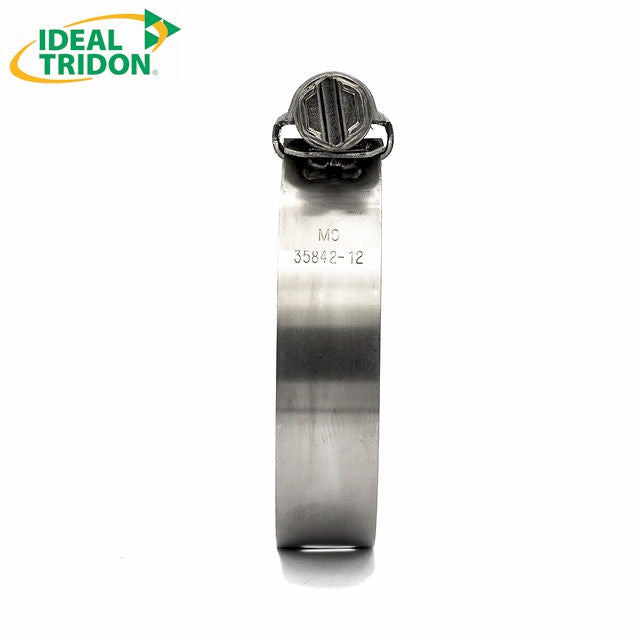

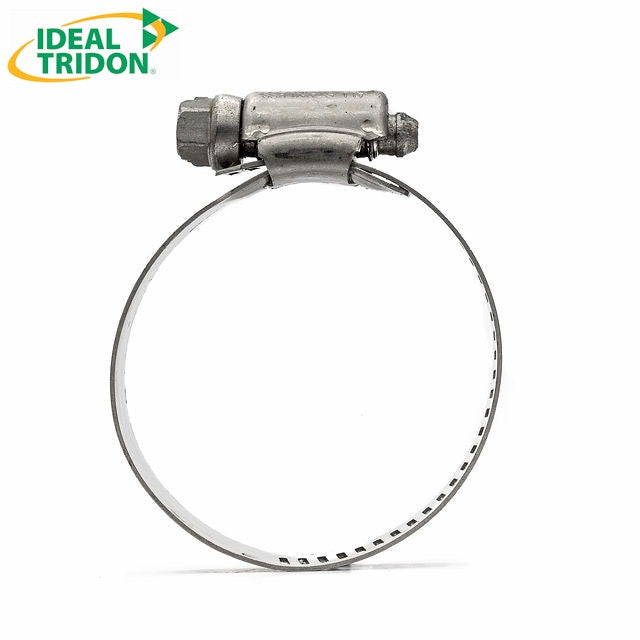

1/2" Ideal Tridon Military Specification Worm Gear Hose Clamp - 201 Stainless Steel

1/2" Ideal Tridon Military Specification Worm Gear Hose Clamp - 201 Stainless Steel

TRI-632-MWD-6

$0.96
$0.96
Sale Sold out
Shipping calculated at checkout.

427 in stock
  • Free standard shipping. Next day delivery available. Find out more
View full details

Need advice? Talk to our expert customer support team

Call

281 7171145
Monday-Friday 8am to 4pm

Email

sales@hcl-clamping.com
Scroll
Clamp Dia InĀ (fr) ?

Clamp Dia In (fr): The clamp's internal diameter listed as a fractional measurement in inches (e.g., 1, 1/2 in.).
Clamp Dia In ?

Clamp Dia In: The minimum to maximum inner diameter (in.) the clamp can securely cover, defining its usable size range.
Clamp Dia mm ?

Clamp Dia mm: The required metric size for a secure fit, indicating the outer diameter (in mm) of the component the clamp is meant to hold.
Band Width ?

Band Width: The measurement of the clamp's band or strap, indicating its width (often in mm or inches) and how much surface area it covers.
SAE No. ?

SAE No.: A number within a classification system established by SAE International
HCL P/N ?

HCL/ PN: The unique identifying number assigned to a part by HCL
MFG P/N ?

MFG P/N: The unique identifying number assigned to a part by its manufacturer.
2D PDF ?

2D PDF: A standard document format containing two-dimensional drawings.
2D DXF ?

2D DXF: A standard file format for exchanging two-dimensional Computer-Aided Design (CAD) drawings between different software programs.
3D STP ?

3D STEP: A standard file format used to exchange three-dimensional product model data between different CAD software programs.
Price ?

Price: The cost per unit

Stock ?

Stock: available products that can be purchased

Order Qty ?

Order Quantity: The total amount of units you wish to order

3/8 in - 7/8 in - 0.39in - 0.87in - 10.0mm - 22.0 mm - 1/2 in (12.7mm) - 6 - TRI-632-MWD-6 - 632006102 - 2D PDF - 2D DXF - 3D STP - $0.96 427
1/2 in - 1-1/4 in - 0.51in - 1.06in - 13.0mm - 27.0mm - 1/2 in (12.7mm) - 12 - TRI-632-MWD-12 - 632012102 - 2D PDF - 2D DXF - 3D STP - $1.02 439
1 in - 2 in - 0.98in - 2.01in - 25.0mm - 51.0mm - 1/2 in (12.7mm) - 24 - TRI-632-MWD-24 - 632024102 - 2D PDF - 2D DXF - 3D STP - $1.19 1199
3/4 in - 2-3/4 in - 0.75in - 2.76in - 19.0mm - 70.0mm - 1/2 in (12.7mm) - 36 - TRI-632-MWD-36 - 632036102 - 2D PDF - 2D DXF - 3D STP - $1.33 244
2-1/2 in - 3-1/2 in - 2.52in - 3.50in - 64.0mm - 89.0mm - 1/2 in (12.7mm) - 48 - TRI-632-MWD-48 - 632048102 - 2D PDF - 2D DXF - 3D STP - $1.53 333
3-5/16 in - 4-1/4 in - 3.31in - 4.25in - 84.0mm - 108.0mm - 1/2 in (12.7mm) - 60 - TRI-632-MWD-60 - 632060102 - 2D PDF - 2D DXF - 3D STP - $1.65 185

Description

1/2 inch wide Ideal Tridon Military Worm Drive Hose Clamps are manufactured to military specification MS-35842 and AA-52506C. DFARs compliant clamps are available upon request. Designed for extreme reliability in aerospace, defense, and other critical fluid systems, theĀ 1/2 inch wide Ideal Tridon Military Worm Drive Hose Clamps are heavy-duty fasteners strictly manufactured to meet the rigorous military specifications MS-35842 and AA-52506C. These high-performance worm gear clamps utilize durable construction (typically stainless steel) to ensure superior, vibration-resistant sealing under high pressure and temperature conditions. For projects requiring specific sourcing mandates, DFARs compliant clamps are also readily available upon request, providing the highest level of adherence to quality standards for government and military contracts.

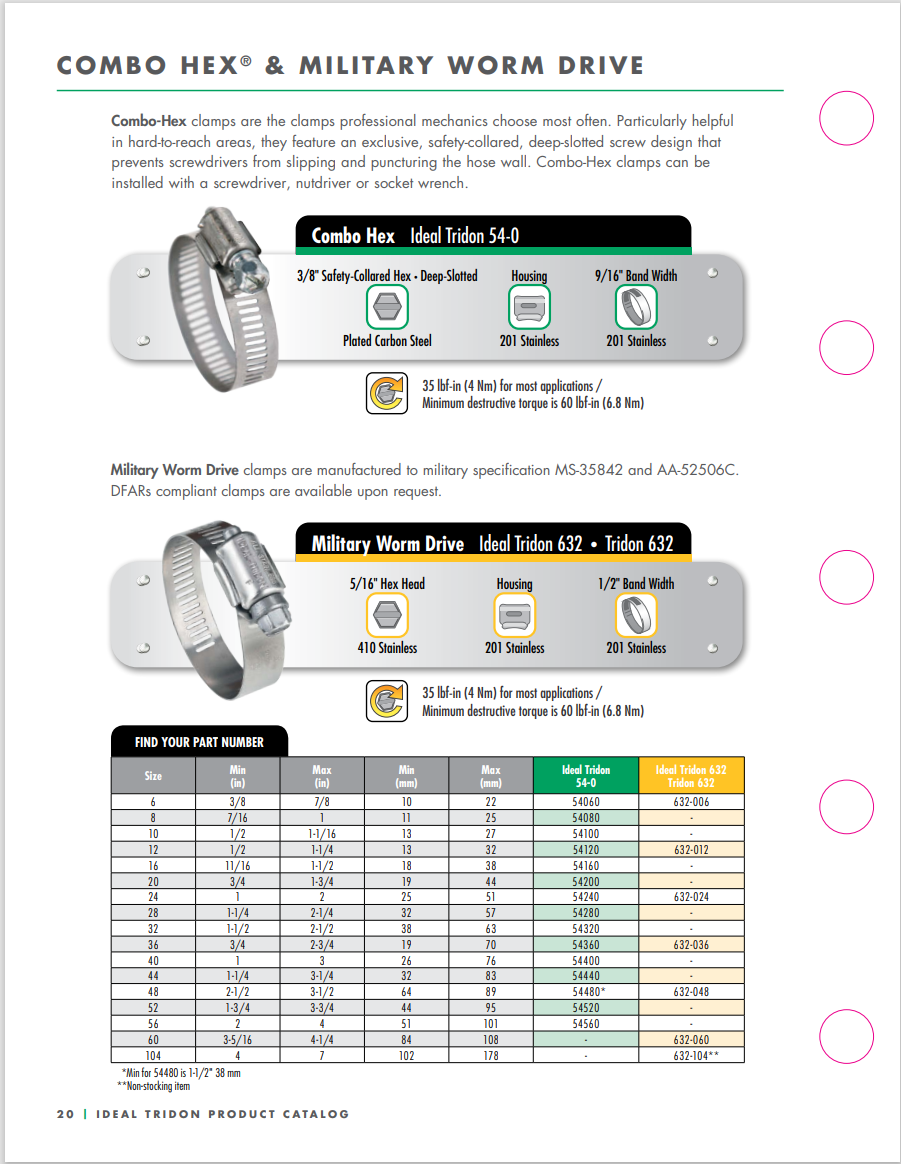

Product Specification Sheet

Download

Specification

Manufactured By Ideal Tridon
HCL P/N TRI-632-MWD-X
Series Ideal Tridon Military Spec
Corrosion Resistance Good
Hose Clamp Width in/mm 1/2 in (12.7mm)
Band/Housing Material 201 Stainless Steel
Band Style Perforated Band
Band Material 201 Stainless Steel
Bolt/Screw Type Slotted Hex
Bolt/Screw Material 410 Stainless Steel
Bolt/Screw Size 5/16 in Hex Head
Tightening Torque 35 lbf-in (4 Nm) for most applications
Specification 1 MS-35842
Specification 2 AA-52506C
Country of Manufacture USA
Tariff Code 7326 90 92
Hazardous Goods No
RoHS Compliant Yes

Robust & Reliable: Ideal Tridon Military Specification Worm Gear Hose Clamp - 201 Stainless Steel, Ā½ Inch Wide (10.0-108.0mm)

Engineered for demanding applications requiring dependable performance, the Ideal Tridon Military Specification Worm Gear Hose Clamp offers a robust and reliable clamping solution. Constructed from durable 201 stainless steel, this clamp provides good corrosion resistance and strength. The Ā½ Inch wide band ensures a secure and consistent seal across a versatile size range of 10.0mm to 108.0mm (0.39-4.25in), meeting stringent military specifications for quality and performance. Ā

Why Choose the Ideal Tridon Military Specification Worm Gear Hose Clamp?

Meets Military Specifications: Designed and manufactured to meet rigorous military standards, ensuring high levels of quality and reliability. Ā

Durable 201 Stainless Steel: Offers good corrosion resistance and strength for demanding applications.

Wider Ā½ Inch Band: Provides increased clamping force and a larger contact area for a secure and reliable seal, even under stress.

Versatile Size Range: Covers diameters from 10.0mm to 108.0mm (0.39-4.25in), suitable for a wide variety of heavy-duty hose applications.

Reliable Worm Gear Mechanism: Ensures precise adjustment and a consistently tight seal, crucial for critical connections.

Built for Tough Environments: Designed to withstand vibration, temperature variations, and other challenging conditions.

Trusted Ideal Tridon Quality: A reputable manufacturer recognized for producing high-performance clamping solutions. Ā
