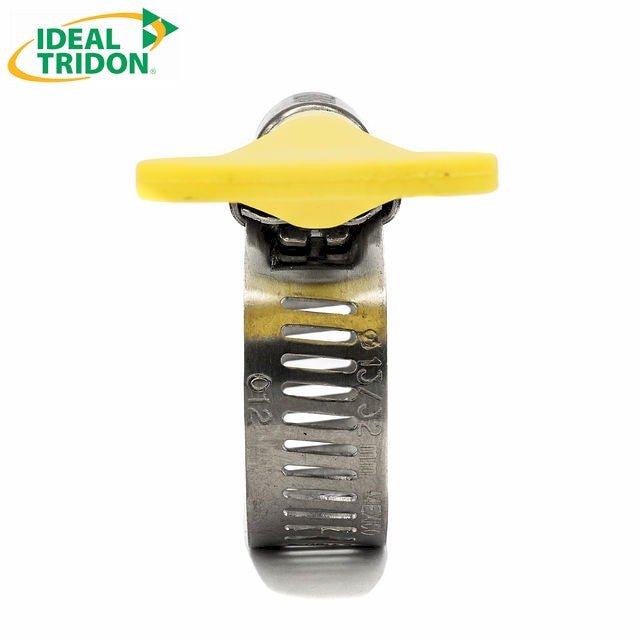

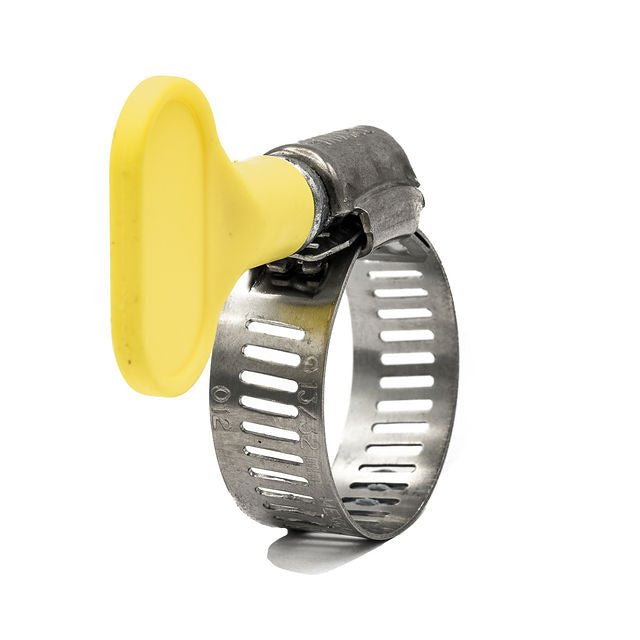

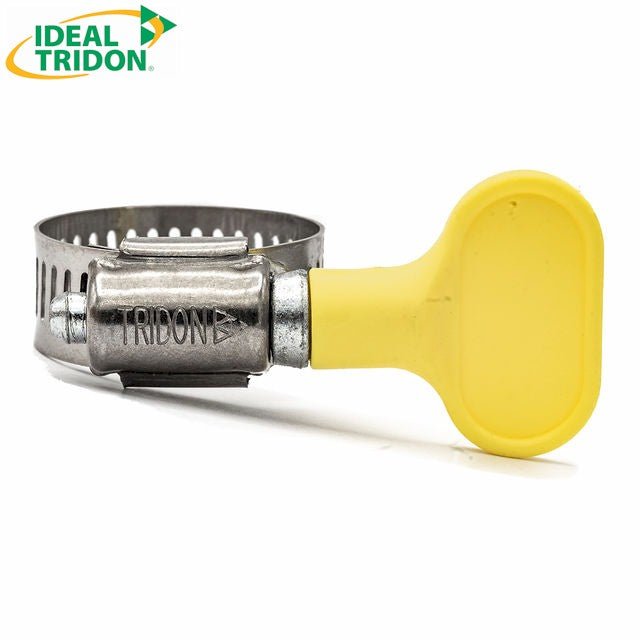

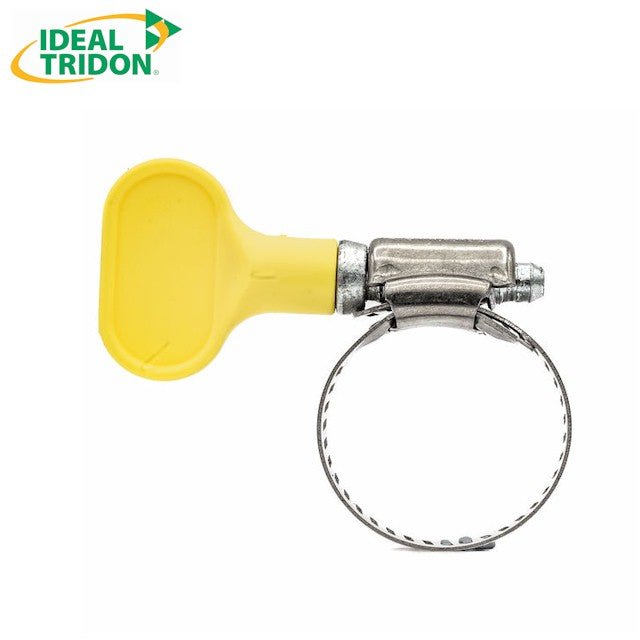

Ideal Tridon Worm Gear Hose Clamp with Turn-Key Wing – 300SS Stainless Steel

Ideal Tridon Worm Gear Hose Clamp with Turn-Key Wing – 300SS Stainless Steel

TRI-6Y-TK-4

$1.17
$1.17
Sale Sold out
Shipping calculated at checkout.

175 in stock
  • Free standard shipping. Next day delivery available. Find out more
View full details

Need advice? Talk to our expert customer support team

Call

281 7171145
Monday-Friday 8am to 4pm

Email

sales@hcl-clamping.com
Scroll
Clamp Dia In (fr) ?

Clamp Dia In (fr): The clamp's internal diameter listed as a fractional measurement in inches (e.g., 1, 1/2 in.).
Clamp Dia In ?

Clamp Dia In: The minimum to maximum inner diameter (in.) the clamp can securely cover, defining its usable size range.
Clamp Dia mm ?

Clamp Dia mm: The required metric size for a secure fit, indicating the outer diameter (in mm) of the component the clamp is meant to hold.
Band Width ?

Band Width: The measurement of the clamp's band or strap, indicating its width (often in mm or inches) and how much surface area it covers.
SAE No. ?

SAE No.: A number within a classification system established by SAE International
HCL P/N ?

HCL/ PN: The unique identifying number assigned to a part by HCL
MFG P/N ?

MFG P/N: The unique identifying number assigned to a part by its manufacturer.
2D PDF ?

2D PDF: A standard document format containing two-dimensional drawings.
2D DXF ?

2D DXF: A standard file format for exchanging two-dimensional Computer-Aided Design (CAD) drawings between different software programs.
3D STP ?

3D STEP: A standard file format used to exchange three-dimensional product model data between different CAD software programs.
Price ?

Price: The cost per unit

Stock ?

Stock: available products that can be purchased

Order Qty ?

Order Quantity: The total amount of units you wish to order

5/16 in − 5/8 in - 0.31in - 0.63in - 8.0mm - 16.0mm - 5/16 in (8.0mm) - 4 - TRI-6Y-TK-4 - 6Y004 - 2D PDF - 2D DXF - - $1.17 175
3/8 in − 7/8 in - 0.39in - 0.87in - 10.0mm - 22.0mm - 5/16 in (8.0mm) - 6 - TRI-6Y-TK-6 - 6Y006 - 2D PDF - 2D DXF - - $1.20 192
1/2 in −1,1/4 in - 0.51in - 1.26in - 13.0mm - 32.0mm - 1/2 in (12.7mm) - 12 - TRI-5Y-TK-12 - 5Y012 - 2D PDF - 2D DXF - - $1.78 61
3/4 in −1,3/4 in - 0.75in - 1.73in - 19.0mm - 44.0mm - 1/2 in (12.7mm) - 20 - TRI-5Y-TK-20 - 5Y020 - 2D PDF - 2D DXF - - $1.87 176
1,1/4 in −2,1/4 in - 1.26in - 2.24in - 32.0mm - 57.0mm - 1/2 in (12.7mm) - 28 - TRI-5Y-TK-28 - 5Y028 - 2D PDF - 2D DXF - - $2.05 60
1,3/4 in −2,3/4 in - 1.73in - 2.76in - 44.0mm - 70.0mm - 1/2 in (12.7mm) - 36 - TRI-5Y-TK-36 - 5Y036 - 2D PDF - 2D DXF - - $2.08 0
2,1/2 in −3,1/2 in - 2.52in - 3.50in - 64.0mm - 89.0mm - 1/2 in (12.7mm) - 48 - TRI-5Y-TK-48 - 5Y048 - 2D PDF - 2D DXF - - $2.17 90
2,1/2 in −4,1/2 in - 2.52in - 4.49in - 64.0mm - 114.0mm - 1/2 in (12.7mm) - 64 - TRI-5Y-TK-64 - 5Y064 - 2D PDF - 2D DXF - - $2.34 87

Description

Turn-Key clamps offer innovative design and install with a simple hand twist. No tools are required. Remove the reusable plastic screw cap for a tamper-resistant connection. Also available in blister pack assortment options. Applications include dryer vent hose, filter bags, RV sewer hose, cable and wire bundling.

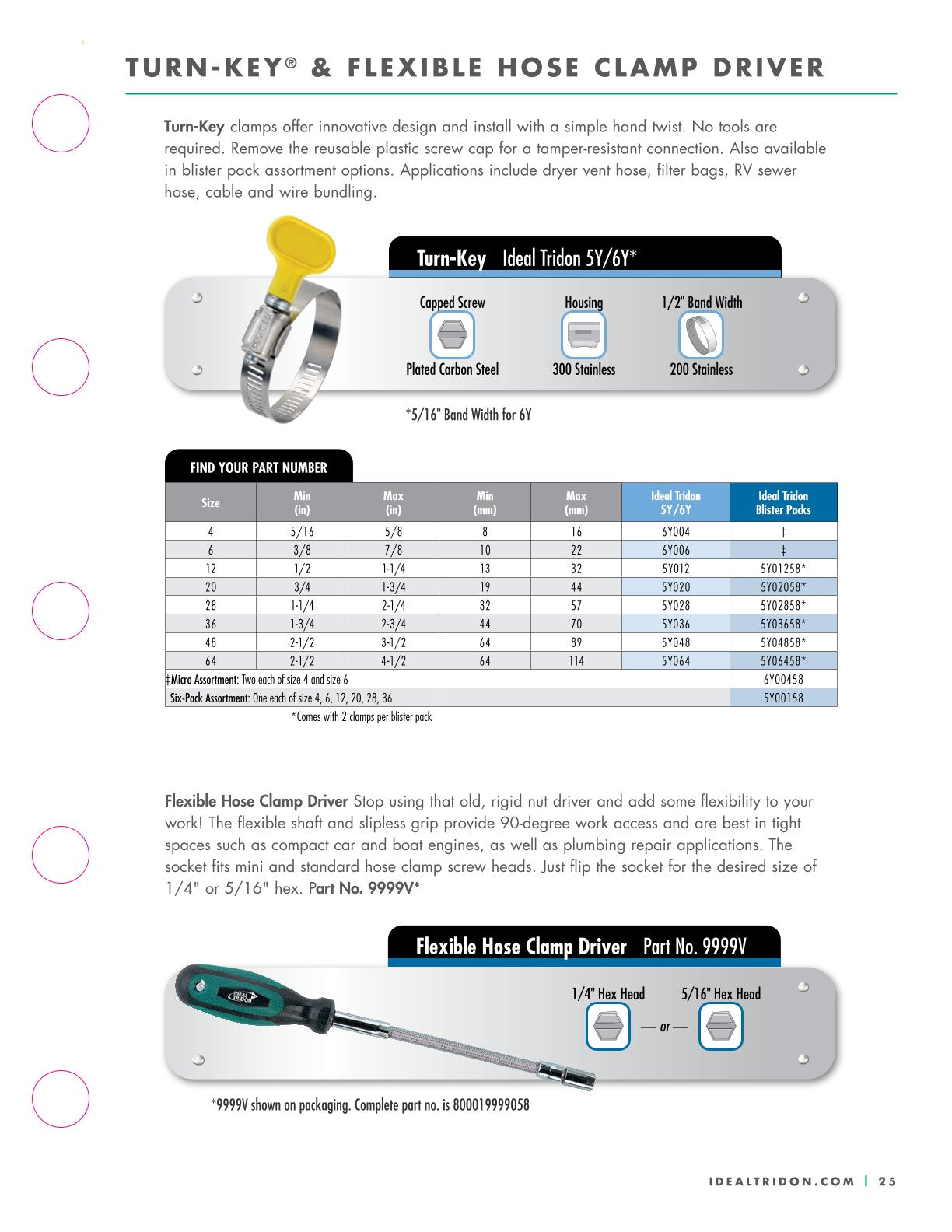

Product Specification Sheet

Download

Specification

Manufactured By Ideal Tridon
HCL P/N TRI-6Y-TK-X
Series Ideal Tridon Turn-Key
Corrosion Resistance Fair
Hose Clamp Width in/mm 1/2 in (12.7mm)5/16 in (8.0mm)
Band/Housing Material 200 Stainless Steel
Band Style Perforated Band
Band Material 200 Stainless Steel
Housing Material 300 Stainless Steel
Bolt/Screw Type Turn Key / Wing
Bolt/Screw Material Plated Carbon Steel
Specification 1 SAE J1508
Country of Manufacture USA
Tariff Code 7326 90 92
Hazardous Goods No
RoHS Compliant Yes

Convenient & Corrosion-Resistant: Ideal Tridon Standard Worm Gear Hose Clamp with Turn-Key Wing - 200SS (8.0mm-89.0mm)

Experience easy, tool-free installation and reliable
corrosion resistance with the Ideal Tridon Standard Worm Gear Hose Clamp featuring a convenient Turn-Key Wing. Constructed from durable 200 series stainless steel, this clamp offers a practical and cost-effective solution for a wide range of hose connection needs, spanning sizes from 8.0mm to 89.0mm
(0.31-3.50in).

Why Choose the Ideal Tridon Standard Worm Gear Hose Clamp with Turn-Key Wing?

  • Tool-Free Installation with Turn-Key Wing: The integrated wing allows for quick and easy tightening and loosening by hand, eliminating the need for screwdrivers.
  • Reliable 200 Series Stainless Steel: Offers good corrosion resistance for general-purpose applications.
  • Standard Worm Gear Mechanism: Provides dependable clamping force and easy adjustment for a secure seal.
  • Versatile Size Range: Covers 8.0mm-89.0mm (0.31-3.50in), suitable for various hose diameters.
  • Convenient for Tight Spaces: The turn-key wing can be particularly useful in applications where access for tools is limited.
  • Trusted Brand: Ideal Tridon is a recognized leader in hose clamping solutions.


Perfect For:

  • Automotive Maintenance
  • Plumbing and Irrigation
  • General Purpose Clamping
  • DIY Projects and Home Improvement
  • Applications requiring frequent adjustments

Enjoy Easy Installation and Reliable Performance:

The Ideal Tridon Standard Worm Gear Hose Clamp with a Turn-Key Wing combines the trusted performance of a worm gear clamp with the added convenience of tool-free operation. The integrated wing allows for quick and effortless tightening, making installation and adjustments a breeze. The 200 series stainless steel construction provides good resistance to corrosion, ensuring a reliable seal in various environments. This clamp is an excellent choice for applications where ease of use and convenience are key.

Key Features:

  • Material: 200 Series Stainless Steel Band
  • Screw: Carbon Steel (Typically)
  • Bandwidth: Standard (Typically 9/16" or similar)
  • Size Range: 8.0mm-89.0mm (0.31-3.50in)
  • Type: Worm Gear Hose Clamp with Turn-Key Wing
  • Easy Tool-Free Installation

For convenient and reliable hose connections with easy hand tightening, choose the Ideal Tridon Standard Worm Gear Hose Clamp with a Turn-Key Wing. Browse our selection and find the perfect size for your project today!
