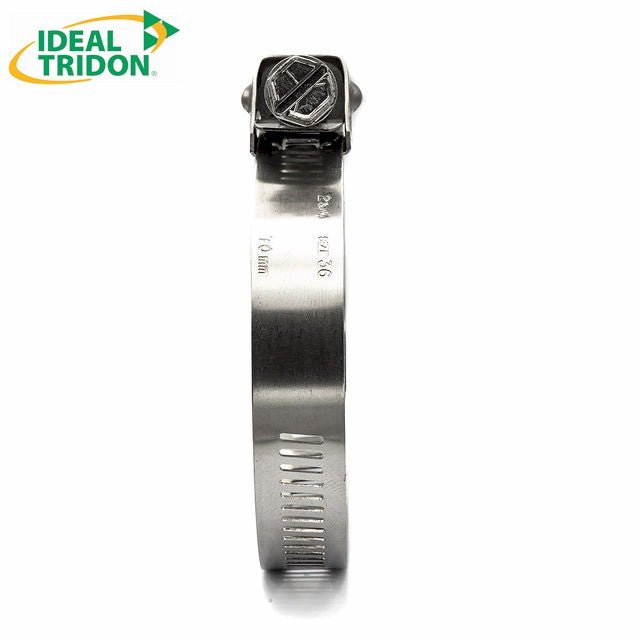

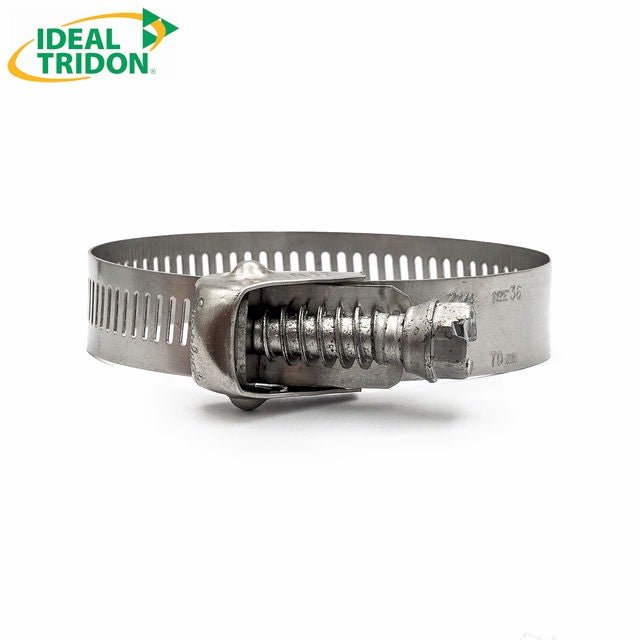

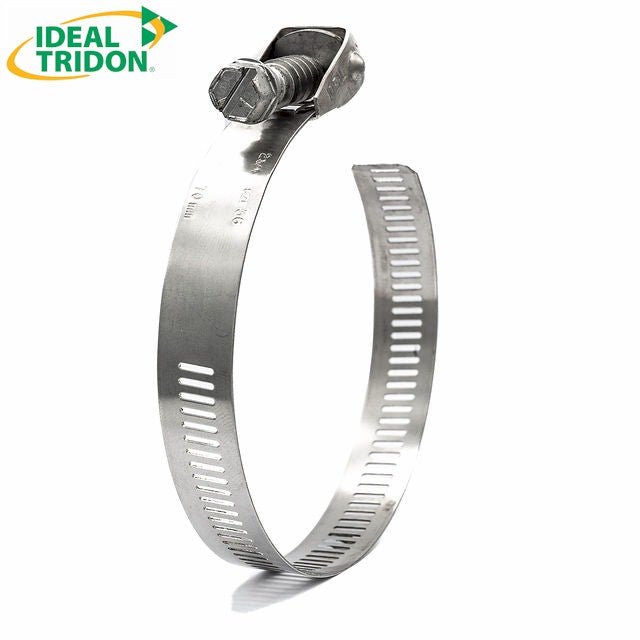

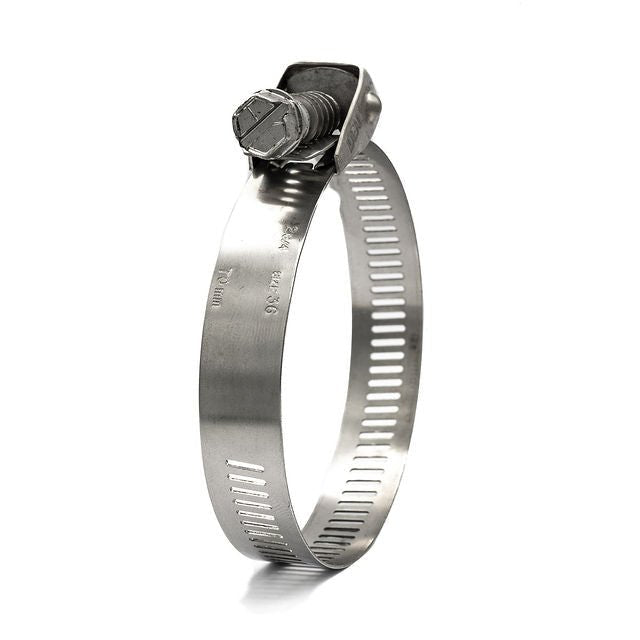

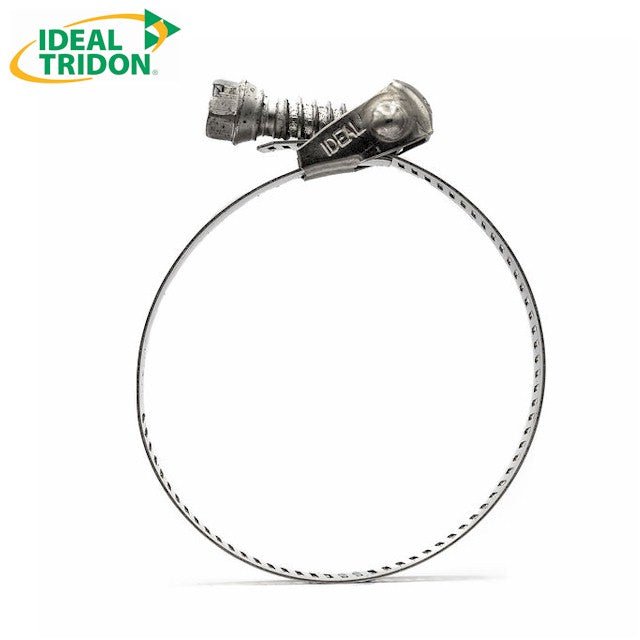

Ideal Tridon Snaplock Quick Release Hose Clamp with Tilted Head - 201 Stainless Steel, 1/2 Inch Wide

Ideal Tridon Snaplock Quick Release Hose Clamp with Tilted Head - 201 Stainless Steel, 1/2 Inch Wide

TRI-M550-SNQR-20

$1.68
$1.68
Sale Sold out
Shipping calculated at checkout.

858 in stock
  • Free standard shipping. Next day delivery available. Find out more
View full details

Need advice? Talk to our expert customer support team

Call

281 7171145
Monday-Friday 8am to 4pm

Email

sales@hcl-clamping.com
Scroll
Clamp Dia In (fr) ?

Clamp Dia In (fr): The clamp's internal diameter listed as a fractional measurement in inches (e.g., 1, 1/2 in.).
Clamp Dia In ?

Clamp Dia In: The minimum to maximum inner diameter (in.) the clamp can securely cover, defining its usable size range.
Clamp Dia mm ?

Clamp Dia mm: The required metric size for a secure fit, indicating the outer diameter (in mm) of the component the clamp is meant to hold.
Band Width ?

Band Width: The measurement of the clamp's band or strap, indicating its width (often in mm or inches) and how much surface area it covers.
SAE No. ?

SAE No.: A number within a classification system established by SAE International
MFG P/N ?

MFG P/N: The unique identifying number assigned to a part by its manufacturer.
Reusable ?

Reusable: Yes / No response If product can or cant be reused.

2D PDF ?

2D PDF: A standard document format containing two-dimensional drawings.
2D DXF ?

2D DXF: A standard file format for exchanging two-dimensional Computer-Aided Design (CAD) drawings between different software programs.
3D STP ?

3D STEP: A standard file format used to exchange three-dimensional product model data between different CAD software programs.
HCL P/N ?

HCL/ PN: The unique identifying number assigned to a part by HCL
Price ?

Price: The cost per unit

Stock ?

Stock: available products that can be purchased

Order Qty ?

Order Quantity: The total amount of units you wish to order

3/4 in − 1-3/4 in - 0.75in - 1.73in - 19.0mm - 44.0mm - 1/2 in (12.7mm) - 20 - 550-020 - Yes - 2D PDF - 2D DXF - 3D STP - TRI-M550-SNQR-20 - $1.68 858
1 in − 2,1/4 in - 1.02in - 2.24in - 26.0mm - 57.0mm - 1/2 in (12.7mm) - 28 - 550-028 - Yes - 2D PDF - 2D DXF - 3D STP - TRI-M550-SNQR-28 - $1.75 500
1 in − 2,3/4 in - 1.02in - 2.76in - 26.0mm - 70.0mm - 1/2 in (12.7mm) - 36 - 550-036 - Yes - 2D PDF - 2D DXF - 3D STP - TRI-M550-SNQR-36 - $1.83 98
1,1/2 in − 3,1/2 in - 1.54in - 3.50in - 39.0mm - 89.0mm - 1/2 in (12.7mm) - 48 - 550-048 - Yes - 2D PDF - 2D DXF - 3D STP - TRI-M550-SNQR-48 - $1.98 0
1 in − 4 in - 0.98in - 4.02in - 25.0mm - 102.0mm - 1/2 in (12.7mm) - 56 - 550-056 - Yes - 2D PDF - 2D DXF - 3D STP - TRI-M550-SNQR-56 - $2.03 125
2 in − 5 in - 2.01in - 5.00in - 51.0mm - 127.0mm - 1/2 in (12.7mm) - 72 - 550-072 - Yes - 2D PDF - 2D DXF - 3D STP - TRI-M550-SNQR-72 - $2.12 885
2,1/16 in − 6 in - 2.05in - 5.98in - 52.0mm - 152.0mm - 1/2 in (12.7mm) - 88 - 550-088 - Yes - 2D PDF - 2D DXF - 3D STP - TRI-M550-SNQR-88 - $2.46 72
3,1/2 in − 6,1/2 in - 3.50in - 6.57in - 89.0mm - 167.0mm - 1/2 in (12.7mm) - 96 - 550-096 - Yes - 2D PDF - 2D DXF - 3D STP - TRI-M550-SNQR-96 - $2.60 77
2,7/8 in − 7 in - 2.87in - 7.01in - 73.0mm - 178.0mm - 1/2 in (12.7mm) - 104 - 550-104 - Yes - 2D PDF - 2D DXF - 3D STP - TRI-M550-SNQR-104 - $2.67 80
1,3/4 in − 7,3/4 in - 1.77in - 7.76in - 45.0mm - 197.0mm - 1/2 in (12.7mm) - 116 - 550-116 - Yes - 2D PDF - 2D DXF - 3D STP - TRI-M550-SNQR-116 - $2.80 60
1,3/4 in − 8,1/2 in - 1.77in - 8.50in - 45.0mm - 216.0mm - 1/2 in (12.7mm) - 128 - 550-128 - Yes - 2D PDF - 2D DXF - 3D STP - TRI-M550-SNQR-128 - $3.00 0
1,3/4 in − 9 in - 1.77in - 8.98in - 45.0mm - 228.0mm - 1/2 in (12.7mm) - 136 - 550-136 - Yes - 2D PDF - 2D DXF - 3D STP - TRI-M550-SNQR-136 - $3.05 23
2 in − 10 in - 2.01in - 10.00in - 51.0mm - 254.0mm - 1/2 in (12.7mm) - 152 - 550-152 - Yes - 2D PDF - 2D DXF - 3D STP - TRI-M550-SNQR-152 - $3.26 0
2 in − 12,1/4 in - 2.01in - 12.24in - 51.0mm - 311.0mm - 1/2 in (12.7mm) - 188 - 550-188 - Yes - 2D PDF - 2D DXF - 3D STP - TRI-M550-SNQR-188 - $3.54 0
10,3/16 in − 14 in - 10.20in - 14.02in - 259.0mm - 356.0mm - 1/2 in (12.7mm) - 216 - 550-216 - Yes - 2D PDF - 2D DXF - 3D STP - TRI-M550-SNQR-216 - $3.85 71
2,1/2 in − 14,1/4 in - 2.52in - 14.25in - 64.0mm - 362.0mm - 1/2 in (12.7mm) - 224 - 550-224 - Yes - 2D PDF - 2D DXF - 3D STP - TRI-M550-SNQR-224 - $3.93 46
1,3/4 in − 16 in - 1.73in - 15.98in - 44.0mm - 406.0mm - 1/2 in (12.7mm) - 248 - 550-248 - Yes - 2D PDF - 2D DXF - 3D STP - TRI-M550-SNQR-248 - $4.40 583
14,1/4 in − 18 in - 14.25in - 17.99in - 362.0mm - 457.0mm - 1/2 in (12.7mm) - 280 - 550-280 - Yes - 2D PDF - 2D DXF - 3D STP - TRI-M550-SNQR-280 - $4.65 100
1,7/8 in − 20 in - 1.89in - 20.00in - 48.0mm - 508.0mm - 1/2 in (12.7mm) - 312 - 550-312 - Yes - 2D PDF - 2D DXF - 3D STP - TRI-M550-SNQR-312 - $4.90 100
1,3/4 in − 22 in - 1.73in - 22.01in - 44.0mm - 559.0mm - 1/2 in (12.7mm) - 344 - 550-344 - Yes - 2D PDF - 2D DXF - 3D STP - TRI-M550-SNQR-344 - $5.20 75
18,5/8 in − 25 in - 18.62in - 25.00in - 473.0mm - 635.0mm - 1/2 in (12.7mm) - 390 - 550-390 - Yes - 2D PDF - 2D DXF - 3D STP - TRI-M550-SNQR-390 - $5.75 100

Description

Snaplock Quick Release worm drive clamps are good for closed system applications where the clamp must be disengaged to be applied. The swivel-action locking of screw to band makes installation and removal much faster. All Snaplock housings are 200 stainless steel.

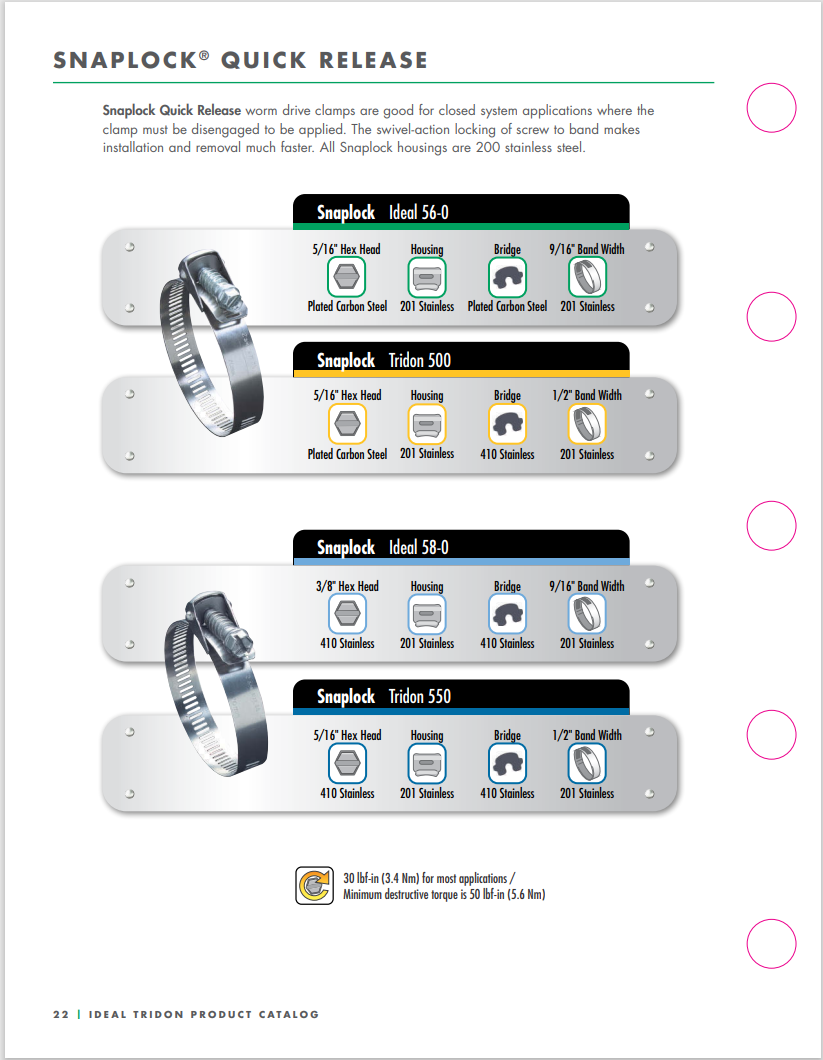

Product Specification Sheet

Download

Specification

Manufactured By Ideal Tridon
HCL P/N TRI-M550-SNQR-X
Series Ideal Tridon Snaplock
Corrosion Resistance Good
Hose Clamp Width in/mm 1/2 in (12.7mm)
Band Style Perforated Band
Band Material 201 Stainless Steel
Bolt/Screw Type Quick Release Titled
Bolt/Screw Material 410 Stainless Steel
Bolt/Screw Size 5/16" Hex Head
Finish Stainless Steel
Tightening Torque 30 lbf-in (3.4 Nm) for most applications
Country of Manufacture USA
Tariff Code 7326 90 92
Hazardous Goods No
RoHS Compliant Yes

Rapid & Accessible: Ideal Tridon Snaplock Quick Release Hose Clamp with Tilted Head - 201 Stainless Steel, ½ Inch Wide (19.0-540mm)

Experience unparalleled speed and ease of use with the Ideal Tridon Snaplock Quick Release Hose Clamp, featuring a user-friendly Tilted Head. Constructed from durable 201 stainless steel, this clamp offers a
practical blend of corrosion resistance and strength, coupled with a revolutionary quick-release mechanism. The ½ Inch wide band provides a secure
and reliable grip across an expansive size range of 19.0mm to 540mm (0.74-21.25in), making it an ideal solution for applications demanding frequent access or adjustments.

Why Choose the Ideal Tridon Snaplock Quick Release Hose Clamp with Tilted Head?

  • Revolutionary Snaplock Quick Release: Enables incredibly fast, tool-free opening and closing, significantly reducing installation and removal times. Perfect for connections requiring regular access.
  • Enhanced Accessibility with Tilted Head: The angled head design improves tool access, even in confined or awkward spaces, simplifying tightening and loosening.
  • Durable 201 Stainless Steel Construction: Offers good corrosion resistance for a wide range of general industrial and automotive applications.
  • Versatile ½ Inch Wide Band: Provides a strong and consistent clamping force across a broad range of hose and ducting materials.
  • Extensive Size Accommodation: Covers an impressive diameter range from 19.0mm to 540mm (0.74-21.25in), catering to diverse connection requirements.
  • Trusted Ideal Tridon Quality: A reputable manufacturer recognized for producing dependable clamping solutions.

Perfect For:

  • Automotive Air Intakes and Filters
  • Industrial Ventilation and Ducting Systems
  • Agricultural Implement Connections
  • Temporary or Frequently Serviced Assemblies
  • Any application where rapid connection and disconnection are essential

Unmatched Speed and Convenience for Your Connections:

The Ideal Tridon Snaplock Quick Release Hose Clamp with its tilted head redefines efficiency in hose and ducting management. The innovative snap-action mechanism allows for instant opening and closing without the need to fully unscrew the clamp, saving valuable time during installation, maintenance, or adjustments. The thoughtfully designed tilted head further enhances usability by providing better tool access, especially in tight spots. Built from reliable 201 stainless steel, this clamp offers a practical balance
of durability and corrosion resistance for a multitude of applications.

Key Features:

  • Material: 201 Stainless Steel Band & Housing (Screw material may vary)
  • Head Type: Tilted Head with Snaplock Quick Release
  • Bandwidth: ½ Inch
  • Size Range: 19.0mm-540mm (0.74-21.25in)
  • Type: Quick Release Worm Gear Hose Clamp
  • Exceptionally Fast and Easy Tool-Free Operation
