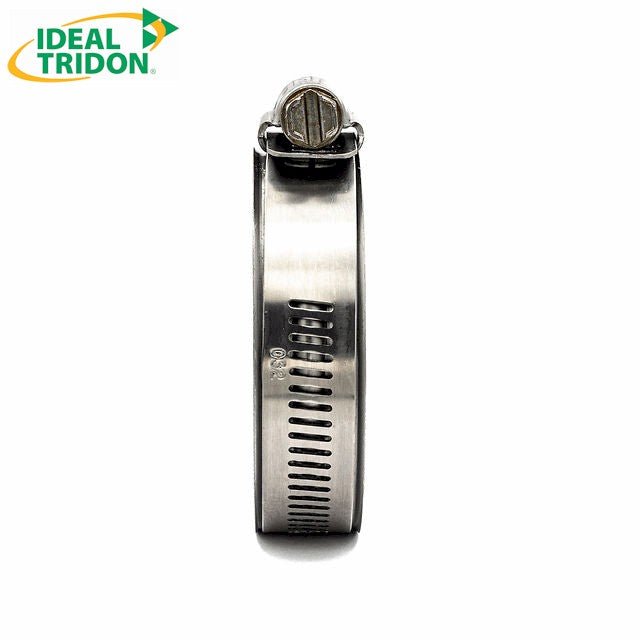

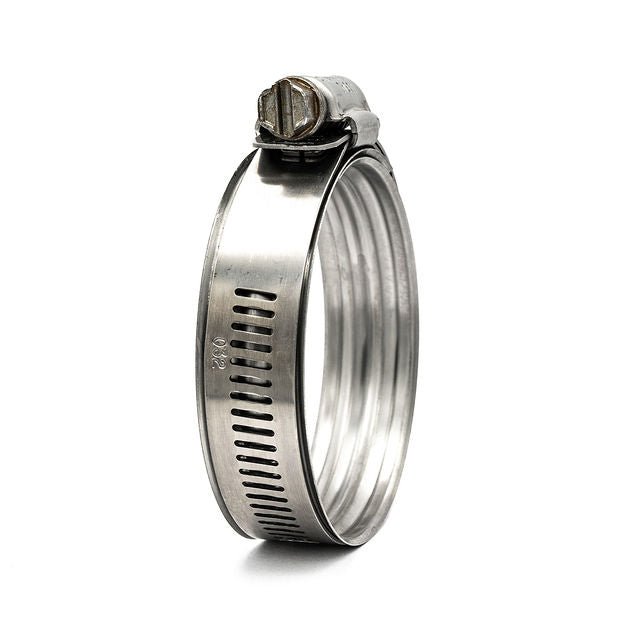

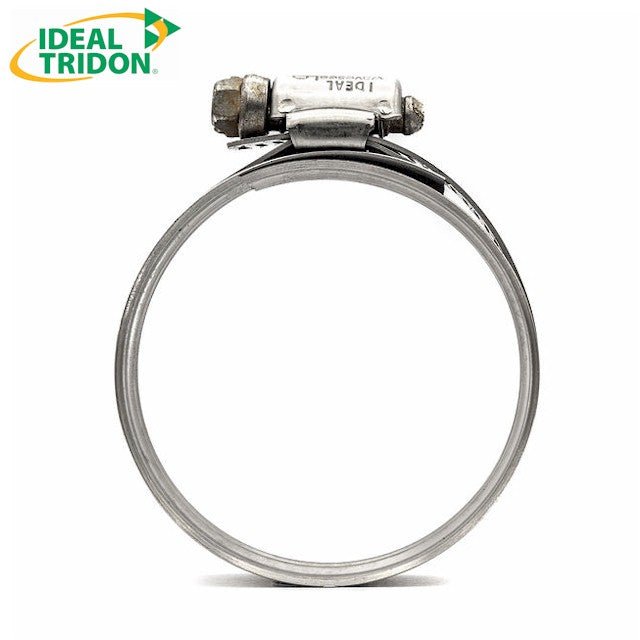

1/2" Ideal Tridon SmartSeal Bead Lined Worm Gear Hose Clamp - 300 Stainless Steel Band and Screw

1/2" Ideal Tridon SmartSeal Bead Lined Worm Gear Hose Clamp - 300 Stainless Steel Band and Screw

TRI-37215-SS-20

$2.00
$2.00
Sale Sold out
Shipping calculated at checkout.

496 in stock
  • Free standard shipping. Next day delivery available. Find out more
View full details

Need advice? Talk to our expert customer support team

Call

281 7171145
Monday-Friday 8am to 4pm

Email

sales@hcl-clamping.com
Scroll
Clamp Dia In (fr) ?

Clamp Dia In (fr): The clamp's internal diameter listed as a fractional measurement in inches (e.g., 1, 1/2 in.).
Clamp Dia In ?

Clamp Dia In: The minimum to maximum inner diameter (in.) the clamp can securely cover, defining its usable size range.
Clamp Dia mm ?

Clamp Dia mm: The required metric size for a secure fit, indicating the outer diameter (in mm) of the component the clamp is meant to hold.
Band Width ?

Band Width: The measurement of the clamp's band or strap, indicating its width (often in mm or inches) and how much surface area it covers.
SAE No. ?

SAE No.: A number within a classification system established by SAE International
HCL P/N ?

HCL/ PN: The unique identifying number assigned to a part by HCL
MFG P/N ?

MFG P/N: The unique identifying number assigned to a part by its manufacturer.
Material ?

Material: The core substance used to manufacture the product (e.g., steel, plastic, rubber). Affects durability and performance.
2D PDF ?

2D PDF: A standard document format containing two-dimensional drawings.
2D DXF ?

2D DXF: A standard file format for exchanging two-dimensional Computer-Aided Design (CAD) drawings between different software programs.
3D STP ?

3D STEP: A standard file format used to exchange three-dimensional product model data between different CAD software programs.
Price ?

Price: The cost per unit

Stock ?

Stock: available products that can be purchased

Order Qty ?

Order Quantity: The total amount of units you wish to order

1,1/8 in - 1,9/16 in - 1.14in - 1.57in - 29.0mm - 40.0mm - 1/2 in (12.7mm) - 20 - TRI-37215-SS-20 - 37215-0020 - 300SS - 2D PDF - 2D DXF - 3D STP - $2.00 496
1,7/16 in - 1,11/16 in - 1.42in - 1.69in - 36.0mm - 43.0mm - 1/2 in (12.7mm) - 22 - TRI-37215-SS-22 - 37215-0022 - 300SS - 2D PDF - 2D DXF - 3D STP - $2.07 397
1,1/2 in - 1,13/16 in - 1.50in - 1.81in - 38.0mm - 46.0mm - 1/2 in (12.7mm) - 24 - TRI-37215-SS-24 - 37215-0024 - 300SS - 2D PDF - 2D DXF - 3D STP - $2.10 68
1,3/4 in - 2,1/16 in - 1.69in - 2.05in - 43.0mm - 52.0mm - 1/2 in (12.7mm) - 28 - TRI-37215-SS-28 - 37215-0028 - 300SS - 2D PDF - 2D DXF - 3D STP - $2.20 374
1,15/16 in - 2,15/16 in - 1.89in - 2.32in - 48.0mm - 59.0mm - 1/2 in (12.7mm) - 32 - TRI-37215-SS-32 - 37215-0032 - 300SS - 2D PDF - 2D DXF - 3D STP - $2.30 277
2 in - 2,7/16 in - 1.97in - 2.44in - 50.0mm - 62.0mm - 1/2 in (12.7mm) - 34 - TRI-37215-SS-34 - 37215-0034 - 300SS - 2D PDF - 2D DXF - 3D STP - $2.33 245
2,1/8 in - 2,9/16 in - 2.09in - 2.56in - 53.0mm - 65.0mm - 1/2 in (12.7mm) - 36 - TRI-37215-SS-36 - 37215-0036 - 300SS - 2D PDF - 2D DXF - 3D STP - $2.39 319
2,5/16 in - 2,13/16 in - 2.28in - 2.80in - 58.0mm - 71.0mm - 1/2 in (12.7mm) - 40 - TRI-37215-SS-40 - 37215-0040 - 300SS - 2D PDF - 2D DXF - 3D STP - $2.48 264
2,1/2 in - 3,1/16 in - 2.48in - 3.07in - 63.0mm - 78.0mm - 1/2 in (12.7mm) - 44 - TRI-37215-SS-44 - 37215-0044 - 300SS - 2D PDF - 2D DXF - 3D STP - $2.56 304
2,11/16 in - 3,5/16 in - 2.64in - 3.31in - 67.0mm - 84.0mm - 1/2 in (12.7mm) - 48 - TRI-37215-SS-48 - 37215-0048 - 300SS - 2D PDF - 2D DXF - 3D STP - $2.84 129
2,7/8 in - 3,9/16 in - 2.87in - 3.58in - 73.0mm - 91.0mm - 1/2 in (12.7mm) - 52 - TRI-37215-SS-52 - 37215-0052 - 300SS - 2D PDF - 2D DXF - 3D STP - $2.90 245
3,1/16 in - 3,13/16 in - 3.03in - 3.82in - 77.0mm - 97.0mm - 1/2 in (12.7mm) - 56 - TRI-37215-SS-56 - 37215-0056 - 300SS - 2D PDF - 2D DXF - 3D STP - $2.98 201
3,1/4 in - 4,1/16 in - 3.23in - 4.06in - 82.0mm - 103.0mm - 1/2 in (12.7mm) - 60 - TRI-37215-SS-60 - 37215-0060 - 300SS - 2D PDF - 2D DXF - 3D STP - $3.16 246
3,7/16 in - 4,5/16 in - 3.43in - 4.33in - 87.0mm - 110.0mm - 1/2 in (12.7mm) - 64 - TRI-37215-SS-64 - 37215-0064 - 300SS - 2D PDF - 2D DXF - 3D STP - $3.28 250
3,3/4 in - 4,13/16 in - 3.78in - 4.80in - 96.0mm - 122.0mm - 1/2 in (12.7mm) - 72 - TRI-37215-SS-72 - 37215-0072 - 300SS - 2D PDF - 2D DXF - 3D STP - $3.44 200
4,3/16 in - 5,5/16 in - 4.13in - 5.31in - 105.0mm - 135.0mm - 1/2 in (12.7mm) - 80 - TRI-37215-SS-80 - 37215-0080 - 300SS - 2D PDF - 2D DXF - 3D STP - $3.69 150
4,1/2 in - 5,13/16 in - 4.53in - 5.83in - 115.0mm - 148.0mm - 1/2 in (12.7mm) - 88 - TRI-37215-SS-88 - 37215-0088 - 300SS - 2D PDF - 2D DXF - 3D STP - $3.75 150

Description

1/2 inch wide SmartSeal Bead Lined worm gear hybrid smart clamps secure hose connections and prevent unwanted flow of fluid and air. Through patented hybrid technology, these next generation clamps seal in a steady 360 degree pattern in response to pressure and temperature changes. With their compact design and lower profile, you get an optimal heavy-duty constant tension clamp without all the bulk.

Product Specification Sheet

Download

Specification

Manufactured By Ideal Tridon
HCL P/N TRI-37215-SS-X
Series Ideal Tridon SmartSeal
Corrosion Resistance Very Good
Hose Clamp Width in/mm 1/2 in (12.7mm)
Band Style Bead Lined Band
Band Material 300 Stainless Steel
Housing Material 300 Stainless Steel
Bolt/Screw Type Slotted Hex
Bolt/Screw Material 300 Stainless Steel
Spring Material 300 Stainless Steel
Finish Stainless Steel
Colour Silver
Tightening Torque Up to 48 lbf-in (5.4 Nm) for most applications
Specification 1 SAE J1508
Country of Manufacture USA
Tariff Code 7326 90 92
Hazardous Goods No
RoHS Compliant Yes

Gentle Yet Secure: Ideal Tridon 9/16 Inch Bead Lined Worm Gear Hose Clamp - 300 Stainless Steel | Smart Seal.

Ensure a secure and gentle grip on your hoses with the Ideal Tridon 9/6 Inch Bead Lined Worm Gear Hose Clamp. Constructed from durable 300 series stainless steel for good corrosion resistance, this clamp features a unique beaded liner on the inside of the band. This innovative design provides enhanced sealing capabilities and helps protect softer hose materials from damage, all while offering a reliable clamping force across range of sizes

Why Choose the Ideal Tridon 9/16 Inch Bead Lined Worm Gear Hose Clamp?

  • Protective Bead Liner: The internal beaded liner creates an enhanced seal and helps prevent hose extrusion and damage, particularly on softer or more pliable hose materials.
  • Durable 300 Series Stainless Steel: Offers good corrosion resistance for a variety of general-purpose applications.
  • 9/16 Inch Bandwidth: Provides a balance of flexibility and clamping power for a secure and reliable seal.
  • Versatile Size Range: Covers diameters from 1,1/8 to 5,5/16 inch suitable for a wide range of hose applications.
  • Reliable Worm Gear Mechanism: Ensures easy adjustment and secure tightening for a dependable seal.
  • Ideal for Softer Hoses: The bead liner is particularly beneficial for preventing damage to silicone, rubber, and other delicate hose materials.

  • Trusted Ideal Tridon Quality: A reputable manufacturer known for producing dependable clamping solutions.

Perfect For:

  • Silicone Hoses
  • Rubber Hoses
  • Automotive Coolant and Vacuum Lines
  • Marine Wet Exhaust Systems
  • Applications where hose protection is a priority

Experience Enhanced Sealing and Gentle Hose Protection:

The Ideal Tridon ½ Inch Bead Lined Worm Gear Hose Clamp is specifically designed to provide a secure seal without damaging the hose. The unique beaded liner creates multiple sealing points, enhancing the clamp's
ability to prevent leaks, especially in applications with lower clamping torques or softer hose materials. The 300 series stainless steel construction offers good resistance to corrosion, making this clamp a reliable choice for various environments. If you're working with delicate hoses and need a secure, leak-free connection, this bead-lined clamp is an excellent solution.

Key Features:

  • Material: 300 Series Stainless Steel (Band & Screw)
  • Liner: Internal Beaded Liner for Enhanced Sealing and Hose Protection
  • Bandwidth: 9/16 Inch
  • Size Range: 29.0mm-97.0mm (1.13-3.8in)
  • Type: Worm Gear Hose Clamp
  • Enhanced Sealing Capabilities
  • Gentle on Soft Hose Materials

For a secure, leak-free seal that protects your delicate
hoses, choose the Ideal Tridon 9/16 Inch Bead Lined Worm Gear Hose Clamp. Browse our selection and ensure the longevity of your hose connections today!
