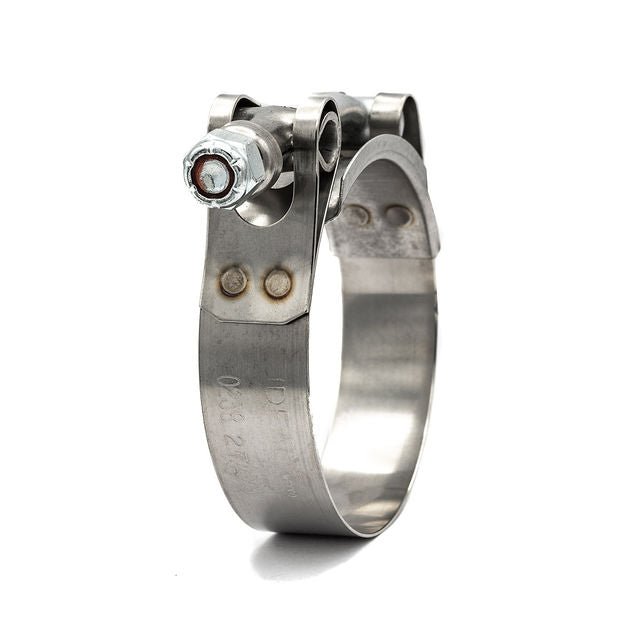

  • Ideal Tridon T-Bolt Hose Clamp 3/4" 301SS 7"-7,5/16" - HCL Clamping USA- TRI-30020-TB-700

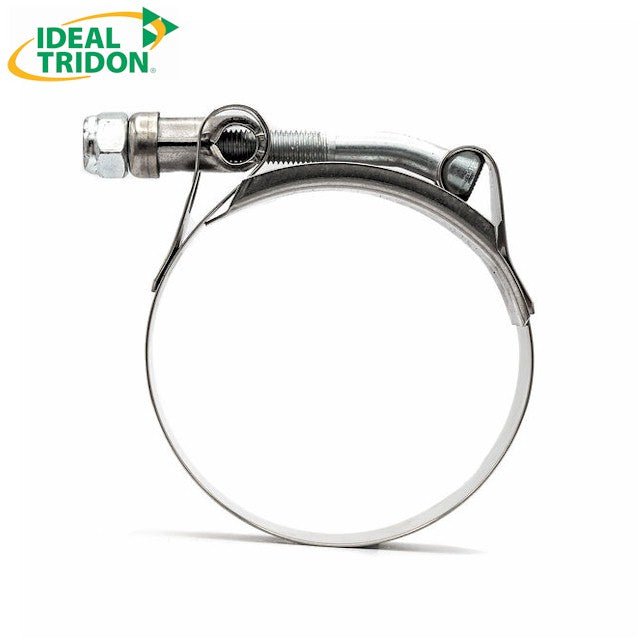

  • Ideal Tridon T-Bolt Hose Clamp 3/4" 301SS 6,1/4"-6,9/16" - HCL Clamping USA- TRI-30020-TB-625

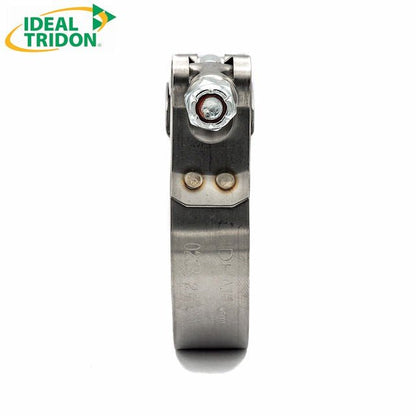

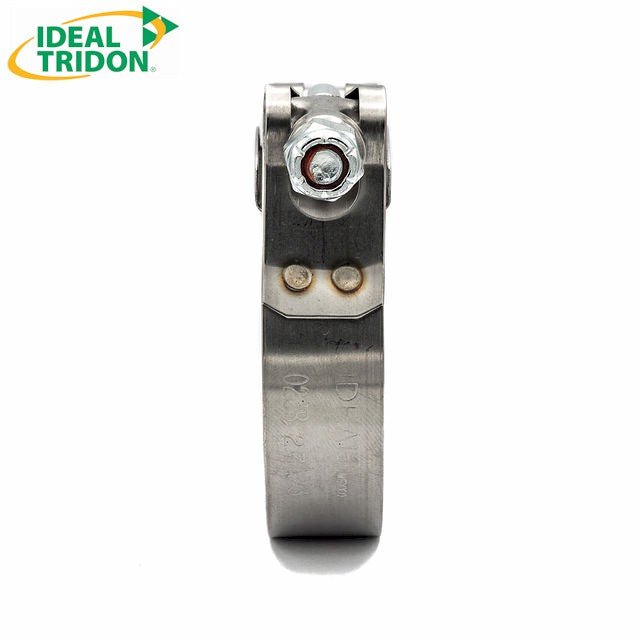

  • Ideal Tridon T-Bolt Hose Clamp 3/4" 301SS 5"-5,1/16" - HCL Clamping USA- TRI-30020-TB-500

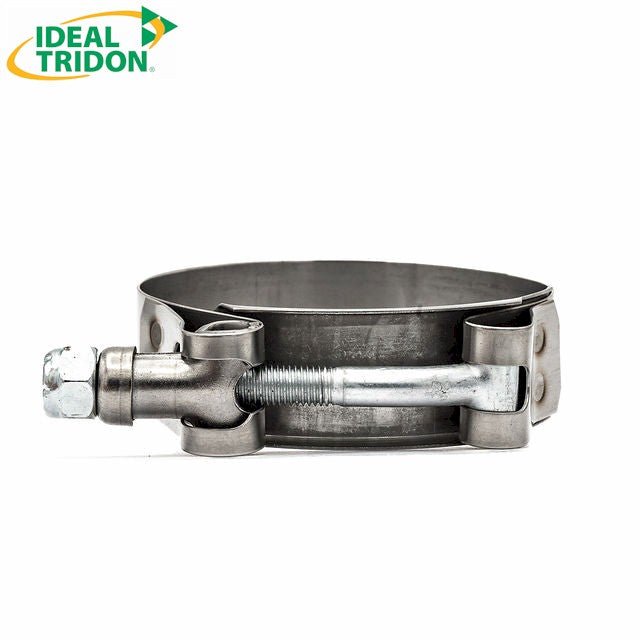

  • Ideal Tridon T-Bolt Hose Clamp 3/4" 301SS 5,3/4"-6,1/16" - HCL Clamping USA- TRI-30020-TB-575
1 4

3/4” Ideal Tridon Vibration Resistant Channel Bridge T-Bolt Hose Clamp - 301 Stainless Steel Band, Galvanised Screw

3/4” Ideal Tridon Vibration Resistant Channel Bridge T-Bolt Hose Clamp - 301 Stainless Steel Band, Galvanised Screw

TRI-30020-TB-138

$3.76
$3.76
Sale Sold out
Shipping calculated at checkout.

232 in stock
  • Free standard shipping. Next day delivery available. Find out more
View full details

Need advice? Talk to our expert customer support team

Call

281 7171145
Monday-Friday 8am to 4pm

Email

sales@hcl-clamping.com
Scroll
Clamp Dia In (fr) ?

Clamp Dia In (fr): The clamp's internal diameter listed as a fractional measurement in inches (e.g., 1, 1/2 in.).
Clamp Dia In ?

Clamp Dia In: The minimum to maximum inner diameter (in.) the clamp can securely cover, defining its usable size range.
Clamp Dia mm ?

Clamp Dia mm: The required metric size for a secure fit, indicating the outer diameter (in mm) of the component the clamp is meant to hold.
Band Width ?

Band Width: The measurement of the clamp's band or strap, indicating its width (often in mm or inches) and how much surface area it covers.
SAE No. ?

SAE No.: A number within a classification system established by SAE International
HCL P/N ?

HCL/ PN: The unique identifying number assigned to a part by HCL
MFG P/N ?

MFG P/N: The unique identifying number assigned to a part by its manufacturer.
Corrosion Res ?

Corrosion Resistance: Refers to a material's ability to resist deterioration or damage caused by chemical reactions with its environment, such as rusting.
2D PDF ?

2D PDF: A standard document format containing two-dimensional drawings.
2D DXF ?

2D DXF: A standard file format for exchanging two-dimensional Computer-Aided Design (CAD) drawings between different software programs.
3D STP ?

3D STEP: A standard file format used to exchange three-dimensional product model data between different CAD software programs.
Price ?

Price: The cost per unit

Stock ?

Stock: available products that can be purchased

Order Qty ?

Order Quantity: The total amount of units you wish to order

1,3/8 in - 1,9/16 in - 1.38in - 1.57in - 35.1mm - 39.9mm - 3/4 in (19.0mm) - 138 - TRI-30020-TB-138 - 30020-0138 - Fair - 2D PDF - 2D DXF - 3D STP - $3.76 232
1,1/2 in - 1,11/16 in - 1.50in - 1.69in - 38.1mm - 42.9mm - 3/4 in (19.0mm) - 150 - TRI-30020-TB-150 - 30020-0150 - Fair - 2D PDF - 2D DXF - 3D STP - $3.82 91
1,5/8 in - 1,7/8 in - 1.63in - 1.88in - 41.3mm - 47.8mm - 3/4 in (19.0mm) - 163 - TRI-30020-TB-163 - 30020-0163 - Fair - 2D PDF - 2D DXF - 3D STP - $3.86 150
1,3/4 in - 2 in - 1.75in - 2.00in - 44.5mm - 50.8mm - 3/4 in (19.0mm) - 175 - TRI-30020-TB-175 - 30020-0175 - Fair - 2D PDF - 2D DXF - 3D STP - $3.88 94
1,7/8 in - 2,3/16 in - 1.88in - 2.19in - 47.8mm - 55.6mm - 3/4 in (19.0mm) - 188 - TRI-30020-TB-188 - 30020-0188 - Fair - 2D PDF - 2D DXF - 3D STP - $3.93 90
2 in - 2,5/16 in - 2.00in - 2.31in - 50.8mm - 58.7mm - 3/4 in (19.0mm) - 200 - TRI-30020-TB-200 - 30020-0200 - Fair - 2D PDF - 2D DXF - 3D STP - $4.17 51
2,1/8 in - 2,7/16 in - 2.13in - 2.44in - 54.1mm - 62.0mm - 3/4 in (19.0mm) - 212 - TRI-30020-TB-212 - 30020-0212 - Fair - 2D PDF - 2D DXF - 3D STP - $4.21 104
2,1/4 in - 2,9/16 in - 2.25in - 2.56in - 57.2mm - 65.0mm - 3/4 in (19.0mm) - 225 - TRI-30020-TB-225 - 30020-0225 - Fair - 2D PDF - 2D DXF - 3D STP - $4.24 88
2,3/8 in - 2,11/16 in - 2.37in - 2.69in - 60.3mm - 68.3mm - 3/4 in (19.0mm) - 238 - TRI-30020-TB-238 - 30020-0238 - Fair - 2D PDF - 2D DXF - 3D STP - $4.26 44
2,1/2 in - 2,13/16 in - 2.50in - 2.81in - 63.5mm - 71.4mm - 3/4 in (19.0mm) - 250 - TRI-30020-TB-250 - 30020-0250 - Fair - 2D PDF - 2D DXF - 3D STP - $4.29 54
2,5/8 in - 2,15/16 in - 2.63in - 2.94in - 66.8mm - 74.7mm - 3/4 in (19.0mm) - 263 - TRI-30020-TB-263 - 30020-0263 - Fair - 2D PDF - 2D DXF - 3D STP - $4.32 88
2,3/4 in - 3,1/16 in - 2.75in - 3.06in - 69.9mm - 77.7mm - 3/4 in (19.0mm) - 275 - TRI-30020-TB-275 - 30020-0275 - Fair - 2D PDF - 2D DXF - 3D STP - $4.37 138
2,7/8 in - 3,3/16 in - 2.88in - 3.19in - 73.2mm - 81.0mm - 3/4 in (19.0mm) - 288 - TRI-30020-TB-288 - 30020-0288 - Fair - 2D PDF - 2D DXF - 3D STP - $4.39 69
3 in - 3,5/16 in - 3.00in - 3.31in - 76.2mm - 84.1mm - 3/4 in (19.0mm) - 300 - TRI-30020-TB-300 - 30020-0300 - Fair - 2D PDF - 2D DXF - 3D STP - $4.41 191
3,1/8 in - 3,7/16 in - 3.13in - 3.44in - 79.5mm - 87.4mm - 3/4 in (19.0mm) - 313 - TRI-30020-TB-313 - 30020-0313 - Fair - 2D PDF - 2D DXF - 3D STP - $4.50 46
3,1/4 in - 3,9/16 in - 3.25in - 3.56in - 82.6mm - 90.4mm - 3/4 in (19.0mm) - 325 - TRI-30020-TB-325 - 30020-0325 - Fair - 2D PDF - 2D DXF - 3D STP - $4.55 66
3,3/8 in - 3,11/16 in - 3.38in - 3.69in - 85.9mm - 93.7mm - 3/4 in (19.0mm) - 338 - TRI-30020-TB-338 - 30020-0338 - Fair - 2D PDF - 2D DXF - 3D STP - $4.60 35
3/12 in - 3,13/16 in - 3.50in - 3.81in - 88.9mm - 96.8mm - 3/4 in (19.0mm) - 350 - TRI-30020-TB-350 - 30020-0350 - Fair - 2D PDF - 2D DXF - 3D STP - $4.51 44
3,5/8 in - 3,15/16 in - 3.63in - 3.94in - 92.2mm - 100.1mm - 3/4 in (19.0mm) - 362 - TRI-30020-TB-362 - 30020-0362 - Fair - 2D PDF - 2D DXF - 3D STP - $4.54 47
3,3/4 in - 4,1/16 in - 3.75in - 4.06in - 95.3mm - 103.1mm - 3/4 in (19.0mm) - 375 - TRI-30020-TB-375 - 30020-0375 - Fair - 2D PDF - 2D DXF - 3D STP - $4.59 26
4 in - 4,5/16 in - 4.00in - 4.31in - 101.6mm - 109.5mm - 3/4 in (19.0mm) - 400 - TRI-30020-TB-400 - 30020-0400 - Fair - 2D PDF - 2D DXF - 3D STP - $4.64 24
4,1/4 in - 4,9/16 in - 4.25in - 4.56in - 108mm - 115.8mm - 3/4 in (19.0mm) - 425 - TRI-30020-TB-425 - 30020-0425 - Fair - 2D PDF - 2D DXF - 3D STP - $4.63 38
4,1/2 in - 4,13/16 in - 4.50in - 4.81in - 114.3mm - 122.2mm - 3/4 in (19.0mm) - 450 - TRI-30020-TB-450 - 30020-0450 - Fair - 2D PDF - 2D DXF - 3D STP - $4.75 62
4,3/4 in - 5,1/16 in - 4.75in - 5.06in - 120.7mm - 128.5mm - 3/4 in (19.0mm) - 475 - TRI-30020-TB-475 - 30020-0475 - Fair - 2D PDF - 2D DXF - 3D STP - $4.76 93
5 in - 5,5/16 in - 5.00in - 5.31in - 127mm - 134.9mm - 3/4 in (19.0mm) - 500 - TRI-30020-TB-500 - 30020-0500 - Fair - 2D PDF - 2D DXF - 3D STP - $5.08 37
5,1/4 in - 5,9/16 in - 5.25in - 5.56in - 133.4mm - 141.2mm - 3/4 in (19.0mm) - 525 - TRI-30020-TB-525 - 30020-0525 - Fair - 2D PDF - 2D DXF - 3D STP - $5.14 55
5,1/2 in - 5,13/16 in - 5.50in - 5.81in - 139.7mm - 147.6mm - 3/4 in (19.0mm) - 550 - TRI-30020-TB-550 - 30020-0550 - Fair - 2D PDF - 2D DXF - 3D STP - $5.20 50
5,3/4-6,1/16 in - 5.75in - 6.06in - 146mm - 153.9mm - 3/4 in (19.0mm) - 575 - TRI-30020-TB-575 - 30020-0575 - Fair - 2D PDF - 2D DXF - 3D STP - $5.07 50
6 in - 6,5/16 in - 6.00in - 6.31in - 152.4mm - 160.3mm - 3/4 in (19.0mm) - 600 - TRI-30020-TB-600 - 30020-0600 - Fair - 2D PDF - 2D DXF - 3D STP - $5.13 37
6,1/4 in - 6,9/16 in - 6.25in - 6.56in - 158.8mm - 166.6mm - 3/4 in (19.0mm) - 625 - TRI-30020-TB-625 - 30020-0625 - Fair - 2D PDF - 2D DXF - 3D STP - $5.12 46
6.1/2 in - 6,13/16 in - 6.50in - 6.81in - 165.1mm - 173mm - 3/4 in (19.0mm) - 650 - TRI-30020-TB-650 - 30020-0650 - Fair - 2D PDF - 2D DXF - 3D STP - $5.25 44
6,3/4 in - 7,1/16 in - 6.75in - 7.06in - 171.5mm - 179.3mm - 3/4 in (19.0mm) - 675 - TRI-30020-TB-675 - 30020-0675 - Fair - 2D PDF - 2D DXF - 3D STP - $5.30 44
7 in - 7,5/16 in - 7.00in - 7.31in - 177.8mm - 185.7mm - 3/4 in (19.0mm) - 700 - TRI-30020-TB-700 - 30020-0700 - Fair - 2D PDF - 2D DXF - 3D STP - $5.36 35
7,1/4 in - 7,9/16 in - 7.25in - 7.56in - 184.2mm - 192mm - 3/4 in (19.0mm) - 725 - TRI-30020-TB-725 - 30020-0725 - Fair - 2D PDF - 2D DXF - 3D STP - $5.69 30
7,1/2 in - 7,13/16 in - 7.50in - 7.81in - 190.5mm - 198.4mm - 3/4 in (19.0mm) - 750 - TRI-30020-TB-750 - 30020-0750 - Fair - 2D PDF - 2D DXF - 3D STP - $5.75 30
7,3/4 in - 8,1/16 in - 7.75in - 8.06in - 196.9mm - 204.7mm - 3/4 in (19.0mm) - 775 - TRI-30020-TB-775 - 30020-0775 - Fair - 2D PDF - 2D DXF - 3D STP - $5.81 30
8 in - 8,5/16 in - 8.00in - 8.31in - 203.2mm - 211.1mm - 3/4 in (19.0mm) - 800 - TRI-30020-TB-800 - 30020-0800 - Fair - 2D PDF - 2D DXF - 3D STP - $5.87 29
8,1/4 in - 8,9/16 in - 8.25in - 8.56in - 209.6mm - 217.4mm - 3/4 in (19.0mm) - 825 - TRI-30020-TB-825 - 30020-0825 - Fair - 2D PDF - 2D DXF - 3D STP - $5.93 21
8,1/2 in - 8,13/16 in - 8.50in - 8.81in - 215.9mm - 223.8mm - 3/4 in (19.0mm) - 850 - TRI-30020-TB-850 - 30020-0850 - Fair - 2D PDF - 2D DXF - 3D STP - $5.98 29

Description

Ideal Tridon's 3/4" (19mm) wide T-Bolt clamps provide uniform sealing pressure for a positive, reliable seal. Designed for use in high vibration and large diameter applications common in heavy trucks, industrial machinery, offroad equipment, agricultural irrigation and machinery. Features a 3/4" wide stainless-steel band, and welded construction for reliability.

These T-Bolt Clamps also have a channel style bridge which spreads the load more uniformly around the hose, improves the sealing and protection around the hose and prevents localised pinching or deformation.

Product Specification Sheet

Download

Specification

Manufactured By Ideal Tridon
HCL P/N TRI-30020-TB-X
Series Ideal Tridon T-Bolt
Corrosion Resistance Fair
Hose Clamp Width in/mm 3/4 in (19.0mm)
Band Style Lined Band
Band Material 301 Stainless Steel
Bolt/Screw Type Hex Nut
Bolt/Screw Material Zinc Plated Steel
Bolt/Screw Size 7/16" Hex Head
Band/Bridge/Turnion Material 301 Stainless Steel
Colour Silver
Tightening Torque 75 lbf-in (8.5 Nm) for most applications
Specification 1 SAE J1508
Country of Manufacture USA
Tariff Code 7326 90 92
RoHS Compliant Yes

Unwavering Security: Ideal Tridon ¾ Inch Vibration
Resistant T-Bolt Hose Clamp - 301 Stainless Steel Band, Galvanised Screw (35.0-186.0mm)

Ensure exceptionally secure and vibration-resistant
connections with the Ideal Tridon ¾ Inch T-Bolt Hose Clamp. Engineered for demanding applications where movement and vibration are prevalent, this clamp
features a robust T-bolt and nut closure system. The durable 301 stainless steel band offers good corrosion resistance, while the galvanized screw provides reliable strength across a wide size range of 35.0mm to 186.0mm (1.38-7.32in). The wider ¾ Inch band provides maximum clamping force for critical connections.

Why Choose the Ideal Tridon ¾ Inch Vibration Resistant T-Bolt Hose Clamp?

  • Superior Vibration Resistance: The T-bolt and nut closure provide a significantly stronger and more secure clamping force than worm gear clamps, resisting loosening due to vibration and movement.
  • High Clamping Force: The wider ¾ Inch band and robust closure system deliver exceptional clamping power, ideal for high-pressure applications.
  • Durable 301 Stainless Steel Band: Offers good corrosion resistance for a variety of industrial, automotive, and marine applications.
  • Reliable Galvanized Screw: Provides strength and corrosion resistance for the T-bolt assembly.
  • Wide Size Range: Covers diameters from 35.0mm to 186.0mm (1.38-7.32in), suitable for a broad range of heavy-duty hose and ducting applications.
  • Easy to Install and Adjust: The T-bolt design allows for straightforward installation and precise tightening with standard tools.
  • Trusted Ideal Tridon Quality: A reputable manufacturer known for producing high-performance and durable clamping solutions.

Perfect For:

  • Heavy-Duty Automotive and Trucking (Turbocharger Hoses, Exhaust Systems)
  • Industrial Machinery and Equipment
  • Agricultural Equipment
  • Applications subject to significant vibration and high pressure

Experience Unshakeable Connection Security:

The Ideal Tridon ¾ Inch Vibration Resistant T-Bolt Hose
Clamp is the ultimate solution for ensuring secure connections in demanding environments. The robust T-bolt and nut closure system provides a clamping
force far superior to traditional worm gear clamps, effectively preventing loosening caused by vibration, pressure surges, and thermal cycling. The wider
¾ Inch band distributes pressure evenly for a reliable, leak-free seal. The combination of a durable stainless-steel band and galvanized hardware ensures long-lasting performance in a variety of challenging applications.

Key Features:

  • Material: 301 Stainless Steel Band with Galvanized Steel T-Bolt and Nut
  • Bandwidth: ¾ Inch
  • Size Range: 35.0mm-186.0mm (1.38-7.32in)
  • Type: T-Bolt Hose Clamp
  • Superior Vibration Resistance
  • High Clamping Force for Secure Seals
  • Durable Construction for Demanding Applications

For unwavering security and reliable performance in
high-vibration and high-pressure environments, choose the Ideal Tridon ¾ Inch Vibration Resistant T-Bolt Hose Clamp. Ensure your critical connections remain secure – order yours today!
