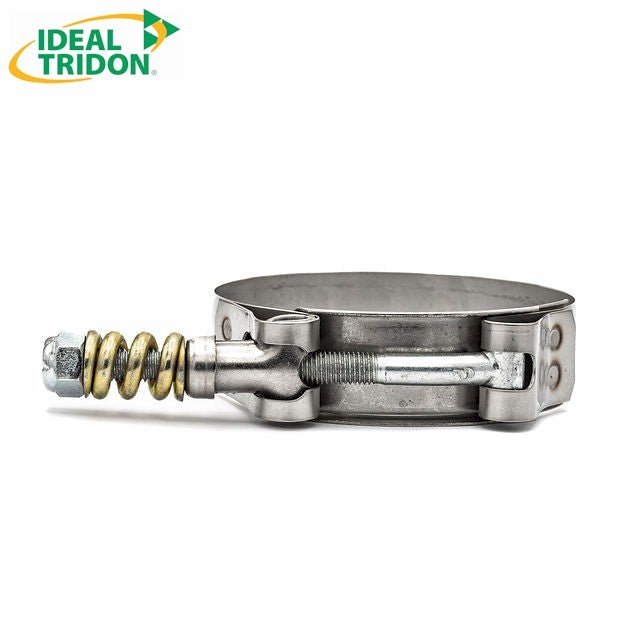

3/4” Ideal Tridon Vibration Resistant Channel Bridge T-Bolt Hose Clamp with Spring - 301 Stainless Steel Band, Galvanised Screw

3/4” Ideal Tridon Vibration Resistant Channel Bridge T-Bolt Hose Clamp with Spring - 301 Stainless Steel Band, Galvanised Screw

TRI-30030-TBSL-225

$5.40
$5.40
Sale Sold out
Shipping calculated at checkout.

Backorder
  • Free standard shipping. Next day delivery available. Find out more
View full details

Need advice? Talk to our expert customer support team

Call

281 7171145
Monday-Friday 8am to 4pm

Email

sales@hcl-clamping.com
Scroll
Clamp Dia In (fr) ?

Clamp Dia In (fr): The clamp's internal diameter listed as a fractional measurement in inches (e.g., 1, 1/2 in.).
Clamp Dia In ?

Clamp Dia In: The minimum to maximum inner diameter (in.) the clamp can securely cover, defining its usable size range.
Clamp Dia mm ?

Clamp Dia mm: The required metric size for a secure fit, indicating the outer diameter (in mm) of the component the clamp is meant to hold.
SAE No. ?

SAE No.: A number within a classification system established by SAE International
HCL P/N ?

HCL/ PN: The unique identifying number assigned to a part by HCL
MFG P/N ?

MFG P/N: The unique identifying number assigned to a part by its manufacturer.
2D PDF ?

2D PDF: A standard document format containing two-dimensional drawings.
2D DXF ?

2D DXF: A standard file format for exchanging two-dimensional Computer-Aided Design (CAD) drawings between different software programs.
3D STP ?

3D STEP: A standard file format used to exchange three-dimensional product model data between different CAD software programs.
Price ?

Price: The cost per unit

Stock ?

Stock: available products that can be purchased

Order Qty ?

Order Quantity: The total amount of units you wish to order

2,1/4 in - 2,9/16 in - 2.25in - 2.56in - 57.2mm - 65.0mm - 225 - TRI-30030-TBSL-225 - 30030-0225 - 2D PDF - 2D DXF - 3D STP - $5.40 0
2,3/4 in - 3,1/16 in - 2.75in - 3.06in - 69.9mm - 77.7mm - 275 - TRI-30030-TBSL-275 - 30030-0275 - 2D PDF - 2D DXF - 3D STP - $5.50 7
2,1/4 in - 2,9/16 in - 3.00in - 3.31in - 76.2mm - 84.1mm - 300 - TRI-30030-TBSL-300 - 30030-0300 - 2D PDF - 2D DXF - 3D STP - $5.57 115
3,1/16 in - 3,3/8 in - 3.06in - 3.37in - 77.7mm - 85.6mm - 306 - TRI-30030-TBSL-306 - 30030-0306 - 2D PDF - 2D DXF - 3D STP - $5.59 37
3,1/8 in - 3,7/16 in - 3.13in - 3.44in - 79.5mm - 87.4mm - 313 - TRI-30030-TBSL-313 - 30030-0313 - 2D PDF - 2D DXF - 3D STP - $5.60 23
3,1/4 in - 3,9/16 in - 3.25in - 3.56in - 82.6mm - 90.4mm - 325 - TRI-30030-TBSL-325 - 30030-0325 - 2D PDF - 2D DXF - 3D STP - $5.60 26
3,3/8 in - 3,11/16 in - 3.38in - 3.69in - 85.9mm - 93.7mm - 338 - TRI-30030-TBSL-338 - 30030-0338 - 2D PDF - 2D DXF - 3D STP - $5.68 36
3,1/2 in - 3,13/16 in - 3.50in - 3.81in - 88.9mm - 96.8mm - 350 - TRI-30030-TBSL-350 - 30030-0350 - 2D PDF - 2D DXF - 3D STP - $5.63 46
3,9/16 in - 3,7/8 in - 3.56in - 3.87in - 90.4mm - 98.3mm - 356 - TRI-30030-TBSL-356 - 30030-0356 - 2D PDF - 2D DXF - 3D STP - $5.72 115
3,5/8 in - 3,5/16 in - 3.63in - 3.94in - 92.2mm - 100.1mm - 363 - TRI-30030-TBSL-363 - 30030-0363 - 2D PDF - 2D DXF - 3D STP - $5.68 43
3,3/4 in - 4,1/16 in - 3.75in - 4.06in - 95.3mm - 103.1mm - 375 - TRI-30030-TBSL-375 - 30030-0375 - 2D PDF - 2D DXF - 3D STP - $5.94 30
4 in - 4,5/16 in - 4.00in - 4.31in - 101.6mm -109.5mm - 400 - TRI-30030-TBSL-400 - 30030-0400 - 2D PDF - 2D DXF - 3D STP - $5.81 40
4,1/16 in - 4,3/8 in - 4.06in - 4.37in - 103.1mm - 111.0mm - 406 - TRI-30030-TBSL-406 - 30030-0406 - 2D PDF - 2D DXF - 3D STP - $5.80 35
4,1/4 in - 4,9/16 in - 4.25in - 4.56in - 108.0mm - 115.8mm - 425 - TRI-30030-TBSL-425 - 30030-0425 - 2D PDF - 2D DXF - 3D STP - $5.81 111
4,1/2 in - 4,13/16 in - 4.50in - 4.81in - 114.3mm - 122.2mm - 450 - TRI-30030-TBSL-450 - 30030-0450 - 2D PDF - 2D DXF - 3D STP - $5.94 91
4,9/16 in - 4,7/8 in - 4.56in - 4.87in - 115.8mm - 123.7mm - 456 - TRI-30030-TBSL-456 - 30030-0456 - 2D PDF - 2D DXF - 3D STP - $5.95 49
4,3/4 in - 5,5/16 in - 4.75in - 5.31in - 120.7mm - 134.9mm - 475 - TRI-30030-TBSL-475 - 30030-0475 - 2D PDF - 2D DXF - 3D STP - $6.56 45
5 in - 5,5/16 in - 5.00in - 1.37in - 127.0mm -134.9mm - 500 - TRI-30030-TBSL-500 - 30030-0500 - 2D PDF - 2D DXF - 3D STP - $6.63 50
5,1/16 in - 5,3/8 in - 5.06in - 5.37in - 128.5mm - 136.4mm - 506 - TRI-30030-TBSL-506 - 30030-0506 - 2D PDF - 2D DXF - 3D STP - $6.36 50
5,1/4 in - 5,9/16 in - 5.25in - 5.56in - 133.4mm - 141.2mm - 525 - TRI-30030-TBSL-525 - 30030-0525 - 2D PDF - 2D DXF - 3D STP - $6.43 50
5,1/2 in - 5,13/16 in - 5.50in - 5.81in - 139.7mm - 147.6mm - 550 - TRI-30030-TBSL-550 - 30030-0550 - 2D PDF - 2D DXF - 3D STP - $6.50 48
5,3/4 in - 6,1/16 in - 5.75in - 6.06in - 146.1mm - 153.9mm - 575 - TRI-30030-TBSL-575 - 30030-0575 - 2D PDF - 2D DXF - 3D STP - $6.35 50
6,1/4 in - 6,9/16 in - 6.25in - 6.56in - 158.8mm - 166.6mm - 625 - TRI-30030-TBSL-625 - 30030-0625 - 2D PDF - 2D DXF - 3D STP - $6.49 50
6,1/2 in - 6,13/16 in - 6.50in - 6.81in - 165.1mm - 173.0mm - 650 - TRI-30030-TBSL-650 - 30030-0650 - 2D PDF - 2D DXF - 3D STP - $6.56 50
7,1/2 in - 7,13/16 in - 7.50in - 7.81in - 190.5mm - 198.4mm - 750 - TRI-30030-TBSL-750 - 30030-0750 - 2D PDF - 2D DXF - 3D STP - $6.86 30

Description

Ideal Tridon's 3/4" (19mm) wide 30030 Channel Bridge Spring Loaded T-Bolt clamps provide uniform sealing pressure for a positive, reliable seal where there is a need for constant tension performance. Designed for use in high vibration and large diameter applications common in heavy trucks, industrial machinery, off-road equipment, agricultural irrigation and machinery. Features a spring-loaded t-bolt assembly, a 3/4" wide stainless steel band and welded construction for reliability. Custom OEM designs can be developed for volume applications. Available in standard spring and heavy-duty.

These T-Bolt Clamps also have a channel style bridge which spreads the load more uniformly around the hose, improves the sealing and protection around the hose and prevents localised pinching or deformation.

Product Specification Sheet

Download

Specification

Manufactured By Ideal Tridon
HCL P/N TRI-30030-TBSL-X
Series Ideal Tridon T-Bolt with Spring
Corrosion Resistance Fair
Hose Clamp Width in/mm 3/4 in (19.0mm)
Band Style Lined Band
Band Material 301 Stainless Steel
Bolt/Screw Type Hex Nut
Bolt/Screw Material Zinc Plated Steel
Bolt/Nut Material Plated Carbon Steel
Bolt/Screw Size 7/16" Hex Head
Band/Bridge/Turnion Material 301 Stainless Steel
Spring Material Steel
Colour Silver
Tightening Torque 75 lbf-in (8.5 Nm) for most applications
Specification 1 SAE J1508
Country of Manufacture USA
Tariff Code 7326 90 92
RoHS Compliant Yes

HCL 3/4in T-Bolt Hose Clamp - 301SS Band | High-Strength Clamping (3, 1/2 - 8, 1/16 in.)

Secure your most demanding high-pressure and heavy-duty hose connections with the HCL 3/4 Inch T-Bolt Hose Clamp. Featuring a robust 301
Stainless Steel band and a strong galvanised screw, this clamp is engineered to provide superior sealing integrity across a wide diameter range of 89.0-205.0mm.

Why Choose This HCL T-Bolt Clamp?

  • High-Strength T-Bolt Design: The heavy-duty T-Bolt mechanism provides a significantly higher clamping force than traditional worm-drive clamps. This makes it the ideal choice for applications involving high pressure, heavy vibration, or aggressive boost and air-intake systems.
  • Durable 301 Stainless Steel Band: The wide 3/4 inch band is constructed from 301 stainless steel, offering excellent resistance to corrosion, rust, and
    scaling. It provides high tensile strength for long-term, reliable performance in harsh environments.
  • Wide Clamping Versatility: Designed to fit a broad range of hose diameters, this clamp covers 89.0mm to 205.0mm.
  • Metric: - 89.0 - 205.0 mm
  • Imperial:- 3, 1/2 - 8, 1/16 in.
  • Galvanised Screw Assembly: The galvanised screw and nut provide a strong and durable fastening point, ensuring the T-Bolt mechanism can be tightened effectively to achieve maximum seal compression.
  • Even Pressure Distribution: The wide 3/4-inch band ensures the clamping force is distributed evenly around the hose, preventing damage and
    achieving a consistent, leak-proof seal.

Perfect For:

  • Heavy-Duty Automotive and Truck Applications (e.g., turbo hoses, coolant lines).
  • Industrial Machinery and Fluid Transfer (high-pressure systems).
  • Agricultural and Construction Equipment.
  • Any application requiring a strong, reliable, large-diameter connection.

Secure your high-pressure lines with confidence and
strength. Order the HCL 3/4in T-Bolt Hose Clamp today!
