Sale
  • Breeze Power-Seal Worm Gear Hose Clamp | 1/2 in 300SS Band-ZP Screw 7/16-25/32in (11-20mm) - HCL Clamping USA - Image 1
1 1

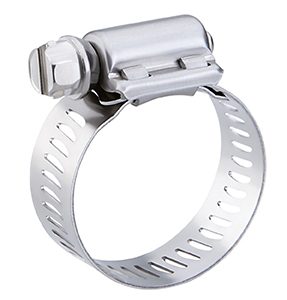

Breeze Power-Seal Worm Gear Hose Clamp | 1/2 in 300SS Band-ZP Screw

Breeze Power-Seal Worm Gear Hose Clamp | 1/2 in 300SS Band-ZP Screw

BZ-PS-62-6

$0.78
$0.78
Sale Sold out
Shipping calculated at checkout.

800 in stock
  • Free standard shipping. Next day delivery available. Find out more
View full details

Need advice? Talk to our expert customer support team

Call

281 7171145
Monday-Friday 8am to 4pm

Email

sales@hcl-clamping.com
Scroll
Clamp Dia In (fr) ?

Clamp Dia In (fr): The clamp's internal diameter listed as a fractional measurement in inches (e.g., 1, 1/2 in.).
Clamp Dia In ?

Clamp Dia In: The minimum to maximum inner diameter (in.) the clamp can securely cover, defining its usable size range.
Clamp Dia mm ?

Clamp Dia mm: The required metric size for a secure fit, indicating the outer diameter (in mm) of the component the clamp is meant to hold.
Band Width ?

Band Width: The measurement of the clamp's band or strap, indicating its width (often in mm or inches) and how much surface area it covers.
SAE No. ?

SAE No.: A number within a classification system established by SAE International
HCL P/N ?

HCL/ PN: The unique identifying number assigned to a part by HCL
MFG P/N ?

MFG P/N: The unique identifying number assigned to a part by its manufacturer.
Corrosion Res ?

Corrosion Resistance: Refers to a material's ability to resist deterioration or damage caused by chemical reactions with its environment, such as rusting.
Price ?

Price: The cost per unit

Stock ?

Stock: available products that can be purchased

Order Qty ?

Order Quantity: The total amount of units you wish to order

7/16-25/32in - 0.44-0.78in - 11-20mm - 1/2in - 6 - BZ-PS-62-6 - 62006H - Very Good - $0.78 800
1/2-29/32in - 0.50-0.91in - 13-23mm - 1/2in - 8 - BZ-PS-62-8 - 62008H - Very Good - $0.78 800
9/16-1 1/16in - 0.56-1.06in - 14-27mm - 1/2in - 10 - BZ-PS-62-10 - 62010H - Very Good - $0.79 1000
11/16-1 1/4in - 0.69-1.25in - 18-32mm - 1/2in - 12 - BZ-PS-62-12 - 62012H - Very Good - $0.79 999
13/16-1 1/2in - 0.81-1.50in - 21-38mm - 1/2in - 16 - BZ-PS-62-16 - 62016H - Very Good - $0.82 1000
13/16-1 3/4in - 0.81-1.75in - 21-44mm - 1/2in - 20 - BZ-PS-62-20 - 62020H - Very Good - $0.84 1000
1 1/16-2in - 1.06-2.00in - 27-51mm - 1/2in - 24 - BZ-PS-62-24 - 62024H - Very Good - $0.85 999
1 5/16-2 1/4in - 1.31-2.25in - 33-57mm - 1/2in - 28 - BZ-PS-62-28 - 62028H - Very Good - $0.86 1000
1 9/16-2 1/2in - 1.56-2.50in - 40-64mm - 1/2in - 32 - BZ-PS-62-32 - 62032H - Very Good - $0.87 500
1 13/16-2 3/4in - 1.81-2.75in - 46-70mm - 1/2in - 36 - BZ-PS-62-36 - 62036H - Very Good - $0.91 500
2 1/16-3in - 2.06-3.00in - 52-76mm - 1/2in - 40 - BZ-PS-62-40 - 62040H - Very Good - $1.19 400
2 5/16-3 1/4in - 2.31-3.25in - 59-83mm - 1/2in - 44 - BZ-PS-62-44 - 62044H - Very Good - $1.21 400
2 9/16-3 1/2in - 2.56-3.50in - 65-89mm - 1/2in - 48 - BZ-PS-62-48 - 62048H - Very Good - $1.25 400
2 13/16-3 3/4in - 2.81-3.75in - 71-95mm - 1/2in - 52 - BZ-PS-62-52 - 62052H - Very Good - $1.27 400
3 1/16-4in - 3.06-4.00in - 78-102mm - 1/2in - 56 - BZ-PS-62-56 - 62056H - Very Good - $1.29 400
3 5/16-4 1/4in - 3.31-4.25in - 84-108mm - 1/2in - 60 - BZ-PS-62-60 - 62060H - Very Good - $1.32 400
3 9/16-4 1/2in - 3.56-4.50in - 91-114mm - 1/2in - 64 - BZ-PS-62-64 - 62064H - Very Good - $1.50 400
1 7/8-5in - 1.88-5.00in - 48-127mm - 1/2in - 72 - BZ-PS-62-72 - 62072H - Very Good - $1.88 400
2 3/8-5 1/4in - 2.38-5.25in - 61-134mm - 1/2in - 76 - BZ-PS-62-76 - 62076H B - Very Good - $1.86 400
2 1/2-5 1/2in - 2.50-5.50in - 64-140mm - 1/2in - 80 - BZ-PS-62-80 - 62080H - Very Good - $2.04 400
3 1/8-6in - 3.13-6.00in - 79-152mm - 1/2in - 88 - BZ-PS-62-88 - 62088H - Very Good - $2.20 400
3 5/8-6 1/2in - 3.63-6.50in - 92-165mm - 1/2in - 96 - BZ-PS-62-96 - 62096H - Very Good - $2.36 300
4 1/8-7in - 4.13-7.00in - 105-178mm - 1/2in - 104 - BZ-PS-62-104 - 62104H - Very Good - $2.38 300

Description

The Breeze Power-Seal® 62000 Series is a general purpose worm-gear hose clamp built for automotive and industrial applications. Featuring a 1/2" stainless steel band with arcial perforations, Quadra-Lock two-piece housing construction, and a 5/16" plated hex screw, it meets SAE Standard J1508 Type F and covers a diameter range of 7/16" to 7". Stocked and shipped from Houston, TX.

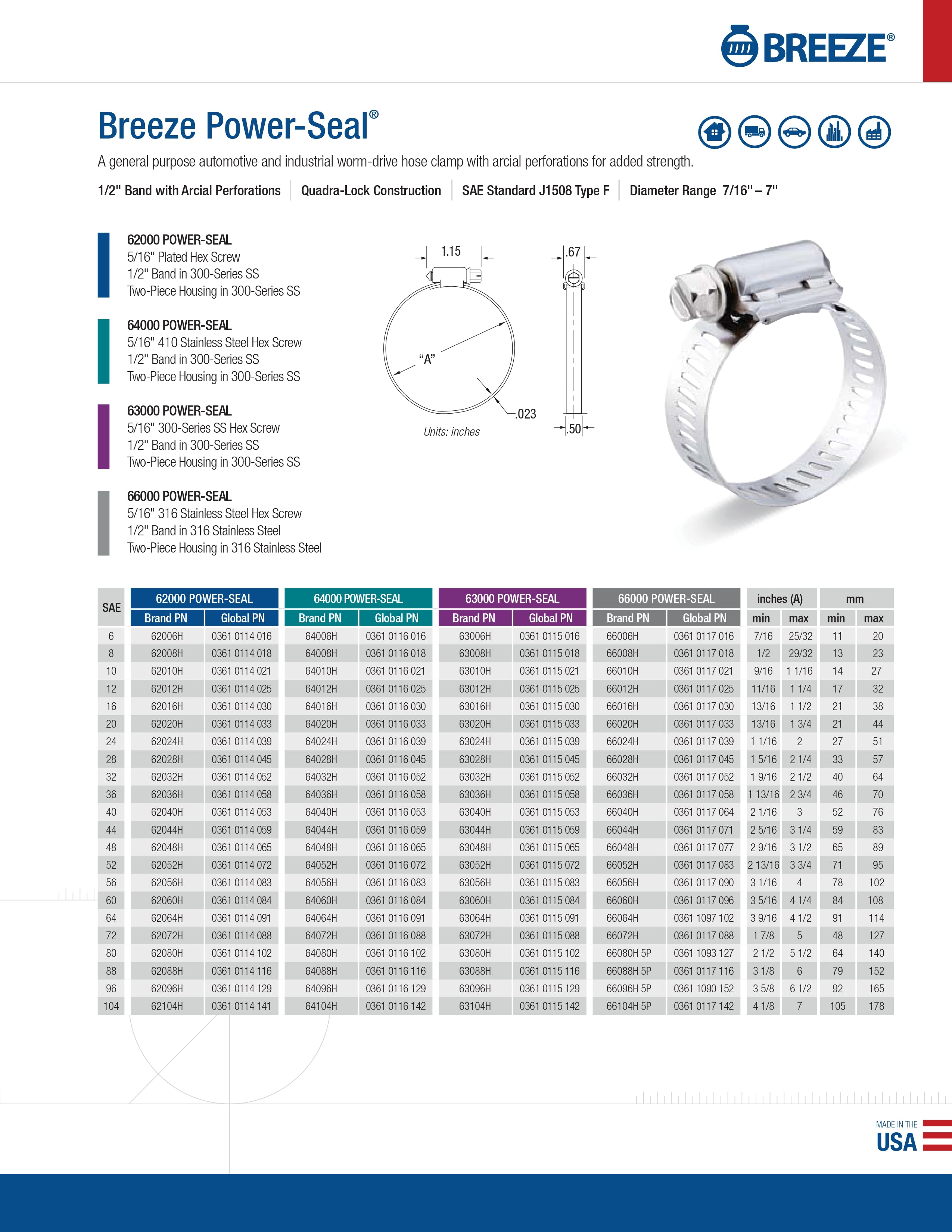

Product Specification Sheet

Download

Specification

Manufactured By Breeze
HCL P/N BZ-PS-62-X
Series 62000 Power Seal
Corrosion Resistance Average
Hose Clamp Width in/mm 1/2 in (12.7mm)
Band Style Perforated Band
Band Material 300 Stainless Steel
Housing Material 300 Series Stainless Steel
Bolt/Screw Type Slotted Hex
Bolt/Screw Material Zinc Plated
Bolt/Screw Size 5/16" Hex Head
Chemical Resistance Average
Colour Silver
Tightening Torque 35 lbf-in (4 Nm) for most applications
Specification 1 SAE J1508 Type F
Country of Manufacture USA
Tariff Code 7326 90 92
RoHS Compliant Yes

Breeze Power-Seal® 62000 Series Worm Drive Hose Clamp — 300-Series Stainless Steel Band

The Breeze Power-Seal® 62000 is one of the most widely used general purpose worm-drive hose clamps in the US automotive and industrial markets. Manufactured by Breeze, a leader in perforated hose clamps made in the USA, the 62000 series is engineered to deliver consistent clamping force across a broad range of hose sizes and applications.

Construction & Materials

The 62000 features a 1/2" wide band and two-piece housing, both in 300-Series stainless steel, providing solid corrosion resistance in general industrial and automotive environments. The screw is a 5/16" plated hex drive — compatible with standard hex drivers and nut runners for faster installation. The arcial perforations across the band are a defining feature of the Power-Seal design, increasing the grip between band and hose to deliver a more secure, even seal compared to a solid-band clamp.

Quadra-Lock Construction

The Quadra-Lock two-piece housing design locks the band in place through four engagement points, preventing screw walk-out and maintaining clamp position during vibration or pressure cycling. This makes the 62000 well-suited not just to static installations but to under-hood and high-vibration environments where clamp movement is a concern.

Standards & Compliance

Meets SAE Standard J1508 Type F — the benchmark specification for worm-drive hose clamps used in OEM coolant, fuel, oil, vacuum, and emissions systems across automotive and industrial applications.

Diameter Range

Available across a full range from 7/16" to 7", covering the majority of common hose sizes in automotive, HVAC, marine, and general industrial use.

Typical Applications

  • Automotive coolant and radiator hose connections
  • General industrial fluid and air lines
  • HVAC and refrigeration hose connections
  • Marine and outdoor equipment
  • Agricultural and off-highway equipment
