Swivel Head and Wing-Nut Hose Clamps: Tightening in Confined Spaces

Standard worm drive clamps require straight-on screwdriver access perpendicular to the screw head — a clearance that isn't always available in tight engine bays, behind bulkheads, or in cramped industrial installations. Two clamp designs in HCL's range address this problem directly: swivel/tilted screw head clamps (the housing rotates to present the screw at an angle, allowing a screwdriver to reach connections that a straight-on approach cannot); and wing-nut clamps (hand-tightenable without any tool at all). Both are in HCL's other screw hose clamps and Ideal Tridon ranges.

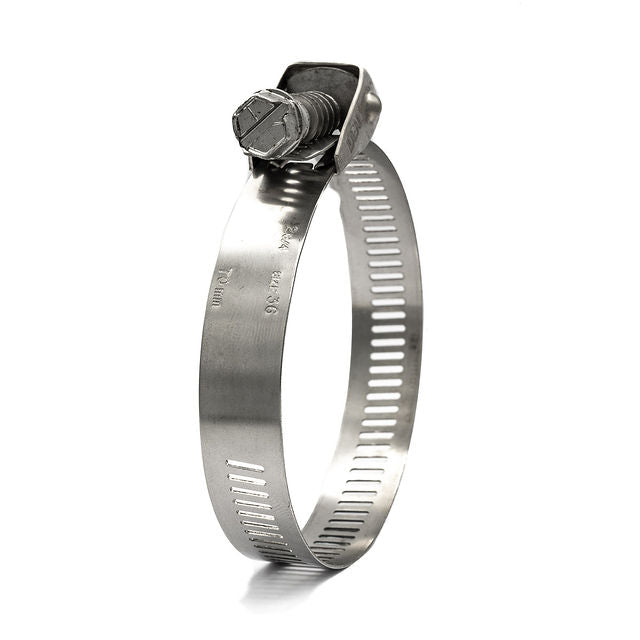

Swivel and Tilted Screw Head Clamps: The Confined Space Solution

The Ideal Tridon SnapLock and tilted-head worm drive clamp designs feature a screw housing that either rotates freely around the band or is fixed at an angle offset from perpendicular — allowing the screwdriver to approach the screw from a different angle than the standard 90° to the hose centreline:

• How it works: In a standard worm drive clamp, the screw housing is fixed at 90° to the band; tightening requires screwdriver access directly perpendicular to the clamp face. In a tilted or swivel head design, the housing is angled or rotatable — the screw can be reached from a 30–45° offset, which opens up access in spaces where the direct approach is blocked by engine components, body panels, or adjacent pipes
• Primary application: Automotive engine bay hose connections where the factory routing places the clamp screw facing a bulkhead or adjacent component; HVAC duct connections in tight ceiling plenum spaces; marine engine room hose connections where bilge pump or filter hose access is obstructed
• HCL supply: Ideal Tridon SnapLock tilted-head design in W4 (304SS) — all-stainless band, housing, and screw; the W4 all-stainless specification is important even for the "access" angle feature, since a zinc-plated screw in a confined engine bay space with humidity and road salt will seize within one winter just as on any standard clamp

See our automotive guide for the engine bay access context and our W4 guide for the all-stainless screw specification.

Wing-Nut Clamps: Tool-Free Hand Tightening

Wing-nut clamps replace the 7mm hex screw head with a hand-turnable wing that allows tightening and loosening without any screwdriver or nut driver — useful in applications where the clamp is adjusted or removed frequently and tool access is inconvenient:

• Applications: Temporary connections during system commissioning or testing where repeated access is needed before final tightening; workshop equipment where hose connections are changed between setups; agricultural irrigation connections that are reconfigured seasonally; laboratory benchtop equipment where flexible tubing connections are regularly swapped between experiments
• Limitation: Hand tightening provides lower and less consistent clamping force than tool-tightened connections; wing-nut clamps are not appropriate for high-pressure connections, connections subject to sustained vibration, or any safety-critical fluid connection where defined torque is required
• HCL supply: Wing-nut clamps in W4 (304SS) for general-purpose workshop and agricultural use

Compared to Standard Worm Drive Clamps

Feature	Standard Worm Drive	Swivel/Tilted Head	Wing-Nut
Access requirement	Straight-on perpendicular	Angled / offset approach	No tool required
Clamping force	Full defined torque	Full defined torque	Hand-tightened only
Best for	All general applications	Confined engine bay, bulkhead	Frequent removal, workshop use
Vibration resistance	Good (W4 all-stainless)	Good	Limited — check regularly
HCL grade	W1, W2, W4, W5	W4 (304SS)	W4 (304SS)

What Swivel Action Clamps Are Not

The term "swivel action clamp" is sometimes applied in industrial contexts to hydraulic and pneumatic swivel fittings — rotating union connectors that allow a hose to rotate relative to its fitting under continuous movement (robot arm hydraulics, cable reel outlets). These are a completely different product category — precision machined hydraulic fittings, not hose clamps — and are outside HCL's standard range. For hydraulic swivel unions, consult specialist hydraulic fitting distributors (Parker Hannifin, Eaton, Swagelok hydraulic).

For hose connections that must accommodate continuous rotation or articulation, the correct HCL approach is constant tension clamps for thermal cycling and spring hose clamps for connections that flex without full rotation. See our vibration resistance guide.

Selection and Installation Notes

• Size selection: Swivel head and wing-nut clamps follow the same diameter sizing as standard worm drive; measure hose OD and select a clamp whose range straddles it. See our sizing guide.
• Torque: For swivel/tilted head clamps, tighten to the same torque as an equivalent standard worm drive of the same width and diameter — the angled screw head changes the access geometry but not the clamping force required. See our torque specifications guide.
• Wing-nut check interval: Inspect wing-nut clamps at every maintenance interval and re-tighten by hand if any loosening is detected; do not use wing-nut clamps on connections where loosening could cause fluid leakage or safety hazard without regular inspection access

Conclusion

For confined space hose clamp access, Ideal Tridon SnapLock tilted-head clamps in W4 solve the screwdriver clearance problem without compromising clamping force or corrosion resistance. Wing-nut clamps cover frequent-removal workshop and agricultural applications where tool-free hand tightening is the priority. Browse Ideal Tridon SnapLock clamps, wing-nut clamps, and standard W4 worm drive clamps, or contact our Houston team at (281) 717-1145 for guidance on the right clamp format for your specific access constraint.
