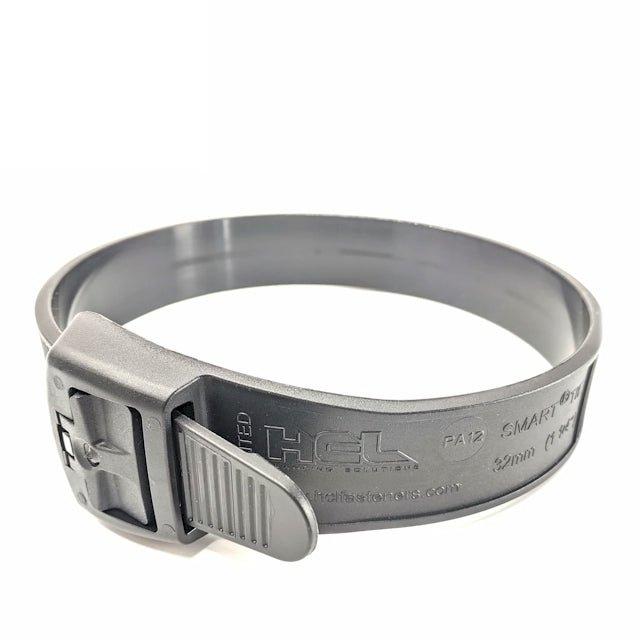

Polymer Hose Clamps: Herbie Clip, Ezyclik, and Ezyclamp — HCL's Non-Metallic Range

Polymer hose clamps eliminate every corrosion failure mode of metallic clamps: no zinc to consume, no passive layer to pit, no galvanic couple between dissimilar metals. HCL's polymer hose clamp range centres on three products — Herbie Clip PA66 (ratchet snap-fit, the most widely used non-metallic hose clamp in HCL's range), Ezyclik PA66 (low-profile snap-fit for tight-clearance installations), and Ezyclamp POM/PA12 (worm drive in engineering polymer — band and housing entirely non-metallic). All three are available in the main polymer hose clamps collection.

Why Choose Polymer Over Stainless?

The cases where polymer clamps are the correct specification over W4 or W5 stainless:

• Zero metallic ion contamination: Semiconductor ultra-pure water (UPW) systems, pharmaceutical laboratory analytical chemistry, reef aquarium coral zones — any application where trace metal ions from a stainless clamp would contaminate the fluid or affect a measurement; polymer clamps introduce no metallic ions regardless of fluid pH or chemistry
• Galvanic isolation required: EV battery coolant connections where a stainless clamp creates a conductive path to the battery cell; cathodic protection-compatible offshore cable attachment where metallic banding would disrupt CP current distribution; polymer eliminates the galvanic couple entirely
• Food and drug compliance: FDA 21 CFR 177 polymer compliance for indirect food and drug contact without the need for 3.1 material certification or metallic leachable testing
• Weight reduction: Aerospace MRO, EV vehicle design, robotics — polymer clamps are approximately 85% lighter than equivalent W4 stainless clamps

Polymer clamps are not a universal substitute for stainless — pressure capability, temperature range, and mechanical strength are lower. See the limitations section below. See our corrosion mechanisms guide for when metallic grades still outperform polymer.

Herbie Clip PA66: The Primary HCL Polymer Hose Clamp

Herbie Clip PA66 — a ratchet snap-fit clamp in Nylon 6.6 (PA66) — is the most widely specified polymer hose clamp in HCL's US range. Key properties:

• Material: PA66 (Nylon 6.6) — good chemical resistance to aqueous solutions, oils, and mild solvents; FDA 21 CFR 177.1500 (polyamide resins) for food and drug indirect contact compliance; USP Class VI evaluable for medical device proximity
• Temperature range: -40°F to 338°F (-40°C to 170°C)
• Grades: Natural (unpigmented) PA66 for laboratory and pharmaceutical applications; black UV-stabilized PA66 for outdoor, horticultural grow-room, and any installation under UV light exposure; glass-filled PA66 for higher clamping force on stiffer hose
• Mechanism: Ratchet snap-fit — clips together by hand during installation (audible click confirms engagement); releases with a flat-blade screwdriver; reusable across many open/close cycles
• Applications: Semiconductor fab UPW distribution, pharmaceutical pilot plant, laboratory circulation bath and peristaltic pump tubing, reef aquarium, indoor horticulture fertigation, EV battery thermal management coolant connections

See our PA66 material guide.

Ezyclik: Low-Profile Snap-Fit

Ezyclik PA66 provides the same non-metallic snap-fit functionality as Herbie Clip in a lower-profile format — the reduced band height fits in tight-clearance installations where Herbie Clip's taller profile would foul adjacent components:

• Same PA66 material specification as Herbie Clip — same FDA, USP, and temperature ratings
• Lower clamping force than Herbie Clip of the same diameter — appropriate for soft, thin-wall tubing at low pressure; not for stiff large-diameter hose where the higher retention of Herbie Clip is needed
• Applications: tight instrument bay connections, pharmaceutical sump cabinet plumbing, under-bench laboratory installations, HVAC tight-space condensate connections

Ezyclamp: Worm Drive in Engineering Polymer

Ezyclamp is a worm drive hose clamp where both the band and the housing/screw assembly are engineered polymer — POM (Polyoxymethylene/Acetal) or PA12. This provides:

• Worm drive adjustability across a diameter range — unlike snap-fit clamps which are size-specific, Ezyclamp covers a range in the same clamp; useful where exact hose OD is not precisely known or where multiple sizes must be covered by a single SKU
• Higher clamping force than snap-fit — the worm drive mechanism allows progressive tightening to higher radial force than a snap-fit engagement; appropriate for stiffer tubing or higher-pressure polymer connections
• POM (Acetal): High stiffness, good dimensional stability, low friction in the worm drive thread — makes for a smooth-tightening all-polymer worm drive; good chemical resistance to fuels and oils. See our Acetal POM guide.
• PA12: Better cold-temperature flexibility than PA66 (-40°F service with minimal embrittlement) and lower moisture absorption; preferred for outdoor cold-climate polymer worm drive connections. See our PA12 guide.
• Applications: chemical processing non-metallic connections, EV non-conductive connections, food contact low-pressure polymer tubing, outdoor irrigation where lightweight and non-metallic are both required

Polymer Selection by Application

Application	HCL Polymer Product	Key Material Property
Semiconductor UPW / pharma lab	Herbie Clip PA66 natural	Zero metallic ions; FDA 21 CFR 177.1500
Outdoor / UV exposure / grow rooms	Herbie Clip PA66 black UV-stabilized	UV resistance; no embrittlement under grow lights
Tight-clearance installations	Ezyclik PA66 low-profile	Lower band height; same PA66 compliance
Cold climate outdoor (-40°F)	Ezyclamp PA12	Cold flexibility; low moisture absorption
Chemical / fuel resistance	Ezyclamp POM (Acetal)	Fuel and oil resistance; dimensional stability
Frequent removal / reconfiguration	Herbie Clip / Ezyclik (snap-fit)	Tool-free release; reusable
Higher pressure / adjustable range	Ezyclamp worm drive	Progressive tightening; adjustable diameter range

Limitations of Polymer Hose Clamps

Polymer clamps are not always the correct choice — knowing where they fall short is as important as knowing when to use them:

• Pressure: Maximum working pressure significantly lower than W4/W5 stainless; polymer clamps are appropriate for low-to-medium pressure flexible tubing connections, not for automotive cooling (sustained vibration + elevated pressure), fire apparatus pump connections, or offshore process lines
• Temperature: PA66 is rated to 338°F (170°C) — above this, stainless constant tension clamps are required; not suitable for exhaust-adjacent connections, high-temperature process steam, or engine bay connections near the exhaust manifold
• UV without stabilisation: Unstabilised natural PA66 embrittles within one to two seasons of direct UV exposure outdoors; always specify black UV-stabilized grade for outdoor installations
• Sustained vibration: Snap-fit polymer clamps can ratchet loose under sustained high-frequency vibration; stainless worm drive or constant tension is correct for high-vibration environments. See our vibration resistance guide.

Frequently Asked Questions: Polymer Hose Clamps

Are Herbie Clip PA66 clamps food-safe?

PA66 (Nylon 6.6) complies with FDA 21 CFR 177.1500 (polyamide resins) for indirect contact with food and drug products. This makes Herbie Clip PA66 appropriate for connections adjacent to food and beverage products — drip irrigation fertigation manifolds, food processing non-product-contact utility connections, and pharmaceutical laboratory equipment. For direct food contact (the clamp submerged in or continuously wetted by the food product itself) confirm with HCL for the specific extraction and leachable data for the grade and application.

Can polymer clamps be used in saltwater marine applications?

Yes — polymer clamps are inert in seawater and provide a corrosion-free alternative to stainless in any marine environment. Herbie Clip PA66 and Ezyclik PA66 are appropriate for low-pressure marine connections such as aquarium hose connections, reef tank plumbing, and recreational vessel water connections where the low-pressure snap-fit capability is sufficient. For engine cooling, bilge pump, and fuel line connections under higher pressure and vibration on saltwater vessels, W5 (316SS) worm drive clamps remain the correct specification — the pressure and vibration resistance of a snap-fit polymer clamp is not sufficient for these marine applications.

What is the difference between Herbie Clip and Ezyclamp?

Herbie Clip is a snap-fit design — it clips closed by hand and opens with a screwdriver lever; quick-release and reusable; size-specific to a narrow diameter band. Ezyclamp is a worm drive design in engineering polymer — tightened with a screwdriver like a standard worm drive but entirely non-metallic (band, housing, and screw all polymer); adjustable across a diameter range; higher clamping force than snap-fit. Use Herbie Clip where quick release and non-metallic are both priorities; use Ezyclamp where the worm drive's progressive tightening and diameter range flexibility are more important than tool-free release.
