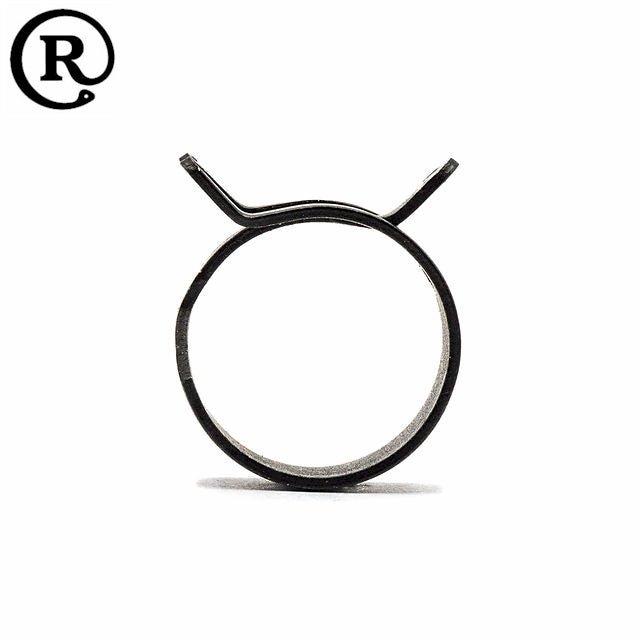

Rotor Clip Light Duty Spring Band Steel Hose Clamp / Clip - Black

Rotor Clip Light Duty Spring Band Steel Hose Clamp / Clip - Black

CTL-7.7-W1

$0.06
$0.11 $0.06
Sale Sold out
Shipping calculated at checkout.

504 in stock
  • Free standard shipping. Next day delivery available. Find out more
View full details

Need advice? Talk to our expert customer support team

Call

281 7171145
Monday-Friday 8am to 4pm

Email

sales@hcl-clamping.com
Scroll
Clamp Dia In (fr) ?

Clamp Dia In (fr): The clamp's internal diameter listed as a fractional measurement in inches (e.g., 1, 1/2 in.).
Clamp Dia In ?

Clamp Dia In: The minimum to maximum inner diameter (in.) the clamp can securely cover, defining its usable size range.
Clamp Dia mm ?

Clamp Dia mm: The required metric size for a secure fit, indicating the outer diameter (in mm) of the component the clamp is meant to hold.
Band Width ?

Band Width: The measurement of the clamp's band or strap, indicating its width (often in mm or inches) and how much surface area it covers.
HCL P/N ?

HCL/ PN: The unique identifying number assigned to a part by HCL
MFG P/N ?

MFG P/N: The unique identifying number assigned to a part by its manufacturer.
Reusable ?

Reusable: Yes / No response If product can or cant be reused.

Colour
Corrosion Res ?

Corrosion Resistance: Refers to a material's ability to resist deterioration or damage caused by chemical reactions with its environment, such as rusting.
Price ?

Price: The cost per unit

Stock ?

Stock: available products that can be purchased

Order Qty ?

Order Quantity: The total amount of units you wish to order

19/64 in - 11/32 in - 0.30in - 0.35in - 7.7mm - 8.8mm - 5/16 in (7.9mm) - CTL-7.7-W1 - CTL-5ST PAN - Yes - Black - Good - $0.06 504
21/64 in - 13/32 in - 0.33in - 0.41in - 8.5mm - 10.4mm - 5/16 in (7.9mm) - CTL-8.5-W1 - CTL-6ST PA - Yes - Black - Good - $0.07 4889
3/8 in - 29/64 in - 0.37in - 0.45in - 9.5mm - 11.4mm - 5/16 in (7.9mm) - CTL-9.5-W1 - CTL-6.5ST PA - Yes - Black - Good - $0.08 5154
13/32 in - 31/64 in - 0.41in - 0.48in - 10.3mm - 12.3mm - 5/16 in (7.9mm) - CTL-10.3-W1 - CTL-7ST PA - Yes - Black - Good - $0.09 87
29/64 in - 35/64 in - 0.46in - 0.54in - 11.7mm - 13.8mm - 5/16 in (7.9mm) - CTL-11.7-W1 - CTL-8ST PA - Yes - Black - Good - $0.09 2853
31/64 in - 37/64 in - 0.49in - 0.57in - 12.5mm - 14.5mm - 5/16 in (7.9mm) - CTL-12.5-W1 - CTL-8.5ST PA - Yes - Black - Good - $0.10 971
35/64 in - 21/32 in - 0.54in - 0.65in - 13.7mm - 16.5mm - 5/16 in (7.9mm) - CTL-13.7-W1 - CTL-9.5ST PA - Yes - Black - Good - $0.10 788
37/64 in - 43/64 in - 0.58in - 0.67in - 14.8mm - 17.0mm - 5/16 in (7.9mm) - CTL-14.8-W1 - CTL-10ST PA - Yes - Black - Good - $0.11 477
5/8 in - 23/32 in - 0.62in - 0.72in - 15.8mm - 18.4mm - 5/16 in (7.9mm) - CTL-15.8-W1 - CTL-10.5ST PA - Yes - Black - Good - $0.12 402
41/64 in - 53/64 in - 0.65in - 0.83in - 16.4mm - 21.0mm - 5/16 in (7.9mm) - CTL-16.4-W1 - CTL-12ST PA - Yes - Black - Good - $0.13 425
3/4 in - 29/32 in - 0.75in - 0.90in - 19.1mm - 22.9mm - 3/8 in (9.5mm) - CTL-19.1-W1 - CTL-13ST PA - Yes - Black - Good - $0.14 654
55/64 in - 1,1/32 in - 0.86in - 1.03in - 21.8mm - 26.2mm - 3/8 in (9.5mm) - CTL-21.8-W1 - CTL-15ST PA - Yes - Black - Good - $0.17 7675

Description

Rotor CTL Spring Band Clamps Light are self-tensioning sealing components, which ensure a leak-free sealing of hose/spigot joints. Utilizing austempered, high-tensile chrome-vanadium spring steel, the final product indicates great flexibility and strength, ensuring a reliable, leak-proof connection of a hose to a fitting. Once the Rotor Hose clamp is installed on the hose joint, there will not be any need to re-torque or re-adjust the clamp over time (compared to a typical screw type clamp).

Product Specification Sheet

Download

Specification

Manufactured By Rotor Clip
HCL P/N CTL-X-W1
Series CTL Light
Corrosion Resistance Good
Hose Clamp Width in/mm 5/16 in (8.0mm)3/8 in (9.0mm)
Band Material Hardened Steel
Finish Phosphate, Mechanical Zinc Plate
Colour Black
For use with Light Duty Hoses & Tubing
Country of Manufacture USA
Tariff Code 7326 90 92
Hazardous Goods No
RoHS Compliant Yes

Reliable & Cost-Effective: Rotor Clip Light Duty Spring Band Steel Hose Clamp / Clip - Black (7.7 26.2mm | 0.30-1.03 Inches)

Ensure a reliable and cost-effective seal for light-duty
applications with the Rotor Clip Light Duty Spring Band Steel Hose Clamp / Clip. Constructed with a durable steel band and a spring mechanism, this clamp automatically adjusts to maintain consistent pressure despite minor hose expansion and contraction. Featuring a black finish, it provides a secure connection across a compact size range of 7.7 to 26.2mm (0.30 to 1.03 Inches).

Why Choose the Rotor Clip Light Duty Spring Band Steel Hose Clamp / Clip?

Automatic Self-Adjustment: The spring mechanism compensates for minor hose expansion and contraction due to temperature changes, helping to maintain a consistent seal.

Cost-Effective Solution: Provides a reliable seal for less demanding applications at an economical price point.

Durable Steel Band: Offers good strength for light-duty clamping needs.

Compact Size Range: Covers diameters from 7.7 to 26.2mm (0.30 to 1.03 Inches), suitable for smaller hose and tubing applications.

Easy Installation: Designed for quick and straightforward slip-on installation without the need for specialized tools.

Maintains Seal: Helps prevent minor leaks due to thermal cycling in light-duty systems.

Trusted Rotor Clip Quality: Rotor Clip is a reputable manufacturer known for producing reliable fastening solutions.

Black Finish: Offers a discrete appearance in various applications.

Perfect For:

Small Engine Fuel Lines

Vacuum Lines

Low-Pressure Air Lines

Appliance Hoses

Irrigation Tubing

Other light-duty applications where a self-adjusting seal is beneficial

Experience Simple and Reliable Light-Duty Sealing:

The Rotor Clip Light Duty Spring Band Steel Hose Clamp / Clip offers a practical and efficient solution for securing hoses and tubing in less demanding applications. The spring action provides automatic adjustment to maintain a consistent seal, while the steel band offers sufficient strength for light-duty use. The black finish provides a clean look, and the simple slip-on installation makes it a convenient choice for various projects.

Key Features:

Material: Steel Band with a Black Finish (typically spring steel)

Type: Light Duty Constant Pressure Spring Clamp / Clip

Size Range: 7.7-26.2mm (0.30-1.03 Inches)

Automatic Self-Adjustment for a Consistent Seal

Cost-Effective Solution for Light-Duty Applications

Easy Slip-On Installation

Black Finish

For a reliable, cost-effective, and self-adjusting seal in
light-duty applications, choose the Rotor Clip Light Duty Spring Band Steel Hose Clamp / Clip. Order yours today for simple and effective hose connections!
