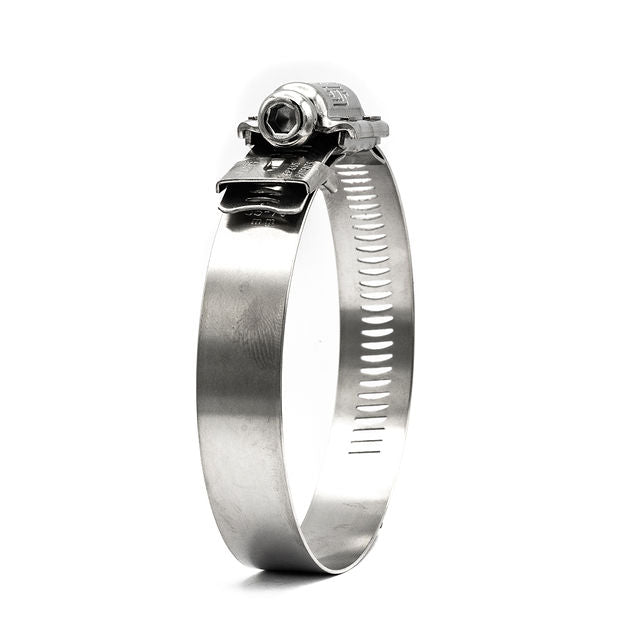

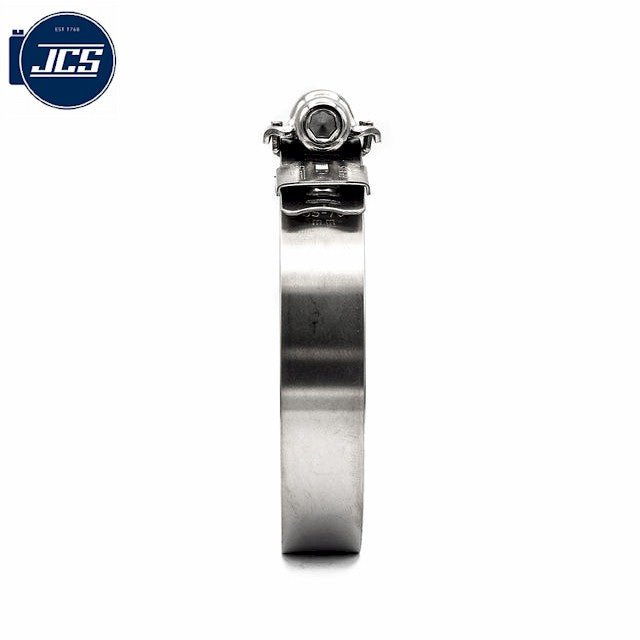

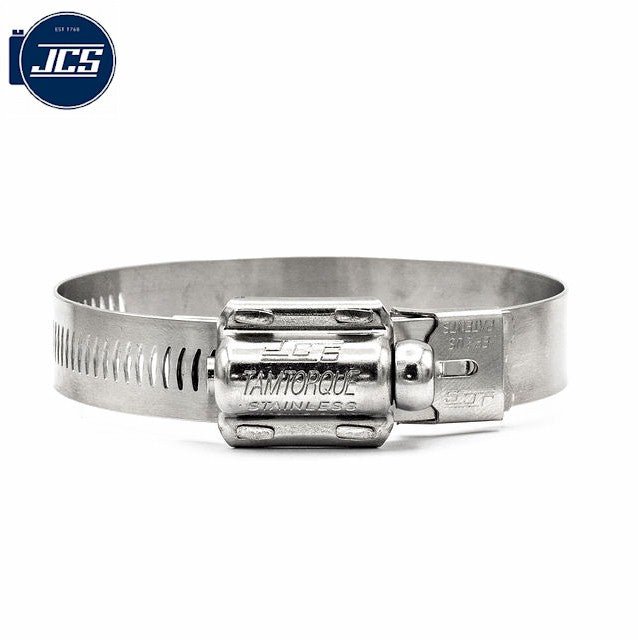

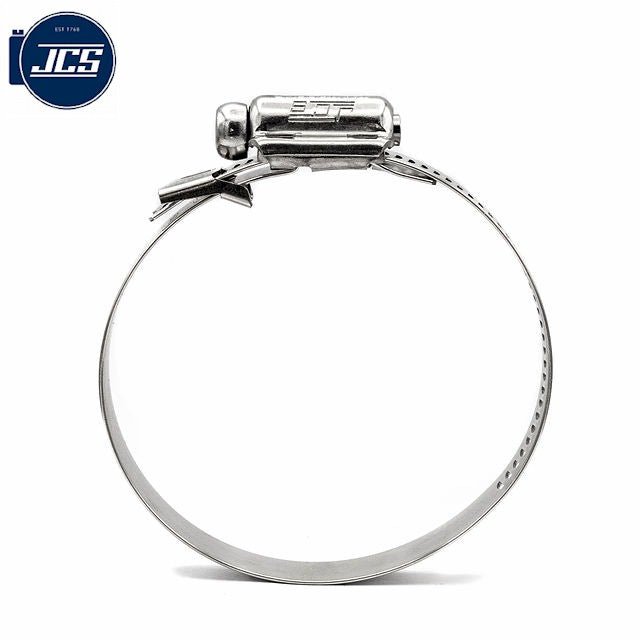

5/8" JCS Tamper Resistant Perforated Worm Gear Hose Clamp - 304 Stainless Steel

5/8" JCS Tamper Resistant Perforated Worm Gear Hose Clamp - 304 Stainless Steel

WD-TAMT-JCS-070

$7.93
$7.93
Sale Sold out
Shipping calculated at checkout.

752 in stock
  • Free standard shipping. Next day delivery available. Find out more
View full details

Need advice? Talk to our expert customer support team

Call

281 7171145
Monday-Friday 8am to 4pm

Email

sales@hcl-clamping.com
Scroll
Clamp Dia In (fr) ?

Clamp Dia In (fr): The clamp's internal diameter listed as a fractional measurement in inches (e.g., 1, 1/2 in.).
Clamp Dia In ?

Clamp Dia In: The minimum to maximum inner diameter (in.) the clamp can securely cover, defining its usable size range.
Clamp Dia mm ?

Clamp Dia mm: The required metric size for a secure fit, indicating the outer diameter (in mm) of the component the clamp is meant to hold.
Band Width ?

Band Width: The measurement of the clamp's band or strap, indicating its width (often in mm or inches) and how much surface area it covers.
HCL P/N ?

HCL/ PN: The unique identifying number assigned to a part by HCL
MFG P/N ?

MFG P/N: The unique identifying number assigned to a part by its manufacturer.
Corrosion Res ?

Corrosion Resistance: Refers to a material's ability to resist deterioration or damage caused by chemical reactions with its environment, such as rusting.
2D PDF ?

2D PDF: A standard document format containing two-dimensional drawings.
2D DXF ?

2D DXF: A standard file format for exchanging two-dimensional Computer-Aided Design (CAD) drawings between different software programs.
3D STP ?

3D STEP: A standard file format used to exchange three-dimensional product model data between different CAD software programs.
Price ?

Price: The cost per unit

Stock ?

Stock: available products that can be purchased

Order Qty ?

Order Quantity: The total amount of units you wish to order

2,3/16 in - 2,3/4 in - 2.17in - 2.76in - 55.0mm - 70.0mm - 5/8 in (16.0mm) - WD-TAMT-JCS-070 - TTK70P - Good - 2D PDF - 2D DXF - 3D STP - $7.93 752
2,3/4 in - 4in - 2.76in - 3.94in - 70.0mm - 100.0mm - 5/8 in (16.0mm) - WD-TAMT-JCS-100 - TTK100P - Good - 2D PDF - 2D DXF - 3D STP - $8.78 997
3,15/16 in - 5,1/8in - 3.94in - 5.12in - 100.0mm - 130.0mm - 5/8 in (16.0mm) - WD-TAMT-JCS-130 - TTK130P - Good - 2D PDF - 2D DXF - 3D STP - $9.35 78
5,1/8 in - 6,5/16in - 5.12in - 6.30in - 130.0mm - 160.0mm - 5/8 in (16.0mm) - WD-TAMT-JCS-160 - TTK160P - Good - 2D PDF - 2D DXF - 3D STP - $10.20 157
6,5/16 in - 7,1/2in - 5.12in - 7.48in - 130.0mm - 190.0mm - 5/8 in (16.0mm) - WD-TAMT-JCS-190 - TTK190P - Good - 2D PDF - 2D DXF - 3D STP - $10.77 58
7,1/2 in - 9,13/16in - 7.48in - 9.84in - 190.0mm - 250.0mm - 5/8 in (16.0mm) - WD-TAMT-JCS-250 - TTK250P - Good - 2D PDF - 2D DXF - 3D STP - $11.76 99
9,13/16 in - 13,3/8in - 9.84in - 13.39in - 250.0mm - 340.0mm - 5/8 in (16.0mm) - WD-TAMT-JCS-340 - TTK340P - Good - 2D PDF - 2D DXF - 3D STP - $13.74 501

Description

JCS's 5/8 inch wide Perforated Worm Gear Hose clamps are Tamper-resistant installation clamps for the secure and reliable fastening of all types of signage, street furniture and other mountable equipment to posts ranging from 55mm to 340mm in diameter. Manufactured from high strength stainless steel and with a hardened tamper-resistant screw featuring a unique recessed seven-sided socket. Typical applications include the securing of road signs, advertising displays, street furniture and electronic systems such as PA systems and CCTV cameras.

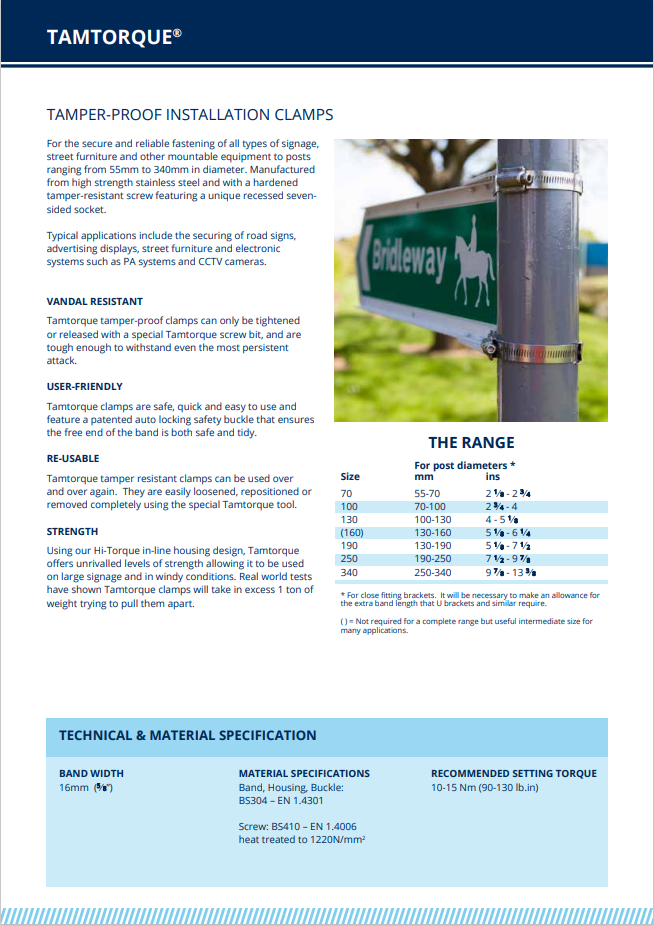

Product Specification Sheet

Download

Specification

Manufactured By JCS
HCL P/N WD-TAMT-JCS-X
Series JCS TamTorque
Corrosion Resistance Good
Hose Clamp Width in/mm 5/8 in (16.0mm)
Band/Housing Material 304 Stainless Steel
Band Style Perforated Band
Band Material 304 Stainless Steel
Bolt/Screw Type Tamper Resistant
Bolt/Screw Material 410 Stainless Steel
Finish Stainless steel
Colour Silver
Recommended Torque Nm 10--15 NM (90-130lb.in)
Country of Manufacture United Kingdom
Tariff Code 7326 90 92
Hazardous Goods No
RoHS Compliant Yes

Secure & Tamper-Proof: JCS Tamper Resistant Worm Gear Hose Clamp - 304 Stainless Steel, 5/8 Inch Wide (55.0-340.0mm)

Ensure secure and tamper-proof hose connections with the JCS Tamper Resistant Worm Gear Hose Clamp. Constructed from high-quality 304 stainless steel, this robust clamp offers exceptional corrosion resistance and durability. Its unique tamper-resistant screw design requires a specialized tool for tightening and loosening, providing an added layer of security. The wider 5/8 Inch band delivers superior clamping force across a substantial size range of 55.0mm to 340.0mm (2.17-13.38in), making it ideal for applications where unauthorized access or adjustments are a concern.

Why Choose the JCS Tamper Resistant Worm Gear Hose Clamp?

  • Tamper-Resistant Screw Design: Requires a specialized tool (sold separately) for
    tightening and loosening, preventing unauthorized adjustments or removal.

  • Premium 304 Stainless Steel: Offers excellent corrosion resistance for long-lasting performance in various environments, including marine and industrial.
  • Wide 5/8 Inch Band: Provides maximum clamping force and a larger contact area for a secure and reliable seal, especially on larger or more rigid hoses.
  • Extensive Size Range: Covers diameters from 55.0mm to 340.0mm (2.17-13.38in), suitable for a wide variety of large hose and ducting applications.
  • Robust Worm Gear Mechanism: Ensures reliable and powerful clamping action once properly tightened with the correct tool.
  • Durable and Long-Lasting: Built to withstand demanding conditions and provide enhanced security for critical connections.
  • Trusted JCS Quality: JCS is a reputable manufacturer known for producing high-performance and secure clamping solutions.

Perfect For:

  • Security Applications
  • Public Infrastructure
  • Industrial Equipment where unauthorized adjustments are a risk
  • Marine Applications where theft or tampering is a concern
  • Environmental Control Systems
  • Large Ducting and Ventilation Systems

Enhanced Security for Critical Connections:

The JCS Tamper Resistant Worm Gear Hose Clamp is specifically designed to provide a secure and reliable connection that cannot be easily tampered with. The unique screw head requires a specialized tool, deterring unauthorized adjustments or removal, making it ideal for applications where security is a priority. The high-quality 304 stainless steel construction ensures excellent resistance to corrosion, while the wider 5/8 Inch band
delivers the necessary clamping force for larger diameter hoses and demanding applications. This clamp provides peace of mind knowing your connections are
secure and protected.

Key Features:

  • Material: 304 Stainless Steel
  • Screw Type: Tamper Resistant (Specialized tool required - sold separately)
  • Bandwidth: 5/8 Inch
  • Size Range: 55.0mm-340.0mm (2.17-13.38in)
  • Type: Worm Gear Hose Clamp
  • Enhanced Security with Tamper-Resistant Screw
  • Superior Corrosion Resistance (304 Stainless Steel)

For secure and tamper-proof hose connections in critical applications, choose the JCS Tamper Resistant Worm Gear Hose Clamp. Ensure the integrity of your systems – order yours today (specialized tool sold separately).
