HCL Snap Fit Herbie Clip Polymer Hose Clamp - Natural PA66 Nylon Snapper Style

HCL Snap Fit Herbie Clip Polymer Hose Clamp - Natural PA66 Nylon Snapper Style

HC-A-PA66-N

$0.46
$0.46
Sale Sold out
Shipping calculated at checkout.

13773 in stock
  • Free standard shipping. Next day delivery available. Find out more
View full details

Need advice? Talk to our expert customer support team

Call

281 7171145
Monday-Friday 8am to 4pm

Email

sales@hcl-clamping.com
Scroll
Clamp Dia In (fr) ?

Clamp Dia In (fr): The clamp's internal diameter listed as a fractional measurement in inches (e.g., 1, 1/2 in.).
Clamp Dia In ?

Clamp Dia In: The minimum to maximum inner diameter (in.) the clamp can securely cover, defining its usable size range.
Clamp Dia mm ?

Clamp Dia mm: The required metric size for a secure fit, indicating the outer diameter (in mm) of the component the clamp is meant to hold.
Band Width ?

Band Width: The measurement of the clamp's band or strap, indicating its width (often in mm or inches) and how much surface area it covers.
Colour
HCL P/N ?

HCL/ PN: The unique identifying number assigned to a part by HCL
Material ?

Material: The core substance used to manufacture the product (e.g., steel, plastic, rubber). Affects durability and performance.
Corrosion Res ?

Corrosion Resistance: Refers to a material's ability to resist deterioration or damage caused by chemical reactions with its environment, such as rusting.
Reusable ?

Reusable: Yes / No response If product can or cant be reused.

Price ?

Price: The cost per unit

Stock ?

Stock: available products that can be purchased

Order Qty ?

Order Quantity: The total amount of units you wish to order

7/32 in - 1/4 in - 0.21in - 0.25in - 5.4mm - 6.3mm - 5/32 in (4.0mm) - Natural - HC-A-PA66-N - PA66 - Excellent - Yes - $0.46 13773
1/4 in - 11/32 in - 0.25in - 0.34in - 6.4mm - 8.7mm - 3/16 in (5.0mm) - Natural - HC-A-PA66-N - PA66 - Excellent - Yes - $0.48 6152
5/16 in - 23/64 in - 0.31in - 0.36in - 8.0mm - 9.2mm - 3/16 in (4.5mm) - Natural - HC-B-PA66-N - PA66 - Excellent - Yes - $0.51 16377
23/64 in - 13/32 in - 0.36in - 0.41in - 9.1mm - 10.5mm - 3/16 in (4.4mm) - Natural - HC-BB-PA66-N - PA66 - Excellent - Yes - $0.53 4965
13/32 in - 15/32 in - 0.41in - 0.47in - 10.3mm - 12.0mm - 1/4 in (5.9mm) - Natural - HC-C-PA66-N - PA66 - Excellent - Yes - $0.55 87400
7/16 in - 17/32 in - 0.44in - 0.53in - 11.3mm - 13.4mm - 1/4 in (6.3mm) - Natural - HC-CC-PA66-N - PA66 - Excellent - Yes - $0.57 1850
31/64 in - 9/16 in - 0.48in - 0.56in - 12.3mm - 14.2mm - 1/4 in (5.9mm) - Natural - HC-D-PA66-N - PA66 - Excellent - Yes - $0.59 43160
35/64 in - 39/64 in - 0.54in - 0.60in - 13.8mm - 15.3mm - 5/16 in (7.3mm) - Natural - HC-E-PA66-N - PA66 - Excellent - Yes - $0.62 12748
19/32 in - 11/16 in - 0.59in - 0.69in - 14.9mm - 17.4mm - 5/16 in (7.2mm) - Natural - HC-F-PA66-N - PA66 - Excellent - Yes - $0.64 2570
43/64 in - 49/64 in - 0.67in - 0.76in - 17.0mm - 19.4mm - 5/16 in (7.0mm) - Natural - HC-G-PA66-N - PA66 - Excellent - Yes - $0.66 40731
23/32 in - 53/64 in - 0.72in - 0.83in - 18.2mm - 21.0mm - 5/16 in (7.2mm) - Natural - HC-H-PA66-N - PA66 - Excellent - Yes - $0.70 6682
13/16 in - 15/16 in - 0.81in - 0.93in - 20.7mm - 23.7mm - 1/4 in (6.4mm) - Natural - HC-J-PA66-N - PA66 - Excellent - Yes - $0.75 11278
7/8 in - 63/64 in - 0.88in - 0.99in - 22.3mm - 25.2mm - 5/16 in (7.2mm) - Natural - HC-K-PA66-N - PA66 - Excellent - Yes - $0.77 2334
63/64 in - 1,7/64 in - 0.99in - 1.11in - 25.1mm - 28.2mm - 5/16 in (7.2mm) - Natural - HC-L-PA66-N - PA66 - Excellent - Yes - $0.79 5002
1,3/64 in - 1,11/64 in - 1.04in - 1.18in - 26.4mm - 29.9mm - 5/16 in (8.0mm) - Natural - HC-M-PA66-N - PA66 - Excellent - Yes - $0.81 5109
1,5/32 in - 1,9/32 in - 1.16in - 1.29in - 29.4mm - 32.7mm - 3/8 in (9.1mm) - Natural - HC-N-PA66-N - PA66 - Excellent - Yes - $0.88 1532
1,17/64 in - 1,25/64 in - 1.27in - 1.39in - 32.3mm - 35.3mm - 3/8 in (9.3mm) - Natural - HC-P-PA66-N - PA66 - Excellent - Yes - $0.92 400
1,25/64 in - 1,17/32 in - 1.39in - 1.52in - 35.2mm - 38.7mm - 3/8 in (9.0mm) - Natural - HC-Q-PA66-N - PA66 - Excellent - Yes - $1.01 1374
1,15/32 in - 1,39/64 in - 1.47in - 1.61in - 37.4mm - 40.9mm - 3/8 in (9.3mm) - Natural - HC-R-PA66-N - PA66 - Excellent - Yes - $1.06 1985
1,39/64 in - 1,3/4 in - 1.60in - 1.74in - 40.7mm - 44.3mm - 3/8 in (9.1mm) - Natural - HC-S-PA66-N - PA66 - Excellent - Yes - $1.08 1692
1,45/64 in - 1,55/64 in - 1.70in - 1.86in - 43.3mm - 47.2mm - 3/8 in (8.9mm) - Natural - HC-T-PA66-N - PA66 - Excellent - Yes - $1.12 1132
1,53/64 in - 1,31/32 in - 1.82in - 1.98in - 46.3mm - 50.2mm - 3/8 in (8.9mm) - Natural - HC-U-PA66-N - PA66 - Excellent - Yes - $1.17 1206
1,15/16 in - 2,7/64 in - 1.94in - 2.11in - 49.2mm - 53.6mm - 3/8 in (9.1mm) - Natural - HC-V-PA66-N - PA66 - Excellent - Yes - $1.19 1403
2,5/64 in - 2,7/32 in - 2.07in - 2.22in - 52.7mm - 56.4mm - 3/8 in (8.8mm) - Natural - HC-W-PA66-N - PA66 - Excellent - Yes - $1.21 852
2,5/32 in - 2,11/32 in - 2.16in - 2.34in - 54.8mm - 59.4mm - 3/8 in (9.3mm) - Natural - HC-X-PA66-N - PA66 - Excellent - Yes - $1.23 2171
2,21/64 in - 2,35/64in - 2.33in - 2.54in - 59.3mm - 64.5mm - 3/8 in (9.1mm) - Natural - HC-59-PA66-N - PA66 - Excellent - Yes - $1.28 500
2,1/2 in - 2,5/8in - 2.50in - 2.63in - 63.5mm - 66.7mm - 3/8 in (9.1mm) - Natural - HC-64-PA66-N - PA66 - Excellent - Yes - $1.47 1237
2,9/16-2,49/64in - 2.57in - 2.77in - 65.2mm - 70.3mm - 3/8 in (9.4mm) - Natural - HC-66-534B-PA66 - PA66 - Excellent - Yes - $1.51 1331
2,49/64 in - 2,31/32 in - 2.77in - 2.97in - 70.4mm - 75.5mm - 3/8 in (9.4mm) - Natural - HC-70-PA66-N - PA66 - Excellent - Yes - $1.69 351
2,59/64 in - 3,5/32 in - 2.92in - 3.15in - 74.2mm - 80.0mm - 3/8 in (9.3mm) - Natural - HC-75-PA66-N - PA66 - Excellent - Yes - $1.80 1314
3,5/32 in - 3,21/64 in - 3.15in - 3.32in - 79.9mm - 84.4mm - 3/8 in (9.0mm) - Natural - HC-80-PA66-N - PA66 - Excellent - Yes - $2.00 1037
3,11/32 in - 3,17/32 in - 3.34in - 3.54in - 84.8mm - 89.8mm - 3/8 in (8.9mm) - Natural - HC-85-PA66-N - PA66 - Excellent - Yes - $2.20 729
3,29/64 in - 3,23/32 in - 3.46in - 3.72in - 87.8mm - 94.6mm - 3/8 in (9.5mm) - Natural - HC-91-PA66-N - PA66 - Excellent - Yes - $2.33 934
3,49/64 in - 4 in - 3.76in - 4.00in - 95.5mm - 101.6mm - 5/16 in (8.5mm) - Natural - HC-96-PA66-N - PA66 - Excellent - Yes - $2.44 710
4,7/64 in - 4,11/32 in - 4.11in - 4.35in - 104.3mm - 110.4mm - 5/16 in (8.6mm) - Natural - HC-105-PA66-N - PA66 - Excellent - Yes - $2.71 1062
4,13/64 in - 4,31/64 in - 4.21in - 4.49in - 106.9mm - 114.0mm - 3/8 in (9.0mm) - Natural - HC-109-PA66-N - PA66 - Excellent - Yes - $2.75 483
4,31/64 in - 4,51-64 in - 4.49in - 4.80in - 114.0mm - 121.9mm - 3/8 in (9.4mm) - Natural - HC-115-PA66-N - PA66 - Excellent - Yes - $2.79 81
6,25/64 in - 6,43/64 in - 6.39in - 6.67in - 162.2mm - 169.3mm - 3/8 in (9.9mm) - Natural - HC-163-PA66-NAT - PA66 - Excellent - Yes - $3.39 174

Description

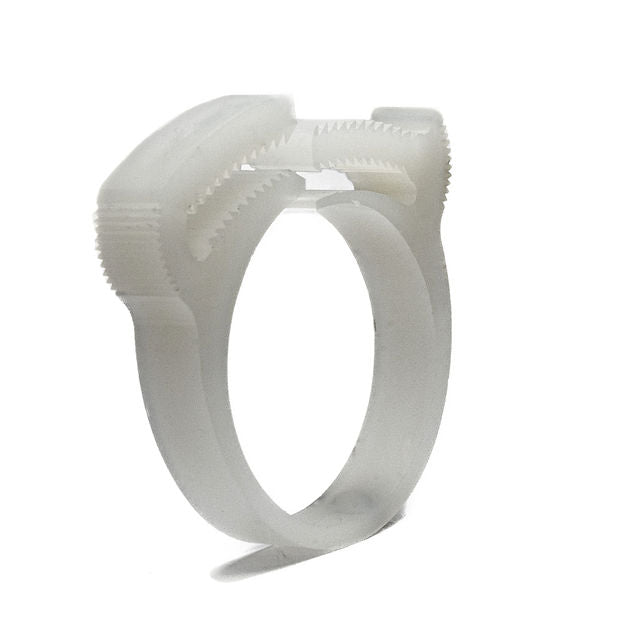

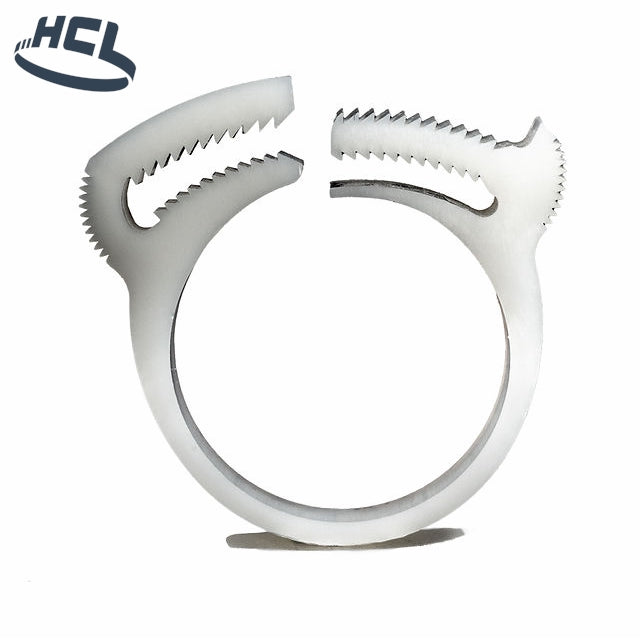

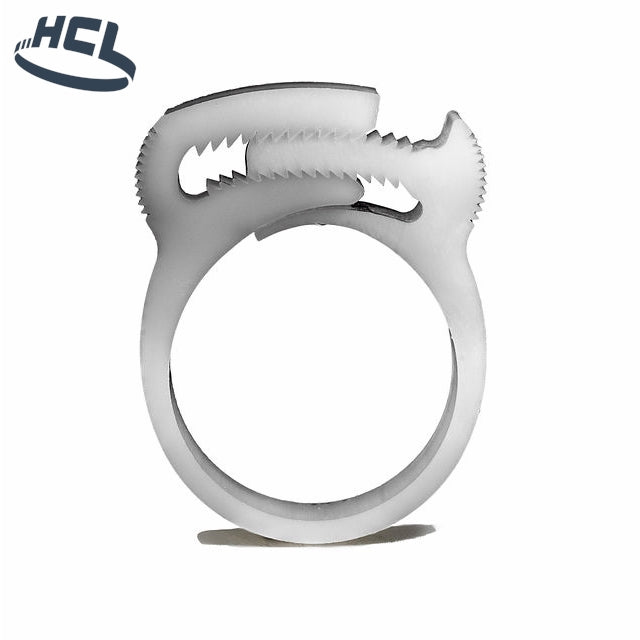

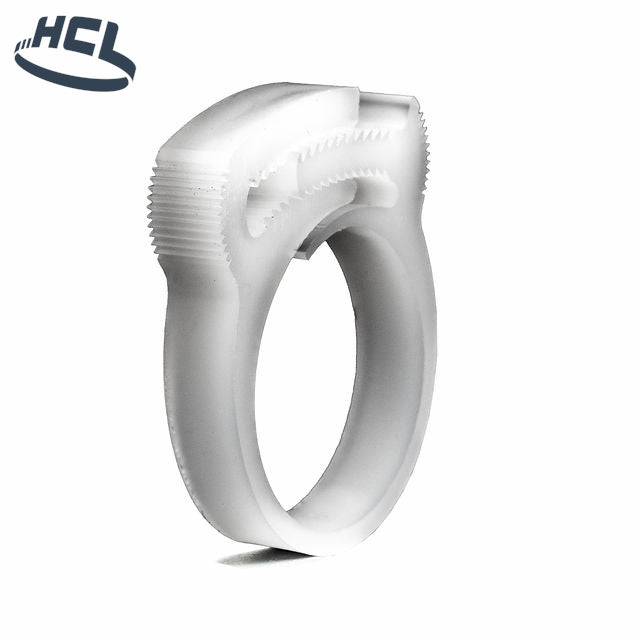

Designed and manufactured by HCL to the highest quality the Natural Herbie Clip is the original double grip plastic hose clamp. It offers exceptional strength due to it’s unique double row of interlocking toothed jaws which offer over twice the clamping forces achieved by similar toothed products. The Herbie Clip is a high-quality hose clamp made from a Natural Nylon 6.6 and offers the largest range of Snap Fit Style Hose Clamps with 38 sizes ranging from 5.6mm to 169mm diameter. The clamp is highly versatile and lends itself to a wide variety of applications meaning that Herbie Clips can be found in Agricultural Machinery, Automotive Engines, White Goods and many other applications.

Product Specification Sheet

Download
Download

Specification

Manufactured By HCL
HCL P/N HC-X-PA66-N
Series Herbie Clip
Corrosion Resistance Excellent
Hose Clamp Width in/mm 5/32 in (4.0mm)3/16 in (5.0mm)1/4 in (7.0mm)5/16 in (8.0mm)3/8 in (9.0mm)
Band Material Nylon 6.6 (PA66)
Max long Term Operating Temp 255°F - 125°C
Max Peak Operating Temp 340°F - 170°C
Flammability UL 94 V-2
Weathering & UV Fair
Chemical Resistance Very Good
Colour Natural
Country of Manufacture United Kingdom
Tariff Code 3917 40 00 99
Hazardous Goods No
RoHS Compliant Yes

Rapid & Corrosion-Proof: HCL Snap Fit Herbie Clip
Polymer Hose Clamp - Natural PA66 Nylon (5.4-169.3mm | 0.21-6.66 Inches)

Experience incredibly fast, tool-free installation and
exceptional corrosion resistance with the HCL Snap Fit Herbie Clip Polymer Hose Clamp. Constructed from durable natural (off-white) PA66 Nylon, this non-metallic clamp offers a lightweight yet robust solution for a wide range of applications where traditional metal clamps may corrode or cause damage. The unique snap-fit design allows for rapid, one-handed installation and removal across a versatile size range of 5.4 to 169.3mm (0.21 to 6.66 Inches).

Why Choose the HCL Snap Fit Herbie Clip Polymer Hose Clamp?

  • Ultra-Fast Snap-Fit Installation: Simply push to engage and squeeze to release –
    no tools required for quick and easy application.
  • Complete Non-Metallic PA66 Nylon Construction: Eliminates corrosion, rust, and electrolysis concerns, ideal for marine, chemical, and electrical applications.
  • Lightweight and Strong Polymer: Offers excellent strength and resilience without adding significant weight.
  • Self-Locking Design: Ensures a secure and reliable hold once engaged.
  • Wide Size Range: Accommodates hose and tube diameters from 5.4 to 169.3mm (0.21 to 6.66 Inches).
  • Non-Conductive Material: Provides electrical insulation, making it suitable for wiring and electrical applications.
  • Resistant to Many Chemicals: Offers good resistance to oils, fuels, and various chemicals.
  • Trusted HCL Quality: HCL is a reputable manufacturer known for producing high-performance fastening solutions.
  • Natural PA66 Nylon: Offers the inherent benefits of PA66 Nylon in its natural, unpigmented form.

Perfect For:

  • Automotive Fuel and Vacuum Lines
  • Marine Plumbing and Electrical Wiring
  • Appliance Assembly
  • Agricultural Equipment
  • Irrigation Systems
  • Low-Pressure Fluid and Air Lines
  • Electrical Cable Management
  • Applications where a natural-coloured, non-metallic clamp is preferred

Enjoy Effortless, Corrosion-Free Connections:

The HCL Snap Fit Herbie Clip Polymer Hose Clamp offers the ultimate in convenience and corrosion resistance. Its innovative snap-fit design allows for incredibly fast, tool-free installation, saving valuable time during assembly or maintenance. The PA66 Nylon construction ensures complete immunity to rust, corrosion, and electrolysis, making it ideal for demanding environments. This lightweight yet strong clamp provides a secure and reliable hold for a wide range of hose and tube sizes. The natural colour offers a neutral aesthetic for various applications.

Key Features:

  • Material: Natural PA66 Nylon Polymer
  • Type: Snap Fit (Quick Release) Hose Clamp
  • Size Range: 5.4-169.3mm (0.21-6.66 Inches)
  • 100% Non-Metallic and Corrosion-Proof
  • Ultra-Fast, Install with Manual Pliers or HCL's High Speed Pnuematic Air Tools
  • Lightweight and Strong
  • Electrically Insulating
  • Natural (Off-White) Colour

For the ultimate in rapid, corrosion-free hose and tube
connections with a natural finish, choose the HCL Snap Fit Herbie Clip Polymer Hose Clamp. Browse our selection and experience the ease and reliability of
Herbie Clips today!
